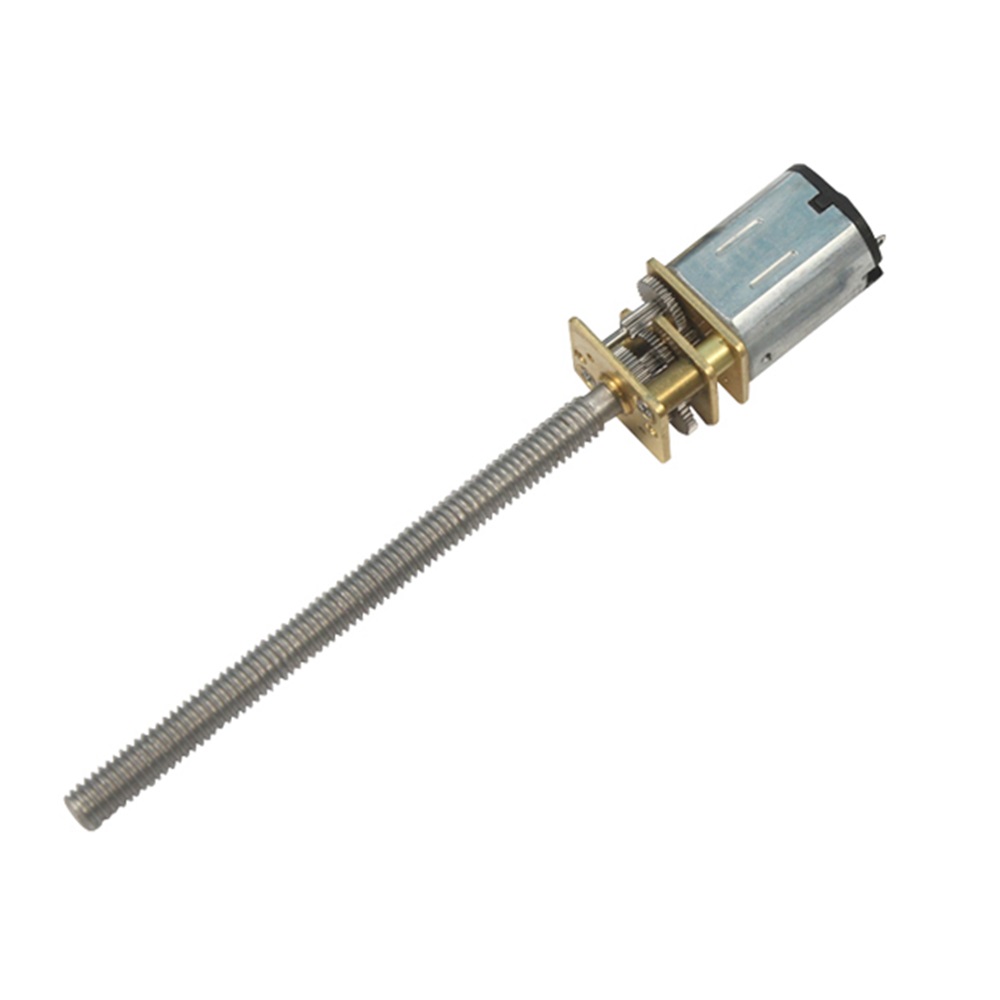

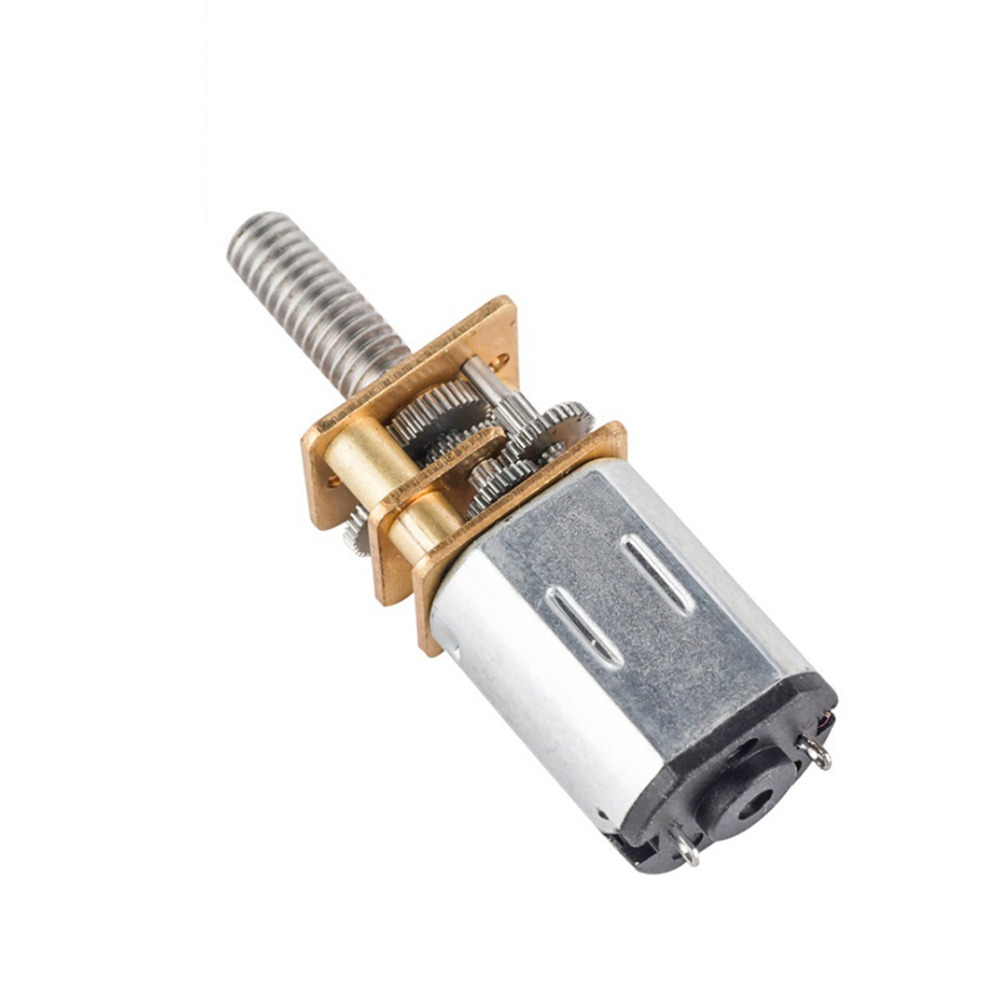

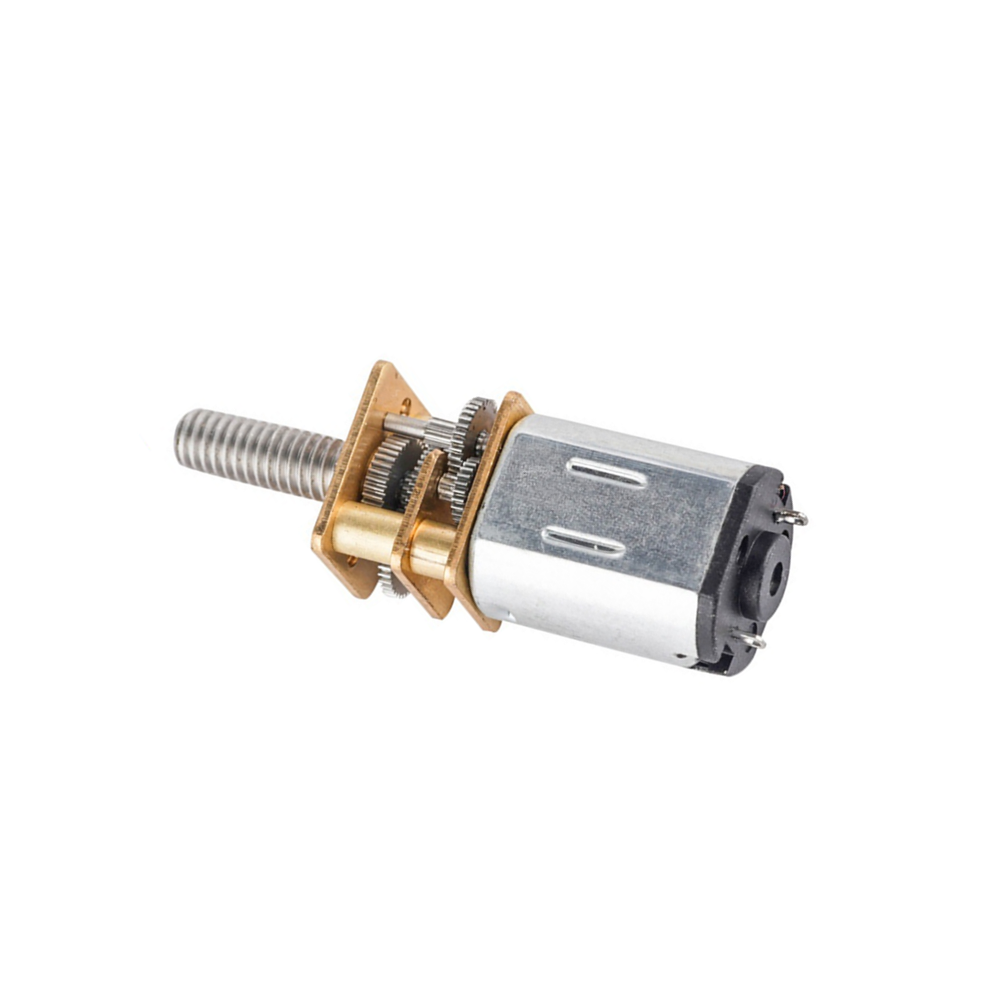

dc 3v 5v 6v 12v 24v n20 n30 M3 M4 12mm gear motor with lead screw shaft
dc 3v 5v 6v 12v 24v n20 n30 M3 M4 12mm gear motor with lead screw shaft
dc 3v 5v 6v 12v 24v n20 n30 M3 M4 12mm gear motor with lead screw shaft
dc 3v 5v 6v 12v 24v n20 n30 M3 M4 12mm gear motor with lead screw shaft
dc 3v 5v 6v 12v 24v n20 n30 M3 M4 12mm gear motor with lead screw shaft
1 / 5
dc 3v 5v 6v 12v 24v n20 n30 M3 M4 12mm gear motor with lead screw shaft
dc 3v 5v 6v 12v 24v n20 n30 M3 M4 12mm gear motor with lead screw shaft
dc 3v 5v 6v 12v 24v n20 n30 M3 M4 12mm gear motor with lead screw shaft
dc 3v 5v 6v 12v 24v n20 n30 M3 M4 12mm gear motor with lead screw shaft
dc 3v 5v 6v 12v 24v n20 n30 M3 M4 12mm gear motor with lead screw shaft

dc 3v 5v 6v 12v 24v n20 n30 M3 M4 12mm gear motor with lead screw shaft

Send Inquiry

Product Description

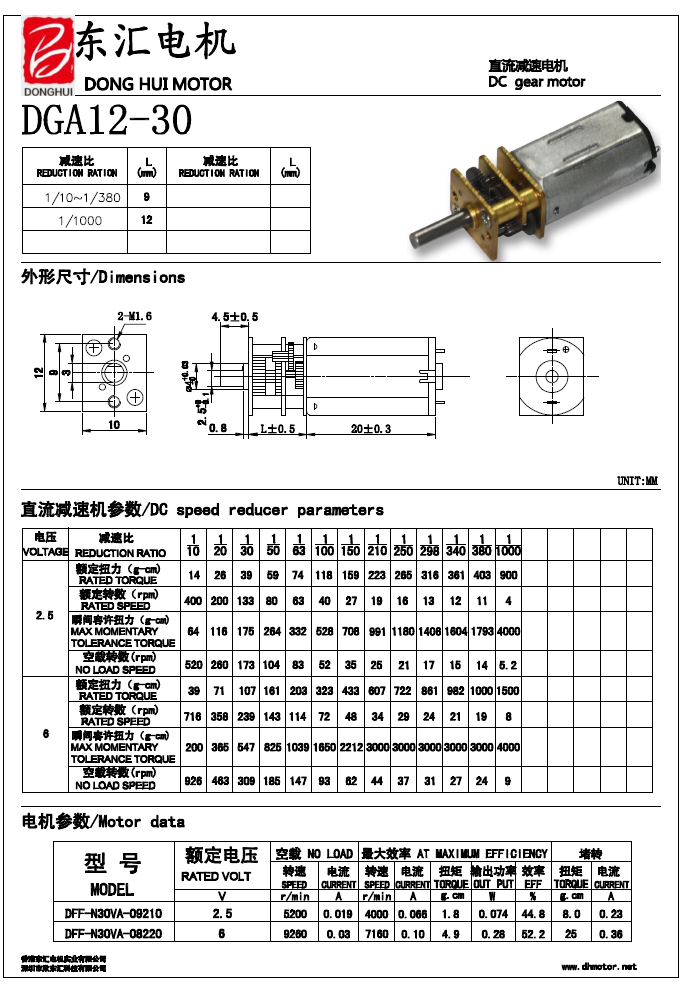

Specification

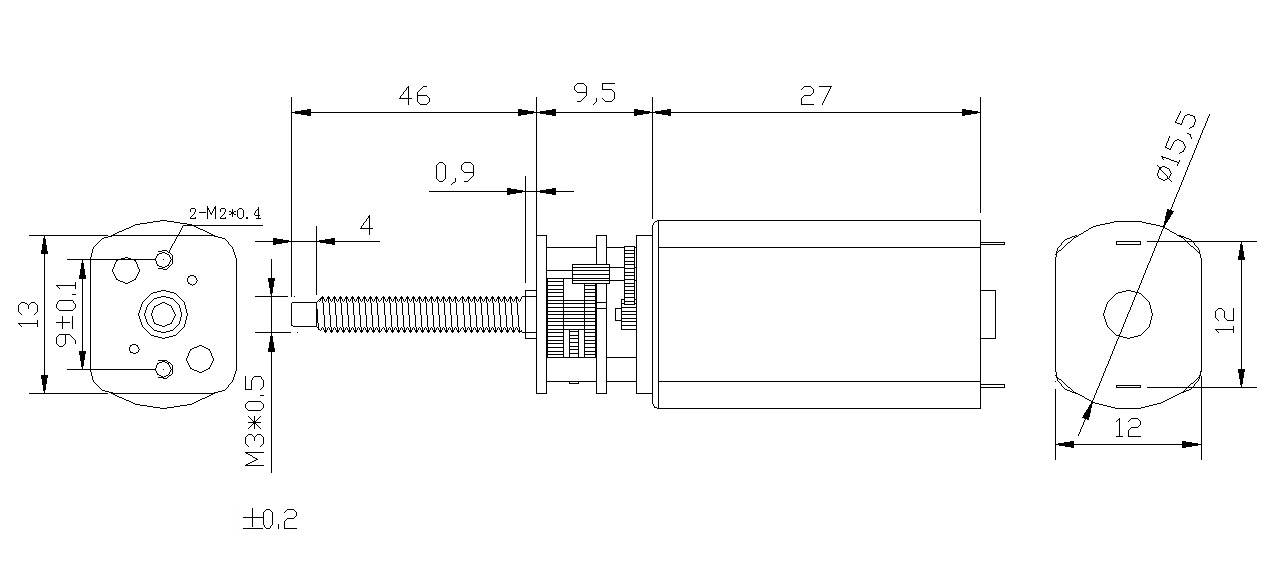

Item12mm gear motor with screw shaft

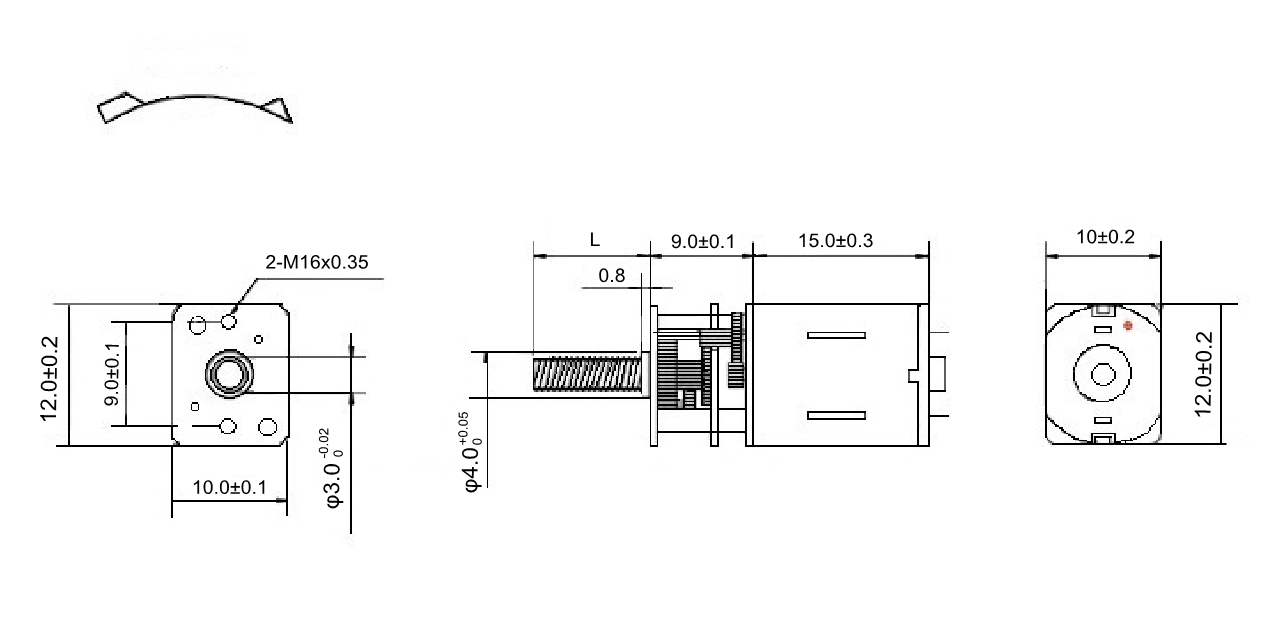

SizeD10mm*12mm*L15mm+Gearbox Length
Voltage1.5V-24V
Screw TypeM3/M4，length≤55mm
Unload Speed10-1000rpm
Rated Torque≤1000g.cm
Max Torque≤3500g.cm
Wattage0.2-0.8watt
ApplicationRobot, Lock, toys, electric power tool
Product Description
⚙
Motor's voltage, speed, ratio, torque, screw length, and shaft length can be fully customized.
Rated Products

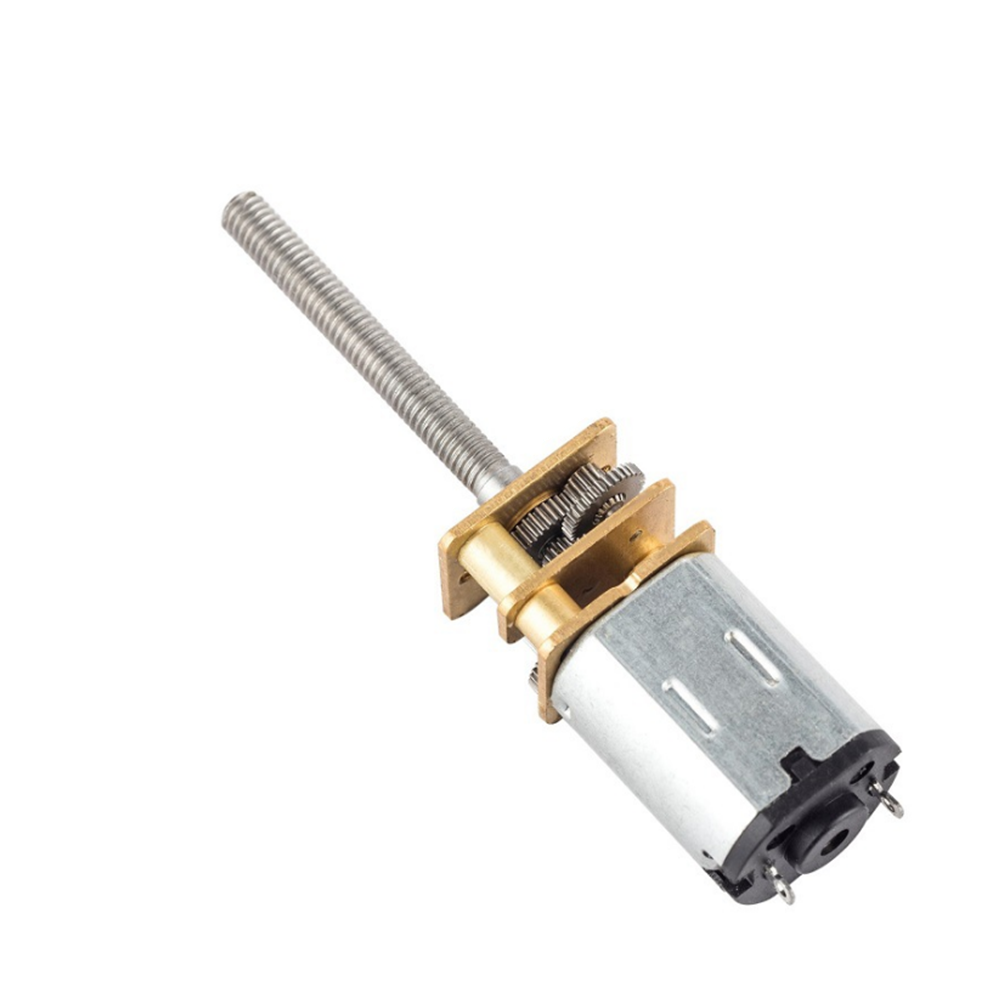

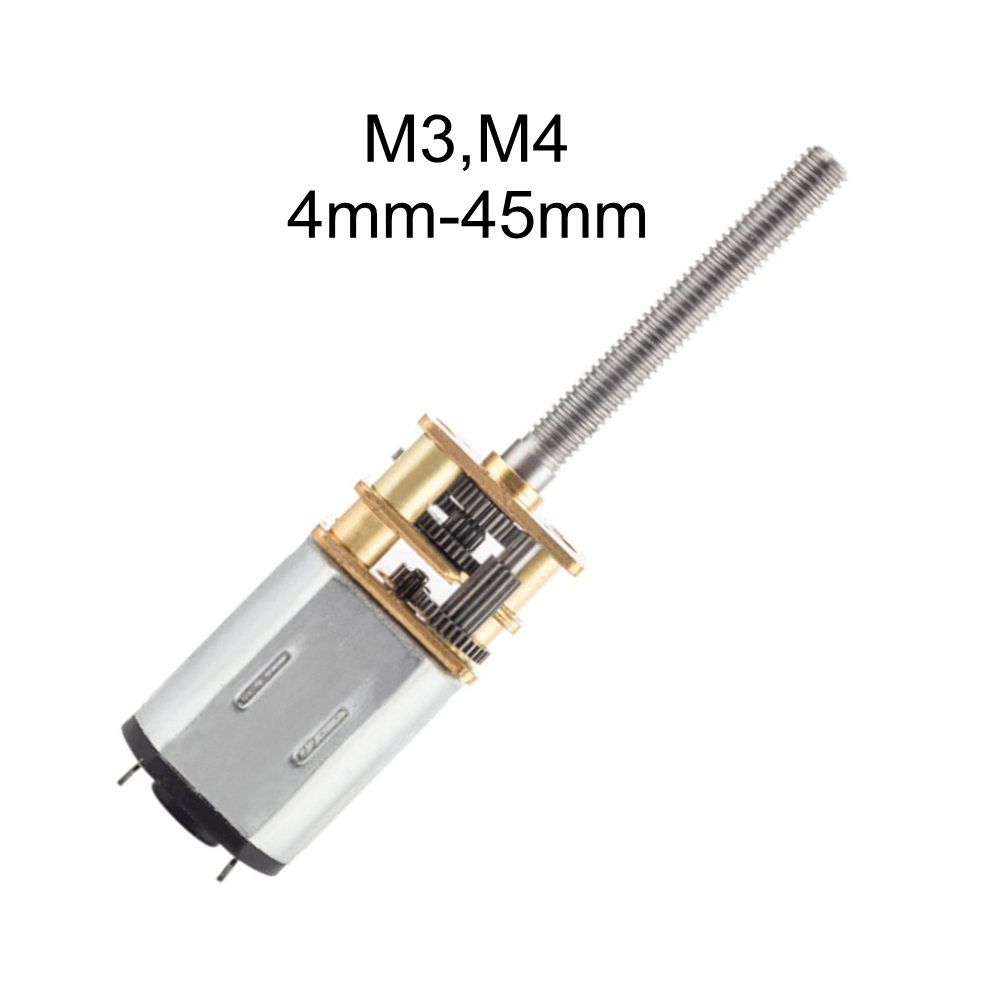

With M3 / M4 screw shaft
Length: 10mm ~ 45mm
For 3D Pen Printer

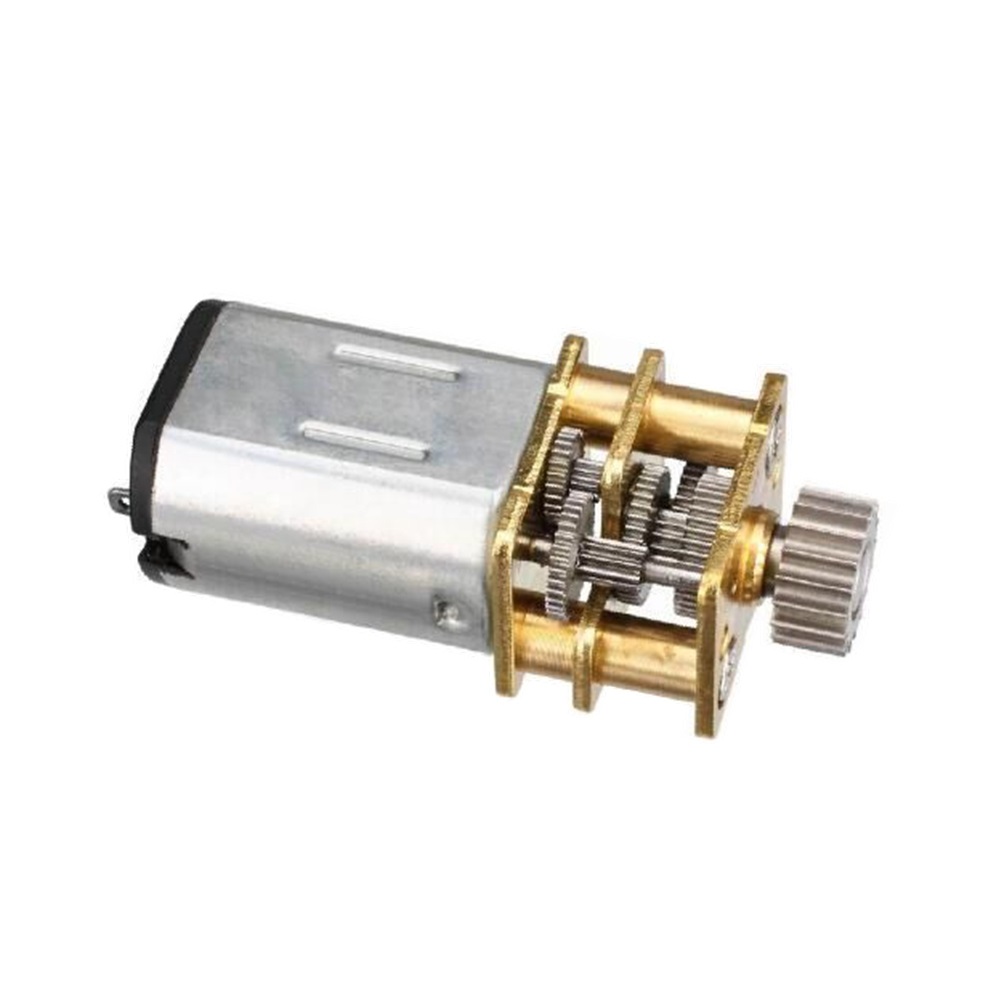

Wheel size customized

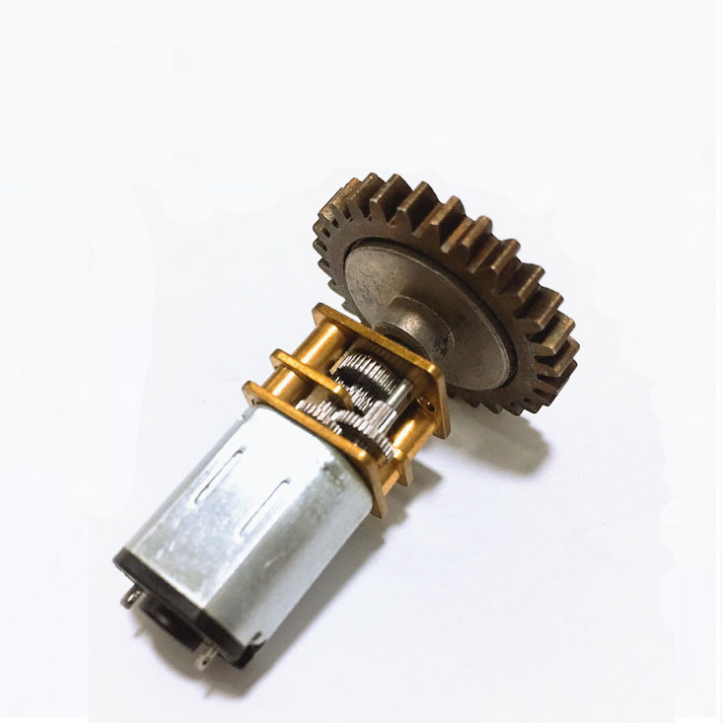

Big metal gear wheel for Door lock

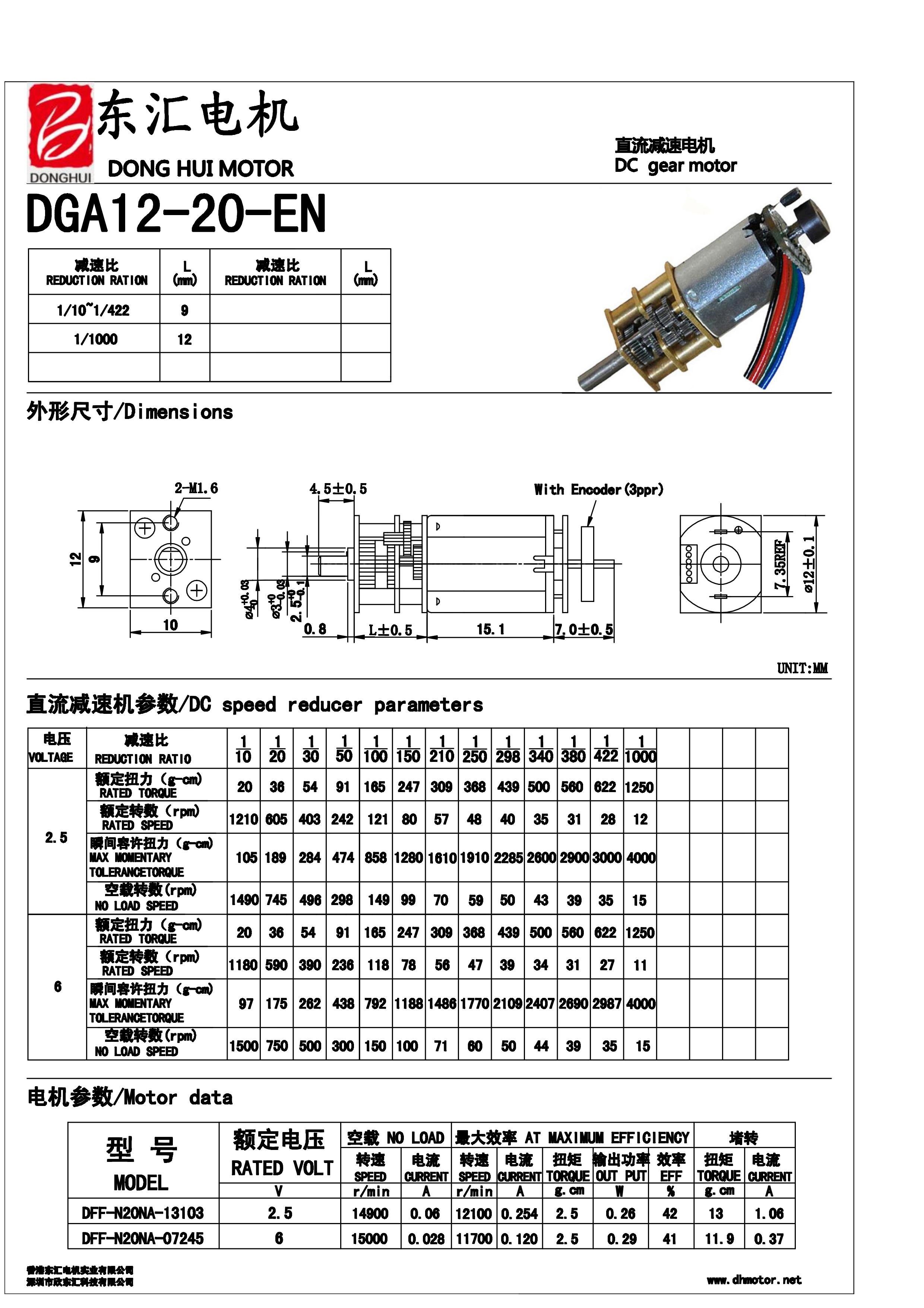

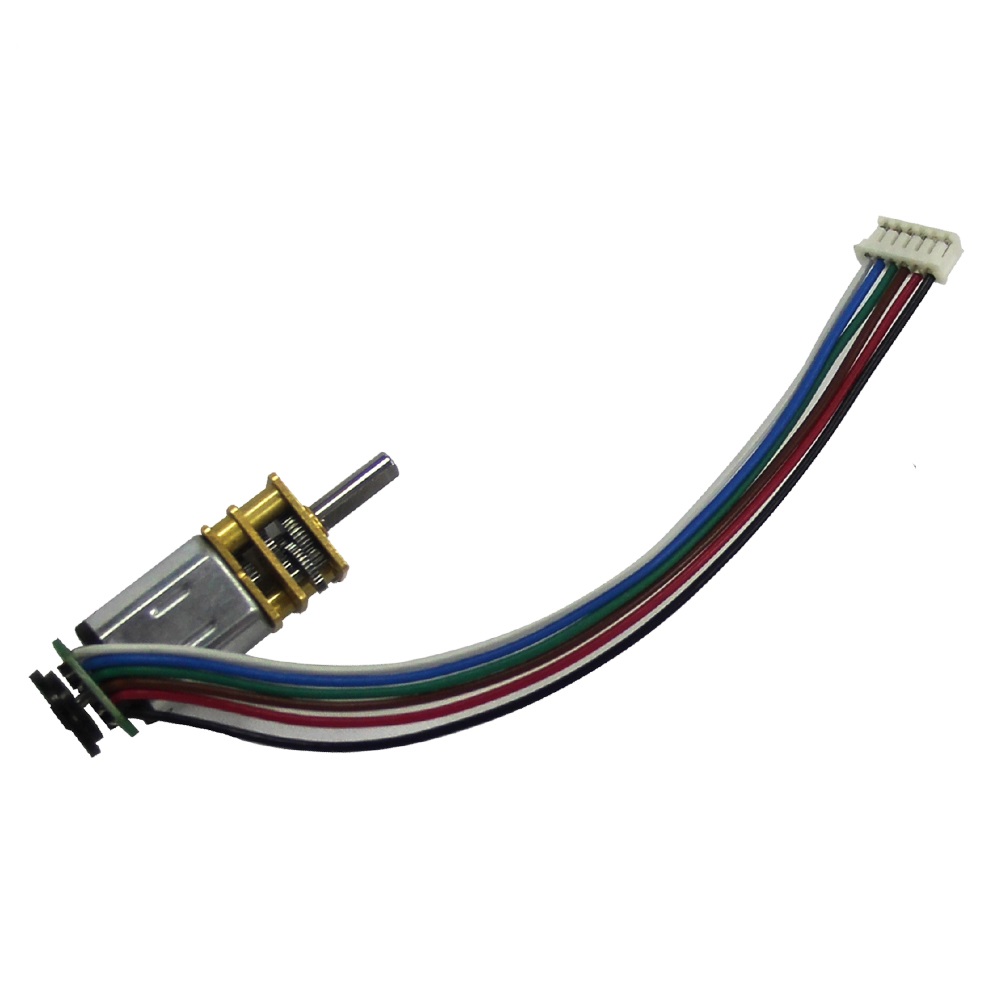

With Encoder for precise instrument

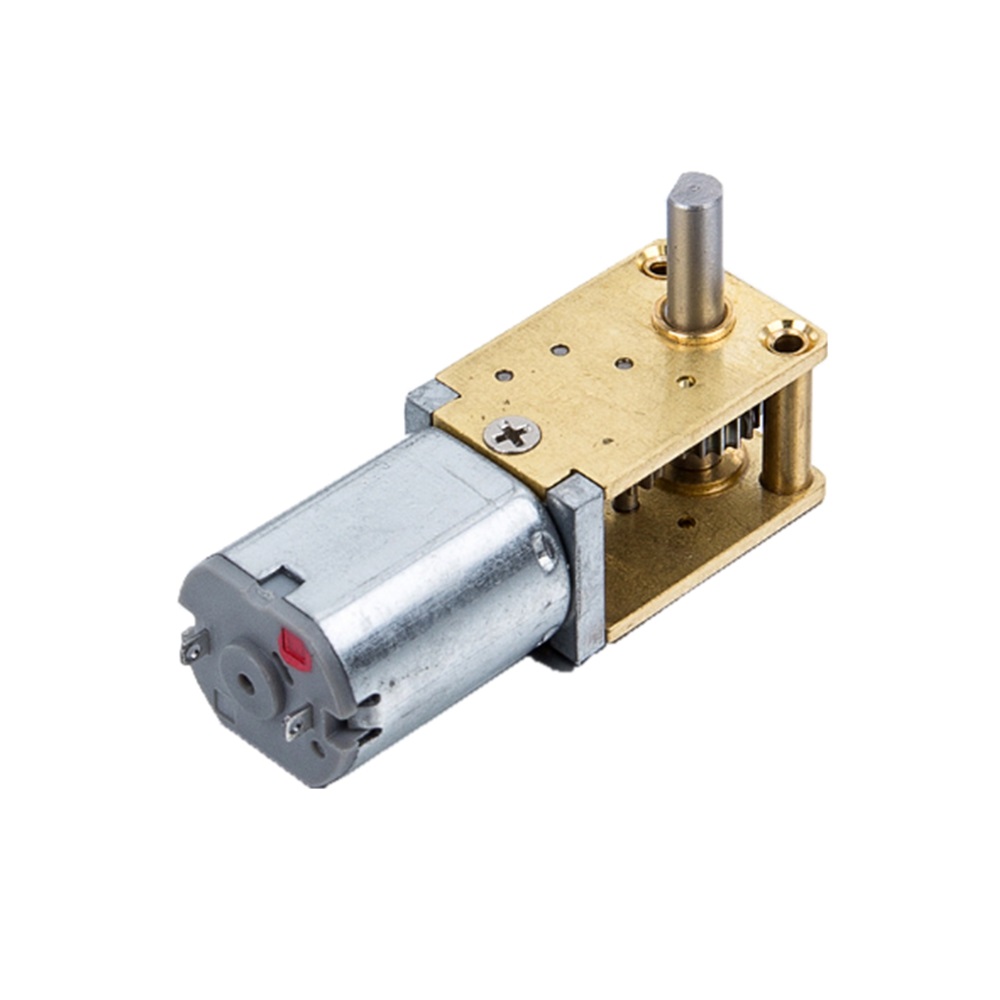

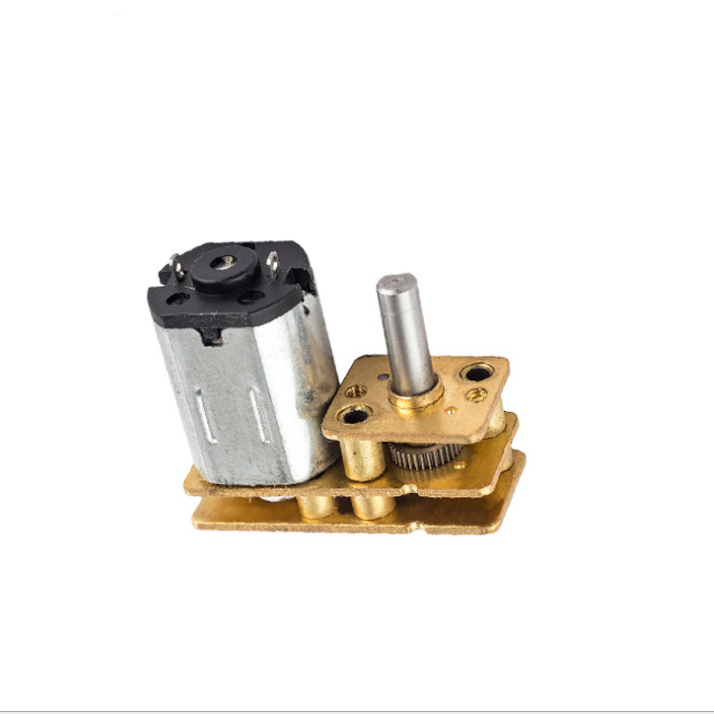

Right Angle for Robot and lock
Back output shaft U type for toys
Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Professional micro motor manufacturer for 10 years.

Brush Dc Motor: Φ6mm—Φ60mm
Brushless Dc Motor: Φ12mm-Φ42mm
Coreless Brush/Brushless DC Motor: Φ4mm—Φ45mm
Gear/Planetary Gear Dc Motor: Φ4mm—Φ60mm
Stepper Dc Motor: Φ6mm—Φ24mm
Vibration Dc Motor: Φ4mm—Φ45mm
Motor Voltage Range: DC1.5V-220V, AC 110V/220/230/240V
Speed Range: 0.1-80,000RPM
Output Torque: 0.01-500Kg.cm
Shaft Length: 0.1-150mm
Gearbox Ratio: 1:4---1:5000
FAQ
Question 1: What's your main products?
Answer: Diameter 4~60 mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
Question 2: What's the main usage of the micro dc gear motor?
Answer: Our motor widely used in Home Appliance, Office Equipment, Health-care appliance, Sanitation industry, High-class toy, Banking System, Electronic and electrical tools, automation industry, bank equipment, payment equipment, vending machines, power door lock, electric door lock.
Question 3: Do you accept customize?
Answer: Sure, as we have a strong design team, any problems will get our technical answer.
Question 4: What kind of data do I need to provide if I want to order?
Answer: Please kindly tell us your voltage, speed, torque and overall dimension.
Question 5: What if I don't know the above data?
Answer: Please contact our salesman, tell us your requirement, we will recommend the best fit model.
Please feel free contact us talk any motor question!
