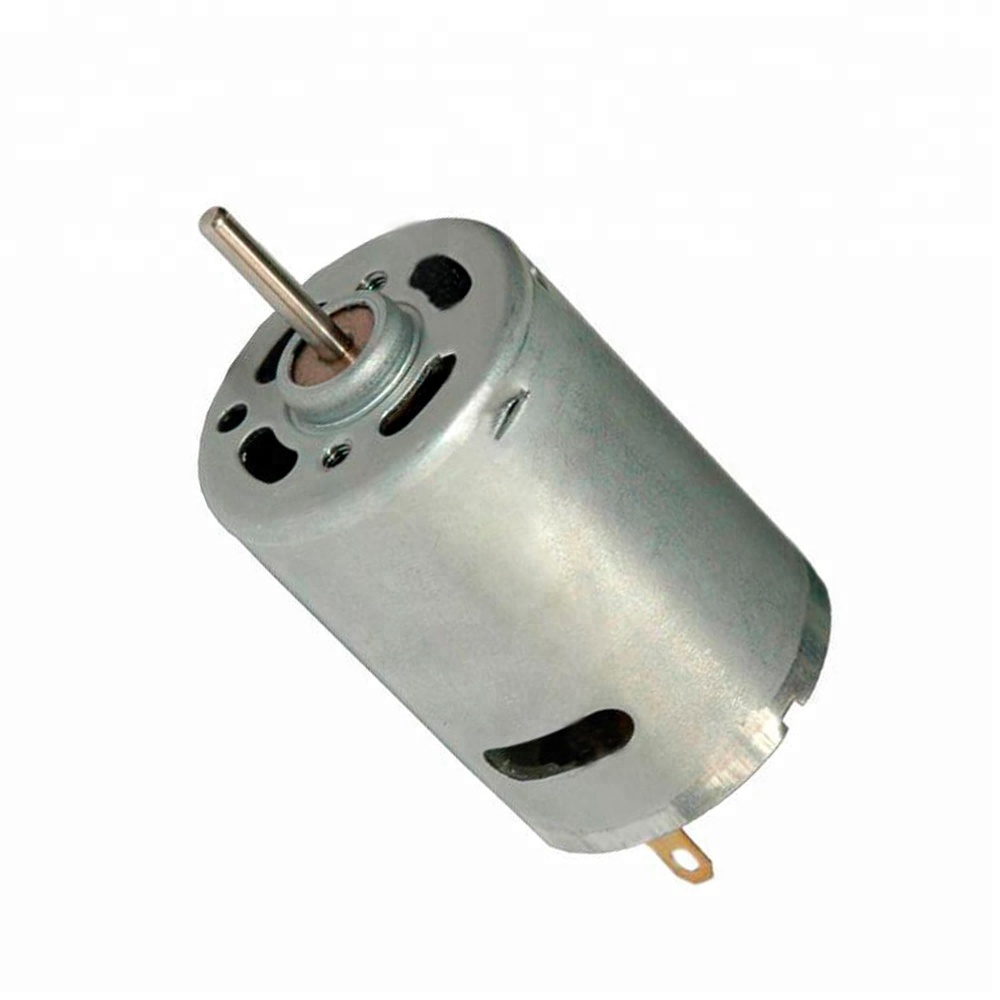

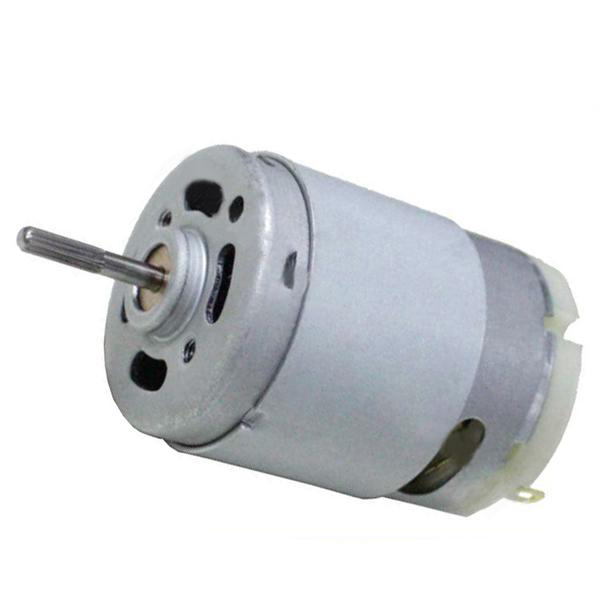

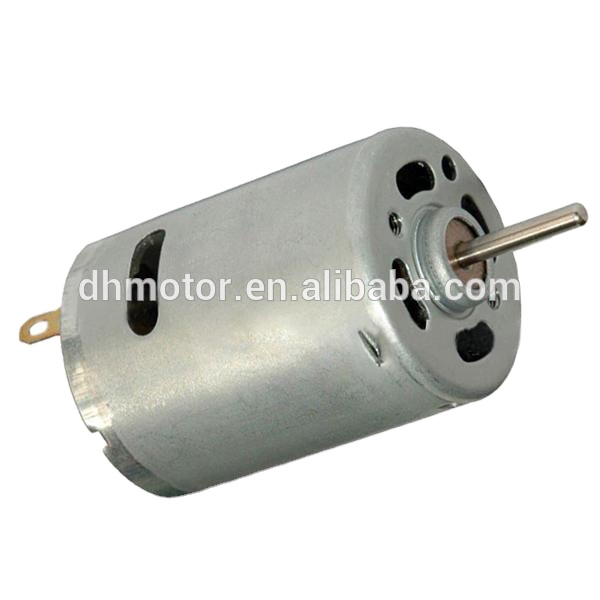

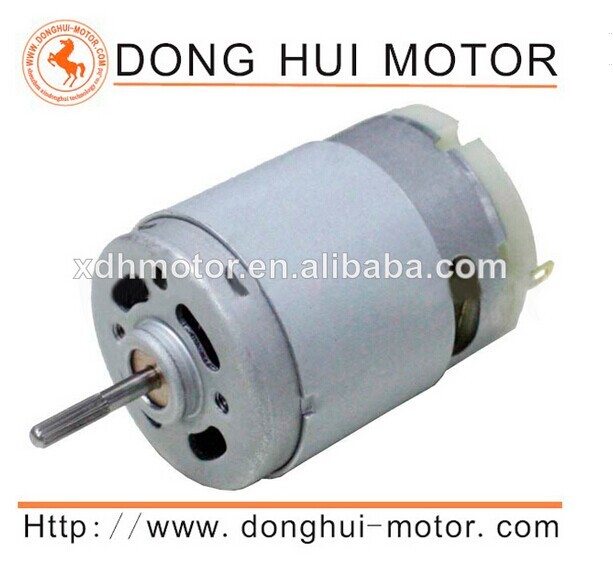

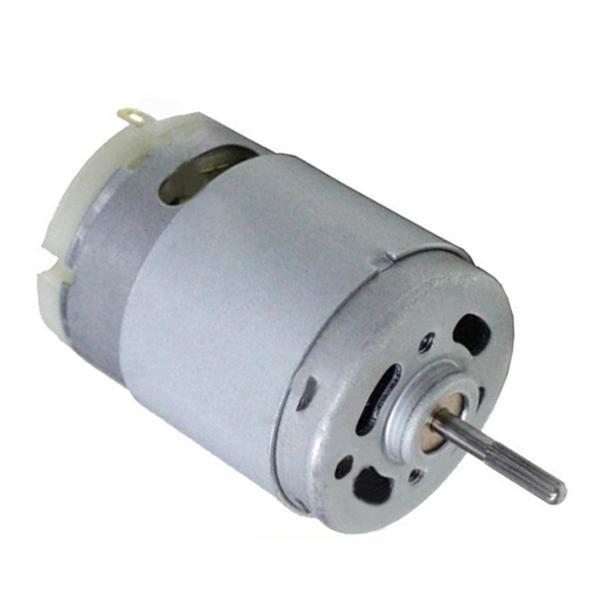

Rs-385 12v 24v Dc Electric Motor for Water Pump Motor, 12v 24v Water Pump Motor

1 / 5

Rs-385 12v 24v Dc Electric Motor for Water Pump Motor, 12v 24v Water Pump Motor

Send Inquiry

Product Description

Product Specifications

Brand Name:	RS-385 Series	Model Number:	RS-385	Type:	Micro Motor
Usage:	Boat, Car, Fan, Home Appliance	Certification:	ROHS, CE, ISO9001	Construction:	Permanent Magnet
Torque:	220 G.cm	Commutation:	Brush	Efficiency:	IE 1
Speed (RPM):	4250 - 5460 rpm	Voltage (V):	12V - 24V	Output Power:	1W - 35W
Shaft:	2.3MM D-cup shaft	Weight:	80g (Approx)	Protect Feature:	Drip-proof

Key Features & Technical Details

🔊

Low Noise & High Torque
Engineered for long-life operation with minimal acoustic interference.

⚙️

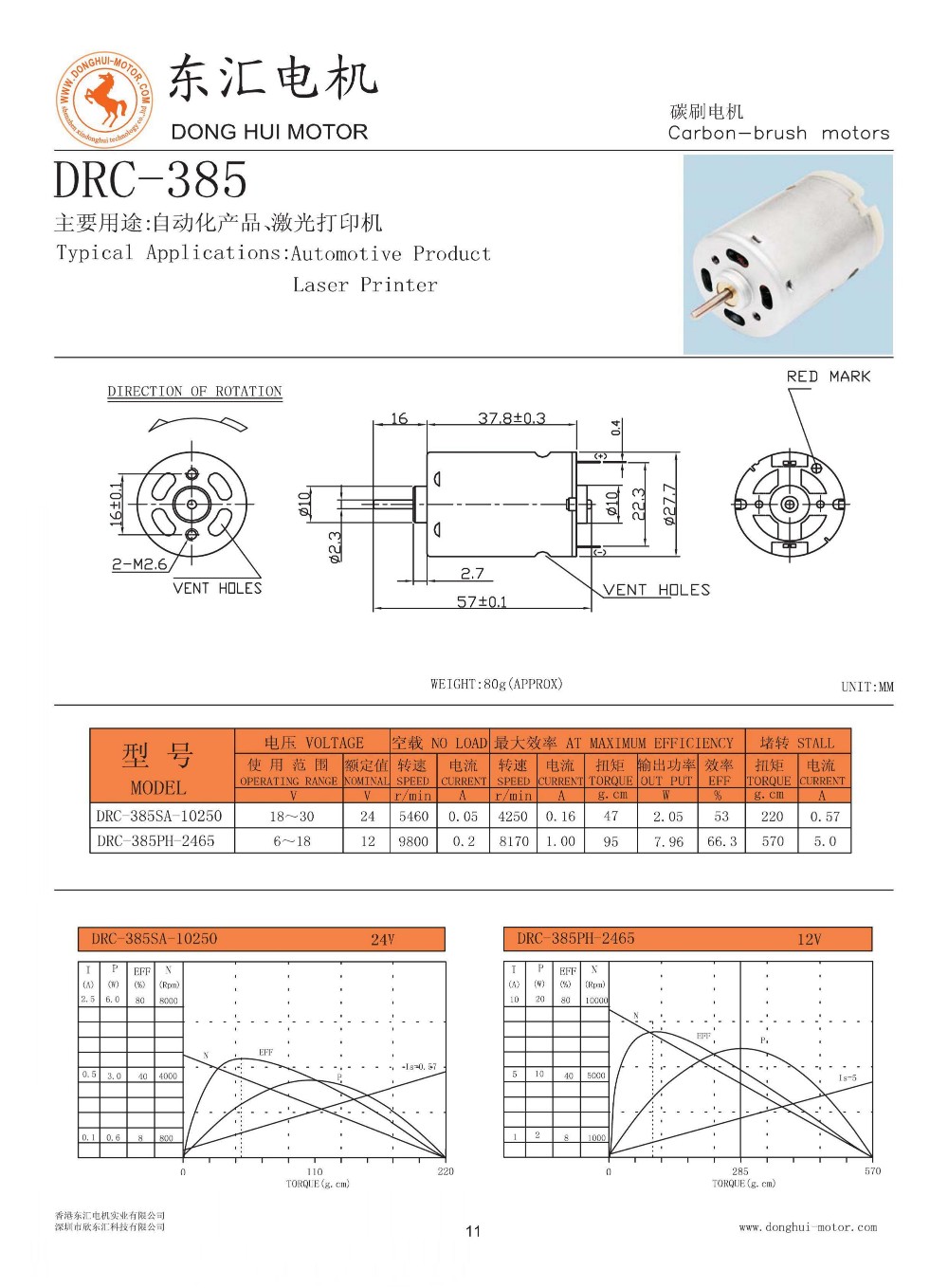

Physical Dimensions
Diameter: 27.7mm | Length: 38mm | Shaft: 2.3mm.

🔄

Dual Rotation
Supports both CW (Clockwise) and CCW (Counter-Clockwise) directions.

🛠️

Carbon-Brush System
Equipped with high-quality carbon brushes for stable electrical conduction.

🏠

Versatile Application
Ideal for massagers, vibrators, air compressors, and water pumps.

📋

Customization
Motor specifications and shaft lengths can be tailored to specific requirements.

Product Display

Service & Production Range

Our expertise covers a wide spectrum of micro-motor technologies developed for global industry standards:

Micro DC Motors: Diameter range from 4mm to 100mm.
Voltage Compatibility: DC 1.5V - 42V; AC rectified 110V/220V.
Performance: Speeds up to 30,000 RPM and stall torque up to 30kg.cm.
Categories: Coreless, Brushless, Gear Motors, and Vibration motors.

Packaging & Shipping

Packaging Detail:	International standard export packaging or customized according to customer requirements.
Delivery Detail:	Standard lead time is typically less than 30 days.

Frequently Asked Questions

What is the typical application for the RS-385 motor?

The RS-385 motor is widely used in household appliances such as massagers, vibrators, and small air compressors, as well as in water pumps for various DIY or industrial projects.

What voltage range does this motor support?

This model is designed for a versatile range, typically operating between 12V and 24V DC, though versions can support 3V to 12V depending on specific configuration needs.

Can the motor shaft be customized?

Yes, the motor specifications, including the shaft length and shape, can be tailor-made according to the specific requirements of the customer.

Is the motor direction reversible?

Yes, the motor supports both CW (Clockwise) and CCW (Counter-Clockwise) rotation directions by reversing the polarity of the power supply.

What certifications do these motors hold?

Our products are compliant with international standards, including CE, ROHS, and ISO9001:2000 quality management systems.

What is the expected delivery time?

For standard orders, the delivery time is generally less than 30 days, depending on the order volume and customization requirements.
