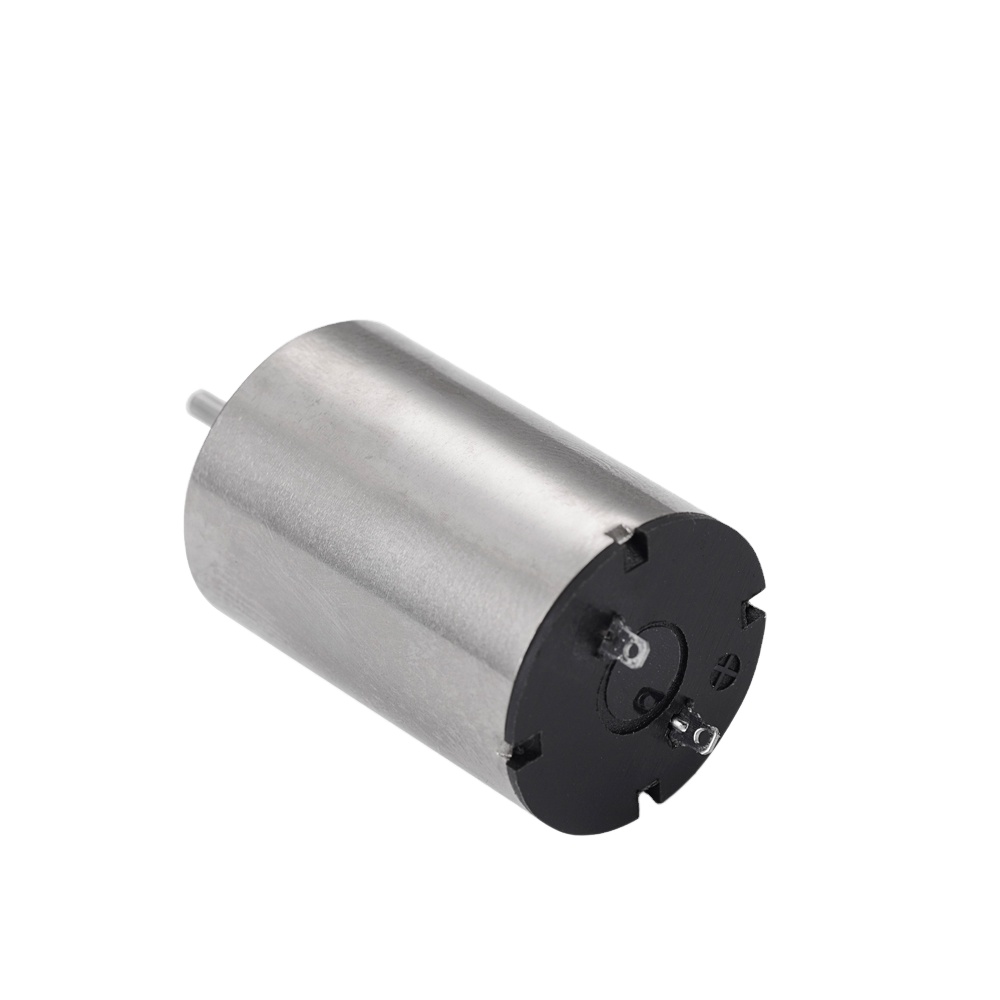

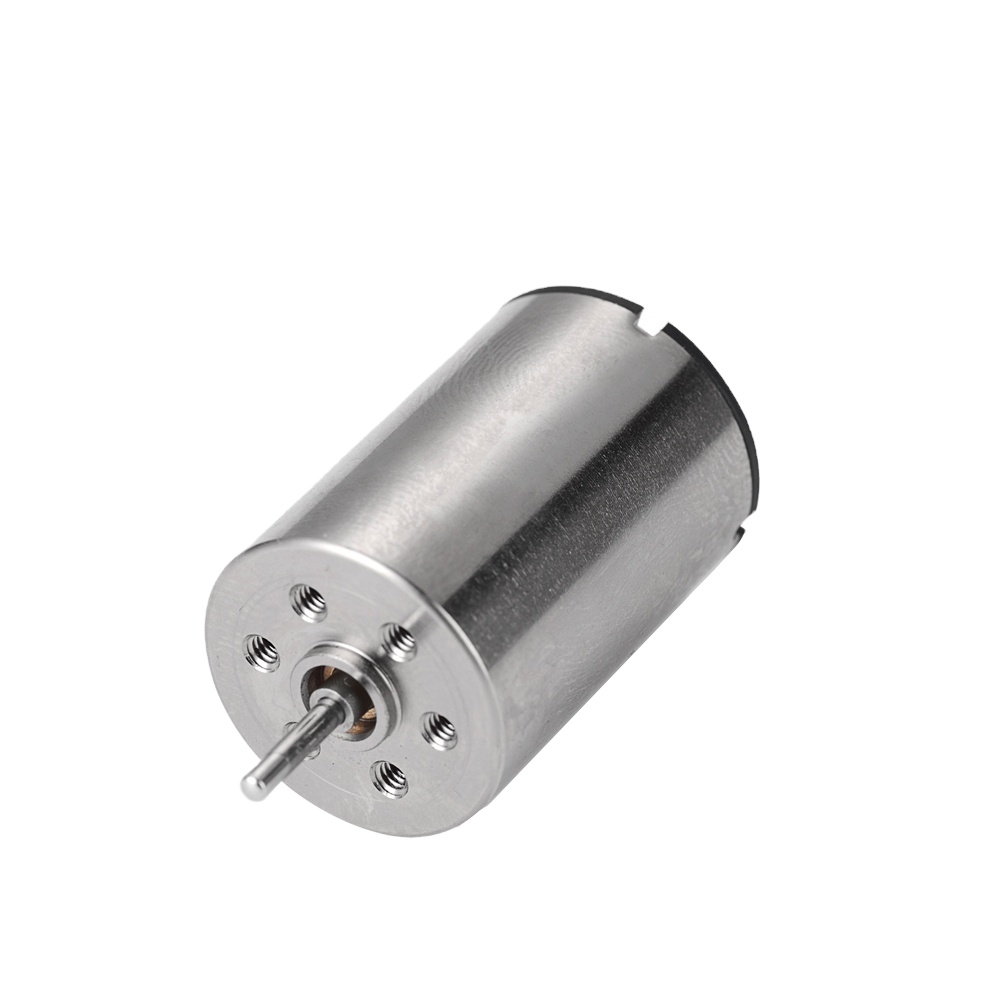

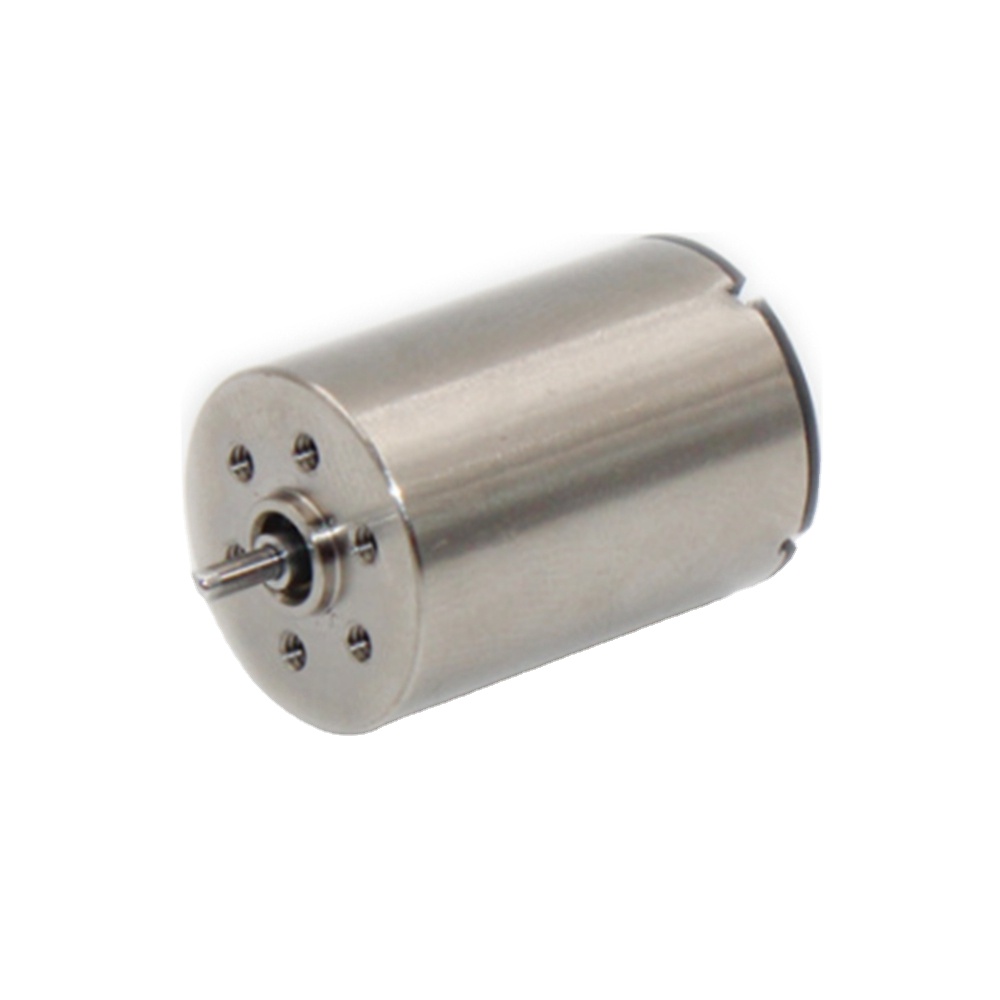

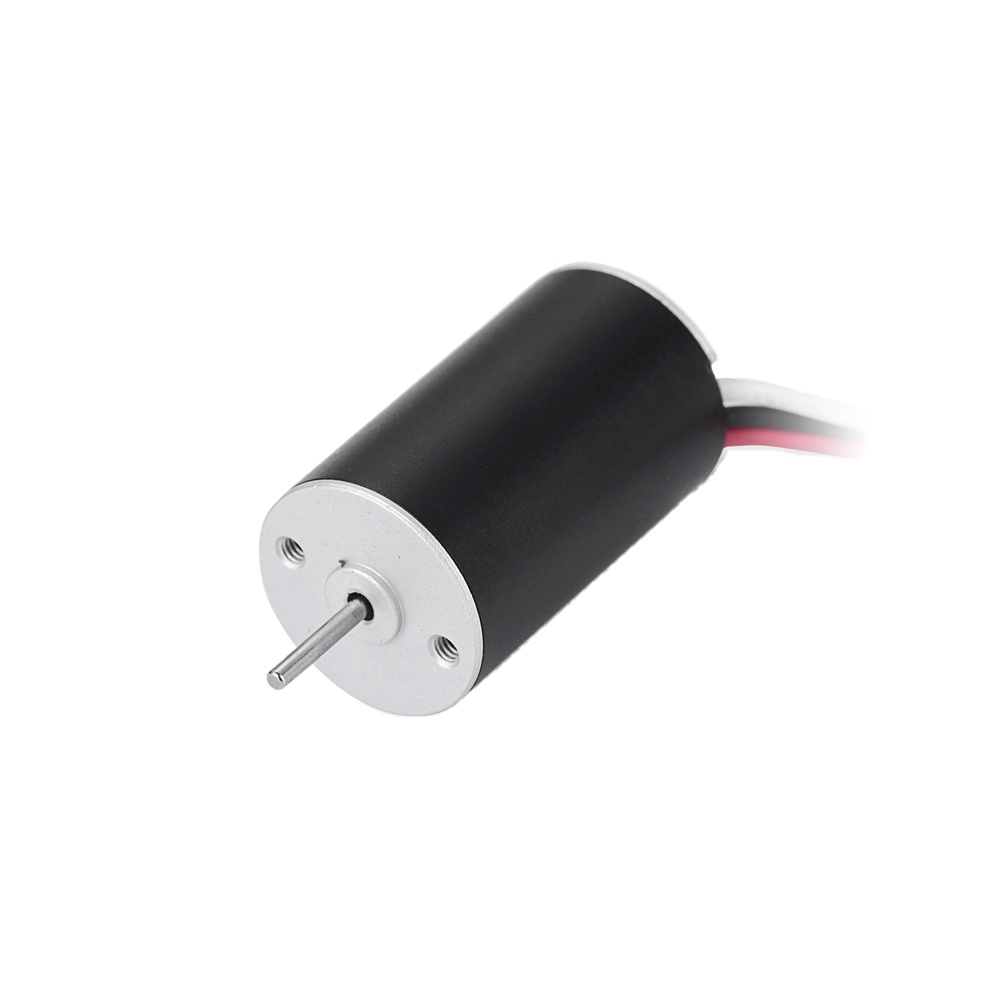

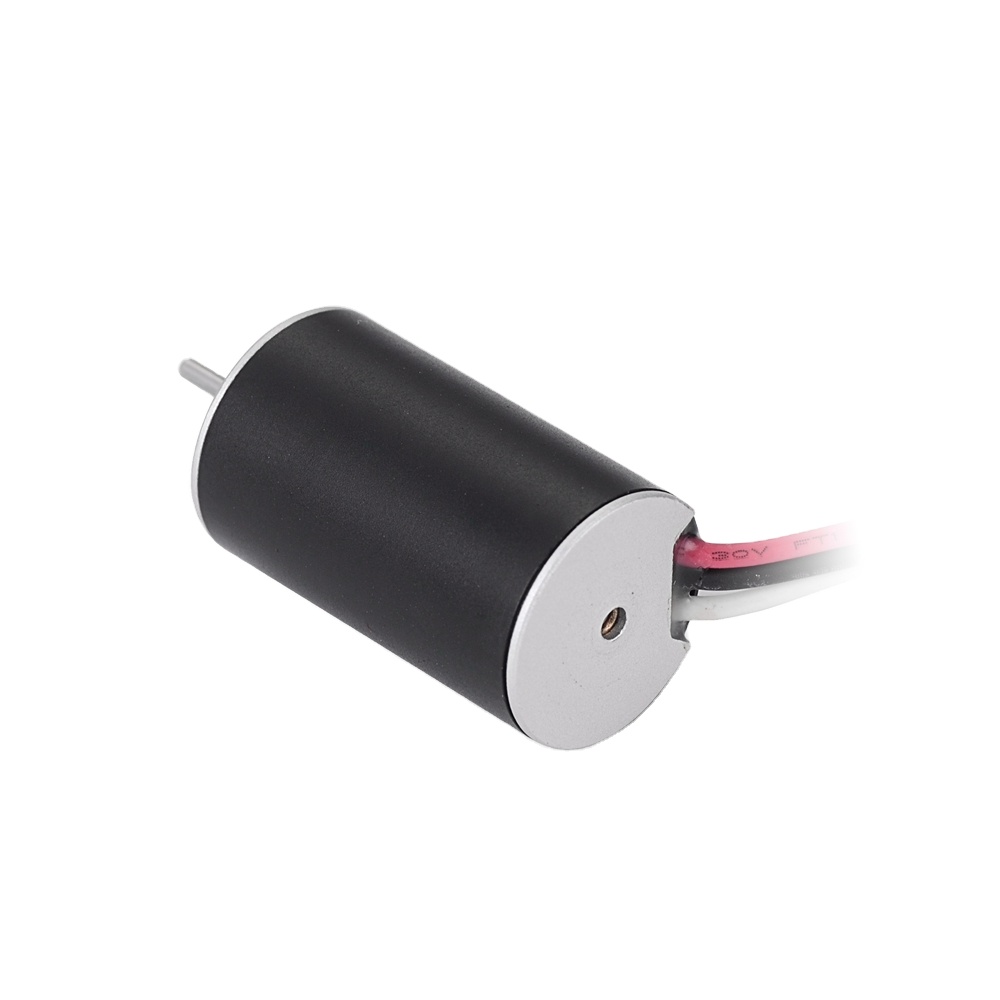

12mm Micro Coreless Motor 1220, Coreless Micro Motor 12v Dc Motor for Aircraft Model, Helicopter, Quadcopter
12mm Micro Coreless Motor 1220, Coreless Micro Motor 12v Dc Motor for Aircraft Model, Helicopter, Quadcopter
12mm Micro Coreless Motor 1220, Coreless Micro Motor 12v Dc Motor for Aircraft Model, Helicopter, Quadcopter
12mm Micro Coreless Motor 1220, Coreless Micro Motor 12v Dc Motor for Aircraft Model, Helicopter, Quadcopter
12mm Micro Coreless Motor 1220, Coreless Micro Motor 12v Dc Motor for Aircraft Model, Helicopter, Quadcopter
1 / 5
12mm Micro Coreless Motor 1220, Coreless Micro Motor 12v Dc Motor for Aircraft Model, Helicopter, Quadcopter
12mm Micro Coreless Motor 1220, Coreless Micro Motor 12v Dc Motor for Aircraft Model, Helicopter, Quadcopter
12mm Micro Coreless Motor 1220, Coreless Micro Motor 12v Dc Motor for Aircraft Model, Helicopter, Quadcopter
12mm Micro Coreless Motor 1220, Coreless Micro Motor 12v Dc Motor for Aircraft Model, Helicopter, Quadcopter
12mm Micro Coreless Motor 1220, Coreless Micro Motor 12v Dc Motor for Aircraft Model, Helicopter, Quadcopter

12mm Micro Coreless Motor 1220, Coreless Micro Motor 12v Dc Motor for Aircraft Model, Helicopter, Quadcopter

Send Inquiry

Product Description

⚙ Product Specification
Place of Origin Guangdong China Model Number DH1220RB
Usage Fan, Home Appliance Certification ROHS
Type Micro Motor Construction Permanent Magnet
Commutation Brushless Protect Feature Drip-proof
Output Power 2W Voltage(V) 9V
Speed(RPM) 15800rpm no load Continuous Current(A) 0.075A no load
Efficiency IE 1 Rated load speed 14000rpm
Rated load torque 0.5mNm Rated load current 0.156A
Starting torque 4.35mNm Starting current 0.874A
Motor Length 20±0.5mm Shaft Diameter 1.0mm
Shaft Length Customizable Application Toys, Medical Equipment

12mm micro coreless motor 1220, coreless micro motor 12v dc motor for aircraft model, helicopter, quadcopter

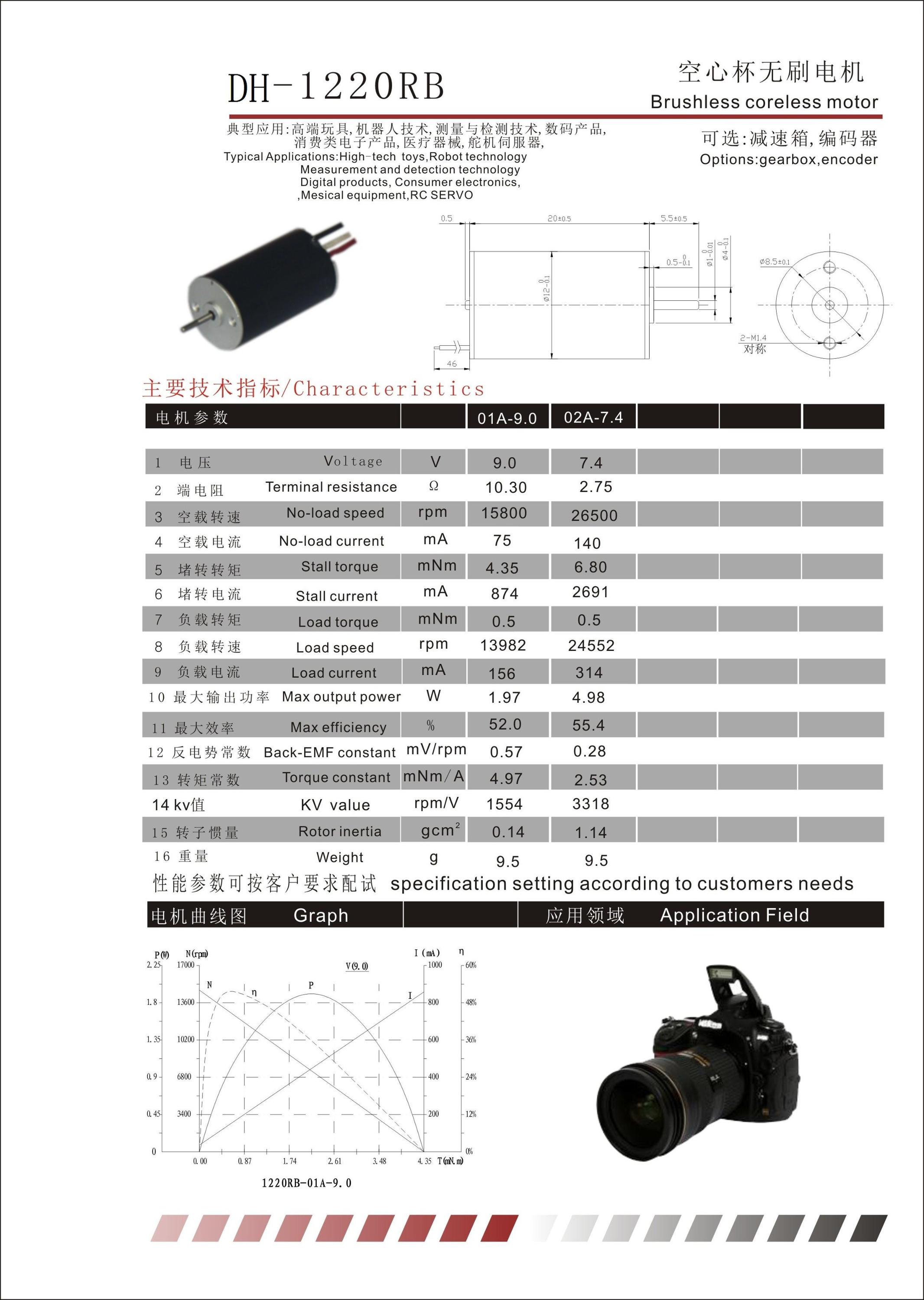

Micro Coreless Motor Detail 1

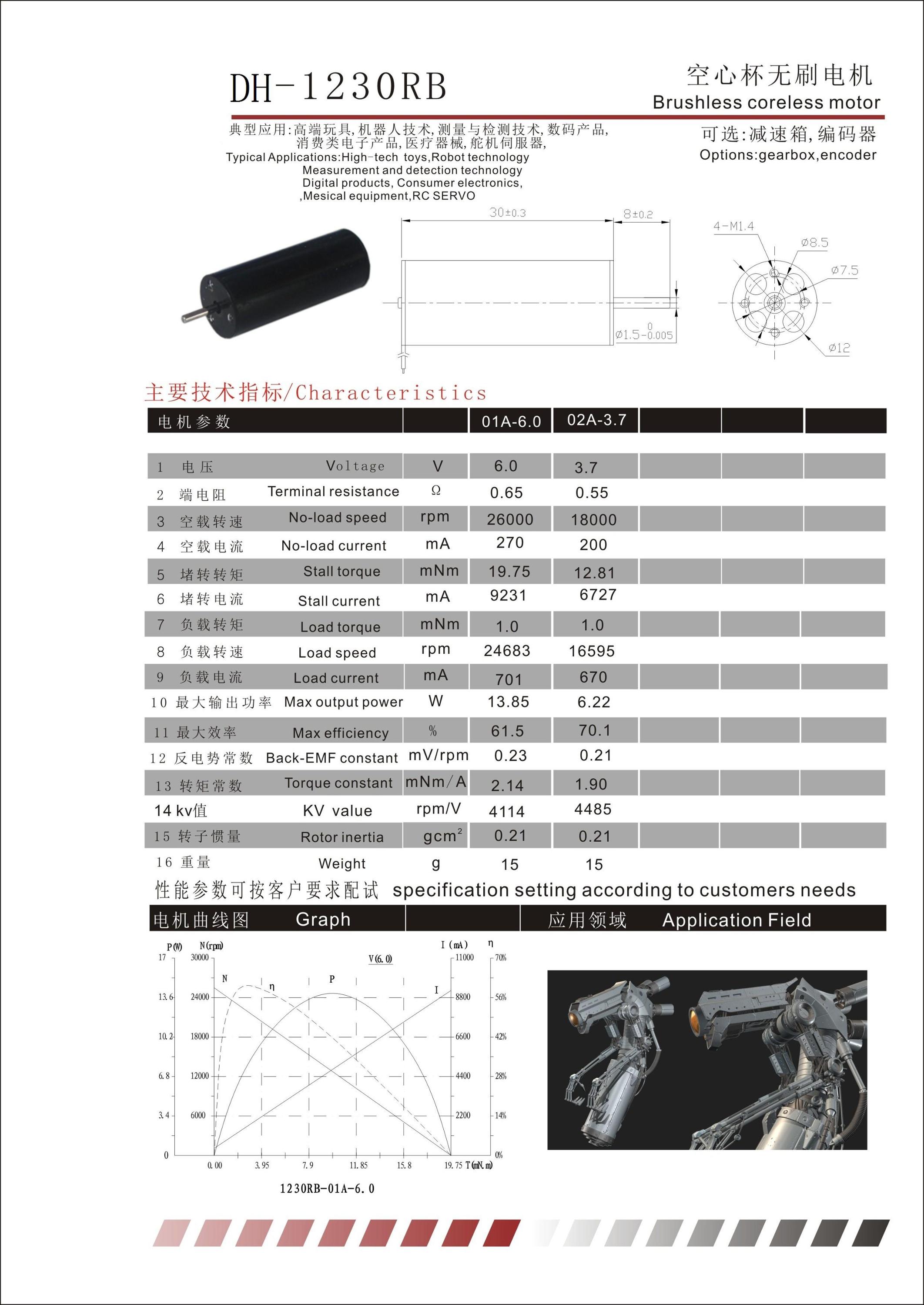

Micro Coreless Motor Detail 2

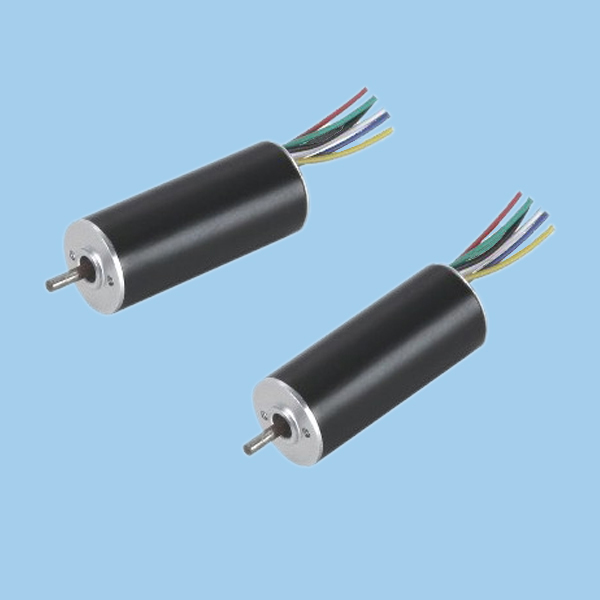

Micro Coreless Motor Product Show 1

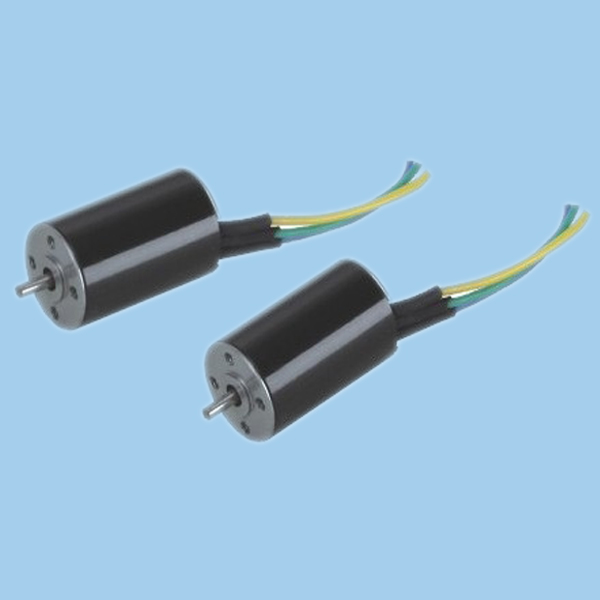

Micro Coreless Motor Product Show 2
📦 Packaging & Shipping
Packaging Detail 1. Export standard packing; 2. Factory standard packing; 3. Customized packaging available upon request.
Delivery Detail 15 days for samples, 25-30 days for batch orders.

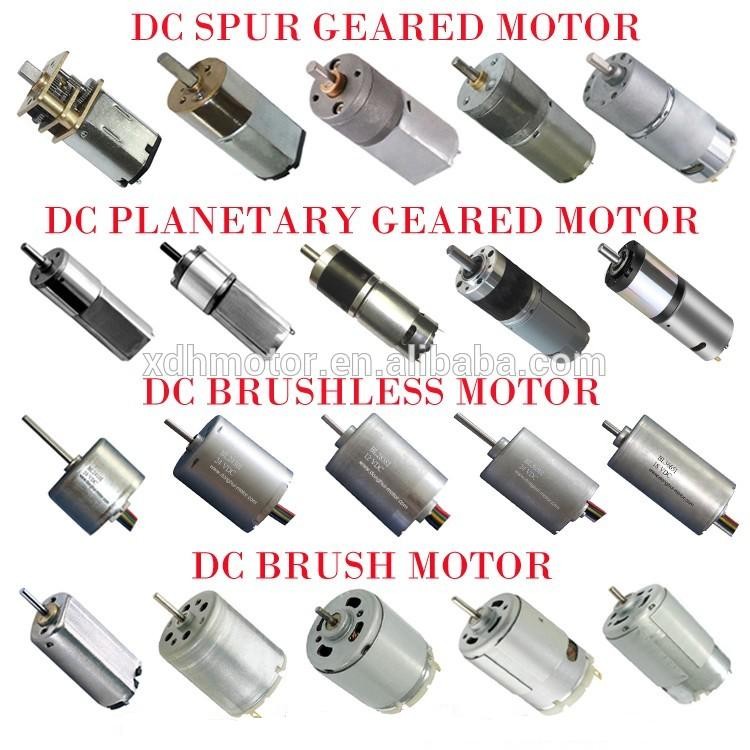

Service and Packaging
🔍 Technical Capability
Factory Overview 1
Factory Overview 2
Factory Overview 3

Since its establishment in 2003, the focus has been on the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. These are widely used in consumer electronics, electric toys, household appliances, office automation, medical equipment, and automotive fields.

  • Main products: Dia 4~100mm DC Micro Motor, Coreless Brushless motor, Gear Motor, Vibration motor, etc.
  • DC Voltage range: 1.5V - 42V; AC rectify: 100V - 240V.
  • Speed range: 1 RPM - 30,000 RPM.
  • Stall torque: 1g.cm - 30kg.cm.
  • Wide Application: Precision Instruments, Personal Care, Audio & Visual equipment, and Power Tools.
❓ Frequently Asked Questions
Q1: Can the motor shaft length be customized? A: Yes, the shaft length and other specific dimensions can be customized according to your specific requirements.
Q2: What is the typical lead time for samples and mass production? A: Samples usually take about 15 days, while batch production typically requires 25-30 days depending on the order volume.
Q3: What types of micro motors do you specialize in? A: We specialize in Micro DC motors, DC gear motors, coreless motors, and brushless motors ranging from 4mm to 100mm in diameter.
Q4: Are your motors ROHS compliant? A: Yes, our motors carry ROHS certification, ensuring they meet environmental and safety standards.
Q5: What are the main applications for the 1220 coreless motor? A: This specific motor is ideal for aircraft models, helicopters, quadcopters, medical equipment, and precision toys.
Q6: What voltage ranges can your motors support? A: Our DC motors support a range from 1.5V to 42V, and we also provide AC rectified solutions for 100V to 240V.
