Jershtech DC Motors Jershtech DC Motors

12v 24v Car Central Lock Dc Motor Fc 280sc 18180

Product Description

12V 24V CAR CENTRAL LOCK DC MOTOR FC 280SC 18180
Product Specifications
Size D24.2mm * 18.3mm * L30mm
Voltage 3-26V
Unload Speed 3500 - 15,000 rpm
Torque 2.5 - 5.5 mN.m
Wattage 0.1 - 5.6W
Application Door lock actuator, retractable rearview mirror, hair remover, vending machine
  • Customizable Parameters: Voltage, speed, wattage, torque, screw length, and shaft length can be tailored to your needs.
Technical Performance Data
Model Voltage No Load At Max Efficiency Stall
Range (V) Nominal (V) Speed (RPM) Current (A) Speed (RPM) Current (A) Torque (mNm) Output (W) Current (A) Torque (mNm)
FC-280SH-18180 8.0-15.0 12 9700 0.16 7880 0.69 5.3 4.39 3.0 28
FC-280SH-20150 8.0-16.0 12 11800 0.081 10310 0.56 4.14 4.47 3.9 32
FC-280SA-24188 6.0-24.0 24 8250 0.14 6308 0.15 3.1 1.89 0.53 13
Product Visuals

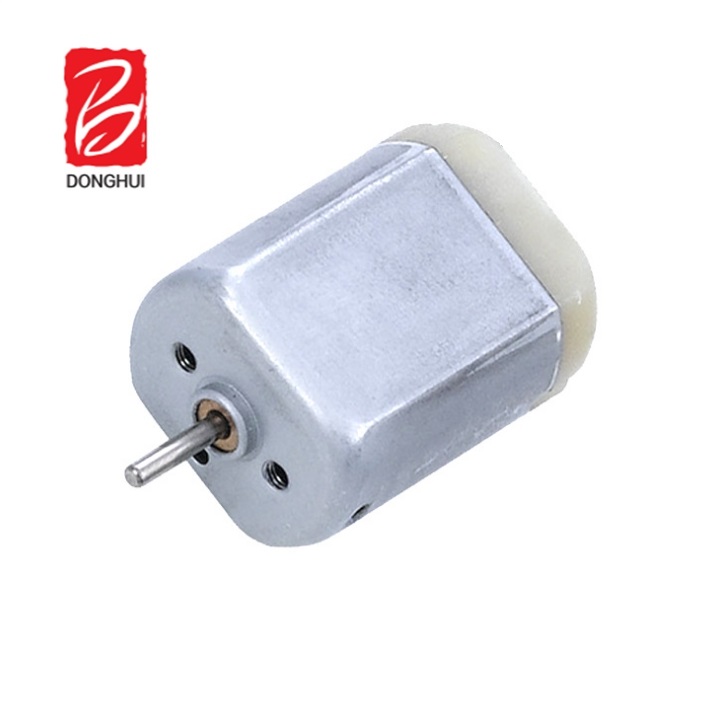

Car Central Lock Motor View 1

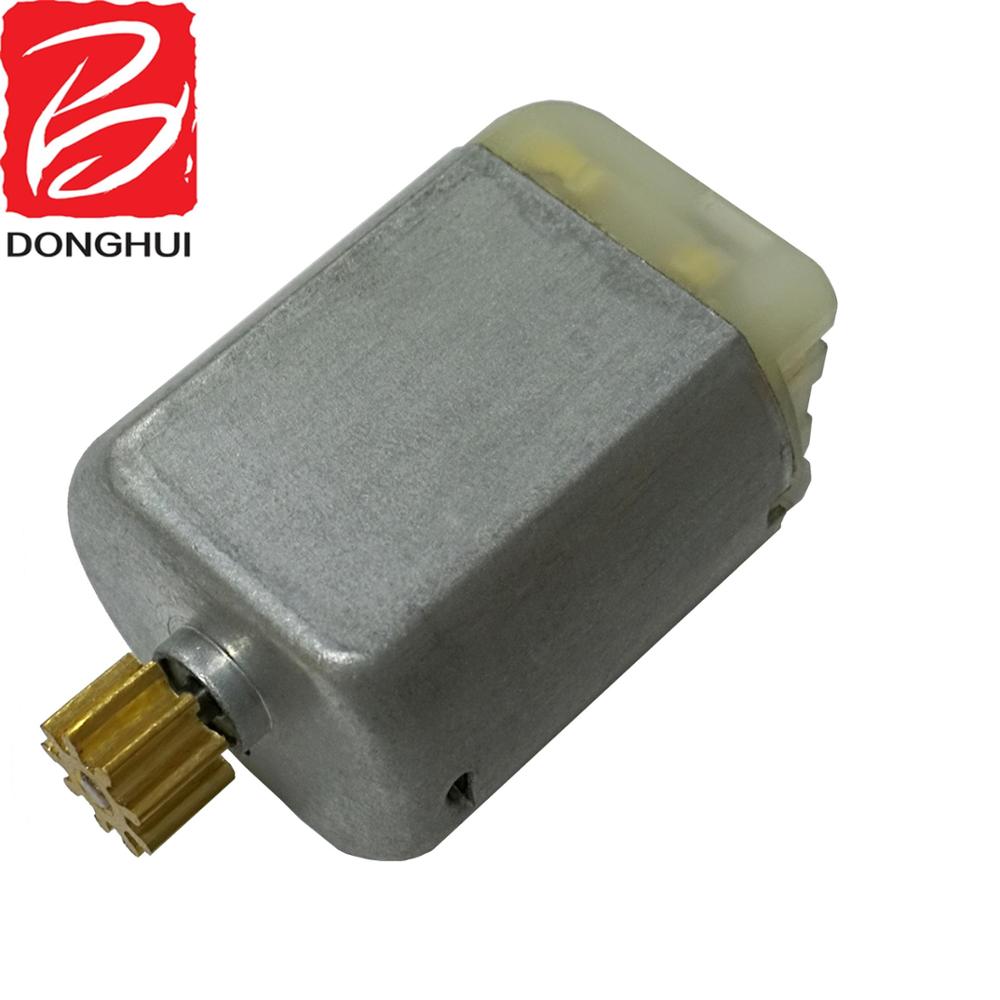

Car Central Lock Motor View 2
Motor Dimensional Drawing
Motor Components
Technical Chart
Motor Application
Packaging & Logistics
Packaging Detail
Shipping Management
Manufacturing Excellence
Factory Overview
Production Line
Frequently Asked Questions
Q: Are you a trading company or a manufacturer? A: We are a professional manufacturer with 11 years of experience in the micro DC motor industry.
Q: What are your main product ranges? A: Our core products include Dia 10~52mm DC Micro Motors, Gear Motors, Auto DC Motors, Brushless DC Motors, Vibration Motors, and various custom drive solutions.
Q: What are the primary applications for your motors? A: Our motors are widely used in home appliances, office equipment, healthcare devices, automation industries, vending machines, and electric power door locks.
Q: Do you offer OEM or ODM services? A: Yes, our R&D team consists of experienced engineers who can customize motors based on your specific requirements.
Q: What information is needed for a customized order? A: Please provide the required voltage, speed, torque, and overall dimensions. If you are unsure, tell us the application and we will provide professional recommendations.
Q: What is the typical delivery time for orders? A: Sample orders typically take 7-15 workdays, while bulk orders generally take 15-25 workdays depending on the complexity.
Certifications and Quality Control
