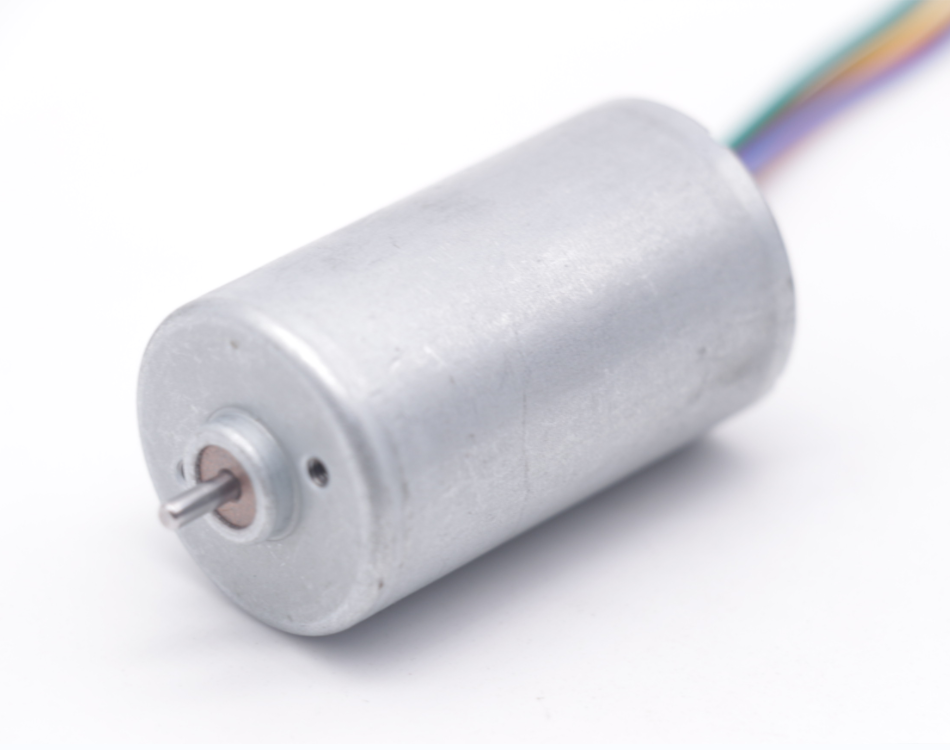

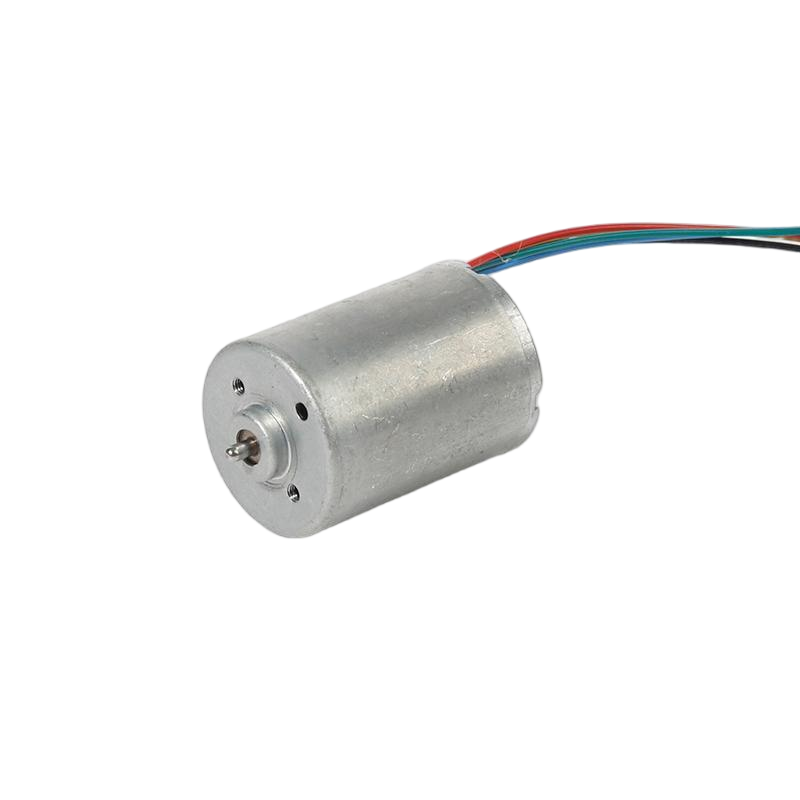

28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
1 / 5
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper

28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper

Send Inquiry

Product Description

Specification
Item 2838 Brushless Motor, 2847 Brushless Motor
Size Diameter 28mm, Length 38mm, 47mm
Voltage 3.7V~26V
Unload Speed 2000-12000rpm
Output torque ≤1100g.cm
Wattage ≤25watt
Driver Built-in design or Customized
Bearing Ball bearing or normal bearing
Lifetime 3000hours~20000hours
Function FG, CW/CCW, PWM
Protection Over current protection, Over heating protection
Feature Long lifetime, low noise, high efficiency, stable and reliable
Application Fan, Car Vacuum Cleaner, Food Processor, Pump, Toy and Model, Power tool, Drill
Product Description
Motor's voltage, speed, ratio, torque, shaft length can be customized.
Brushless Motor Details

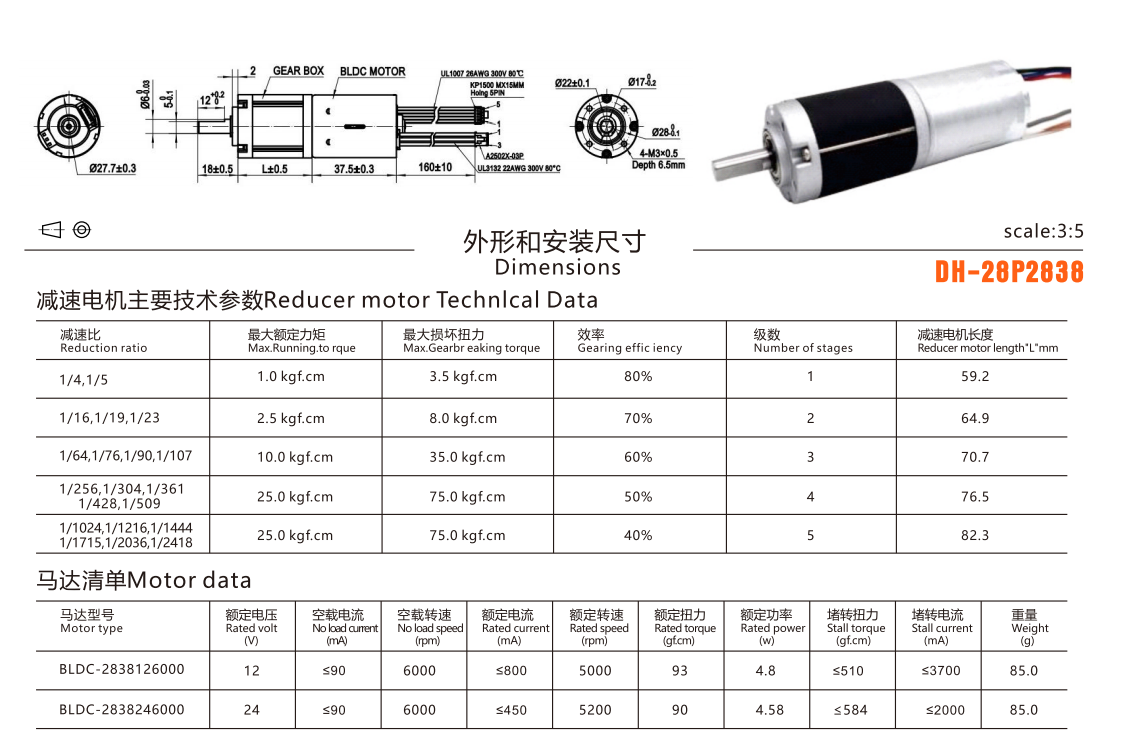

Brushless Motor Specifications
Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

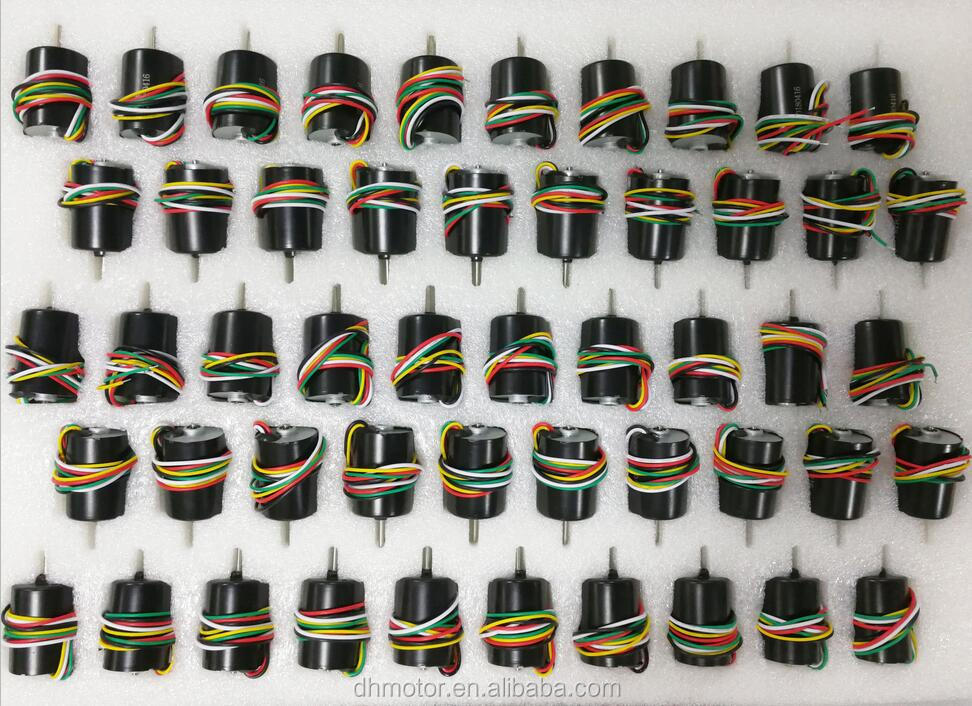

Packaging Process
Delivery Preparation 1
Delivery Preparation 2
Secure Shipping
Manufacturing Facility
Frequently Asked Questions
Can the motor specifications be customized?
Yes, we offer full customization for voltage, speed, ratio, torque, and shaft length to meet your specific application requirements.
What is the expected lifetime of these brushless motors?
The lifetime typically ranges from 3,000 hours to 20,000 hours, depending on the operating conditions and bearing type selected (ball bearing or normal bearing).
What safety protections are built into the motor?
Our brushless motors include integrated over-current protection and over-heating protection to ensure stable and reliable operation.
What are the primary applications for the 2838 and 2847 models?
These motors are widely used in fans, car vacuum cleaners, food processors, pumps, power tools, drills, and various toy models.
Do these motors support speed control?
Yes, the motors support FG (Frequency Generator) signals, CW/CCW direction switching, and PWM (Pulse Width Modulation) for precise speed control.
What voltage range do these motors support?
These models are compatible with a wide voltage range from 3.7V up to 26V DC.
