1.5v 3v 3.7v 6mm Dc Planetary Gear Motor 47 Rpm 240 Rpm 1200 Rpm Gear Motor
1.5v 3v 3.7v 6mm Dc Planetary Gear Motor 47 Rpm 240 Rpm 1200 Rpm Gear Motor
1.5v 3v 3.7v 6mm Dc Planetary Gear Motor 47 Rpm 240 Rpm 1200 Rpm Gear Motor
1.5v 3v 3.7v 6mm Dc Planetary Gear Motor 47 Rpm 240 Rpm 1200 Rpm Gear Motor
1.5v 3v 3.7v 6mm Dc Planetary Gear Motor 47 Rpm 240 Rpm 1200 Rpm Gear Motor
1 / 5
1.5v 3v 3.7v 6mm Dc Planetary Gear Motor 47 Rpm 240 Rpm 1200 Rpm Gear Motor
1.5v 3v 3.7v 6mm Dc Planetary Gear Motor 47 Rpm 240 Rpm 1200 Rpm Gear Motor
1.5v 3v 3.7v 6mm Dc Planetary Gear Motor 47 Rpm 240 Rpm 1200 Rpm Gear Motor
1.5v 3v 3.7v 6mm Dc Planetary Gear Motor 47 Rpm 240 Rpm 1200 Rpm Gear Motor
1.5v 3v 3.7v 6mm Dc Planetary Gear Motor 47 Rpm 240 Rpm 1200 Rpm Gear Motor

1.5v 3v 3.7v 6mm Dc Planetary Gear Motor 47 Rpm 240 Rpm 1200 Rpm Gear Motor

Send Inquiry

Product Description

Product Description

Quick Details

Model Number DHPD006006-700 Type Gear Motor
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance Certification ROHS, ISO
Torque 200 G.cm Construction Permanent Magnet
Commutation Brush Protect Feature Drip-proof
Speed(RPM) 40 RPM Continuous Current(A) 0.12A
Output Power 0.2 W Voltage(V) 3 v
Efficiency IE 1 Shaft Customized
Weight 8g No Load Speed 47 rpm
Max Efficiency 68.3% Style 6mm DC Gear Motor
Specifications & Features
1.5v 3v 3.7v 6mm DC Planetary Gear Motor (45 rpm - 1200 rpm)
DC Planetary Gear Motor
6mm Gear Motor

Key Features

  • Diverse Applications: Suitable for toys, remote controls, robots, cameras, robotic hands, and other remote control devices.
  • High Performance: Features low noise, low current consumption, and no vibration during operation.
  • Long Service Life: Designed for durability and consistent performance.
  • Compact Size: Diameter 6.0mm, with variable lengths (16.35mm, 18.7mm, or 21.05mm). Mini motor length is just 9.3mm.
  • Multiple Reduction Ratios: Available in 26:1, 136:1, and 700:1.
Technical Drawing

Note: Technical data provided is for reference. Voltage, speed, torque, and shaft specifications can be customized.

Product Gallery

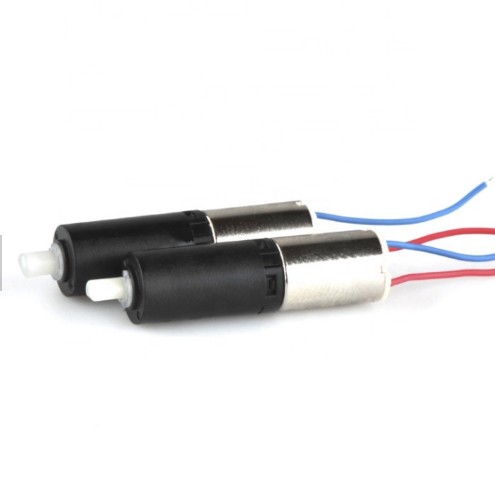

3v 6mm plastic planetary gear motor

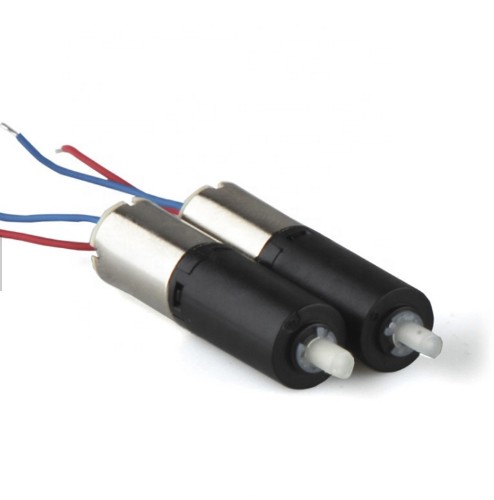

6mm DC motor view
Packaging & Shipping
Packaging Details 1000PCS/CTN, standard export packing
Delivery Detail Within 35 days
Manufacturing Capabilities
Production Facility

The facility has been committed to the development and production of micro motors since 2003. Product series include Micro DC motors, DC gear motors, coreless motors, and brushless motors.

  • Size Range: Diameter 4mm - 100mm
  • Voltage Range: DC 1.5V - 42V; AC rectify 100V - 240V
  • Speed Range: 1 RPM - 30,000 RPM
  • Stall Torque: 1g.cm - 30kg.cm
Frequently Asked Questions
What are the main applications for this 6mm gear motor?
It is widely used in high-end toys, robots, medical equipment, security cameras, massagers, and personal health care products.
Can I customize the motor specifications?
Yes, we offer customization for voltage, speed, torque, and shaft dimensions to meet your specific project requirements.
What is the standard lead time for orders?
The delivery time generally ranges between 20 to 40 days depending on the customization and order quantity.
Does the motor operate quietly?
Yes, the motor is designed for low noise operation with minimal vibration and low current consumption.
What is the Minimum Order Quantity (MOQ)?
The standard MOQ for this model is 1000 pieces. Samples can be provided for testing before bulk orders.
What reduction ratios are available for the planetary gearbox?
Standard reduction ratios include 26:1, 136:1, and 700:1, allowing for various torque and speed configurations.
