Home > 12mm dc motor > 6000rpm 10000rpm 15000rpm 20000rpm 30000rpm 1.5v 2.4v 3v 4.5v 5v 6v 12v 24V Dc N20 Motor
6000rpm 10000rpm 15000rpm 20000rpm 30000rpm 1.5v 2.4v 3v 4.5v 5v 6v 12v 24V Dc N20 Motor
6000rpm 10000rpm 15000rpm 20000rpm 30000rpm 1.5v 2.4v 3v 4.5v 5v 6v 12v 24V Dc N20 Motor
6000rpm 10000rpm 15000rpm 20000rpm 30000rpm 1.5v 2.4v 3v 4.5v 5v 6v 12v 24V Dc N20 Motor
6000rpm 10000rpm 15000rpm 20000rpm 30000rpm 1.5v 2.4v 3v 4.5v 5v 6v 12v 24V Dc N20 Motor
6000rpm 10000rpm 15000rpm 20000rpm 30000rpm 1.5v 2.4v 3v 4.5v 5v 6v 12v 24V Dc N20 Motor
1 / 5
6000rpm 10000rpm 15000rpm 20000rpm 30000rpm 1.5v 2.4v 3v 4.5v 5v 6v 12v 24V Dc N20 Motor
6000rpm 10000rpm 15000rpm 20000rpm 30000rpm 1.5v 2.4v 3v 4.5v 5v 6v 12v 24V Dc N20 Motor
6000rpm 10000rpm 15000rpm 20000rpm 30000rpm 1.5v 2.4v 3v 4.5v 5v 6v 12v 24V Dc N20 Motor
6000rpm 10000rpm 15000rpm 20000rpm 30000rpm 1.5v 2.4v 3v 4.5v 5v 6v 12v 24V Dc N20 Motor
6000rpm 10000rpm 15000rpm 20000rpm 30000rpm 1.5v 2.4v 3v 4.5v 5v 6v 12v 24V Dc N20 Motor

6000rpm 10000rpm 15000rpm 20000rpm 30000rpm 1.5v 2.4v 3v 4.5v 5v 6v 12v 24V Dc N20 Motor

Send Inquiry

Product Description

📋 Specification
ItemN20 N30 Brushed Dc Motor
SizeD12 mm * L 15mm
Voltage1.5V~24V
Unload Speed35000rpm Max Customized
Output torque15g.cm Max Customized
Wattage1.0 Watt Max Customized
Shaft SizeDiameter 1.0mm, Length 10mm Max customized
Bearing typeoil bearing
CertificateCE, ROHS
ApplicationMotorized toy, Car CD/MD Player, Motorized Plastic Model, camera, mini fan
⚙️ Product Description
⭐ The following motor voltage, speed, torque, shaft can be customized

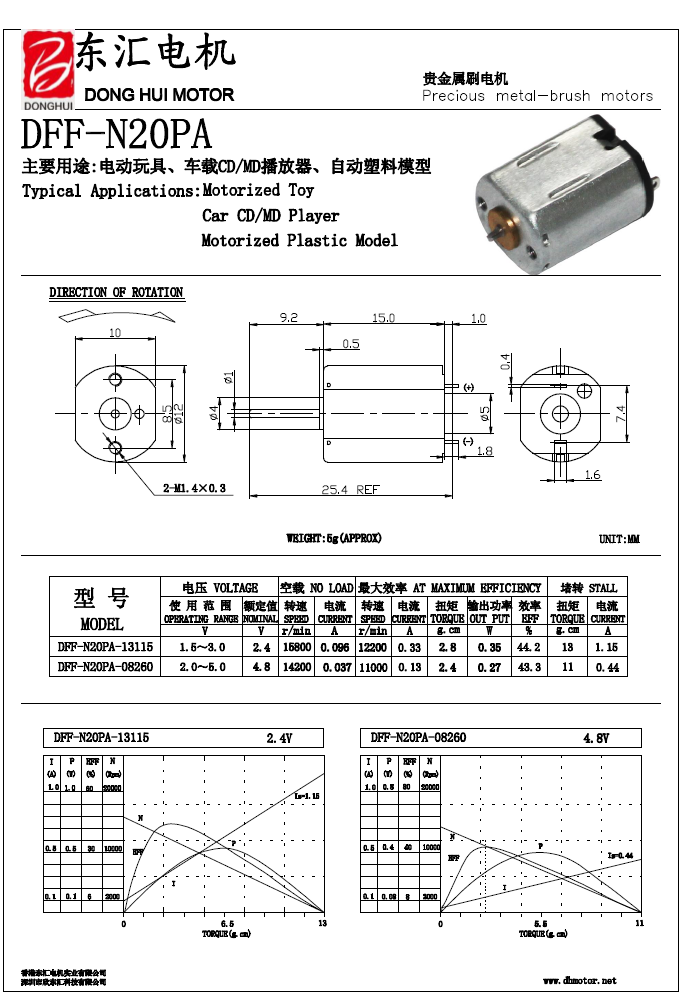

Motor Customization Data

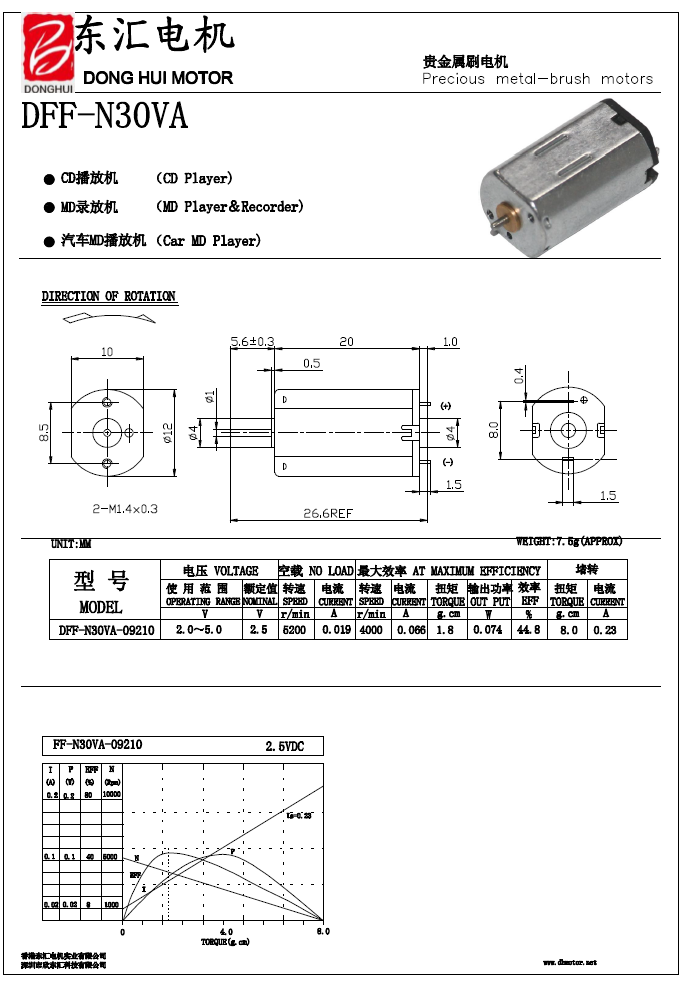

Motor Technical Drawing
📦 Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

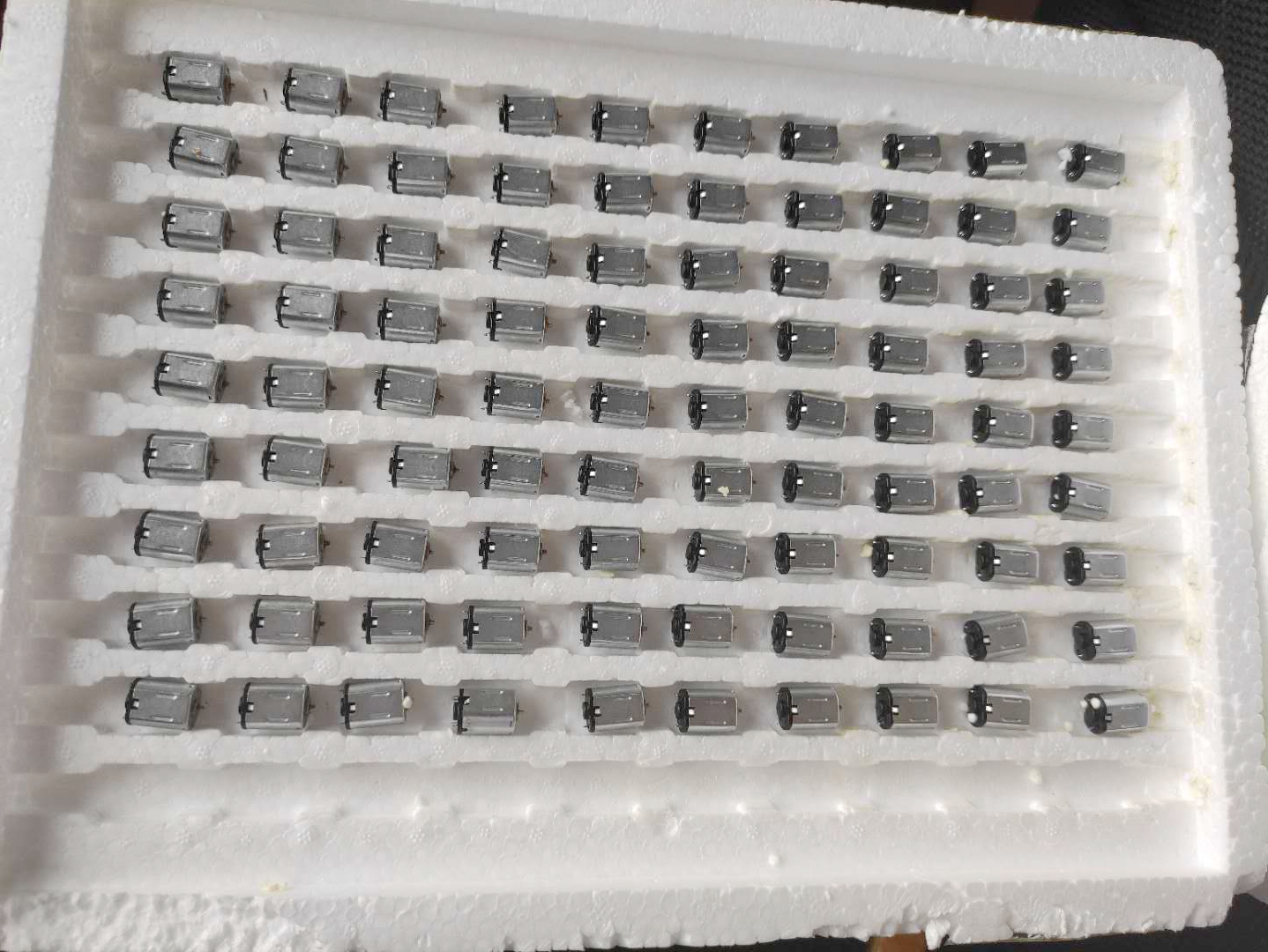

Packaging Standard
Inner Packing
Outer Carton
Warehouse Storage
🏭 Manufacturing Capacity
Professional micro motor manufacturer for 10 years.
Brush Dc Motor: Φ6mm—Φ60mm
Brushless Dc Motor: Φ12mm-Φ42mm
Coreless Brush/Brushless DC Motor: Φ4mm—Φ45mm
Gear/Planetary Gear Dc Motor: Φ4mm—Φ60mm
Stepper Dc Motor: Φ6mm—Φ24mm
Vibration Dc Motor: Φ4mm—Φ45mm
Motor Voltage Range: DC1.5V-220V, AC 110V-240V
Speed Range: 0.1-80,000RPM
Output Torque: 0.01-500Kg.cm
Gearbox Ratio: 1:4 --- 1:5000
Production Line
Testing Equipment
Factory Overview
Quality Control
❓ FAQ
Q1: What's your main products?
Answer: Diameter 4~60 mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
Q2: What's the main usage of the micro dc gear motor?
Answer: Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Sanitation industry, High-class toys, Banking Systems, Electronic tools, automation industry, vending machines, and electric door locks.
Q3: Do you accept customization?
Answer: Sure, as we have a strong design team, any technical requirements or customization needs will be addressed by our engineering department.
Q4: What kind of data do I need to provide if I want to order?
Answer: Please kindly provide your required voltage, speed, torque, and overall dimensions for the best motor selection.
Q5: What if I don't know the specific motor data?
Answer: Please contact our sales team and describe your application requirements; we will recommend the most suitable model for your needs.
Q6: Are samples available for testing?
Answer: Yes, we can provide samples for quality evaluation and testing before mass production.
Product Range Overview

Please feel free to contact us for a quotation and recommendation!
