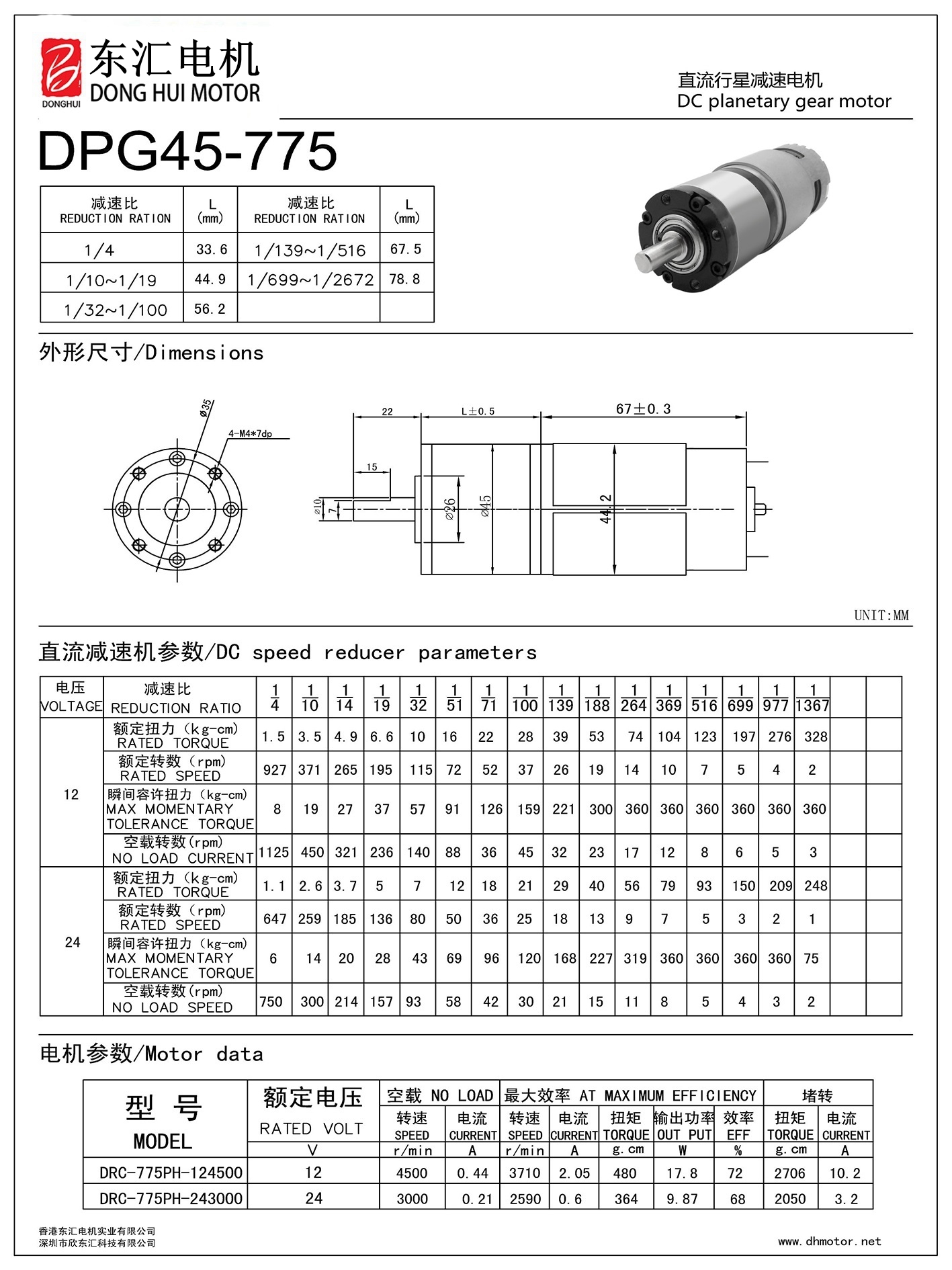

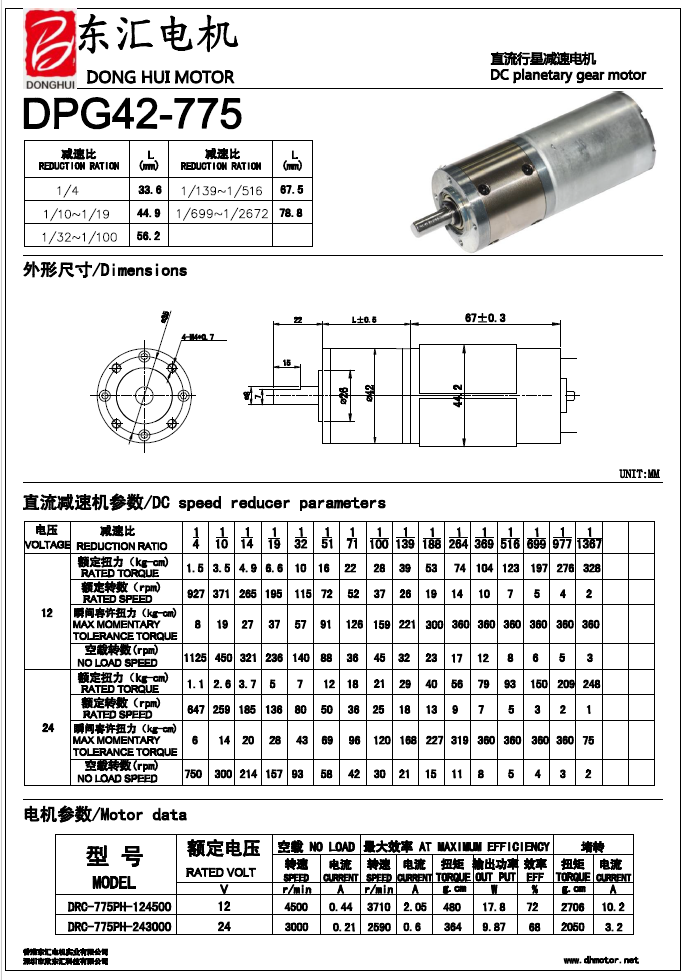

Technical Specifications
| Item |
Dc Planetary Geared Motor |
| Size |
Diameter 42mm / 45mm, length Customized |
| Voltage |
12V-24V |
| Speed |
1-1000rpm |
| Output torque |
≤300kg.cm |
| Output Power |
≤350watt |
| Bearing |
Ball Bearing |
| Function |
With encoder |
| Shaft |
Diameter 8mm, Length customized |
| Application |
Electric power tool, Auto products, Medical Equipment, 5G Base Station, AI Robot, Personal care products, Pet feeder, Home appliance |
Product Description
⚙️
Motor's voltage, speed, ratio, torque, shaft length can be fully customized to meet your specific requirements.

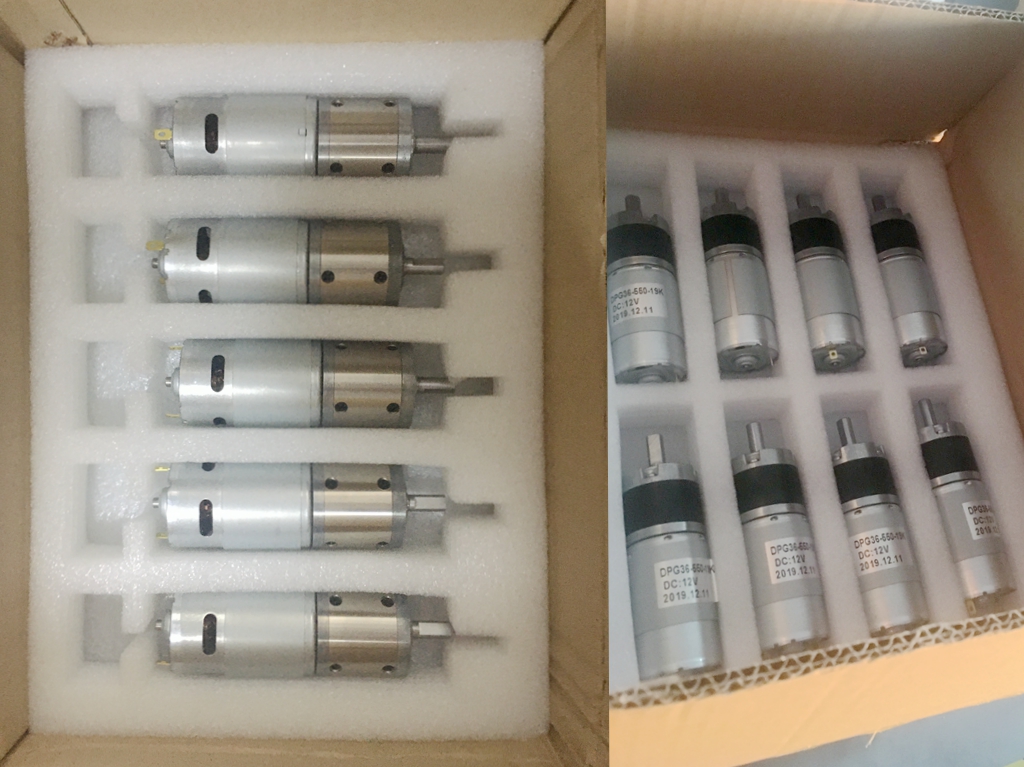

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Professional Capabilities
Professional micro motor/engine manufacturer for 10 years.
Brush Dc Motor: Φ6mm—Φ60mm
Brushless Dc Motor: Φ12mm-Φ42mm Coreless
Brush/Brushless DC Motor: Φ4mm—Φ45mm
Gear/Planetary Gear Dc Motor: Φ4mm—Φ60mm
Stepper Dc Motor: Φ6mm—Φ24mm
Vibration Dc Motor: Φ4mm—Φ45mm
Motor Voltage Range: DC1.5V-220V, AC 110V/220/230/240V
Speed Range: 0.1-80,000RPM
Output Torque: 0.01-500Kg.cm
Shaft Length: 0.1-150mm
Gearbox Ratio: 1:4---1:5000
Frequently Asked Questions
Q1: What are your main products?
Answer: We specialize in Diameter 4~60 mm DC Micro Motors and Gear Motors, including Auto DC motors, Electric motors, Brushless DC motors, Spur Gear motors, and Vibration motors.
Q2: What is the main usage of the micro DC gear motor?
Answer: Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Banking Systems, automation industries, vending machines, and electric door locks.
Q3: Do you accept customization?
Answer: Yes. We have a strong design team and can customize the motor specifications to provide the best technical solution for your needs.
Q4: What data should I provide to place an order?
Answer: Please provide the required voltage, speed, torque, and overall dimensions for your application.
Q5: What if I don't know the specific motor data?
Answer: Simply tell us your requirements or application, and our technical team will recommend the most suitable model for you.
Q6: Are the materials environmentally friendly?
Answer: Yes, we provide professional and environmentally friendly packaging and utilize high-quality manufacturing processes.
Please feel free to contact us regarding any motor questions!
