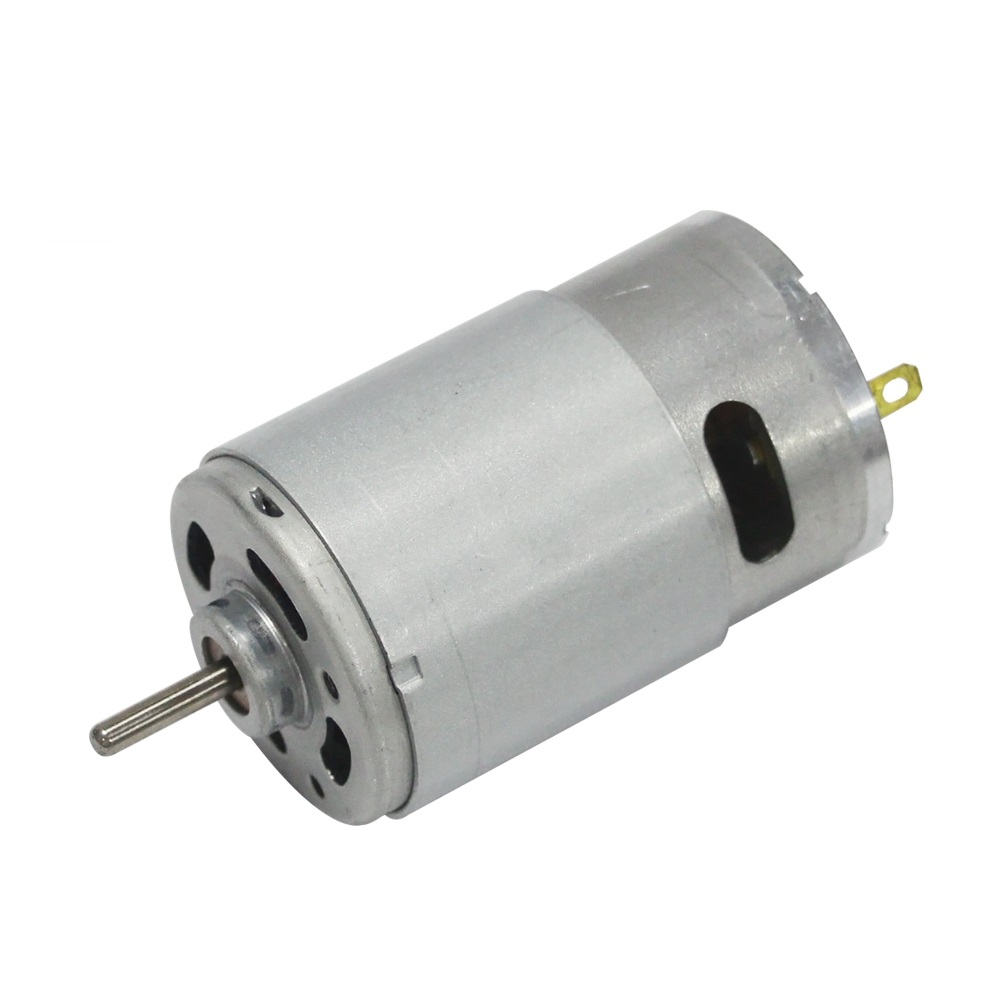

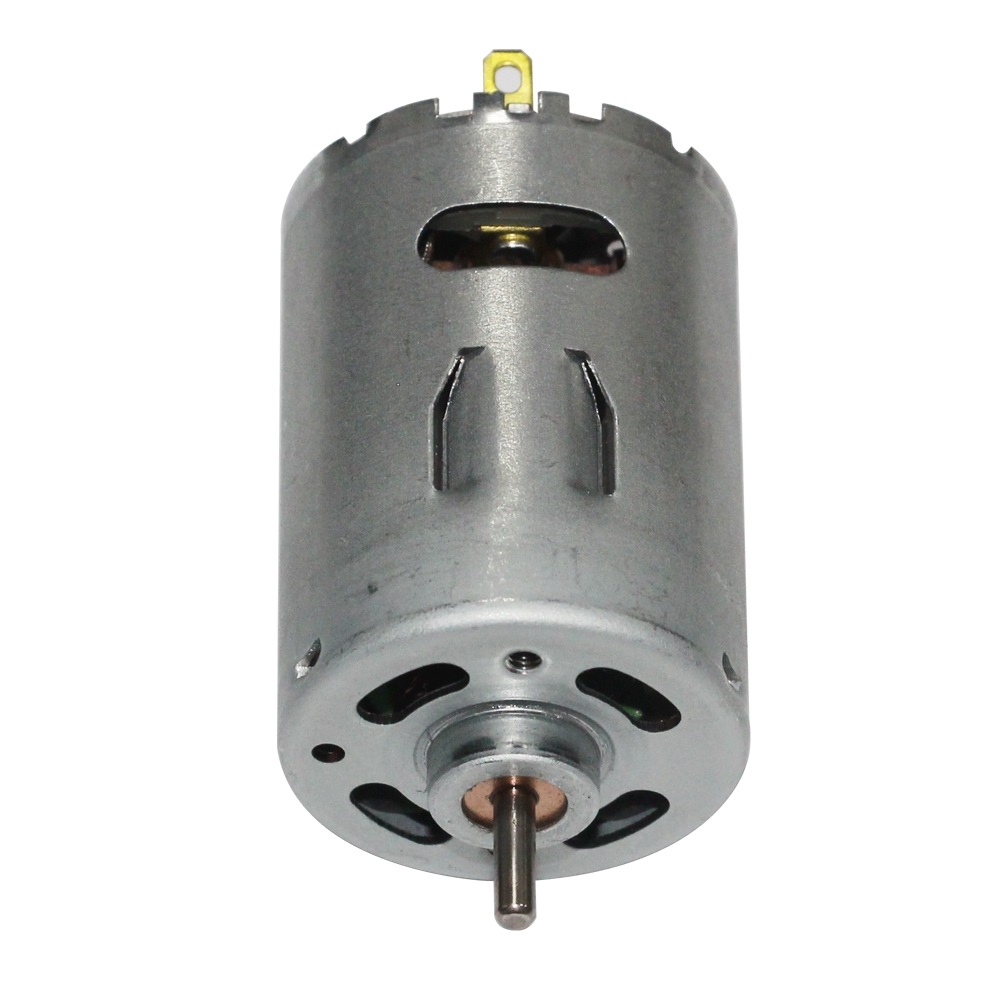

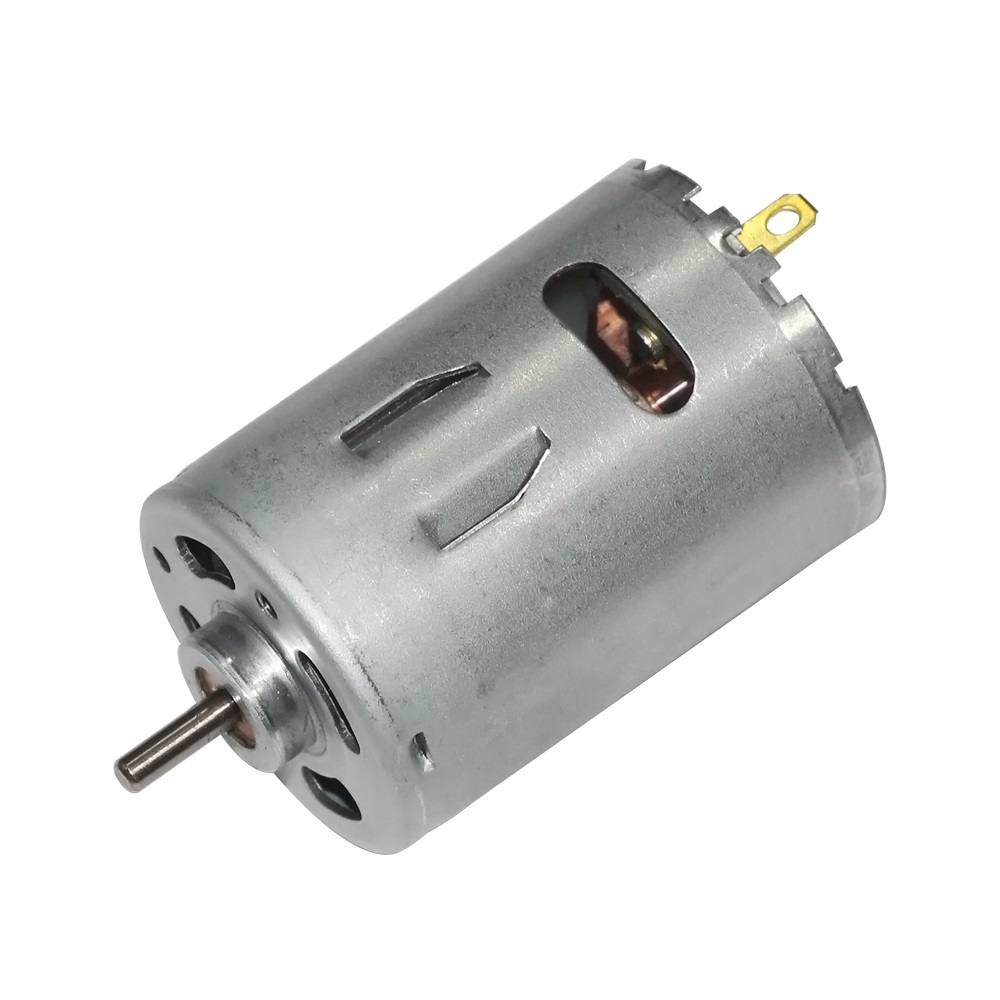

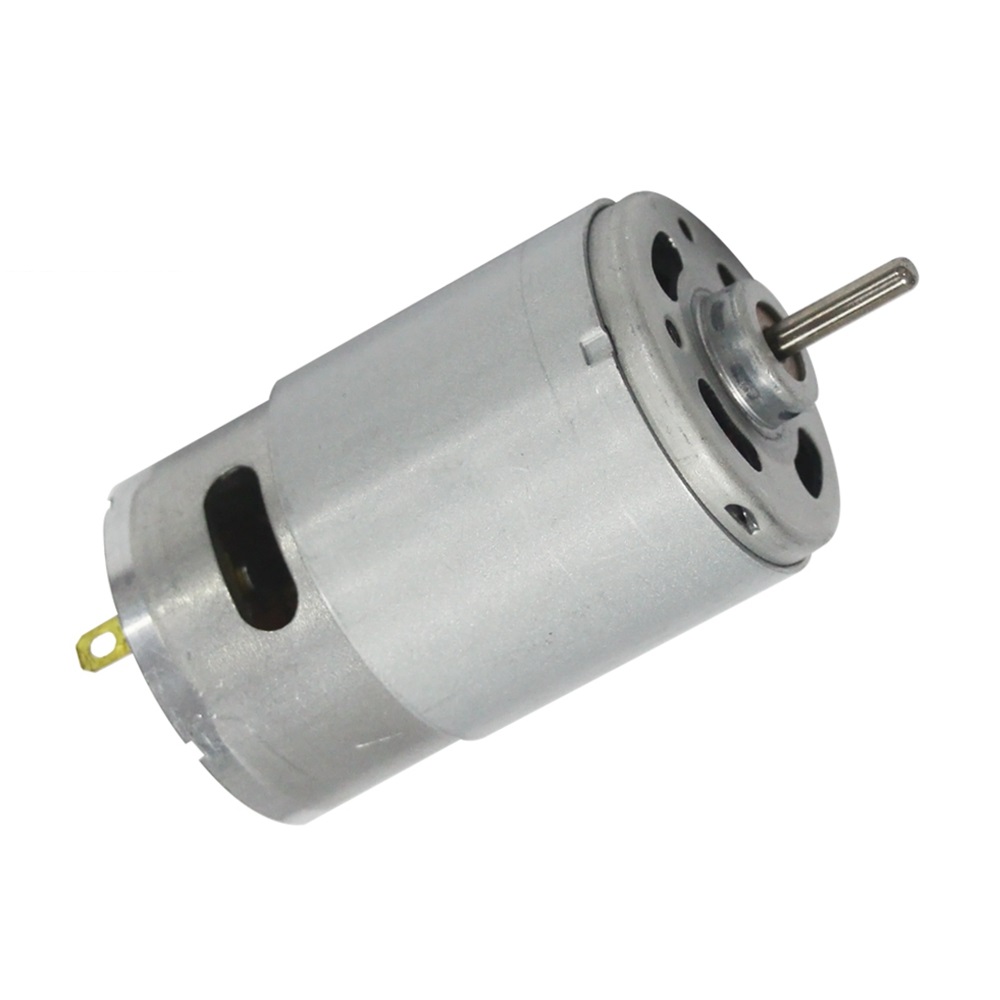

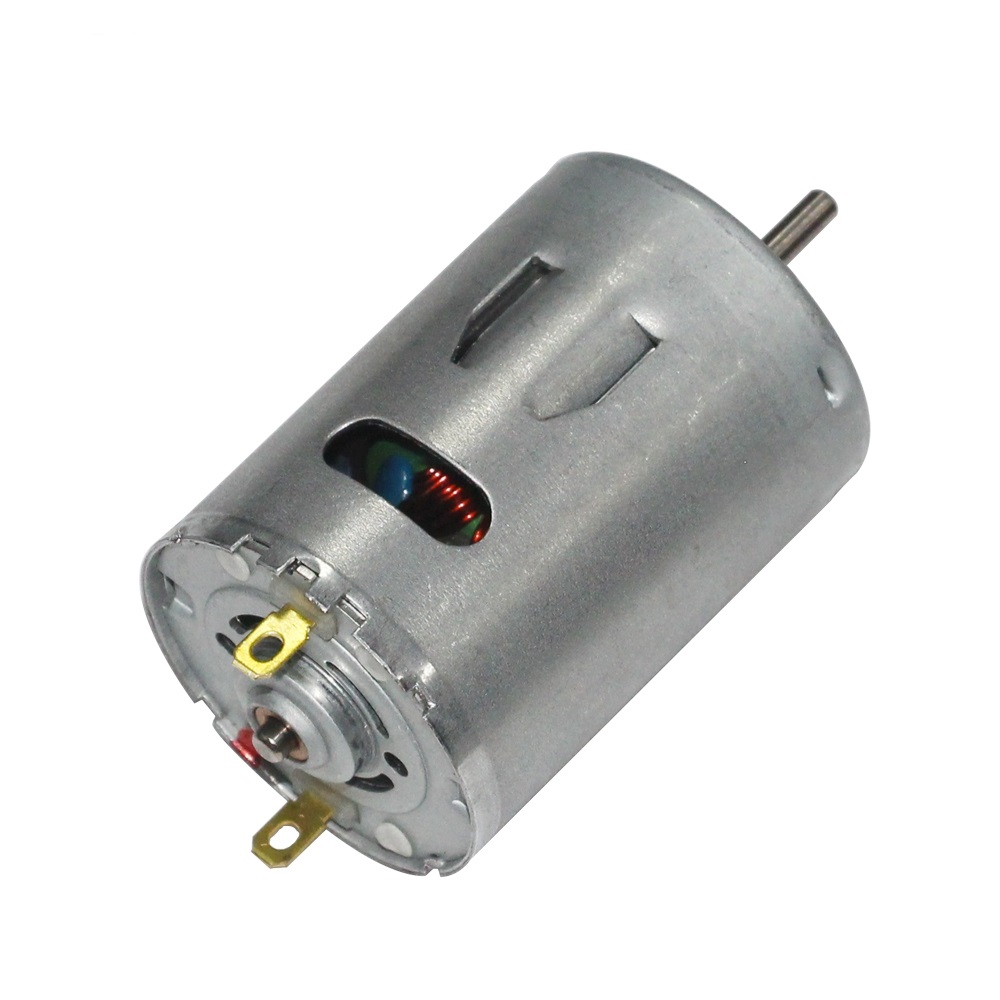

36mm 6v 12v 14.4v 24v 9000rpm 10000rpm 20000rpm Rf Rc rs 540 545 550 555 Dc Brushed Motor
36mm 6v 12v 14.4v 24v 9000rpm 10000rpm 20000rpm Rf Rc rs 540 545 550 555 Dc Brushed Motor
36mm 6v 12v 14.4v 24v 9000rpm 10000rpm 20000rpm Rf Rc rs 540 545 550 555 Dc Brushed Motor
36mm 6v 12v 14.4v 24v 9000rpm 10000rpm 20000rpm Rf Rc rs 540 545 550 555 Dc Brushed Motor
36mm 6v 12v 14.4v 24v 9000rpm 10000rpm 20000rpm Rf Rc rs 540 545 550 555 Dc Brushed Motor
1 / 5
36mm 6v 12v 14.4v 24v 9000rpm 10000rpm 20000rpm Rf Rc rs 540 545 550 555 Dc Brushed Motor
36mm 6v 12v 14.4v 24v 9000rpm 10000rpm 20000rpm Rf Rc rs 540 545 550 555 Dc Brushed Motor
36mm 6v 12v 14.4v 24v 9000rpm 10000rpm 20000rpm Rf Rc rs 540 545 550 555 Dc Brushed Motor
36mm 6v 12v 14.4v 24v 9000rpm 10000rpm 20000rpm Rf Rc rs 540 545 550 555 Dc Brushed Motor
36mm 6v 12v 14.4v 24v 9000rpm 10000rpm 20000rpm Rf Rc rs 540 545 550 555 Dc Brushed Motor

36mm 6v 12v 14.4v 24v 9000rpm 10000rpm 20000rpm Rf Rc rs 540 545 550 555 Dc Brushed Motor

Send Inquiry

Product Description

Specification
Item 36mm dc brushed motor
Size Diameter 36mm, length 50mm, 57mm
Voltage DC 3V~24V
Unload Speed 25000rpm Max (Customized)
Output Torque 5000g.cm Max (Customized)
Output Power 100 Watt Max (Customized)
Shaft Size Diameter 3.175mm, Length 30mm Max (Customized)
Bearing Type Oil bearing, ball bearing
Certificate CE, ROHS
Application Massager, Vacuum Cleaner, Power Tool, Automotive Product, Motorized Toy, Kids car
Product Description
⭐
The following motor's voltage, speed, torque, shaft length, and type can be fully customized based on your requirements.
Packing & Delivery
📦
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Production Capabilities
  • Brush Dc Motor: Φ6mm—Φ60mm
  • Brushless Dc Motor: Φ12mm-Φ42mm Coreless
  • Brush/Brushless DC Motor: Φ4mm—Φ45mm
  • Gear/Planetary Gear Dc Motor: Φ4mm—Φ60mm
  • Stepper Dc Motor: Φ6mm—Φ24mm
  • Vibration Dc Motor: Φ4mm—Φ45mm
  • Motor Voltage Range: DC 1.5V-220V, AC 110V/220/230/240V
  • Speed Range: 0.1-80,000RPM
  • Output Torque: 0.01-500Kg.cm
  • Shaft Length: 0.1-150mm
  • Gearbox Ratio: 1:4 to 1:5000
Frequently Asked Questions
What are your main products?
We specialize in Diameter 4~60 mm DC Micro Motors and Gear Motors, including Auto DC motors, Brush/Brushless DC motors, Spur Gear motors, Vibration motors, and more.
What is the main usage of the micro DC gear motor?
Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Sanitation industries, Banking systems, Automation, Vending machines, and Electric door locks.
Do you accept customization?
Yes, we have a strong design team. We can customize specifications such as voltage, speed, torque, and dimension to meet your technical needs.
What data is required to place an order?
Please provide the required voltage, speed, torque, and overall dimensions for the motor you need.
What if I don't know the technical specifications?
Please contact our sales team and describe your application requirements; we will recommend the best fit model for your project.

Please feel free to contact us for a quotation and recommendation!
