Jershtech DC Motors
Jershtech DC Motors
| ITEM | VALUE |
|---|---|
| Motor Type | Vibration Motor |
| Motor Model No | DFF-N20 |
| Size(Dimensions) | D12*L30mm |
| Operating Voltage | 3V~30V DC |
| Speed RPM | 2000~15000 r/min-No Load |
| Motor Power Output | Approx 0.5W~1W |
| Typical Application | Sex Toy Neck Massager Healthcare & Personal Care Products |
| Shaft Length | Customized |
| Driver PCBA | - |

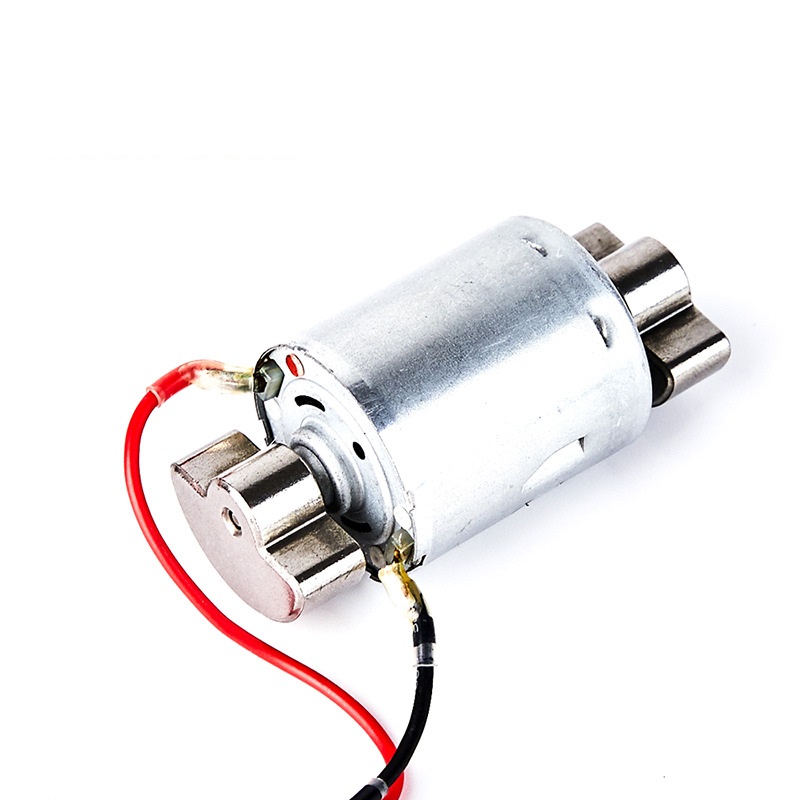

| ITEM | VALUE |
|---|---|
| Motor Type | Vibration Motor |
| Motor Model No | RS550 |
| Size(Dimensions) | D36*L57mm |
| Operating Voltage | 3V~24V DC |
| Speed RPM | 2000~10000 r/min-No Load |
| Motor Power Output | Approx 2W~10W |
| Typical Application | Sex Toy Neck Massager Healthcare & Personal Care Products |
| Shaft Length | Customized |
| Driver PCBA | - |
Both the DFF-N20 and RS550 vibration motors are typical choices for sex toys, neck massagers, healthcare, and various personal care products due to their compact sizing and efficient performance.
Yes, the shaft length for both the DFF-N20 and the RS550 models can be customized to match your specific engineering design and layout requirement constraints.
The RS550 vibration motor operates within a voltage range of 3V to 24V DC, providing flexibility depending on your circuit setup and system performance targets.
Under no-load conditions, the smaller DFF-N20 motor runs at a speed of 2000 to 15000 r/min, while the larger RS550 motor runs at a speed range of 2000 to 10000 r/min.
The DFF-N20 vibration motor features an approximate power output ranging from 0.5W to 1W, making it highly suitable for low-power consumer healthcare applications.
The standard size dimensions for the DFF-N20 motor are D12mm (diameter) by L30mm (length), offering a highly compact profile for integration in micro devices.
