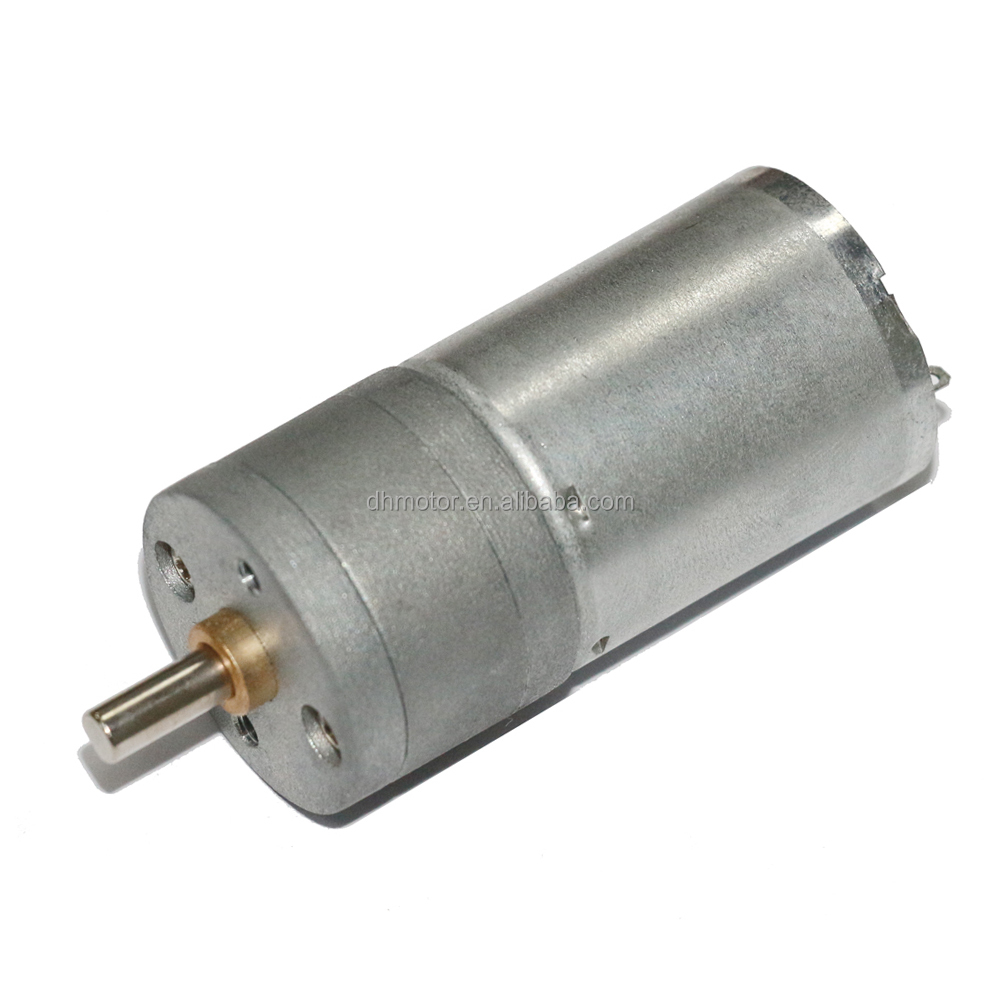

High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS
High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS
High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS
High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS
High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS
1 / 5
High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS
High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS
High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS
High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS
High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS

High Torque 25mm 12V DC Motor 100 :1 Gear Ratio 12V 60 RPM 100 RPM 5A Continuous 24V Permanent Magnet Brush Gear Motor RoHS

Send Inquiry

Product Description

Product Description

Quick Details

Model Number DGA25-370 Usage Home Appliance
Certification ROHS Type Gear Motor
Torque 2 kg.cm Construction Permanent Magnet
Commutation Brush Protect Feature Drip-proof
Speed(RPM) 19 rpm Continuous Current 0.147A
Output Power 1.1W Voltage(V) 12V
Efficiency IE 1 No Load Speed 22 rpm
Packaging & Shipping

📦 Packaging Details: 240PCS/CTN, CARTON DIMENSION: 415*315*210 MM

🚚 Delivery Detail: Within 25 days

Specifications & Services

12V High Torque DC Motor Gear Motor (100:1 Gear Ratio)

DC Motor
✔
Voltage Options: 3V, 5V, 6V, 12V, 24V DC motor with encoder
✔

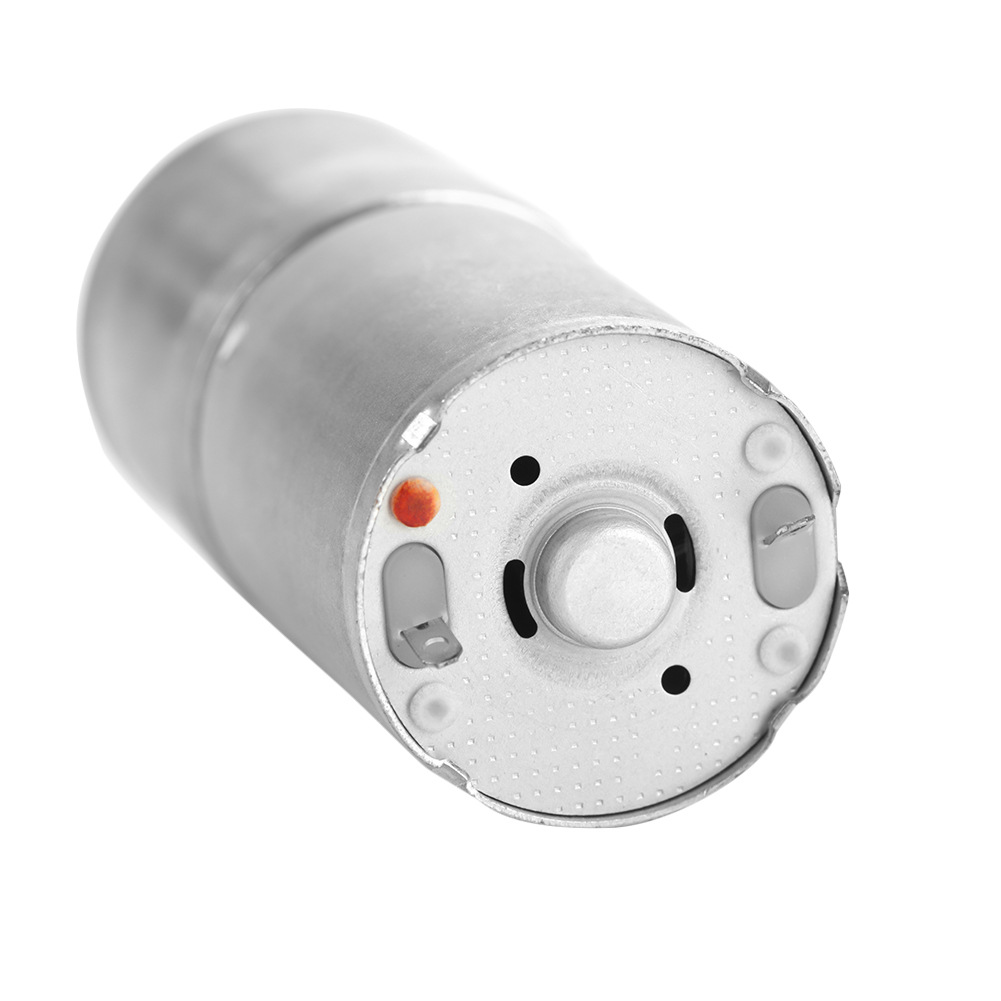

RF370 motor + 25mm DC spur gearbox
✔

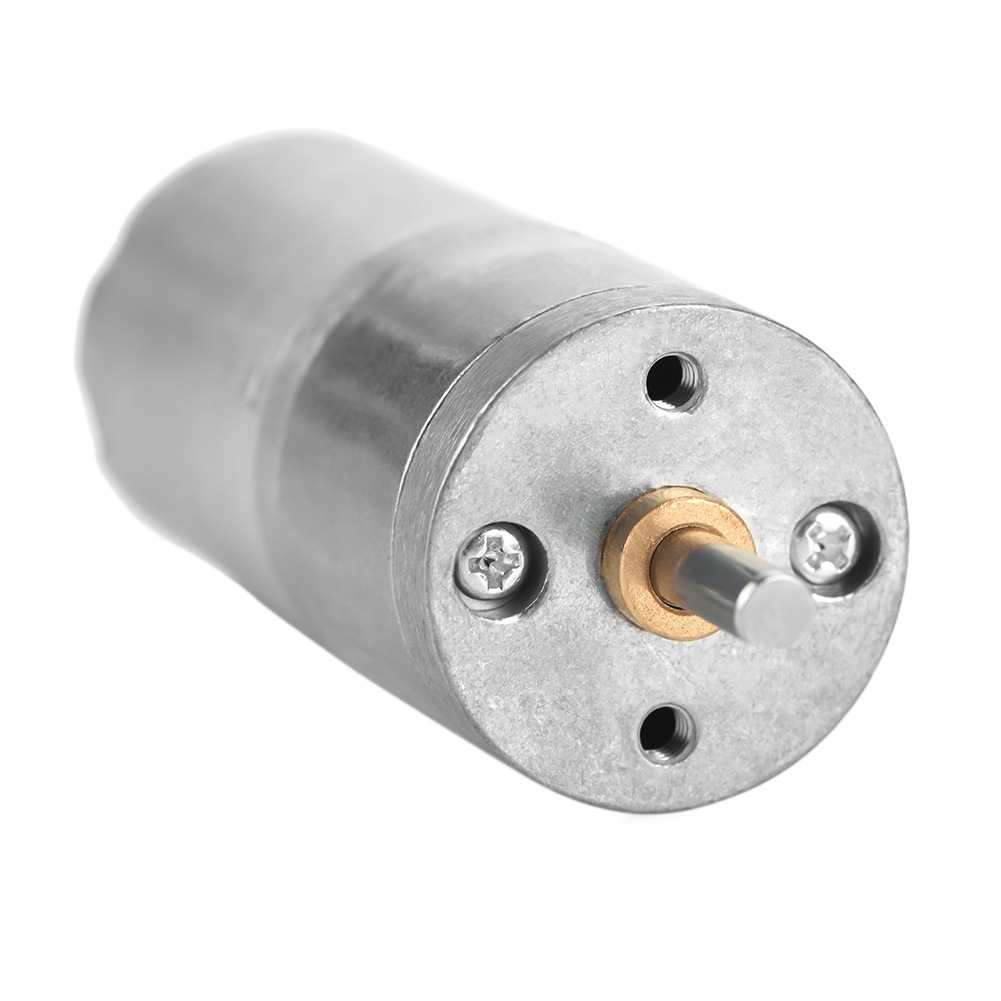

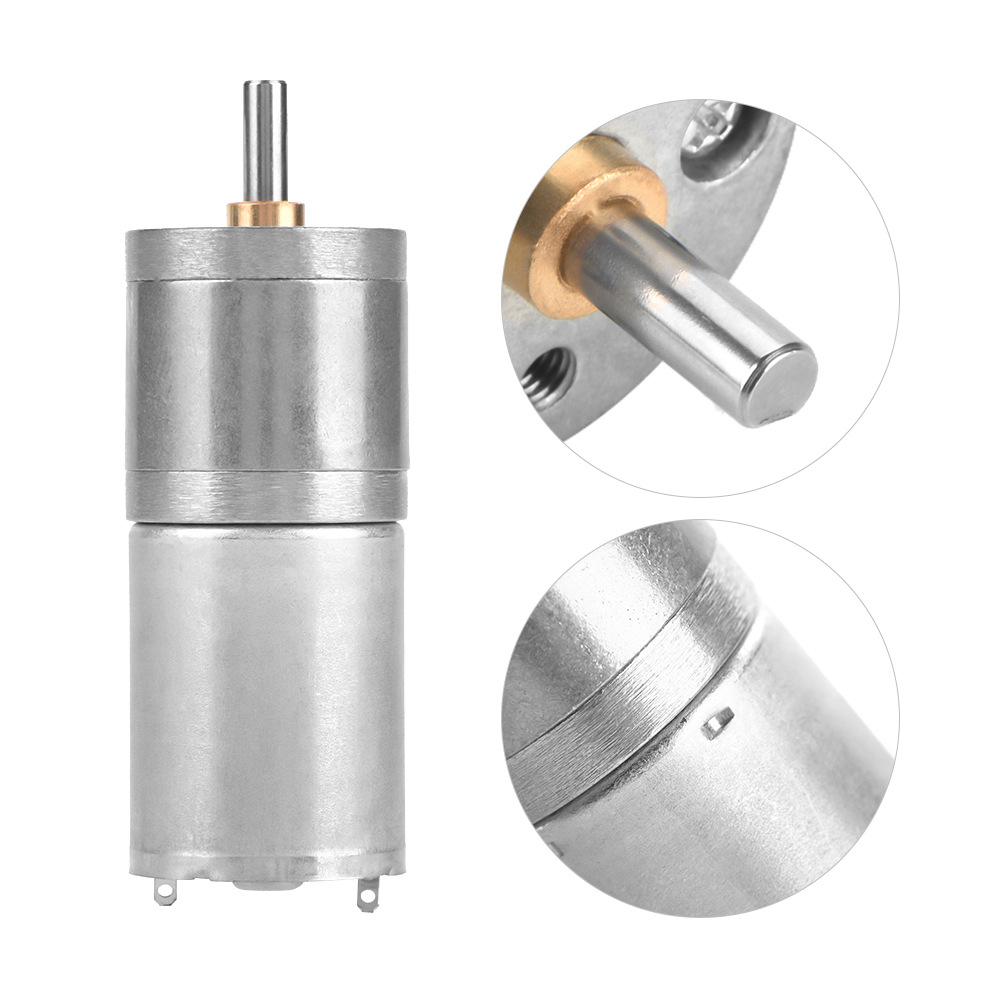

4mm D shape output shaft
✔
Customizable reduction ratios

Typical Applications

Safe box, Storage box, Perfume sprayer, Ad equipment, Sanitary equipment, Automatic window curtain, Electronic game machine, Robot, Measuring instrument, Audio equipment.

Technical Characters

Size: 25*54 mm mini motor
Speed Range: 5-410 RPM
Torque: 0.05-5kg.cm
Low noise, low current, no spark

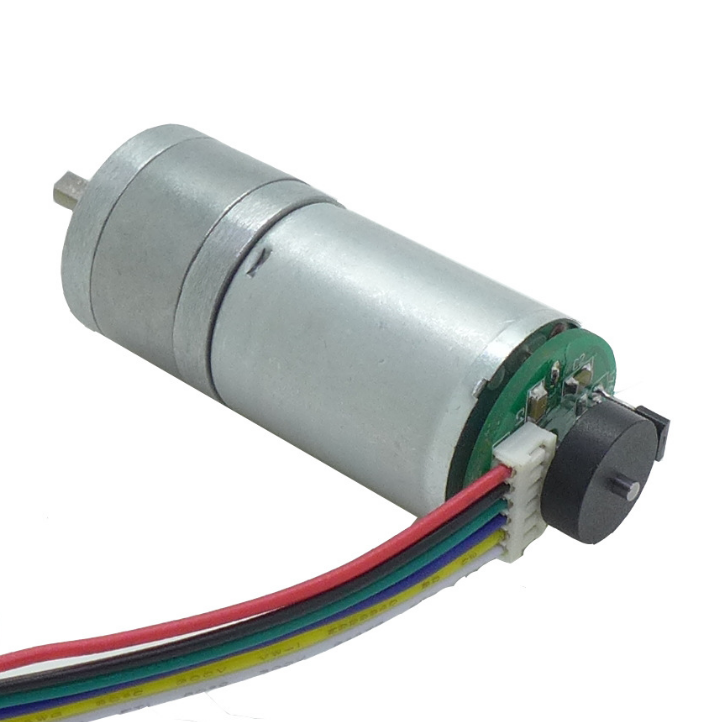

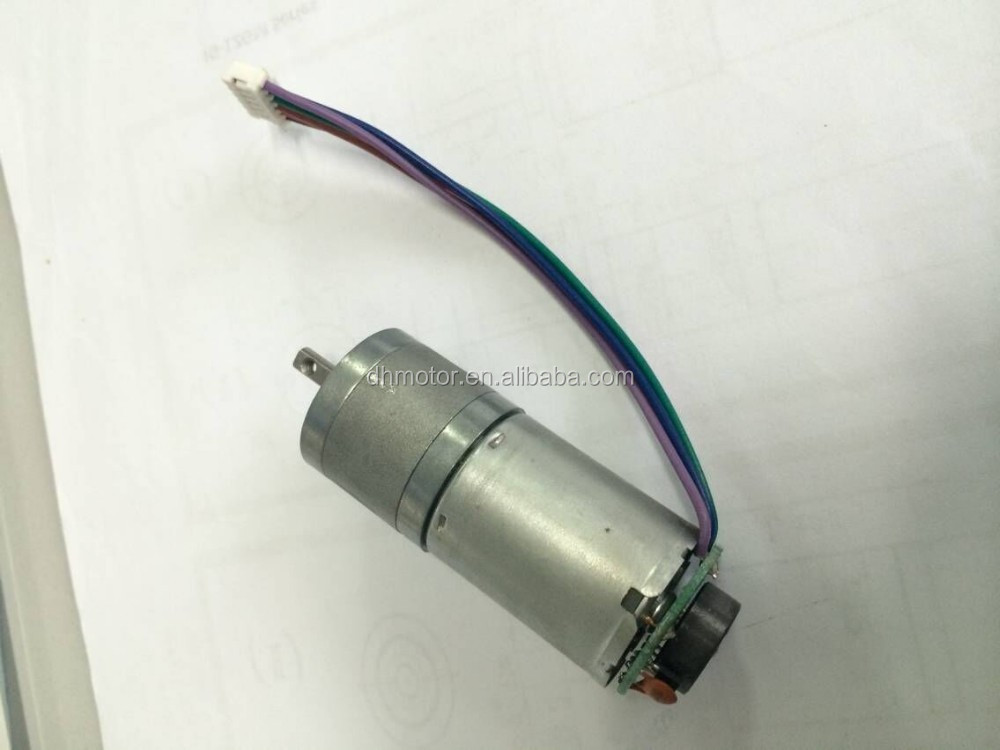

Optional encoder (16 pulse signal)
Reduction Ratio: 15-1051
Product Visuals
Industry Experience

Since its establishment in 2003, there has been a deep commitment to the development and production of micro motors. The major product series include Micro DC motors, DC gear motors, coreless motors, and brushless motors. These products are widely utilized in consumer electronics, electric toys, household appliances, office automation, medical equipment, and automotive fields.

Product Capability Range:
  • Diameter: 4mm to 100mm
  • Voltage: 1.5V - 42V DC; AC Rectify: 100V-240V
  • Speed: 1 RPM to 30,000 RPM
  • Stall Torque: 1g.cm to 30kg.cm

Frequently Asked Questions

What is the main application for this DGA25-370 motor?
It is ideal for home appliances, safe boxes, robotic systems, and medical instruments requiring high torque and stable rotation.
Can the gear ratio be customized?
Yes, the reduction ratio can be customized between 15 and 1051 to meet your specific torque and speed requirements.
Does the motor support speed feedback?
Yes, the motor can be equipped with an encoder providing a 16-pulse signal for precision control.
What are the available voltage ranges?
The standard range includes 3V, 6V, 12V, and 24V DC configurations.
What is the typical lead time for production?
The delivery time is generally between 20 to 25 days depending on the customization and order quantity.
Is the motor compliant with international standards?
Yes, all our gear motors are ROHS certified and built to industrial efficiency standards.
