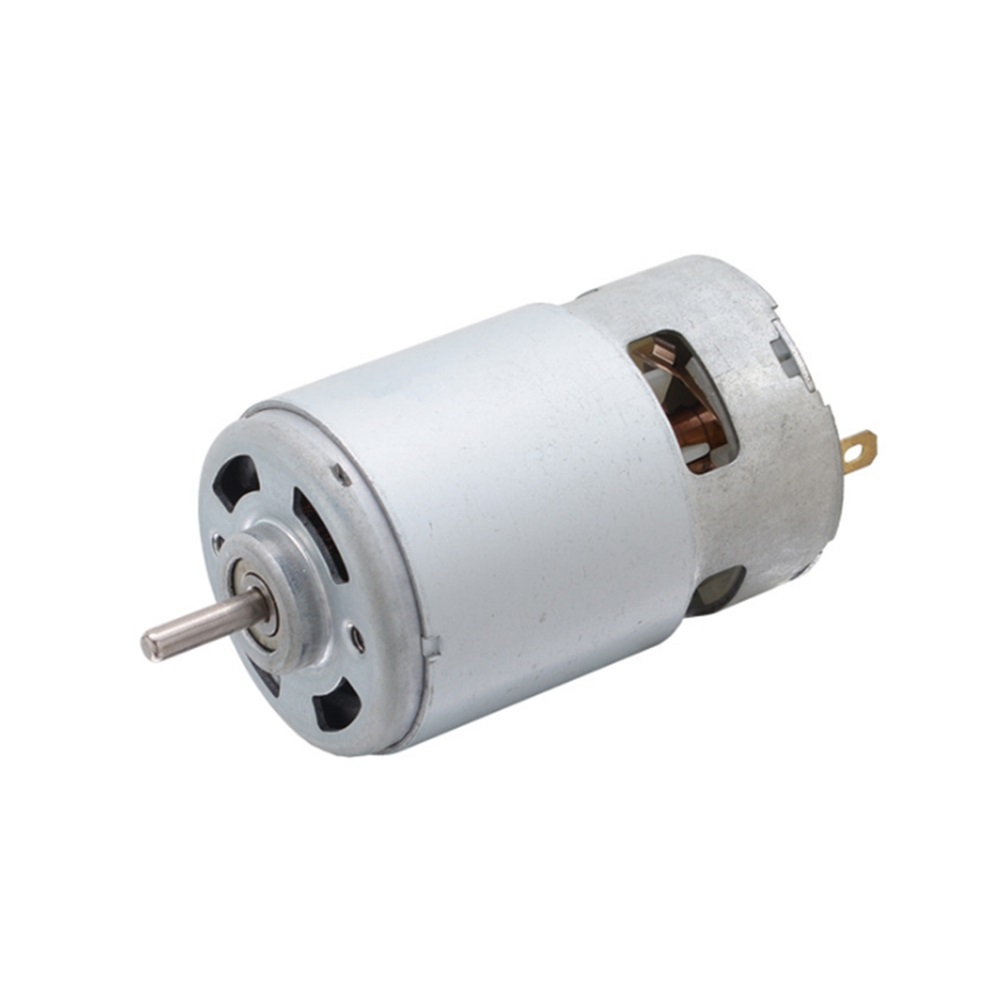

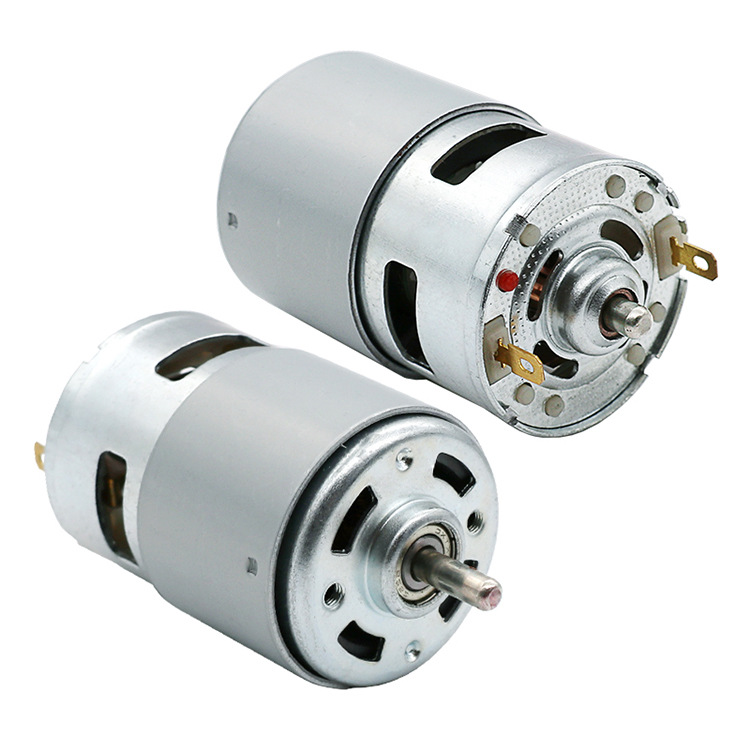

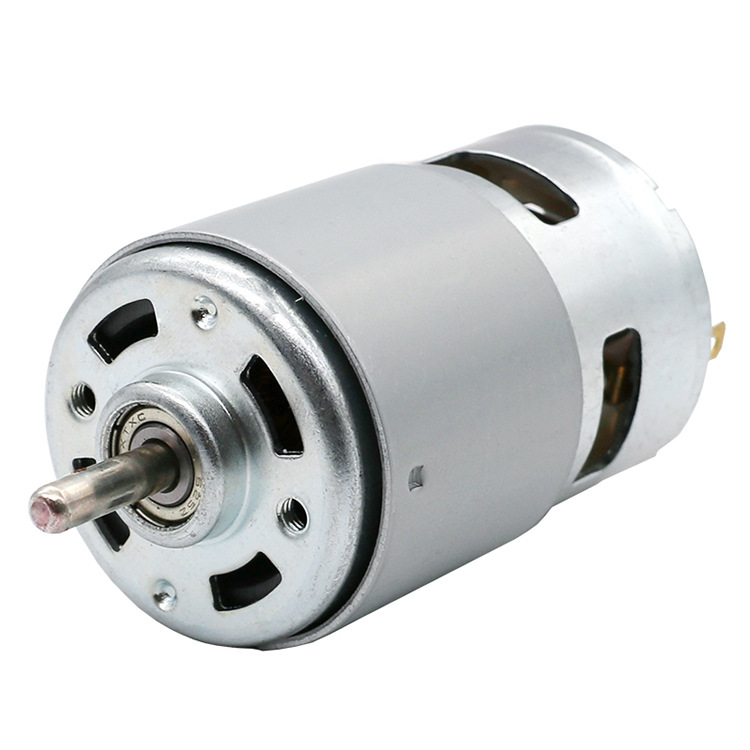

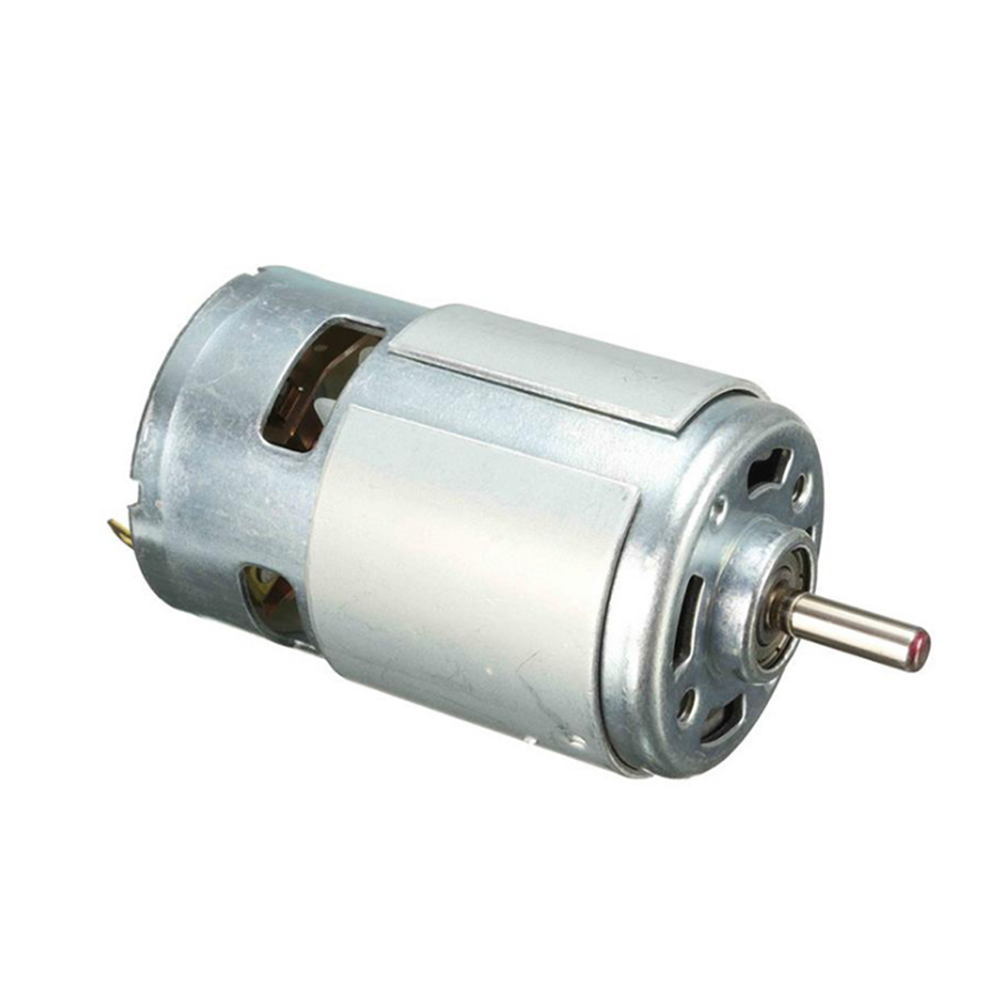

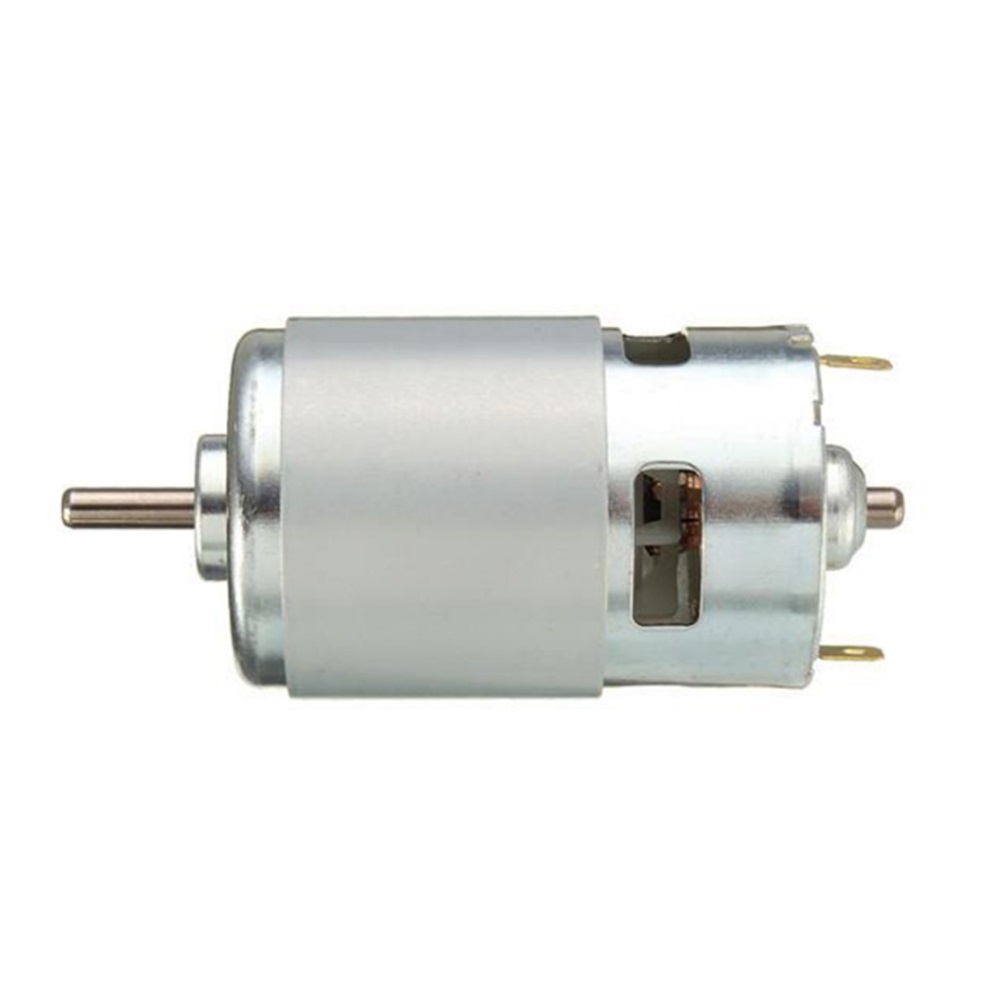

DRC 750 755 770 775 12V DC Motor 10000RPM 20000RPM High Speed Durable Electric Motor for Global B2B Buyers

⚙️ Specification

Item	42mm brushed dc motor
Size	Diameter 42mm, length 60mm, 67mm
Voltage	DC 6V~24V
Unload Speed	25000rpm Max Customized
Output torque	8000g.cm Max Customized
Output Power	350 Watt Max Customized
Shaft Size	Diameter 5mm, Length 50mm Max customized
Bearing type	oil bearing, ball bearing
Certificate	ROHS
Application	Massaer, Vacuum Cleaner, Power Tool, Automotive Product, motorized Toy, kids car

📦 Product Description

Customization Options Available:

The following motor's voltage, speed, torque, shaft length, and type can be fully customized to meet your specific requirements.

🚚 Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

🏢 Company Profile

Professional Micro Motor Manufacturer for 10 Years

✔ Brush Dc Motor: Φ6mm—Φ60mm

✔ Brushless Dc Motor: Φ12mm-Φ42mm Coreless

✔ Brush/Brushless DC Motor: Φ4mm—Φ45mm

✔ Gear/Planetary Gear Dc Motor: Φ4mm—Φ60mm

✔ Stepper Dc Motor: Φ6mm—Φ24mm

✔ Vibration Dc Motor: Φ4mm—Φ45mm

✔ Motor Voltage Range: DC1.5V-220V, AC 110V/220/230/240V

✔ Speed Range: 0.1-80,000RPM

✔ Output Torque: 0.01-500Kg.cm

✔ Shaft Length: 0.1-150mm

✔ Gearbox Ratio: 1:4---1:5000

❓ Frequently Asked Questions

Question 1: What's your main products?

Answer: Diameter 4~60 mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.

Question 2: What's the main usage of the micro dc gear motor?

Answer: Our motor widely used in Home Appliance, Office Equipment, Health-care appliance, Sanitation industry, High-class toy, Banking System, Electronic and electrical tools, automation industry, bank equipment, payment equipment, vending machines, power door lock, electric door lock.

Question 3: Do you accept customize?

Answer: Sure, as we have a strong design team, any problems will get our technical answer.

Question 4: What kind of data do I need to provide if I want to order?

Answer: Please kindly tell us your voltage, speed, torque and overall dimension.

Question 5: What if I don't know the above data?

Answer: Please contact our salesman, tell us your requirement, we will recommend the best fit model.

Question 6: How can I get a quotation?

Answer: Please feel free to contact us to get a professional quotation and product recommendation based on your needs.
