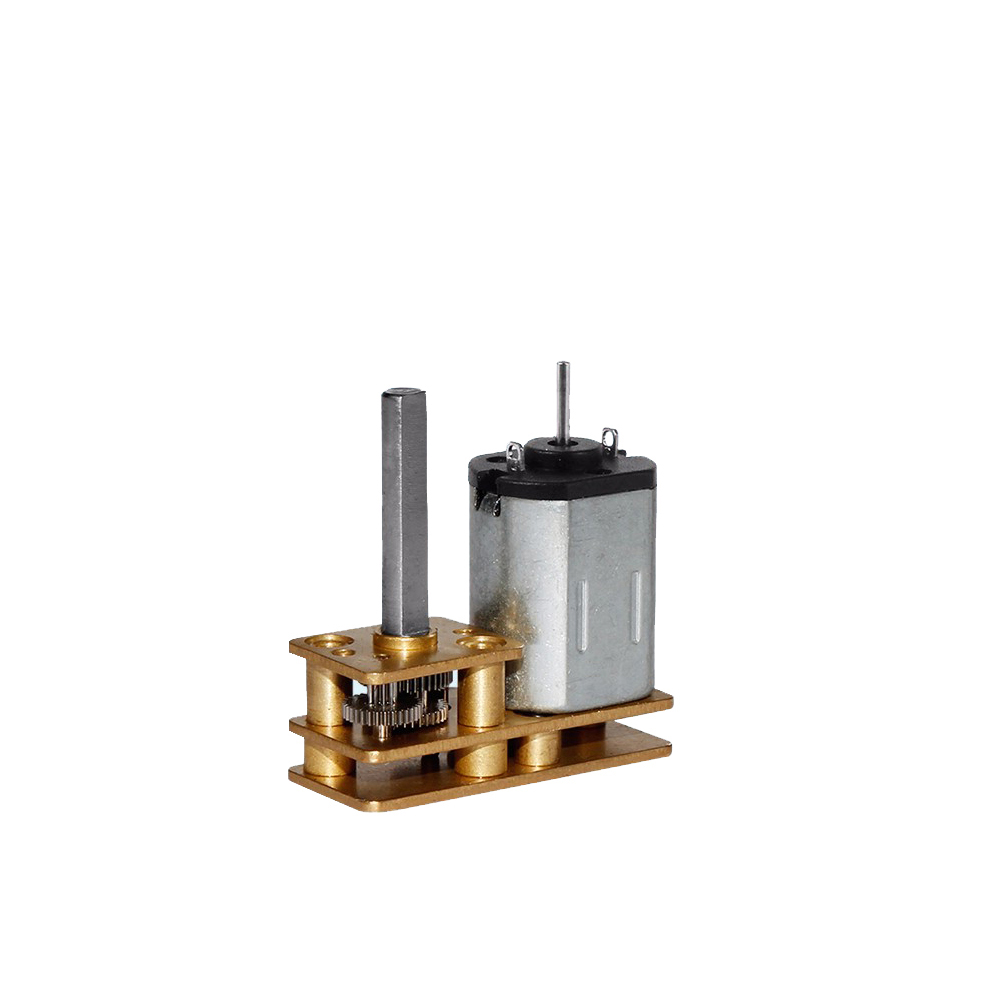

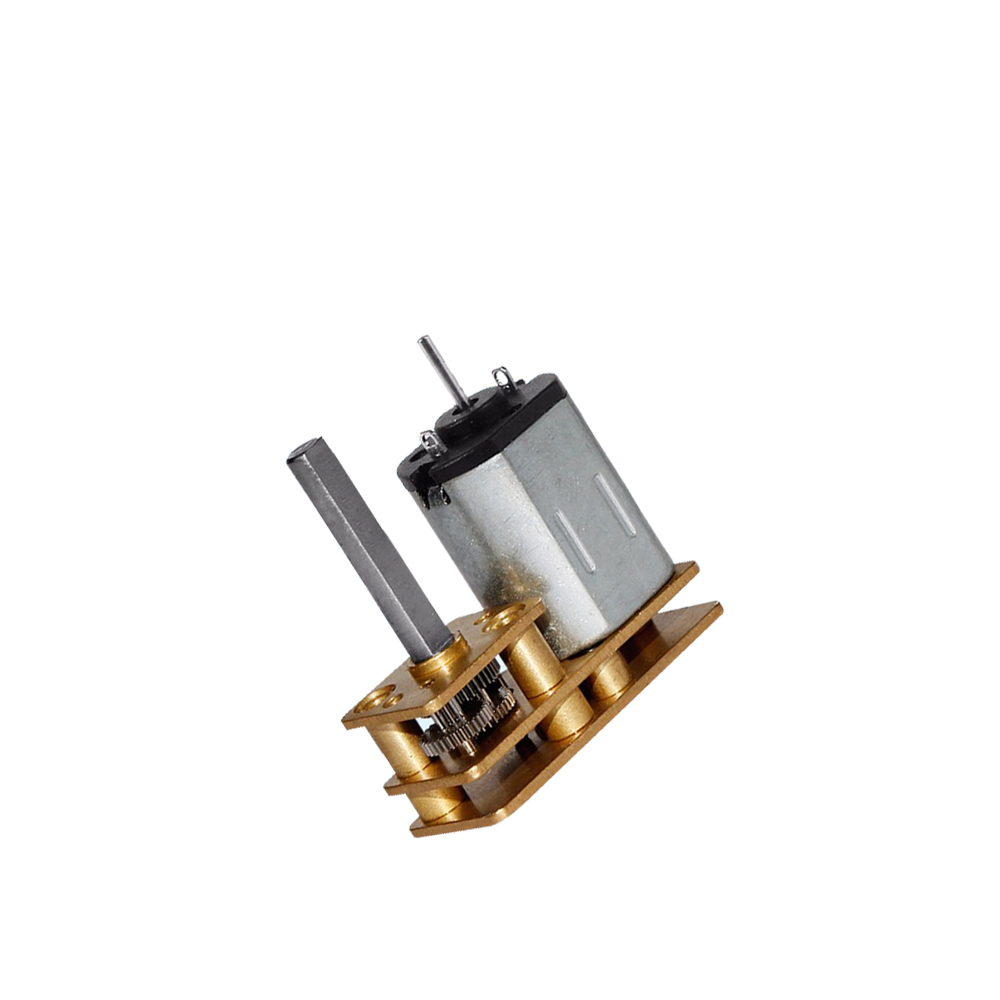

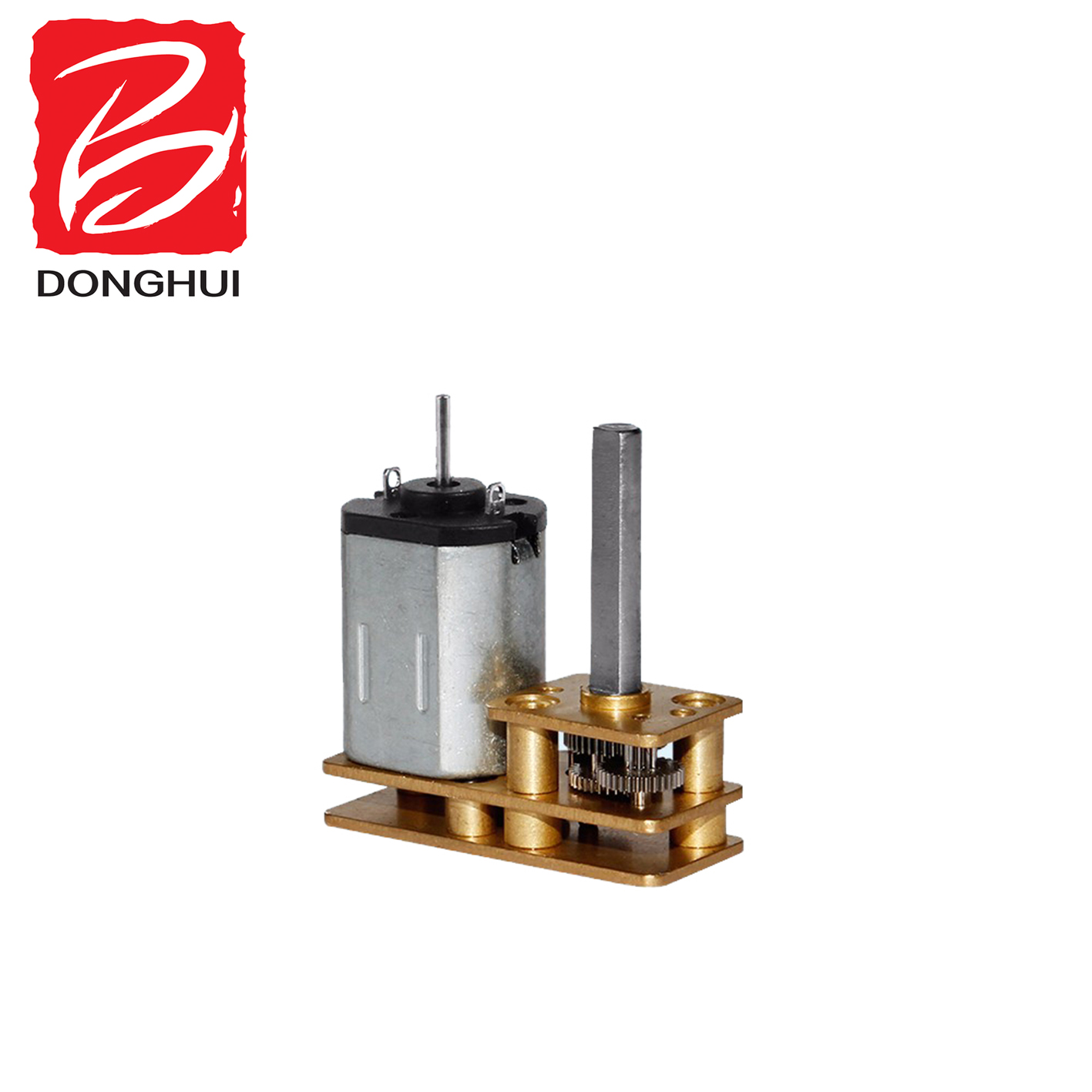

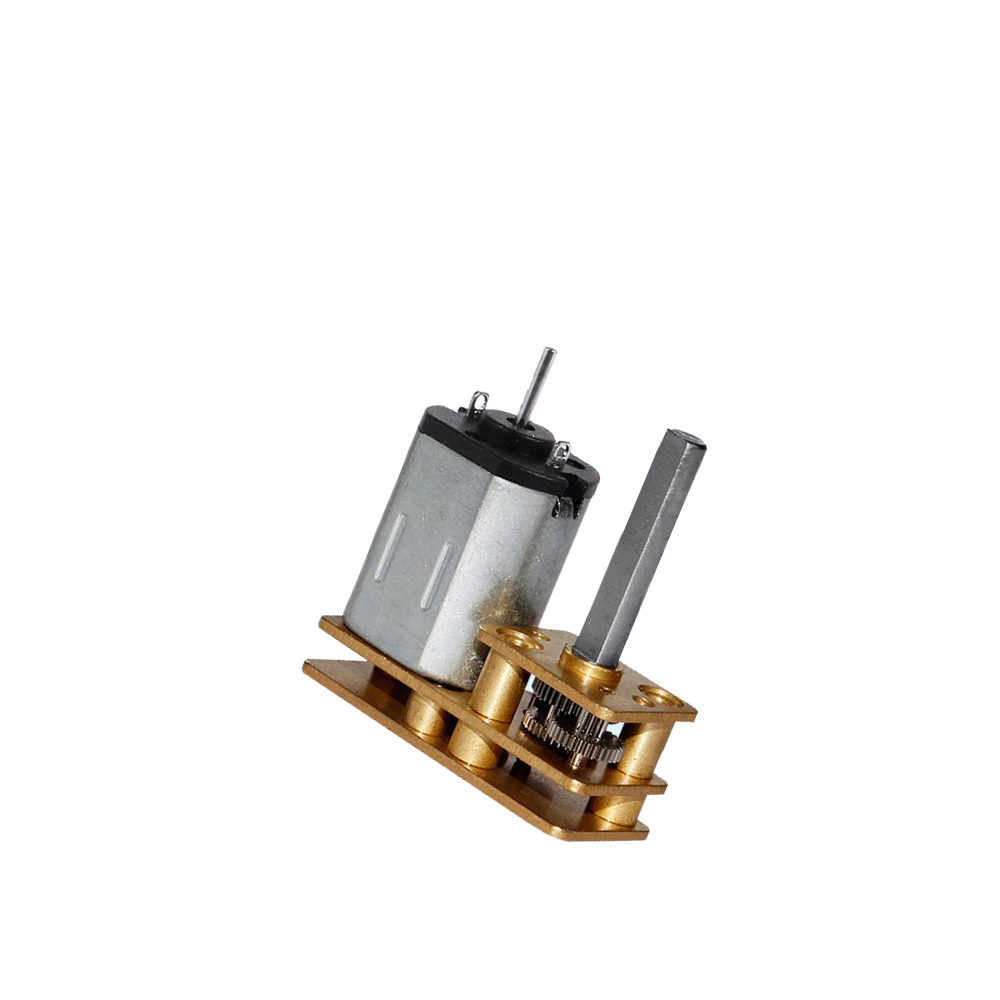

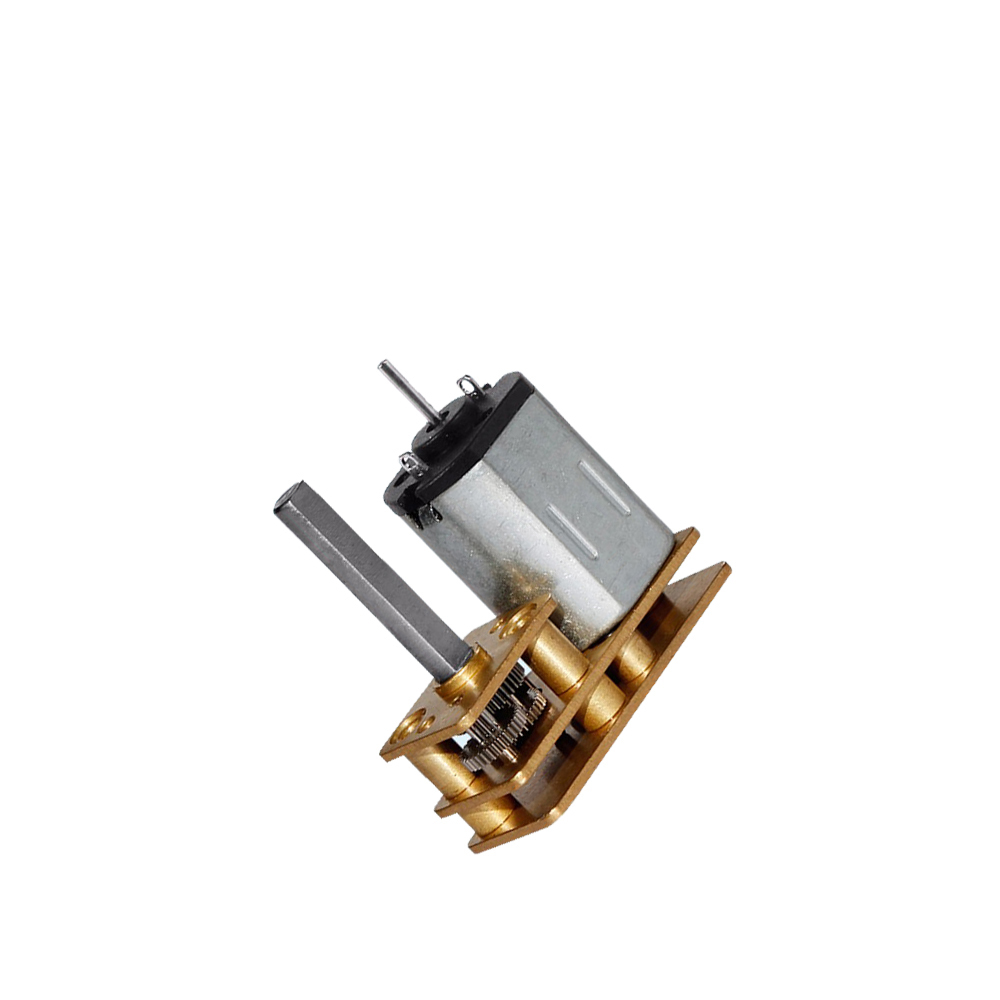

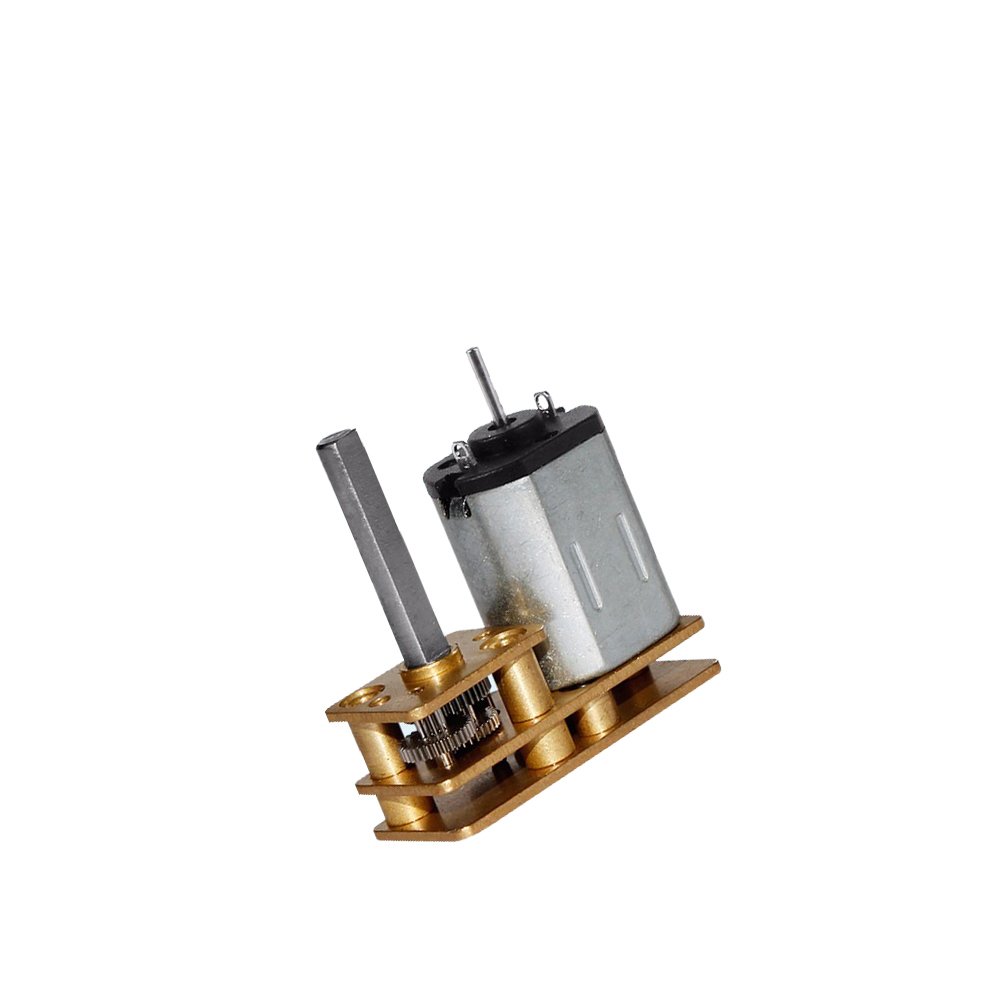

Mini N20 DC Gear Motor Screw 2.5v 3v 5v 6v 60 Rpm Brush Permanent Magnet Fan Boat Electric Bicycle Smart Home 5mm 10mm

1 / 5

Mini N20 DC Gear Motor Screw 2.5v 3v 5v 6v 60 Rpm Brush Permanent Magnet Fan Boat Electric Bicycle Smart Home 5mm 10mm

Send Inquiry

Product Description

Product Overview

2.5v 3v 5v 6v 60 rpm N20 Mini DC Gear Motor with Screw

Model: DGR24-N20

Key Applications: Electric locks, Astronomical telescopes, Purifiers, Toy Robots, Intelligent switches, 3D printers, and various smart home devices.

Technical Specifications

Standard Features:

DC Gear Motor Range: 1.5V - 12V

Speed Capacity: 10 - 20,000 RPM

Encoder integration available

Customized services available based on specific requirements

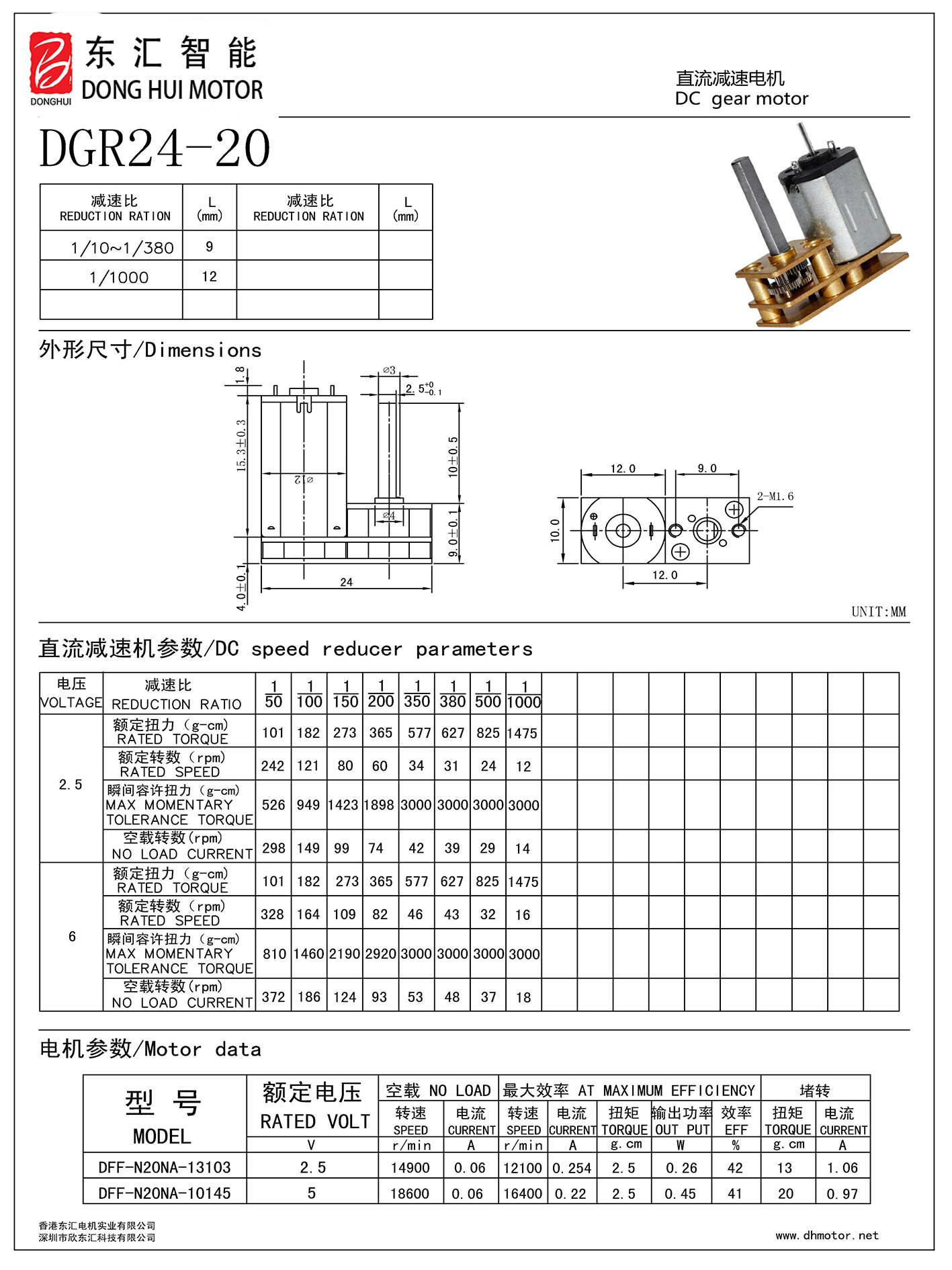

Detailed Parameters:

Low noise, low current, and no spark performance.

Reduction Ratios: 1/10, 1/20, 1/30, 1/50, 1/63, 1/100, 1/150, 1/210, 1/250, 1/298, 1/340, 1/380, 1/1000, etc.

Packaging & Shipping

Shipping Methods:

Manufacturing Capabilities

Specializing in the development and production of micro motors since 2003, covering four major series: Micro DC motors, DC gear motors, coreless motors, and brushless motors.

Size Range: Diameter 4mm - 100mm

Voltage Range: 1.5V - 42V (AC rectify options up to 240V)

Speed Range: 1 RPM - 30,000 RPM

Stall Torque: 1g.cm - 30kg.cm

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional factory dedicated to micro motor development.

How can I place an order?

Send us an inquiry to receive a quotation. Once details and samples are confirmed, we proceed with the contract, production, and delivery.

Do you provide samples?

Yes, samples are available. The sample fee can be refunded upon placing a formal mass production order.

Can you customize the motor specifications?

Absolutely. Our design team can customize voltage, speed, torque, and dimensions to meet your specific technical requirements.

What information is needed for a quote?

Please provide the rated voltage, no-load speed, load torque, and the overall dimensions required for your application.

What are your payment terms?

We accept T/T and PayPal. Usually, a 30-50% deposit is required, with the balance paid before shipping.
