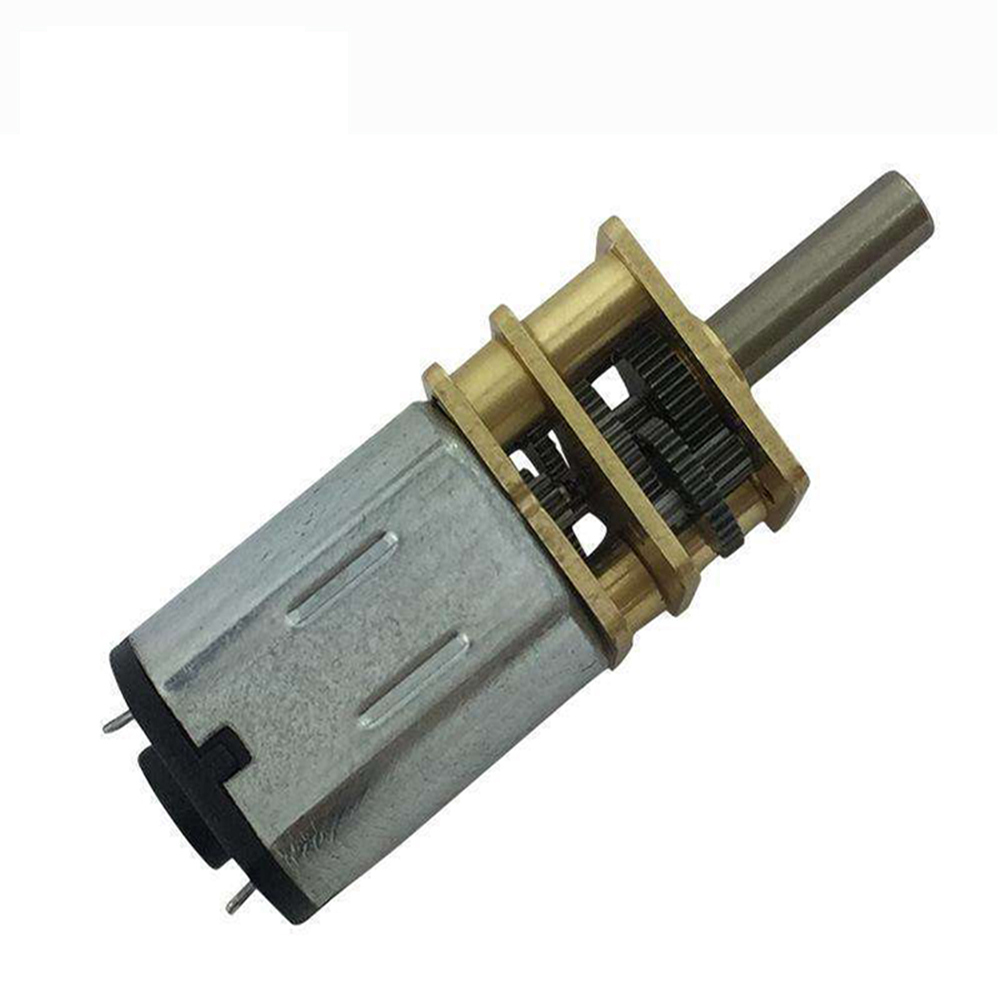

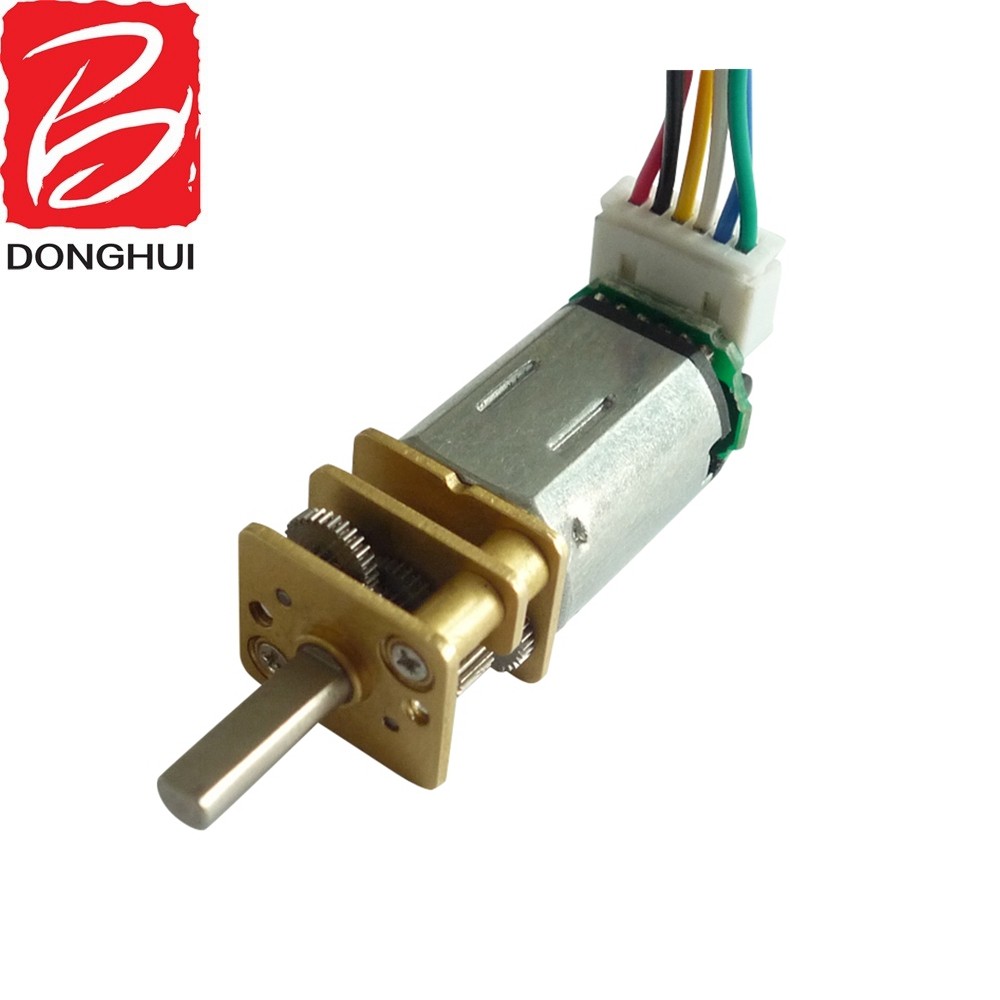

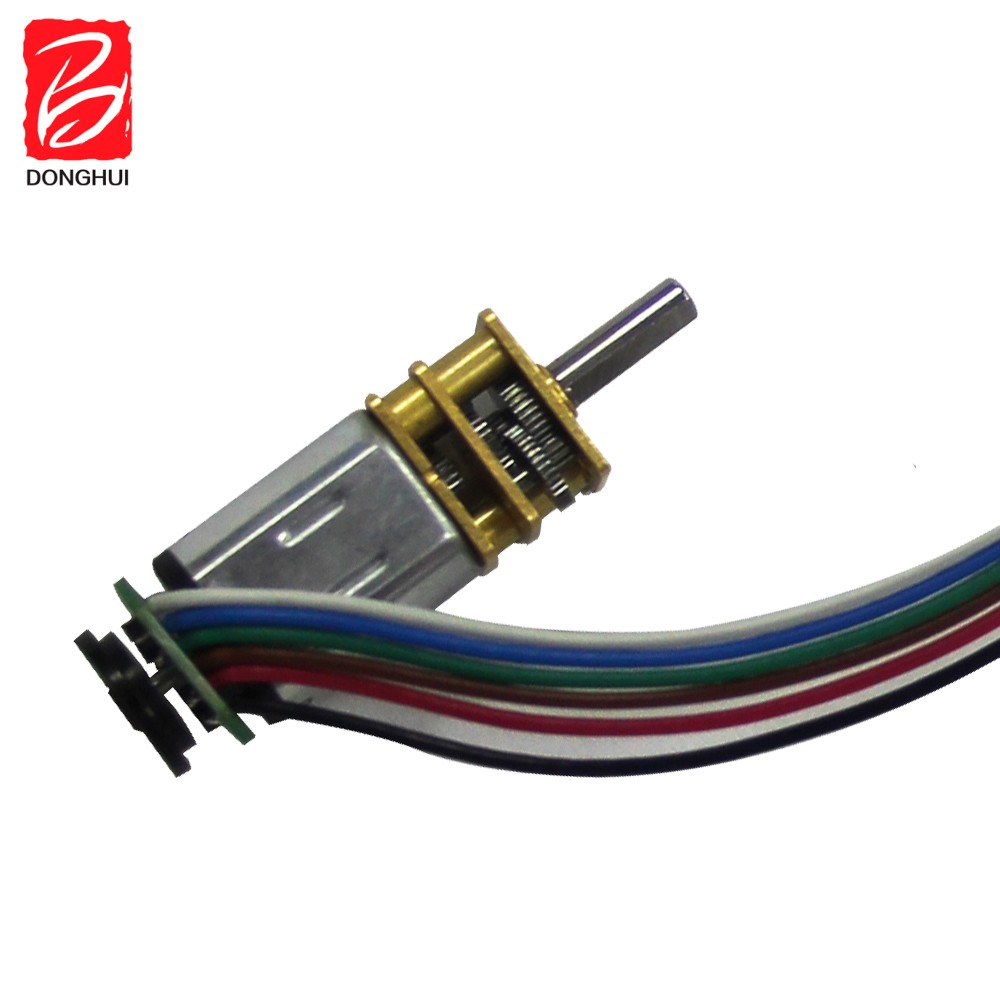

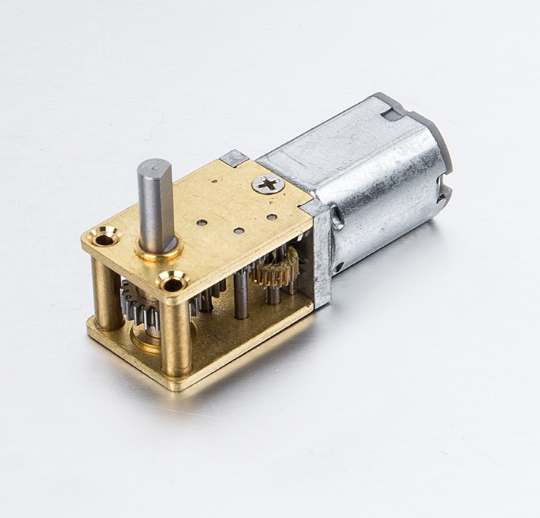

3 Volt 6 Volt 12 Volt 12mm N20 Mini Gear Motor, Gm12 Mini Dc Gear Motor N20
3 Volt 6 Volt 12 Volt 12mm N20 Mini Gear Motor, Gm12 Mini Dc Gear Motor N20
3 Volt 6 Volt 12 Volt 12mm N20 Mini Gear Motor, Gm12 Mini Dc Gear Motor N20
3 Volt 6 Volt 12 Volt 12mm N20 Mini Gear Motor, Gm12 Mini Dc Gear Motor N20
1 / 4
3 Volt 6 Volt 12 Volt 12mm N20 Mini Gear Motor, Gm12 Mini Dc Gear Motor N20
3 Volt 6 Volt 12 Volt 12mm N20 Mini Gear Motor, Gm12 Mini Dc Gear Motor N20
3 Volt 6 Volt 12 Volt 12mm N20 Mini Gear Motor, Gm12 Mini Dc Gear Motor N20
3 Volt 6 Volt 12 Volt 12mm N20 Mini Gear Motor, Gm12 Mini Dc Gear Motor N20

3 Volt 6 Volt 12 Volt 12mm N20 Mini Gear Motor, Gm12 Mini Dc Gear Motor N20

Send Inquiry

Product Description

Product Overview
Model Number DGA12-N20 Certification ROHS, ISO
Type Micro Motor Usage Boat, Car, Fan, Home Appliance
Voltage(V) 6V (1.5-12V range) Speed(RPM) 34 RPM / 10-2000 RPM
Torque 500 G.cm Construction Permanent Magnet
Commutation Brush Protect Feature Drip-proof
Output Power 0.3 W Efficiency IE 1 (68.3%)
Shaft Diameter 2.0mm Weight 10g
Technical Specifications & Features
  • Rated Voltage: 1.5V - 12V DC
  • Versatile Speed: Adjustable from 10 to 2000 RPM
  • Compact Size: 12.0 x 24.0 x 10.0mm mini gear motor
  • High Quality: Low noise, low current, and no spark operation
  • Encoder Compatible: Can be equipped with an encoder for precision control
  • Broad Reduction Ratios: 1/3, 1/50, 1/100, 1/298, 1/300, 1/1000
Mini DC Gear Motor
Product Application & Details

This 12mm N20 mini gear motor is widely applicable in various high-precision and compact devices:

  • Robotics and Smart Locks
  • Automatic Shutters and USB Fans
  • Currency Counting Machines and Money Detectors
  • Household Appliances and Office Automation
  • Medical Equipment and Power Tools
  • Automotive Components and Audio-Visual Equipment

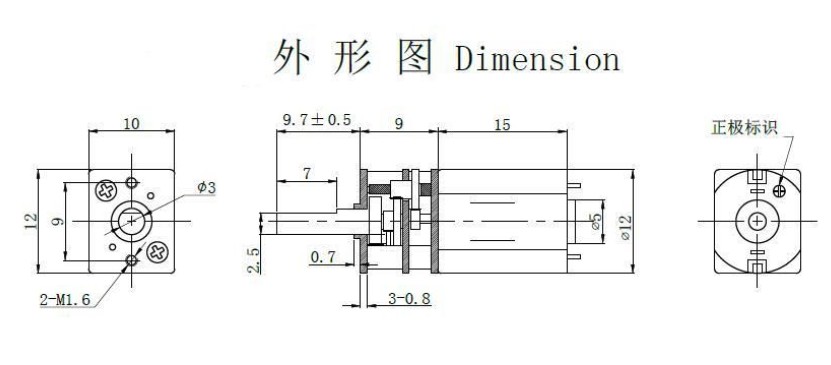

N20 Gear Motor View 1

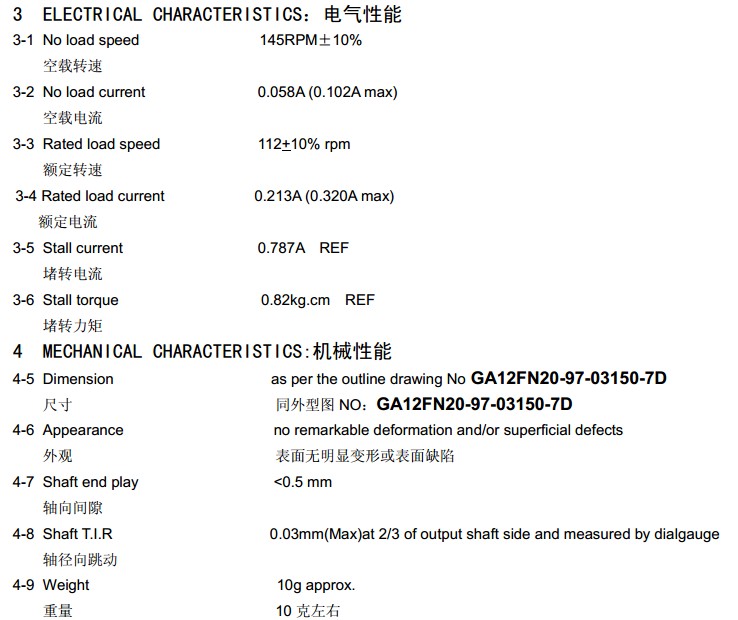

N20 Gear Motor View 2

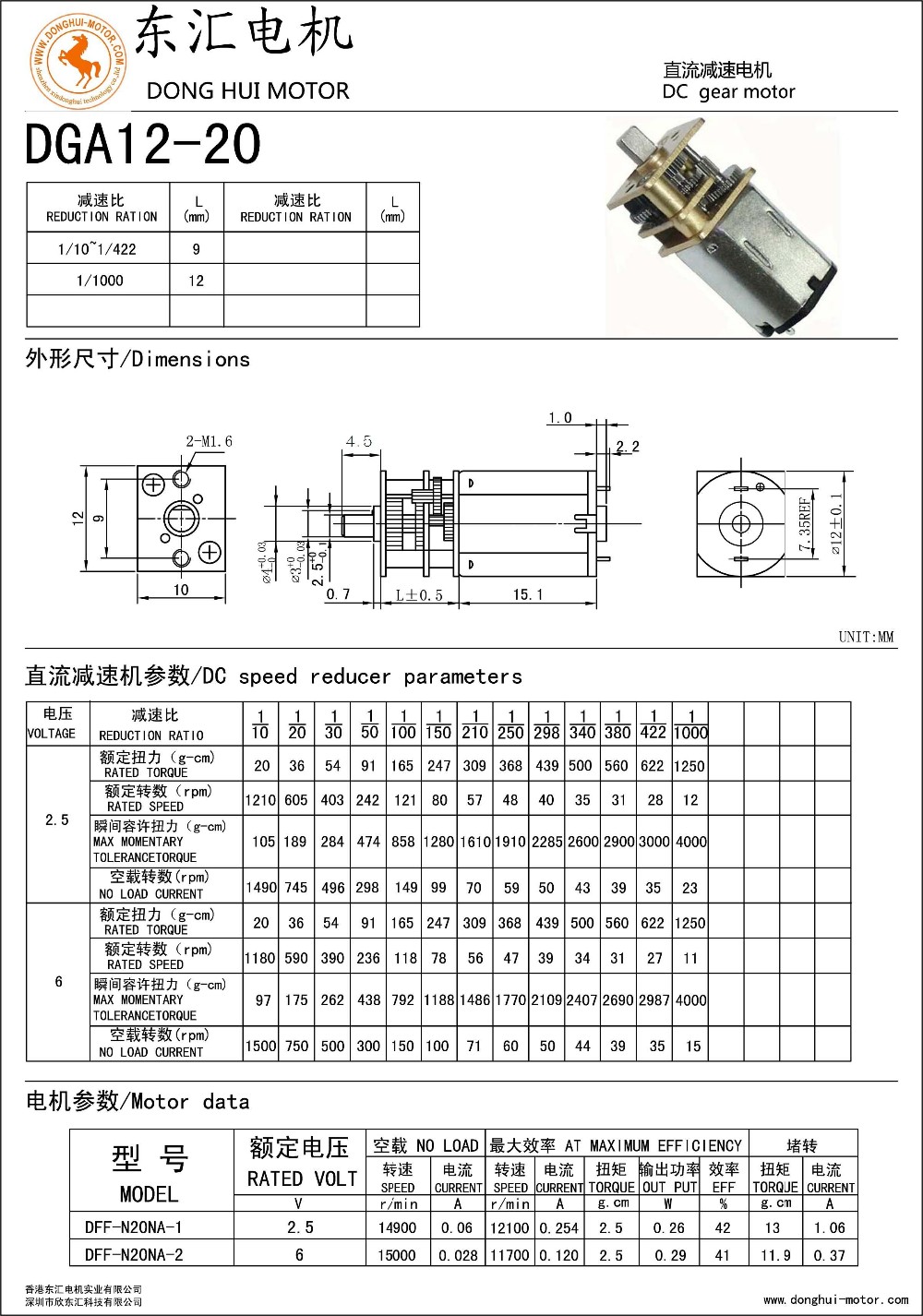

N20 Gear Motor Dimensions
Packaging & Shipping Information
Packaging Details 80PCS/TRAY, 1200PCS/CTN, CARTON DIMENSION: 11*9*6.75 INCH
Delivery Detail Within 25 days
Minimum Order 100 Pieces

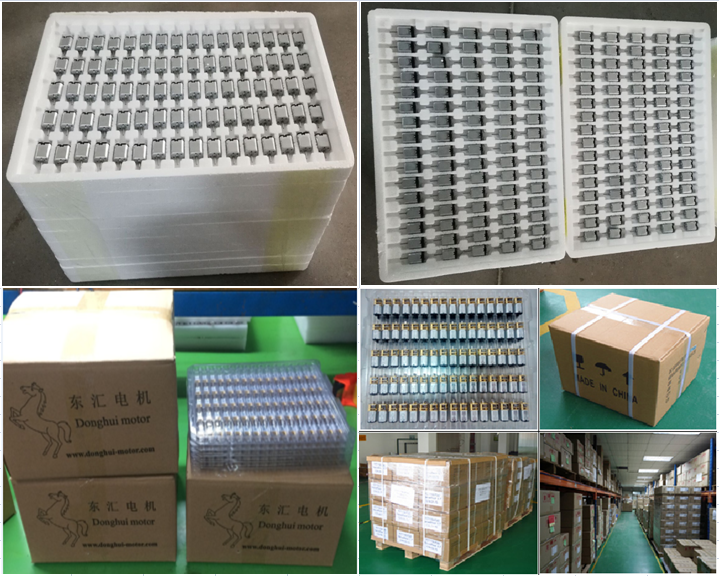

Packaging Tray
Carton Packaging

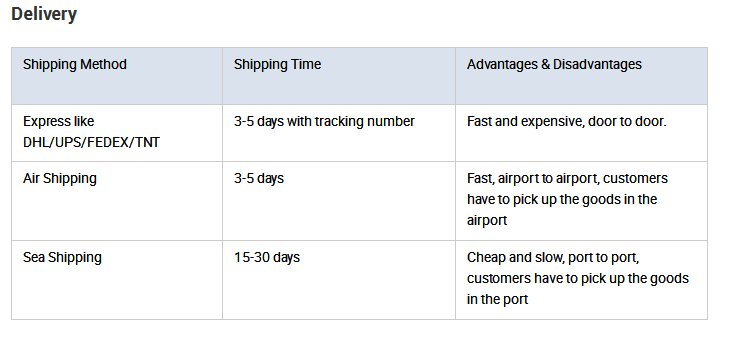

Shipping Preparation
Quality Certifications
Certification 1
Certification 2
Certification 3
Factory Audit 1

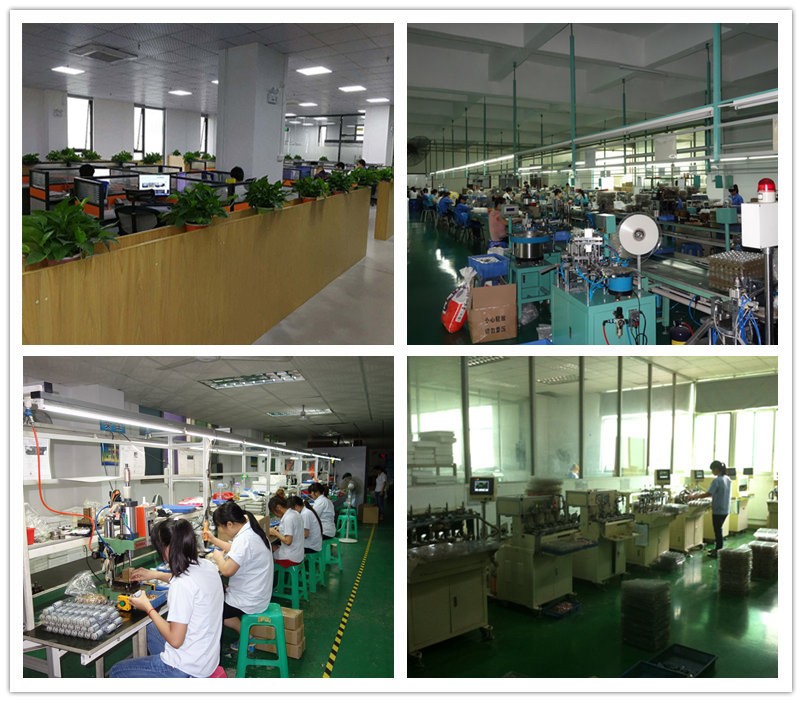

Factory Audit 2
Company Background

Established in 2003, we have been committed to the development and production of micro motors. Our expertise spans four major product series: Micro DC motors, DC gear motors, coreless motors, and brushless motors.

  • Product Range: Diameter 4mm to 100mm DC Micro Motors.
  • Voltage Spectrum: 1.5V to 42V DC; AC rectify solutions for 110V/220V.
  • Performance: Speed range from 1 RPM to 30,000 RPM.
  • Torque Capability: Stall torque from 1g.cm up to 30kg.cm.

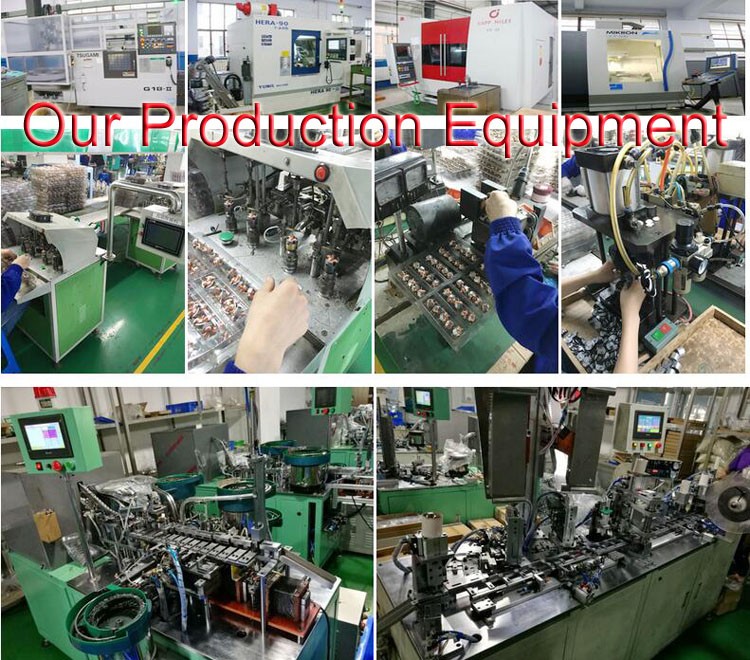

Manufacturing Facility
Motor Production Line
Frequently Asked Questions
1. What is the voltage range for the N20 mini gear motor? The N20 motor typically operates within a 1.5V to 12V DC range, with common rated voltages at 3V, 6V, and 12V.
2. Can I get a customized reduction ratio? Yes, we offer several standard ratios including 1/3, 1/50, 1/100, 1/298, 1/300, and 1/1000 to meet different torque and speed requirements.
3. Is this motor suitable for smart locks? Absolutely. Due to its high torque and compact size (12mm width), it is one of the most popular choices for electronic smart locks and robotics.
4. Does the motor support encoder installation? Yes, the DGA12-N20 model can be equipped with an encoder for applications requiring precise speed or position feedback.
5. What is the typical lead time for an order? Standard delivery is usually within 25 days, although samples can be provided earlier for testing.
6. What certifications do your motors hold? Our products are compliant with ROHS and our manufacturing processes are ISO certified to ensure high quality and environmental safety.
