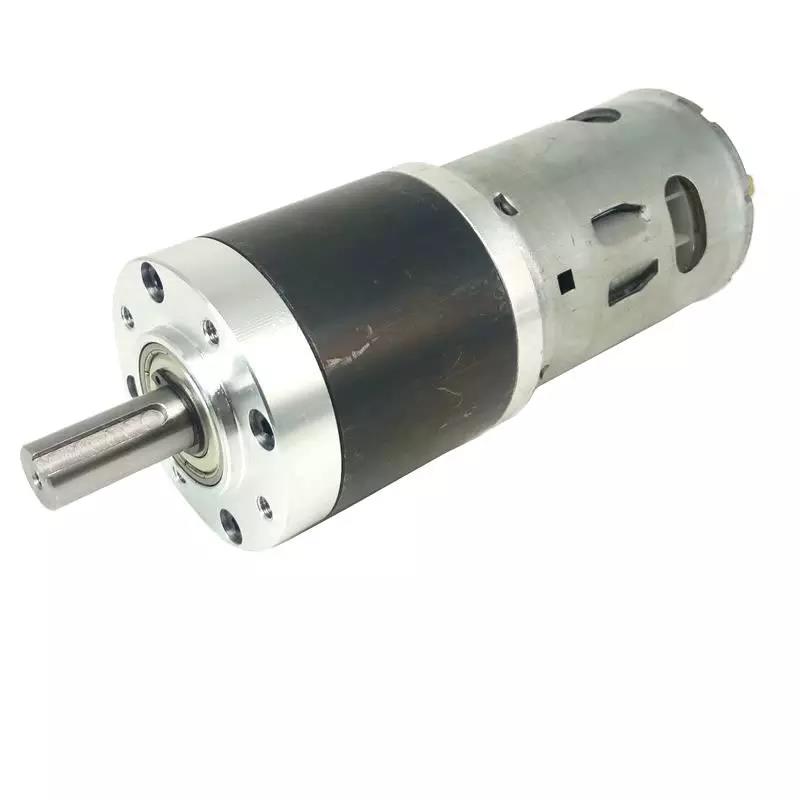

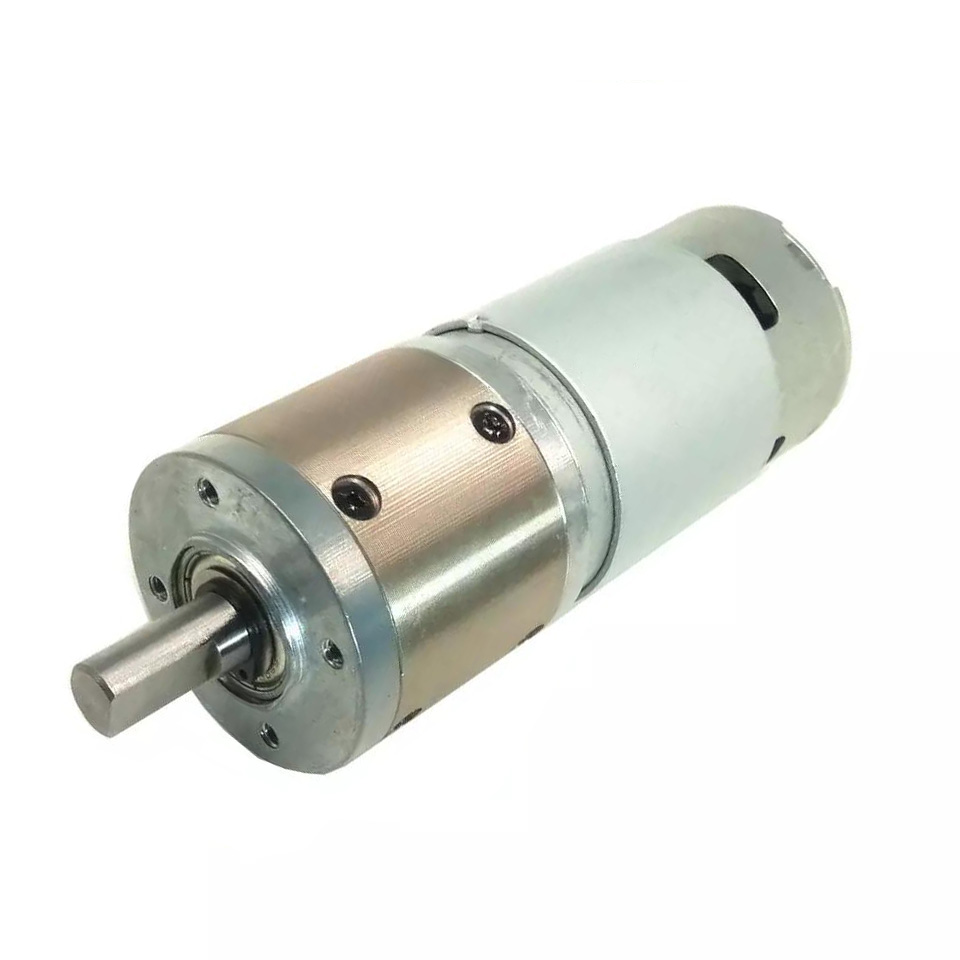

OEM Cheap Price Diameter 45mm 24v High Torque 30KG Precision Dc Micro Planetary Gear Motor with Brushed Dc 775 Motor DPG45-775
OEM Cheap Price Diameter 45mm 24v High Torque 30KG Precision Dc Micro Planetary Gear Motor with Brushed Dc 775 Motor DPG45-775
OEM Cheap Price Diameter 45mm 24v High Torque 30KG Precision Dc Micro Planetary Gear Motor with Brushed Dc 775 Motor DPG45-775
OEM Cheap Price Diameter 45mm 24v High Torque 30KG Precision Dc Micro Planetary Gear Motor with Brushed Dc 775 Motor DPG45-775
OEM Cheap Price Diameter 45mm 24v High Torque 30KG Precision Dc Micro Planetary Gear Motor with Brushed Dc 775 Motor DPG45-775
1 / 5
OEM Cheap Price Diameter 45mm 24v High Torque 30KG Precision Dc Micro Planetary Gear Motor with Brushed Dc 775 Motor DPG45-775
OEM Cheap Price Diameter 45mm 24v High Torque 30KG Precision Dc Micro Planetary Gear Motor with Brushed Dc 775 Motor DPG45-775
OEM Cheap Price Diameter 45mm 24v High Torque 30KG Precision Dc Micro Planetary Gear Motor with Brushed Dc 775 Motor DPG45-775
OEM Cheap Price Diameter 45mm 24v High Torque 30KG Precision Dc Micro Planetary Gear Motor with Brushed Dc 775 Motor DPG45-775
OEM Cheap Price Diameter 45mm 24v High Torque 30KG Precision Dc Micro Planetary Gear Motor with Brushed Dc 775 Motor DPG45-775

OEM Cheap Price Diameter 45mm 24v High Torque 30KG Precision Dc Micro Planetary Gear Motor with Brushed Dc 775 Motor DPG45-775

Send Inquiry

Product Description

KEY SPECIFICATION OF THE MOTOR
ITEM VALUE
Motor Type DC Planetary gear Motor
Motor Model No DPG45-775
Size (Dimensions) D: 45mm
Operating Voltage 12V~24V DC
Speed RPM 15~1500 r/min - No Load
Motor Power Output Approx 15W~60W
Typical Application Cosmetic instrument, FAN, SMART HOME, Home Appliance
Shaft Length Customized
Driver PCBA Built-in or External
✔ High Precision Planetary Gear System
✔ Wide Voltage Range Support (12V-24V)
✔ Customizable Shaft Specifications
✔ Versatile Application Integration

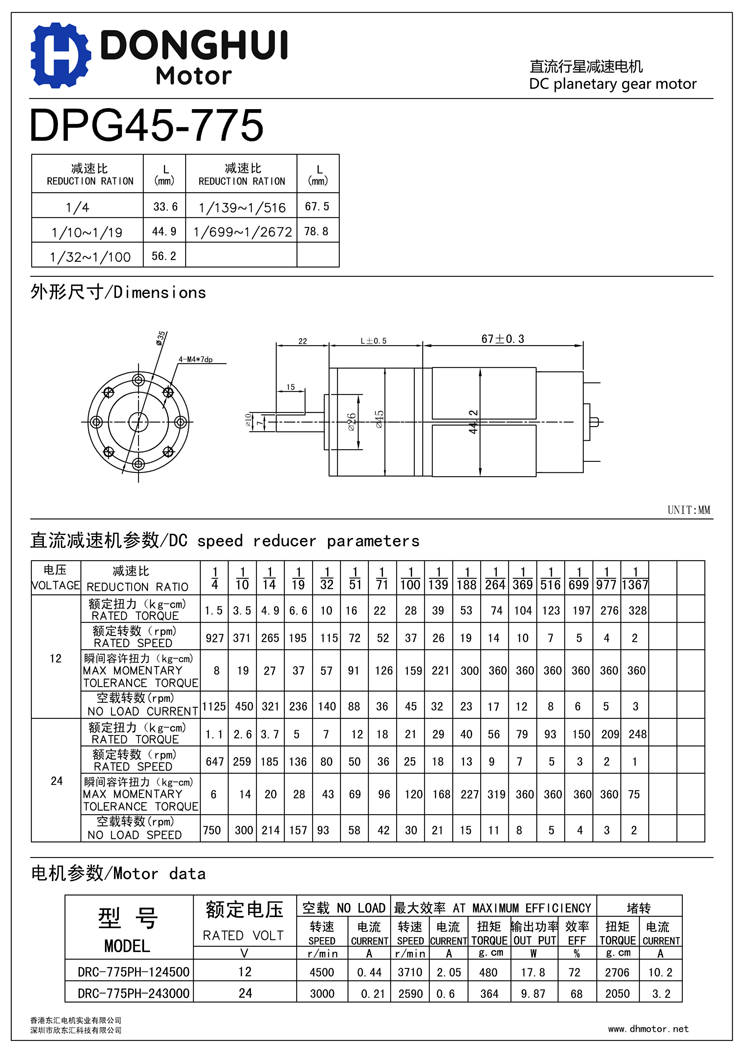

Motor Specification Drawing

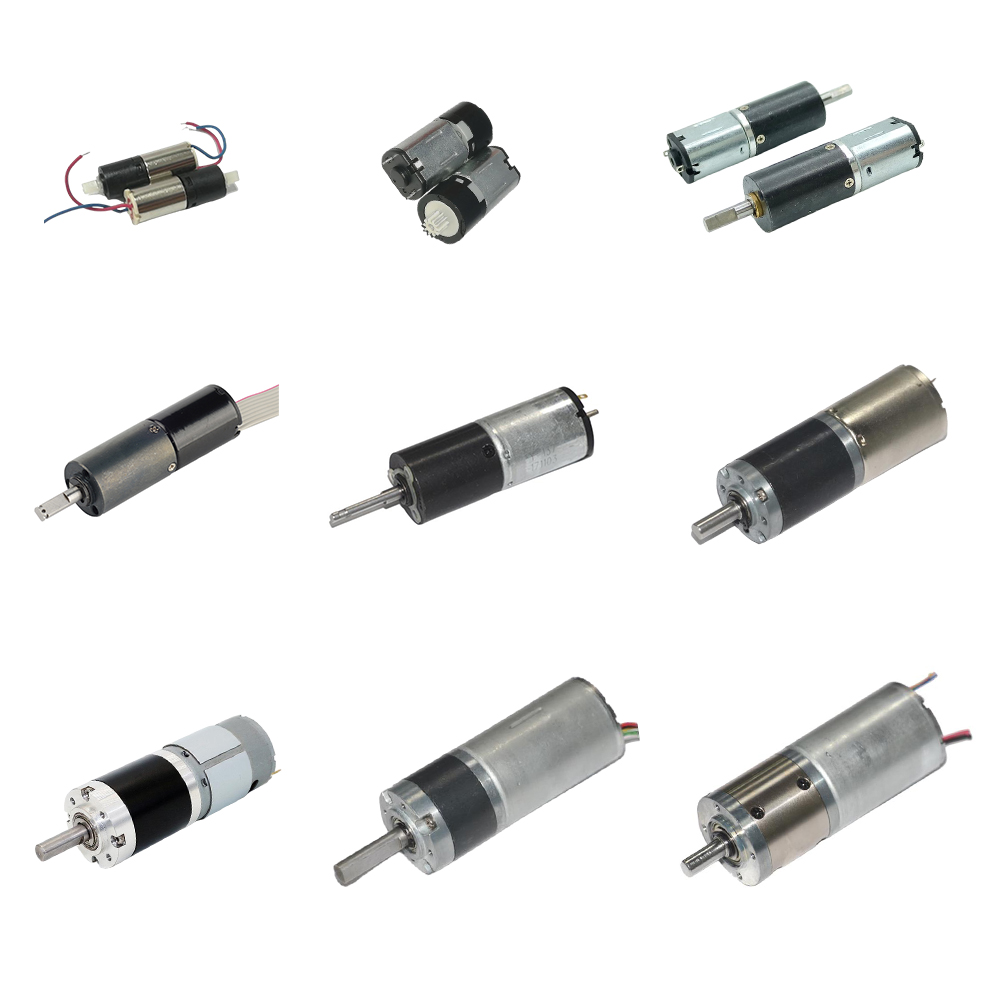

Product Range
Brushless Options
Motor Details
Internal Components
Production Process
Testing Equipment
Storage and Quality Control
Certification and Standards
Frequently Asked Questions
What is the advantage of a Planetary Gear Motor?
Planetary gear motors offer high torque density, high efficiency, and compact dimensions compared to other gear types, making them ideal for precision applications like smart home devices.
What is the operating voltage range for the DPG45-775 model?
The motor is designed to operate efficiently within a DC voltage range of 12V to 24V.
Can the output shaft be modified?
Yes, the shaft length and specifications can be fully customized to meet your specific mechanical design requirements.
What speed ranges are available for this motor?
Under no-load conditions, the motor supports a wide speed range from 15 r/min up to 1500 r/min, depending on the specific gear ratio selected.
Does the motor include an integrated driver?
We offer flexible options where the Driver PCBA can be either built-in to the motor housing or provided as an external component.
What are the primary applications for this motor?
Common applications include cosmetic instruments, fans, smart home systems, and various household appliances requiring reliable DC power.
