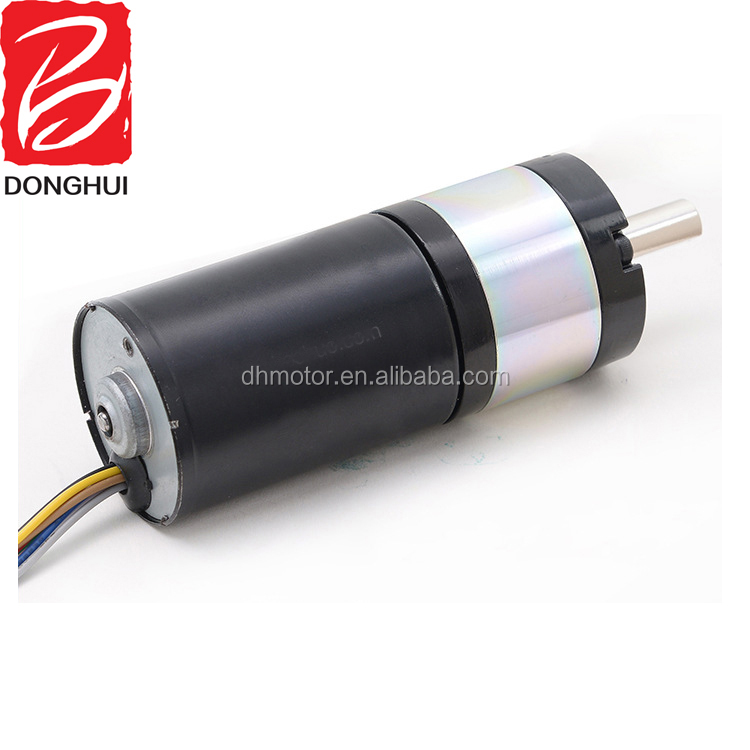

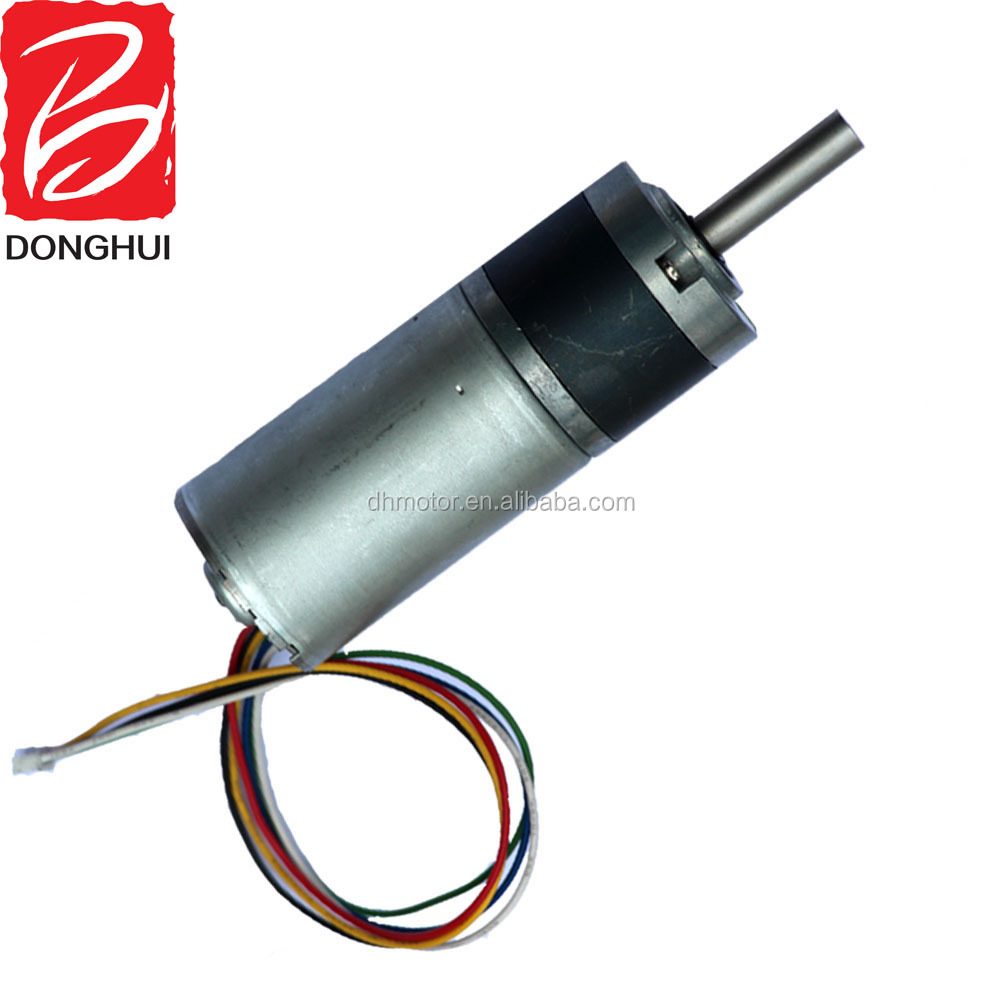

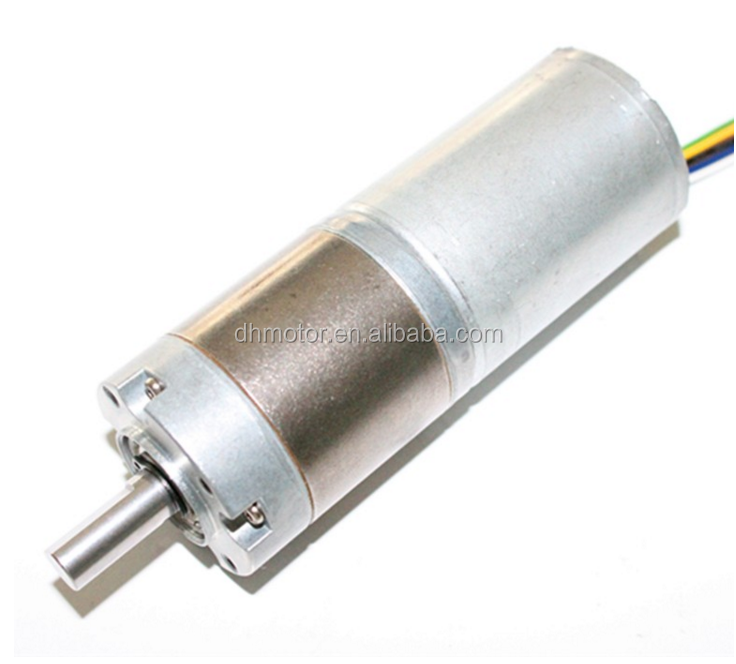

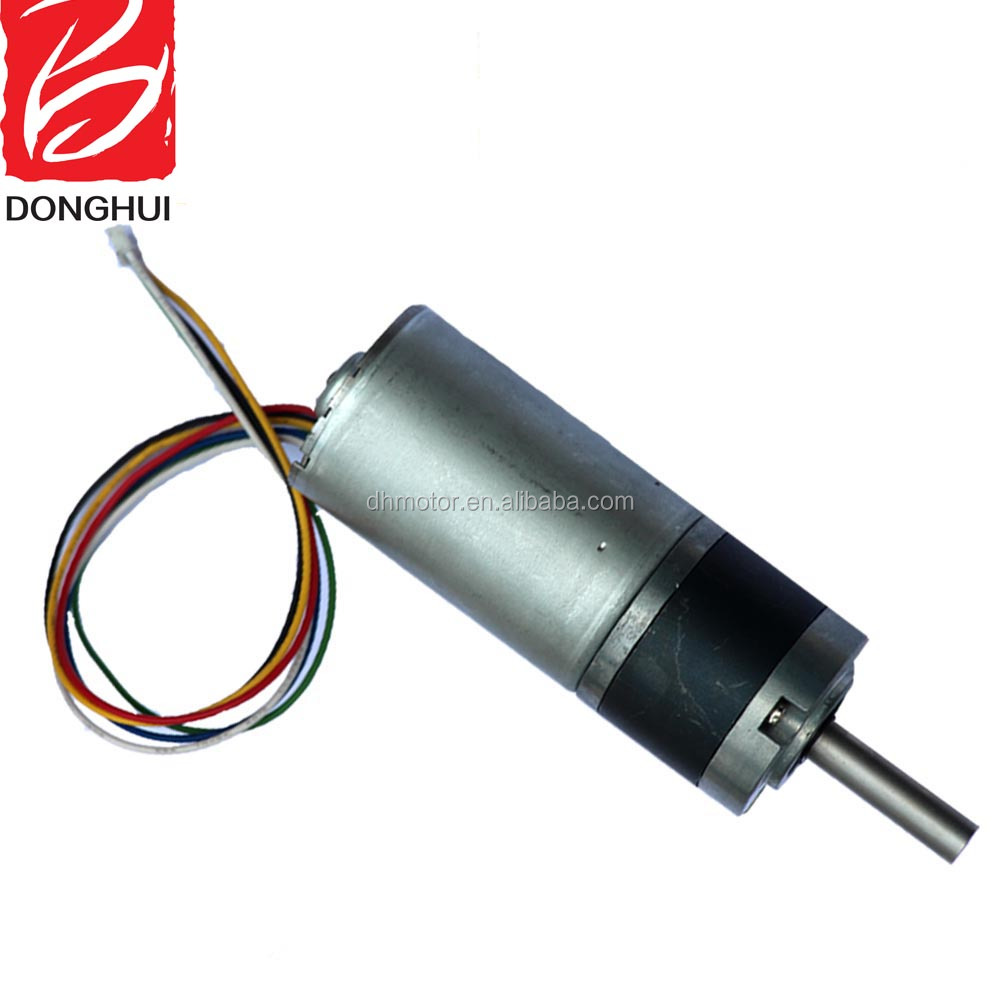

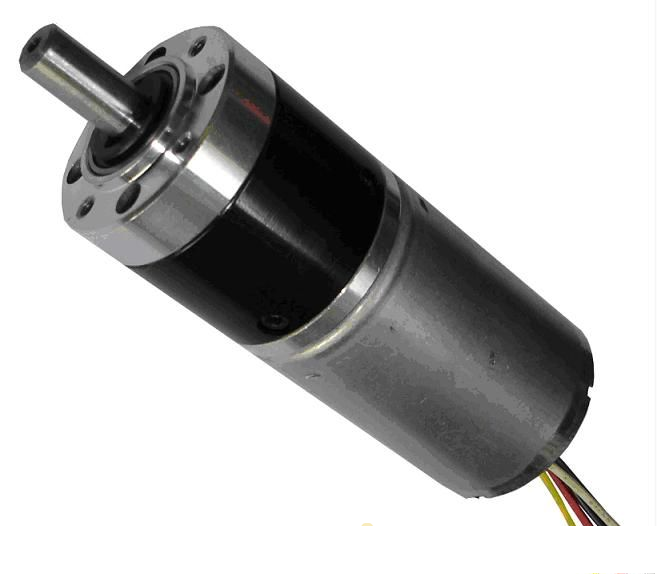

22mm 24mm 28mm 32mm 36mm 12v Brushless Planetary Gear Motor, 12v Brushless Gear Motor with Planetary Gear Box

1 / 5

22mm 24mm 28mm 32mm 36mm 12v Brushless Planetary Gear Motor, 12v Brushless Gear Motor with Planetary Gear Box

Send Inquiry

Product Description

Model Number

DBL2430-GB

Type

Micro Motor

Commutation

Brushless

Voltage(V)

12V

Torque

9.8mNm

Speed(RPM)

9260rpm no load

Output Power

1W~10W

Continuous Current

0.2A no load

Construction

Permanent Magnet

Certification

ROHS

Efficiency

IE 1

Protect Feature

Drip-proof

Specifications: 22mm 24mm 28mm 32mm 36mm 12v brushless planetary gear motor with planetary gear box.

Size: 24*30MM

Long life, low noise, low EMI
CW & CCW, Signal function available
Locked rotor protection, Stepless speed regulation

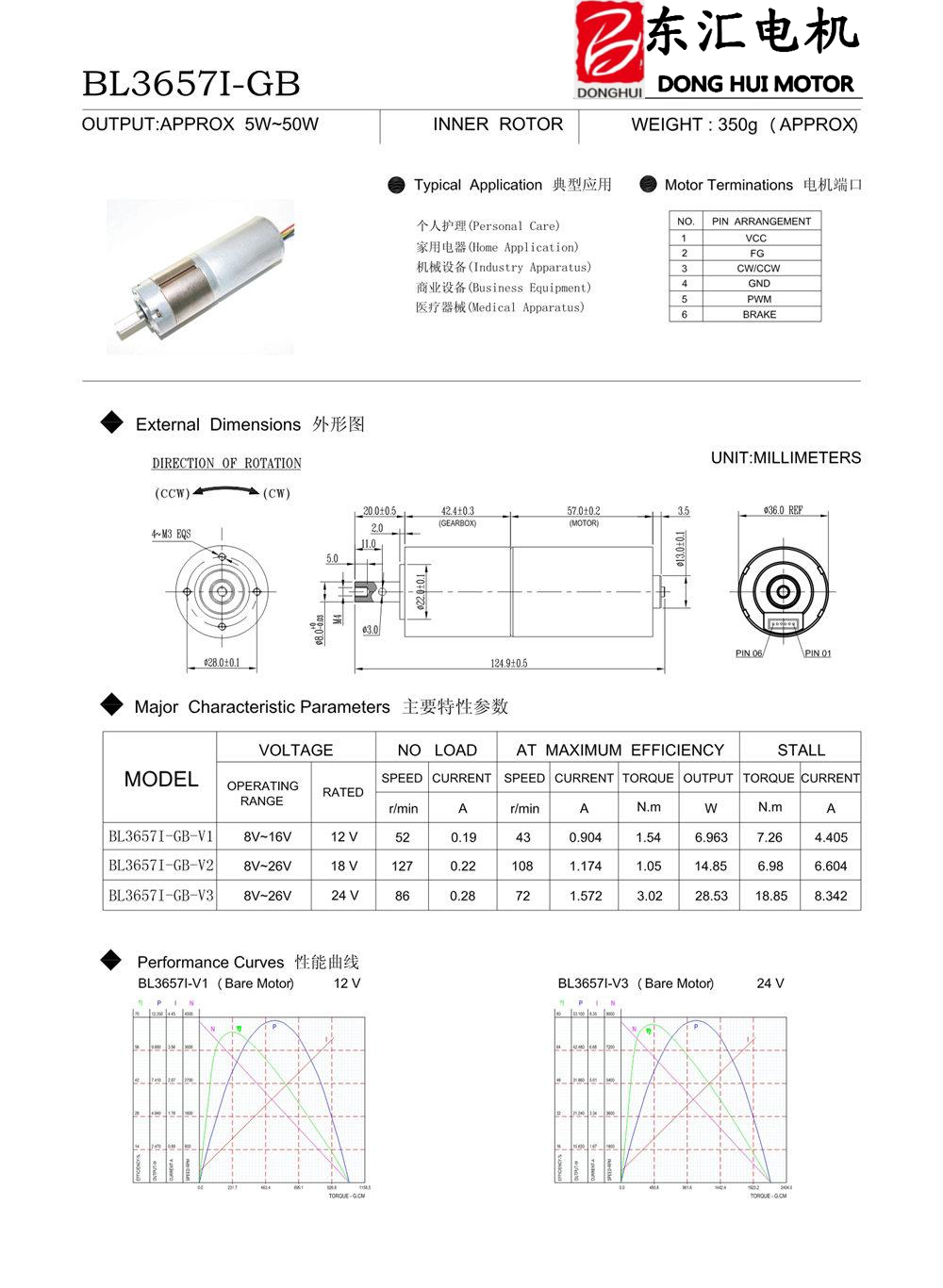

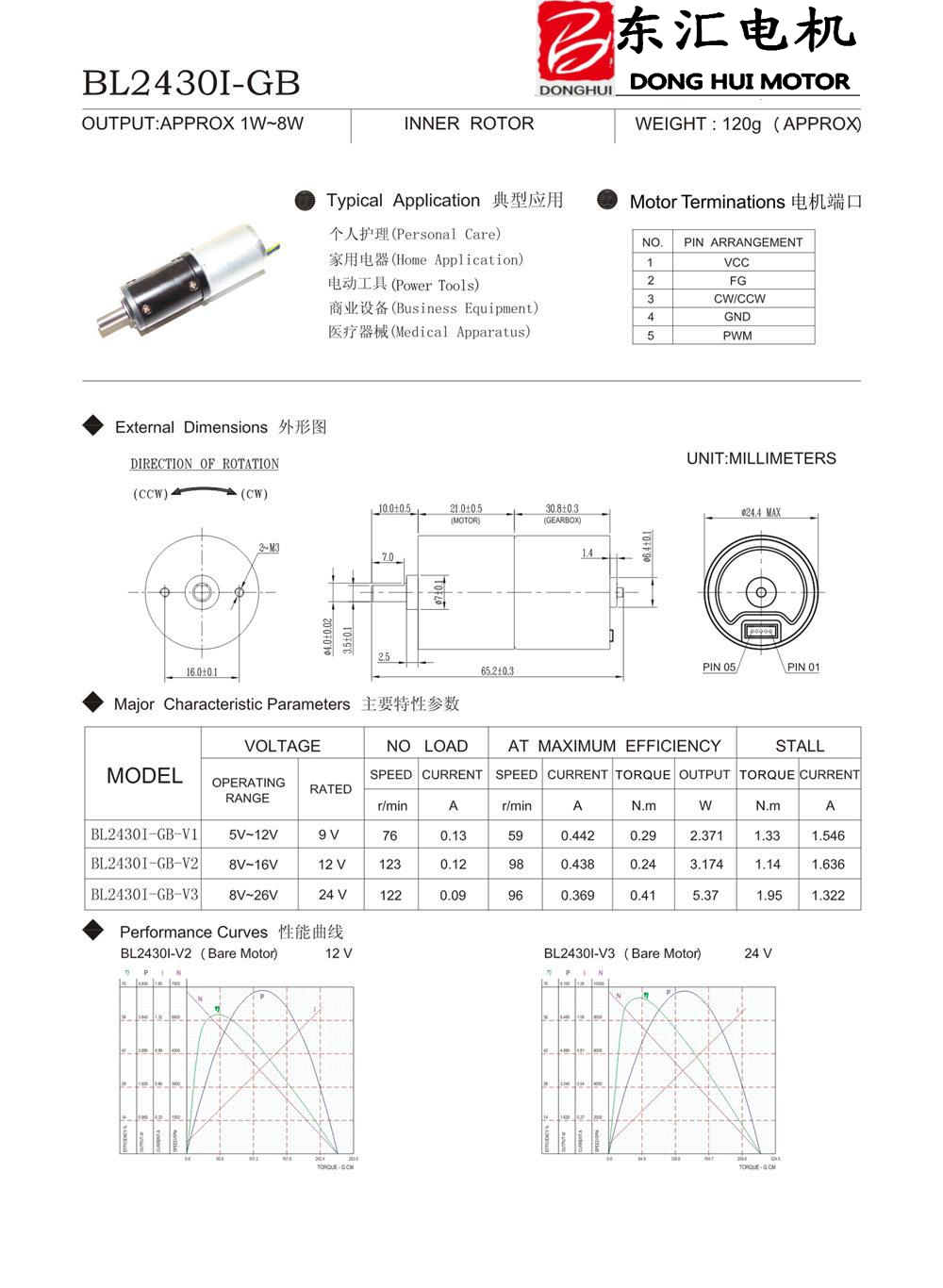

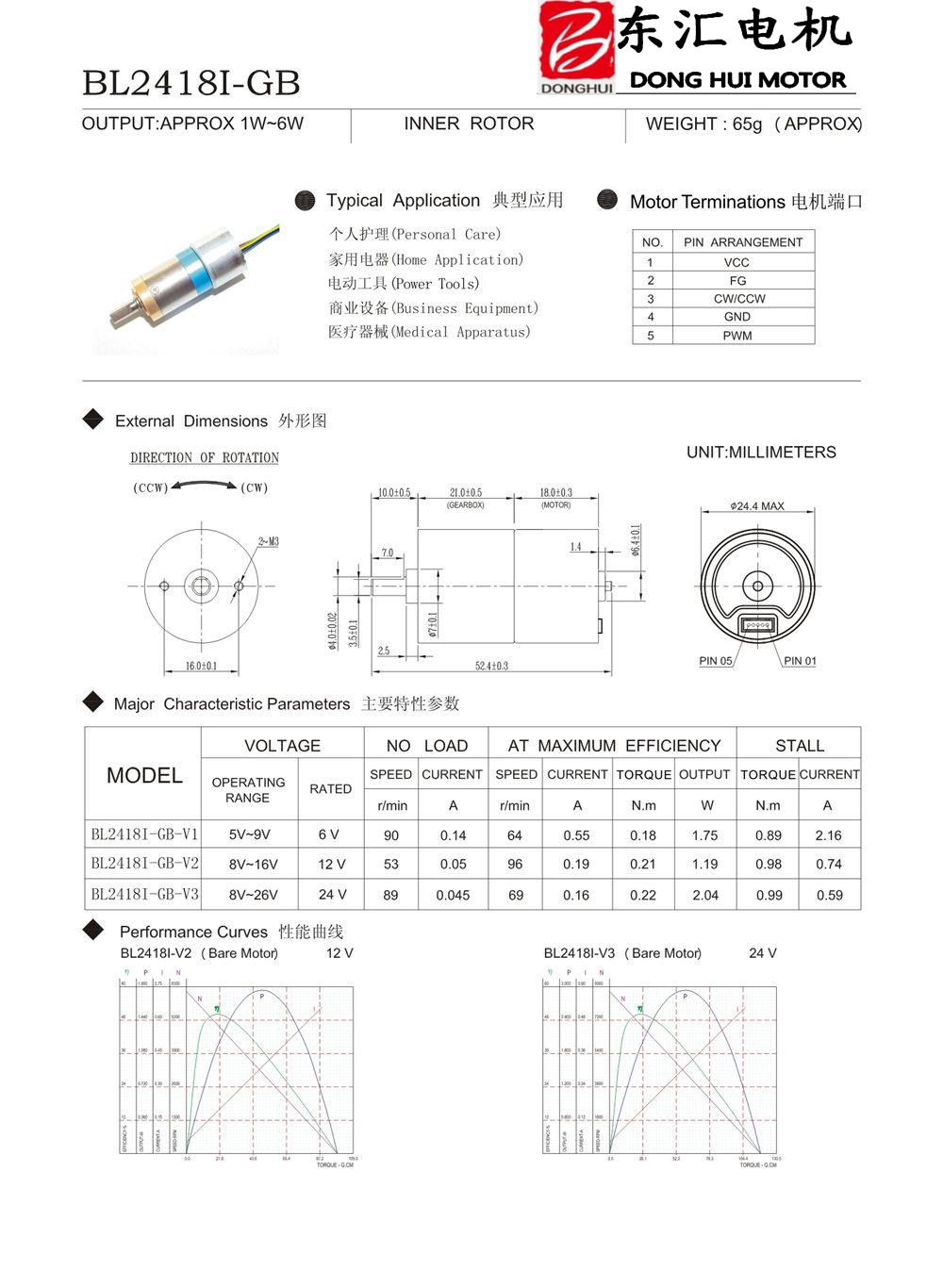

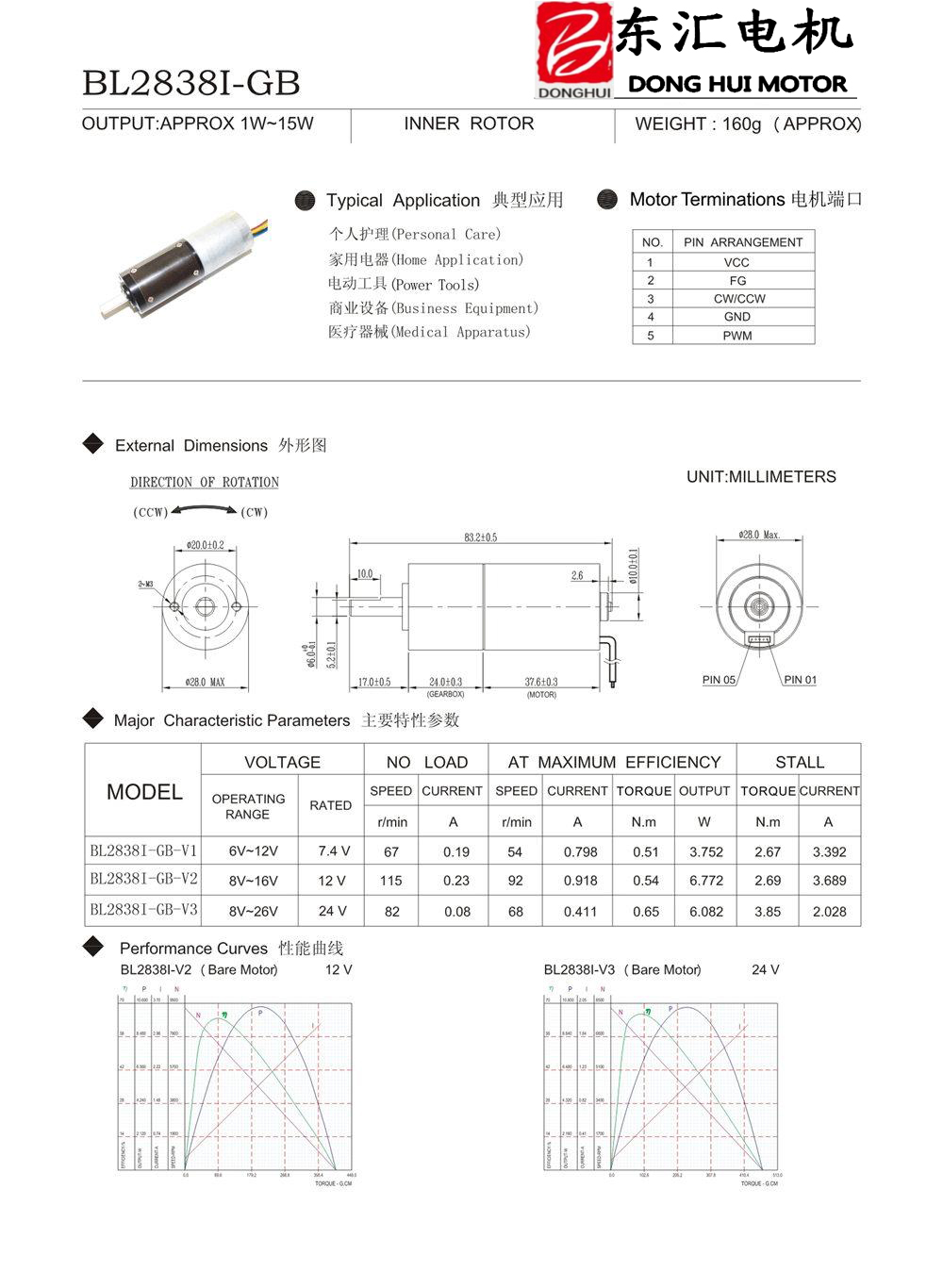

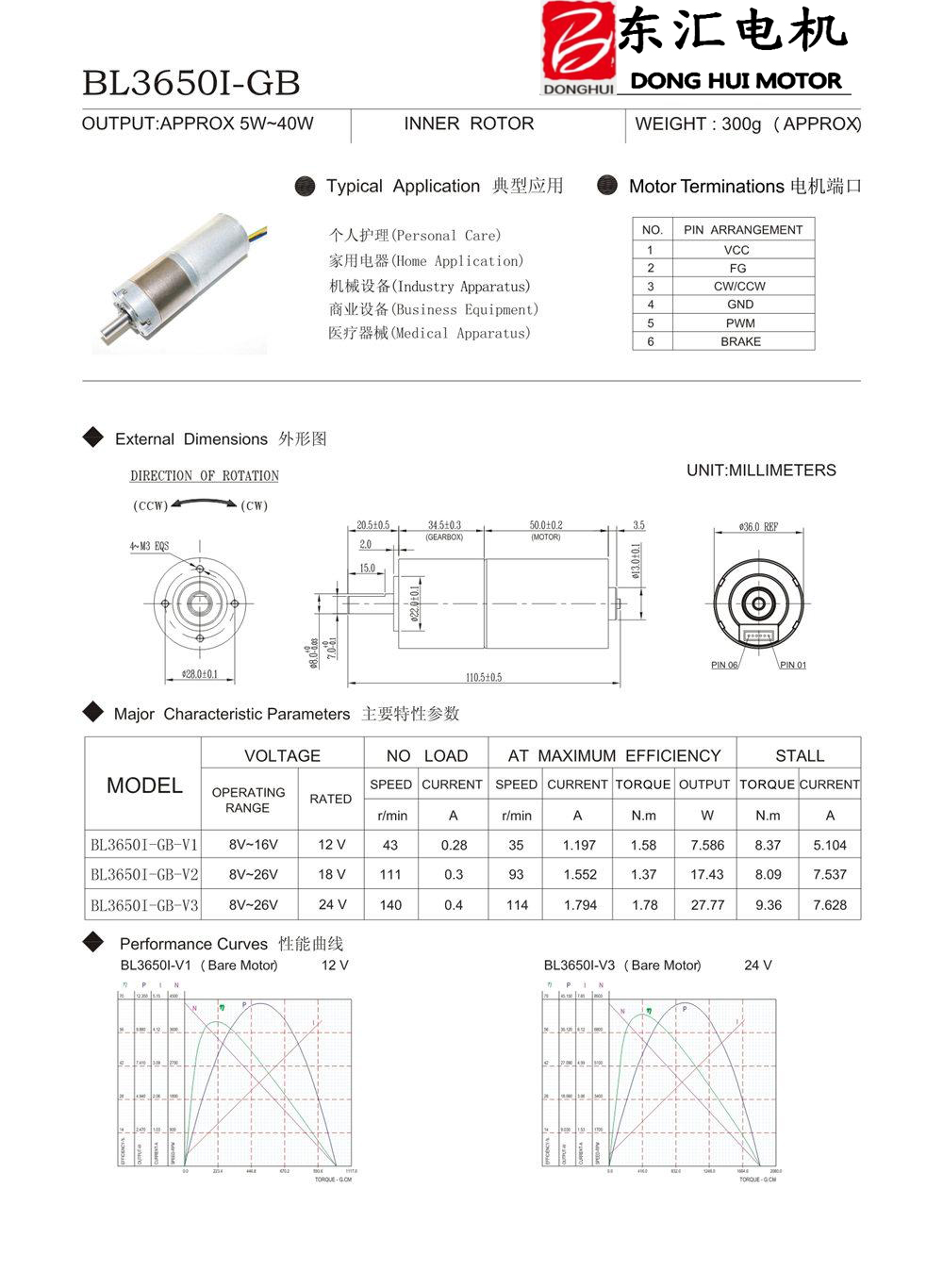

Motor Performance Data

Packaging & Shipping

Packaging Detail

1.Export standard packing; 2.Factory standard packing; 3.Customized according to request.

Delivery Detail

15 days for samples, 25-30 days for batch orders.

Capability Overview

Established in 2007, dedicated to development and production of micro motors across 4 major series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. Products are extensively utilized in consumer electronics, electric toys, home appliances, office automation, medical equipment, and automotive fields.

Product Range: Diameter 4-100mm
Voltage Range: DC 1.5V - 42V | AC rectify: 100V - 240V
Speed Range: 1 RPM - 30,000 RPM
Stall Torque: 1g.cm - 30kg.cm

Frequently Asked Questions

1. What is the typical lead time for samples and mass production?

Samples typically take 15 days, while batch orders for mass production require approximately 25 to 30 days.

2. Can the motor shaft be customized?

Yes, the shaft length and specifications can be fully customized according to your specific application requirements.

3. What are the key features of your brushless motors?

Our brushless motors offer a long service life, low noise levels, low EMI, CW/CCW support, and built-in locked rotor protection.

4. What voltage ranges do you support?

We provide DC motors ranging from 1.5V to 42V, and AC rectified options for 100V, 110V, 220V, 230V, and 240V.

5. In which industries are these motors commonly used?

These motors are widely applied in home appliances, office automation, medical equipment, power tools, automotive components, and consumer electronics.

6. Do the motors support speed control?

Yes, our brushless motor series supports stepless speed regulation and comes with signal function availability for precise control.
