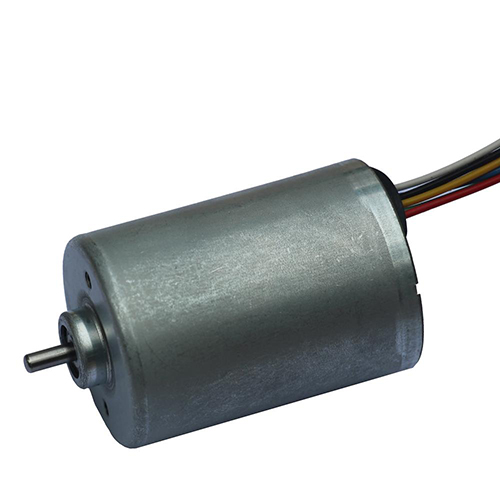

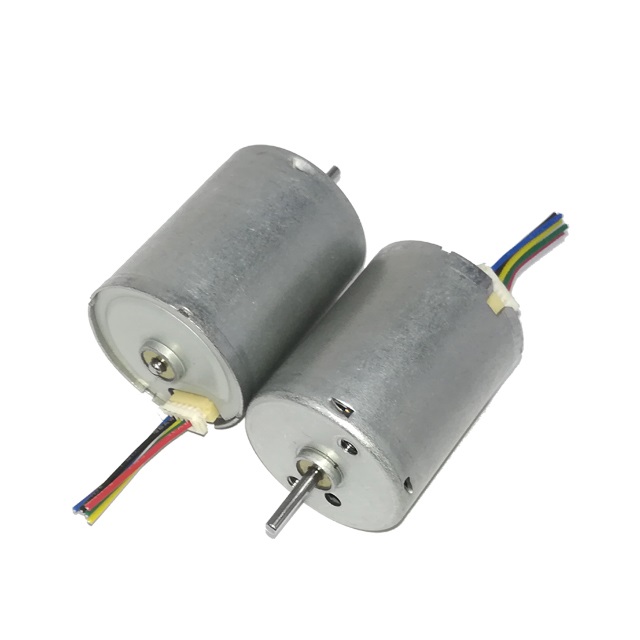

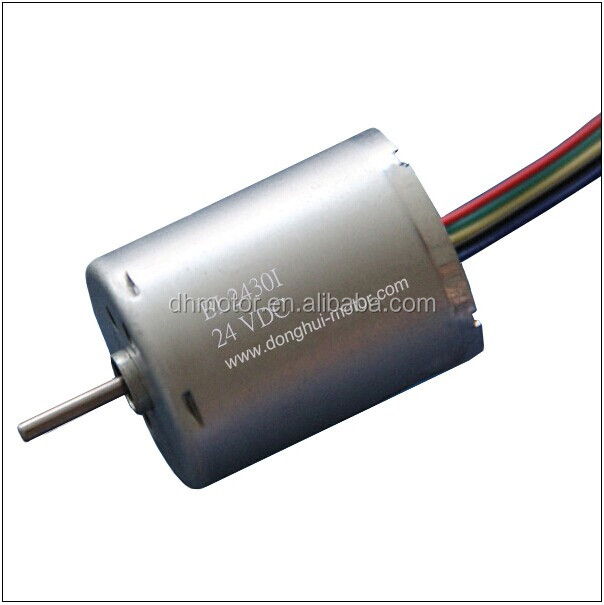

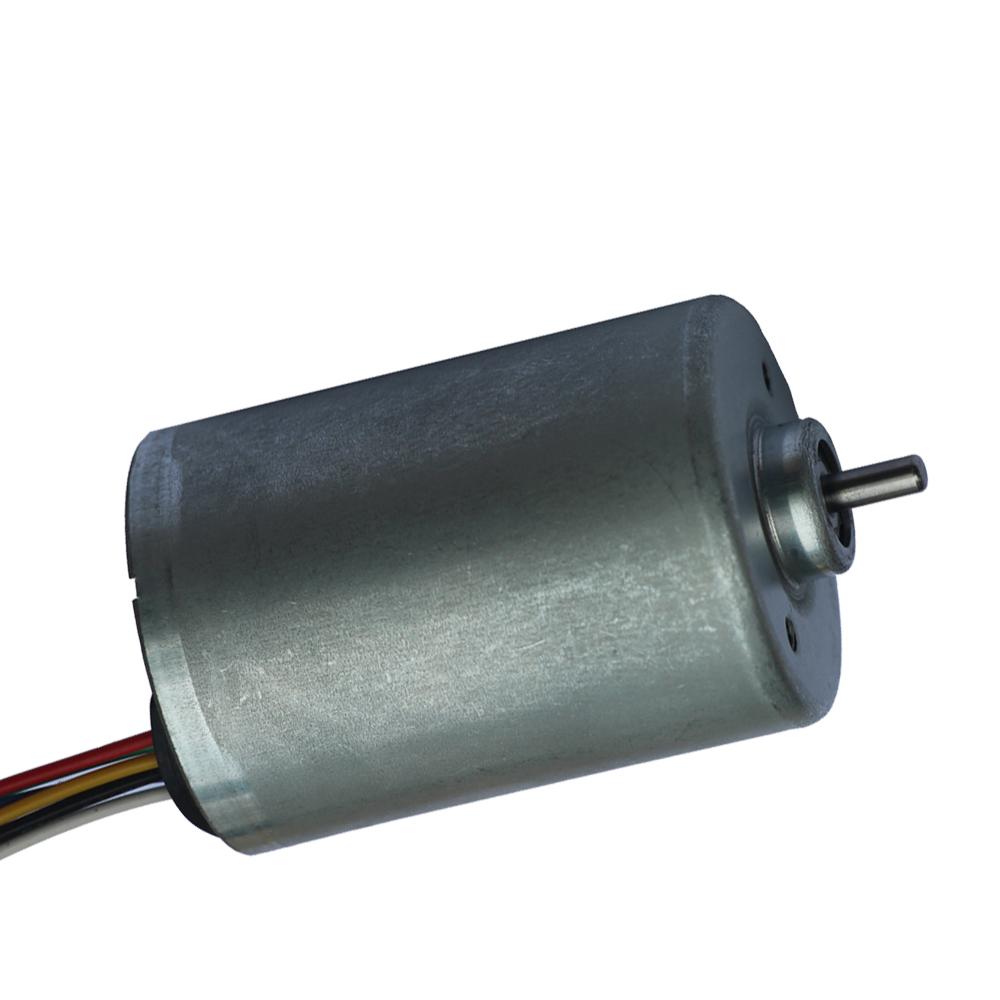

24mm Brushless Motor 2430 12v Bldc Electric Fan Motor, Long Life 12v Bldc Fan 2430 Motor
24mm Brushless Motor 2430 12v Bldc Electric Fan Motor, Long Life 12v Bldc Fan 2430 Motor
24mm Brushless Motor 2430 12v Bldc Electric Fan Motor, Long Life 12v Bldc Fan 2430 Motor
24mm Brushless Motor 2430 12v Bldc Electric Fan Motor, Long Life 12v Bldc Fan 2430 Motor
24mm Brushless Motor 2430 12v Bldc Electric Fan Motor, Long Life 12v Bldc Fan 2430 Motor
1 / 5
24mm Brushless Motor 2430 12v Bldc Electric Fan Motor, Long Life 12v Bldc Fan 2430 Motor
24mm Brushless Motor 2430 12v Bldc Electric Fan Motor, Long Life 12v Bldc Fan 2430 Motor
24mm Brushless Motor 2430 12v Bldc Electric Fan Motor, Long Life 12v Bldc Fan 2430 Motor
24mm Brushless Motor 2430 12v Bldc Electric Fan Motor, Long Life 12v Bldc Fan 2430 Motor
24mm Brushless Motor 2430 12v Bldc Electric Fan Motor, Long Life 12v Bldc Fan 2430 Motor

24mm Brushless Motor 2430 12v Bldc Electric Fan Motor, Long Life 12v Bldc Fan 2430 Motor

Send Inquiry

Product Description

Product Description
Place of Origin Guangdong China (Mainland) Model Number DB2430
Usage Fan, Home Appliance Certification ROHS
Type Micro Motor Construction Permanent Magnet
Commutation Brushless Protect Feature Drip-proof
Speed(RPM) 9260rpm no load Continuous Current(A) 0.2A no load
Output Power 1W~10W Voltage(V) 12V
Efficiency IE 1 Rated load speed 6000rpm
Rated load torque 9.8mNm Rated load current 0.62A
Starting torque 38.2mnm Starting current 1.8A
Motor Length 30.8±0.3mm Shaft Diameter 2.0mm
Shaft Length Customizable Application Air pump
Specifications & Features
24mm 2430 Motor 12V BLDC Electric Fan Motor

High-performance dc motor, dc gear motor, and dc brushless motor solutions. We provide OEM services and professional motor product design.

24mm Brushless Motor
Size: 24*30MM
Long life and low noise
Low EMI interference
CW & CCW rotation
Signal function available
Locked rotor protection
Stepless speed regulation
Motor Visuals

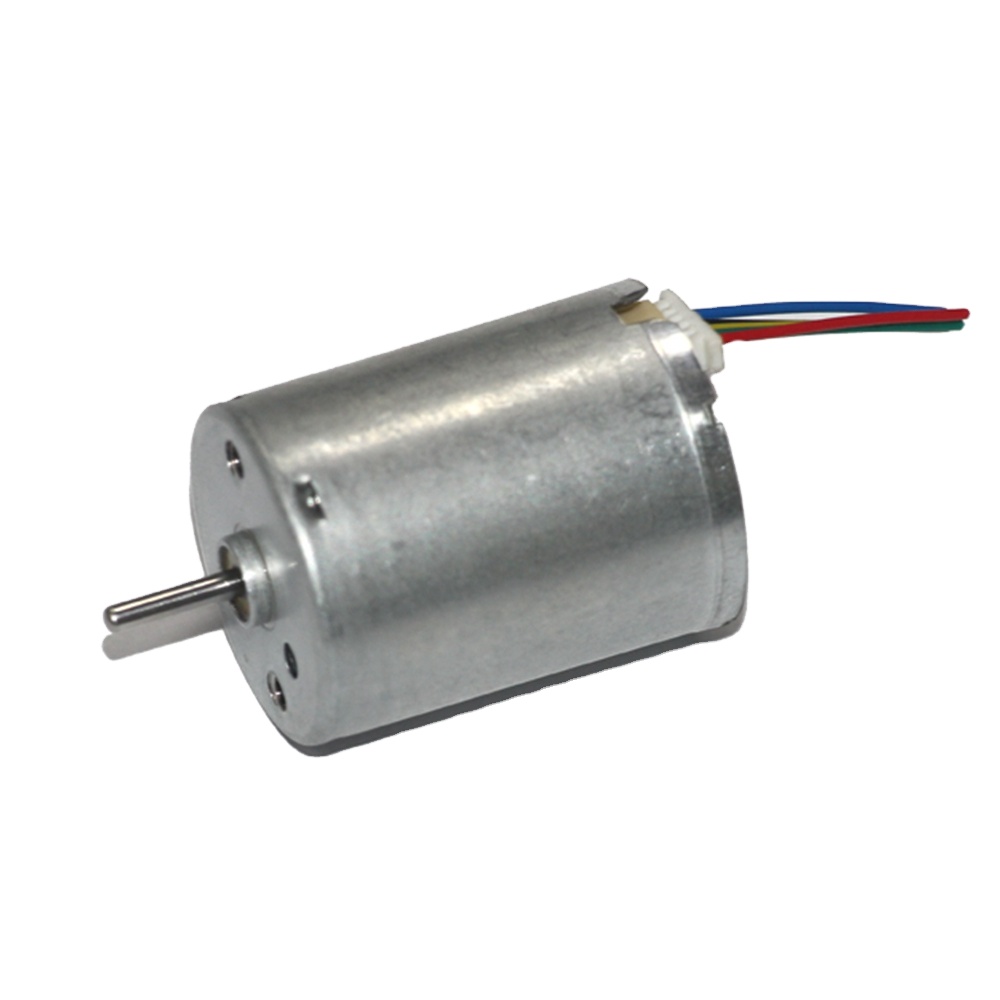

Motor View 1
Motor View 2

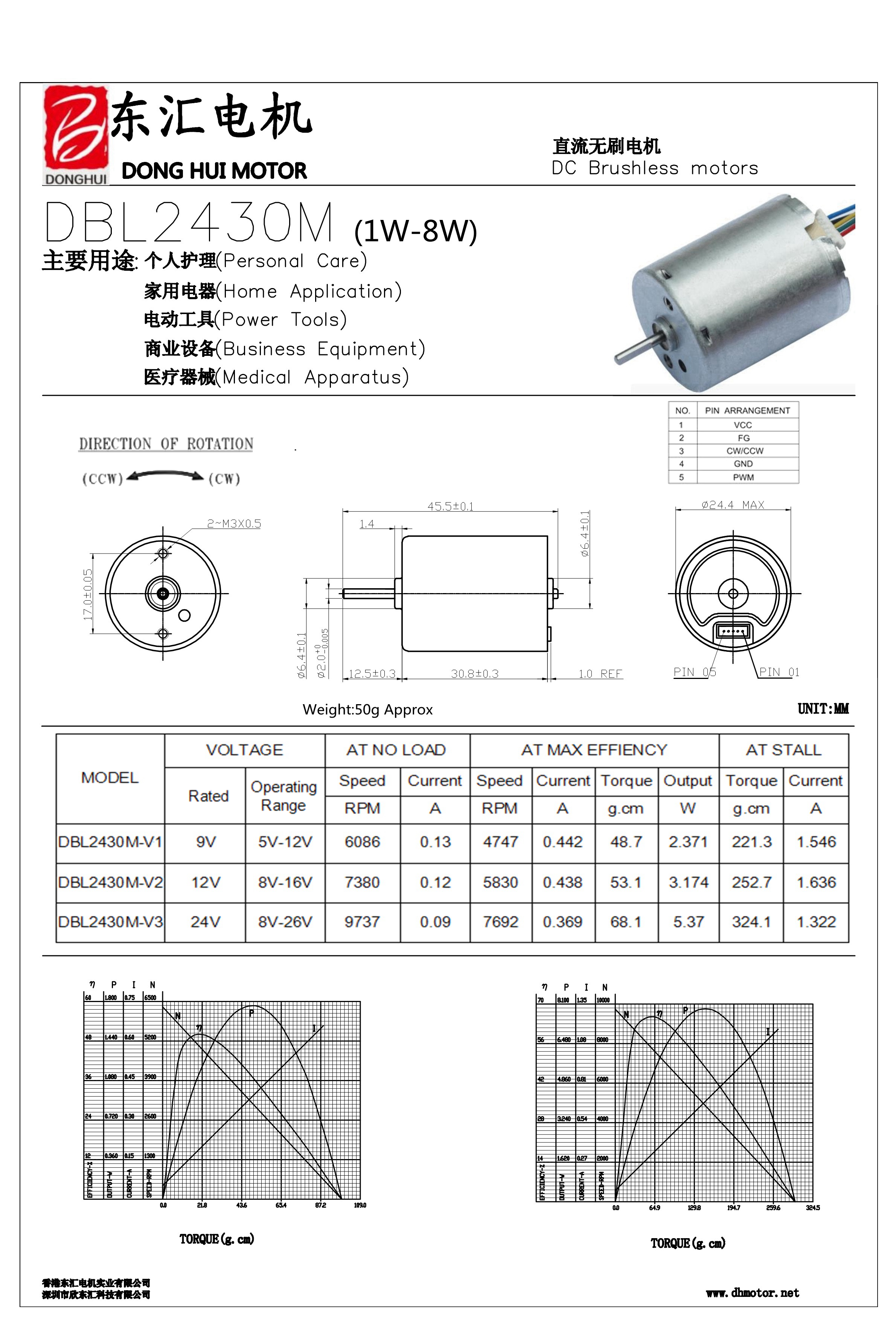

Motor Specifications Sheet
Packaging & Shipping
Packaging Detail 1. Export standard packing; 2. Factory standard packing; 3. Customizable according to customer request.
Delivery Detail 15 days for samples, 25-30 days for batch orders.
Production Capabilities
Since established in 2003, there has been a commitment to the development and production of micro motors, including four major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor.

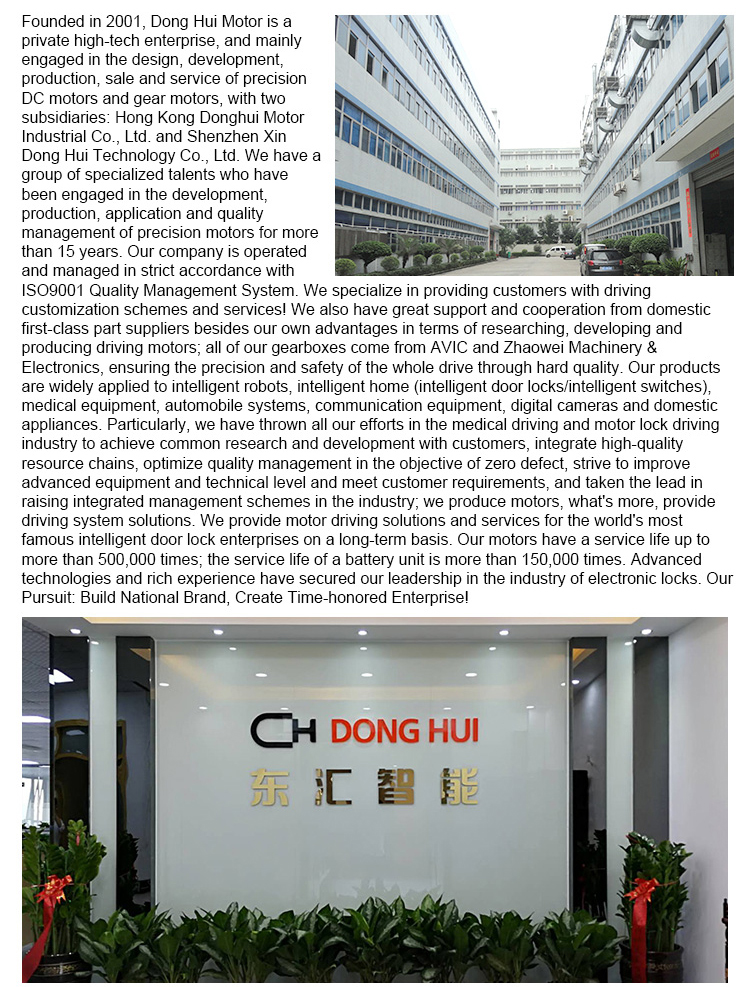

Production Facility

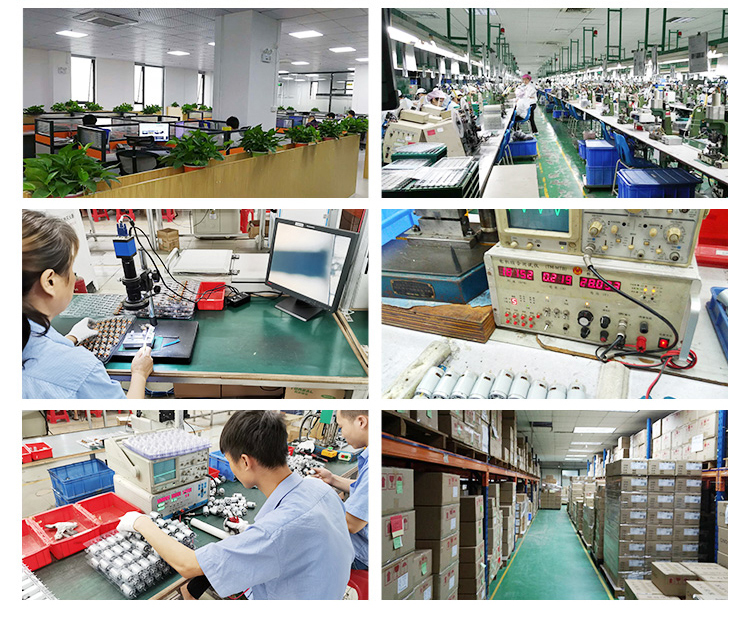

Quality Control
Assembly Line
Equipment 1
Equipment 2
Main Products: Dia 4~100mm DC Micro Motors
Voltage Range: 1.5V - 42V (AC Rectify options)
Speed Range: 1 RPM - 30,000 RPM
Stall Torque: 1g.cm - 30kg.cm
Frequently Asked Questions
What are the primary applications for the DB2430 brushless motor?
The motor is widely used in fans, home appliances, air pumps, and office automation equipment due to its long life and low noise features.
Can the shaft length and specifications be customized?
Yes, the shaft length and other technical specifications can be customized to meet specific customer requirements.
What is the typical lead time for samples and mass production?
Samples usually take about 15 days, while batch production typically requires 25 to 30 days.
Does this motor support speed control?
Yes, it supports stepless speed regulation and features signal functions for precise control.
Is the motor compliant with international environmental standards?
Yes, the motor is ROHS certified, ensuring it meets environmental safety standards.
What kind of protection features does this brushless motor have?
It includes drip-proof protection and locked-rotor protection to enhance durability and safety during operation.
