Jershtech DC Motors
Jershtech DC Motors
| Model Number: | DB2838 | Usage: | Fan, Home Appliance |
| Certification: | ROHS | Type: | Micro Motor |
| Torque: | 17.5mNm | Construction: | Permanent Magnet |
| Commutation: | Brushless | Protect Feature: | Drip-proof |
| Speed(RPM): | 4430rpm no load | Continuous Current(A): | 0.08A no load |
| Output Power: | 1W~10W | Voltage(V): | 12V |
| Efficiency: | IE 1 | Rated load speed: | 3000rpm |
| Rated load torque: | 17.5mNm | Rated load current: | 0.73A |
| Starting torque: | 56.8mnm | Starting current: | 2.0A |
| Motor Length: | 37.6±0.3mm | Shaft Diameter: | 2.3mm |
DC motor, DC gear motor, DC brushless motor, OEM and customized motor product design services.

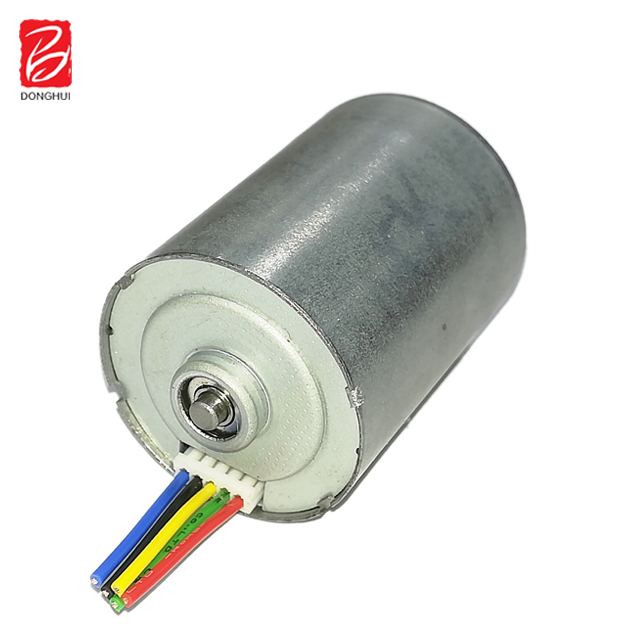

28mm 2838 12V Brushless DC Motor (1000rpm to 6000rpm options)

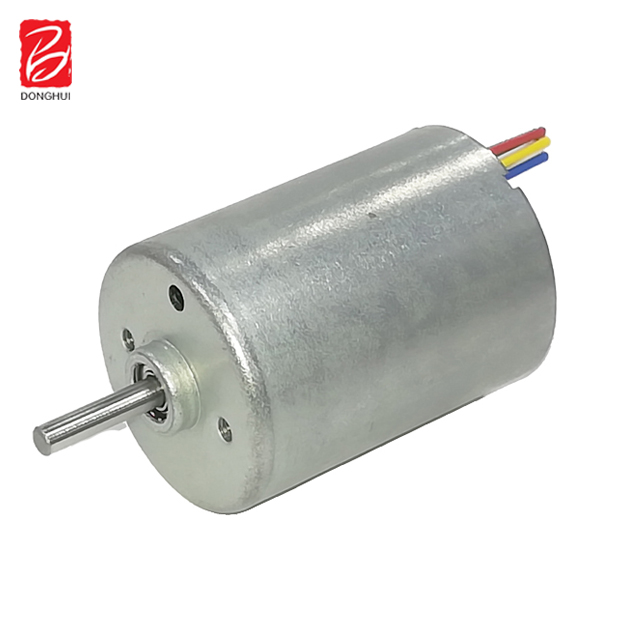

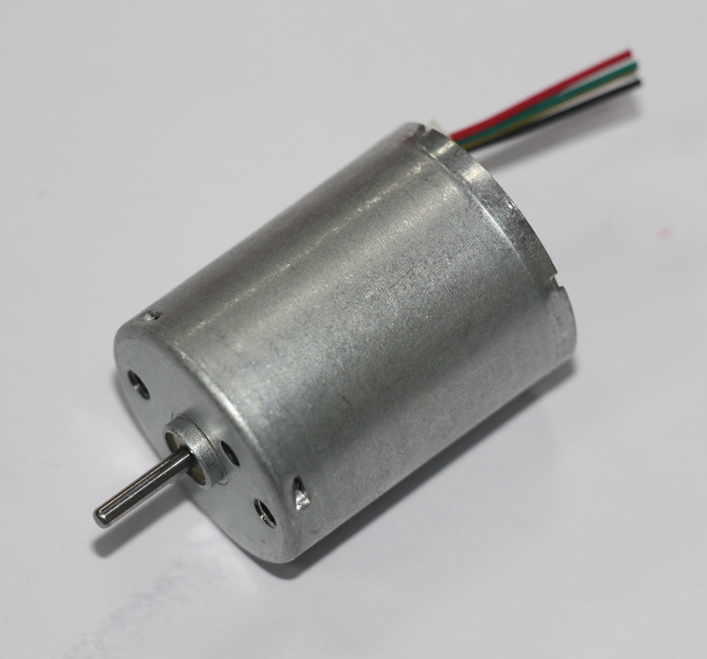

Product Visuals:
Technical Dimensions & Specs:
Since our establishment in 2003, we have been committed to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, household appliances, office automation, medical equipment, power tools, and automotive fields.
