Product Description

Product Description
Model Number FC-280SC-20150 Brand Name Micro Motor Series
Usage Car, Scanner Type Micro Motor
Certification ROHS Construction Permanent Magnet
Speed(RPM) 11800rpm (At No load Speed) Voltage(V) 12V
Output Power 4.5W Efficiency IE 1
Commutation Brush Rotation Reversible
Brush Type Carbon brushes Bearing Type Oil-impregnated bearing
Specifications & Key Features

12V DC Electric Car Door Lock Actuator Motor (FC-280SC-20150)

ROHS Certification
Permanent Magnet Construction
Plastic End Cap
Low Noise and Long Life
2-Pole Stator & 3-Slot Armature
High Torque: 335G.CM AT STALL

Application: Door lock Actuator, Automotive Products, and Precision Instruments.

Product Visuals

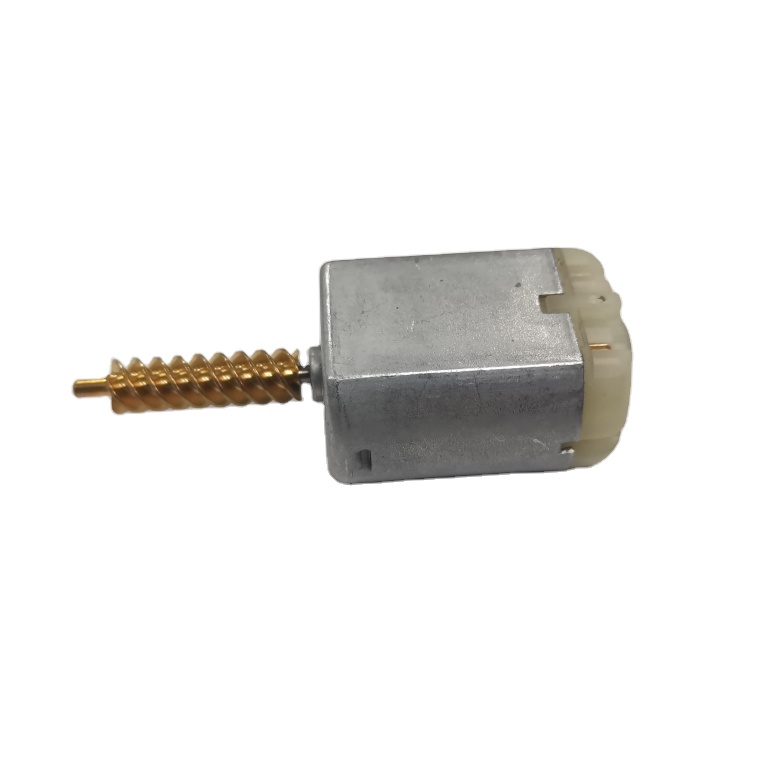

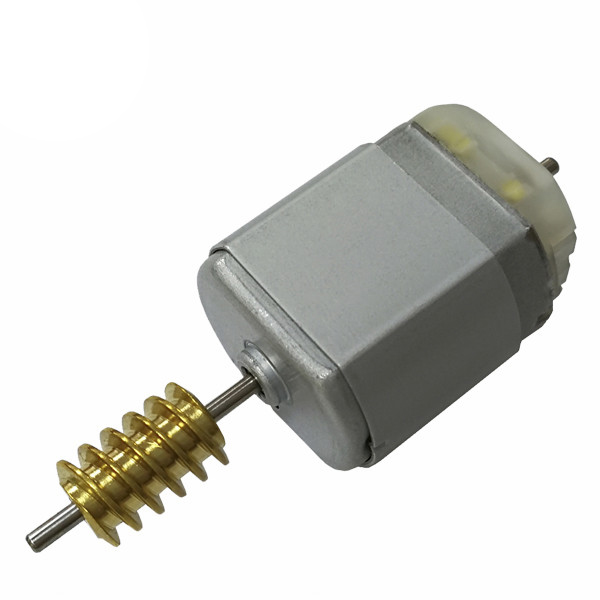

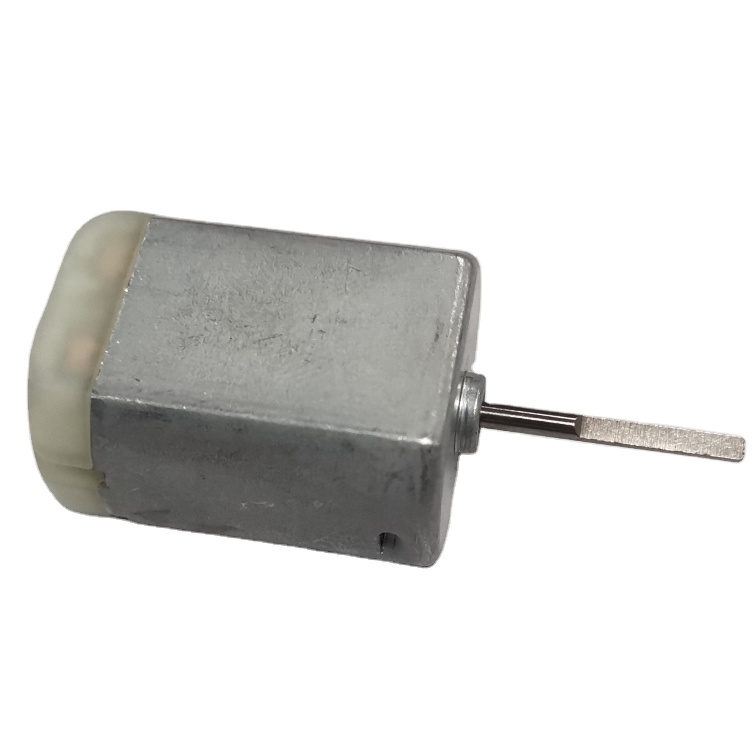

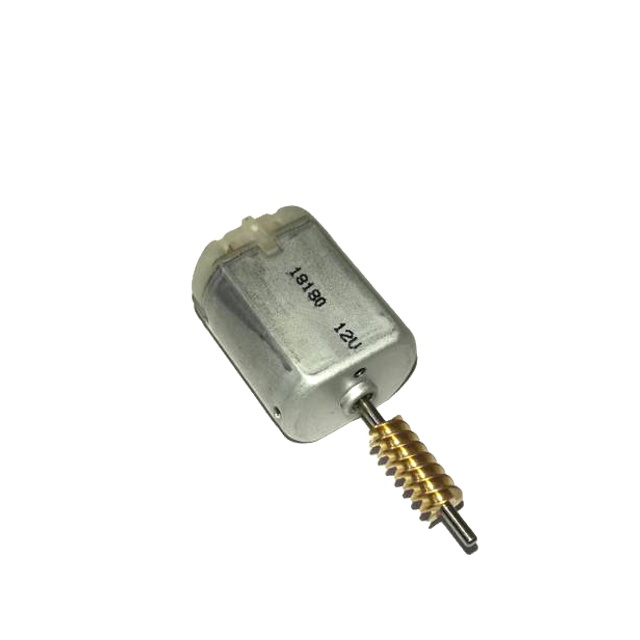

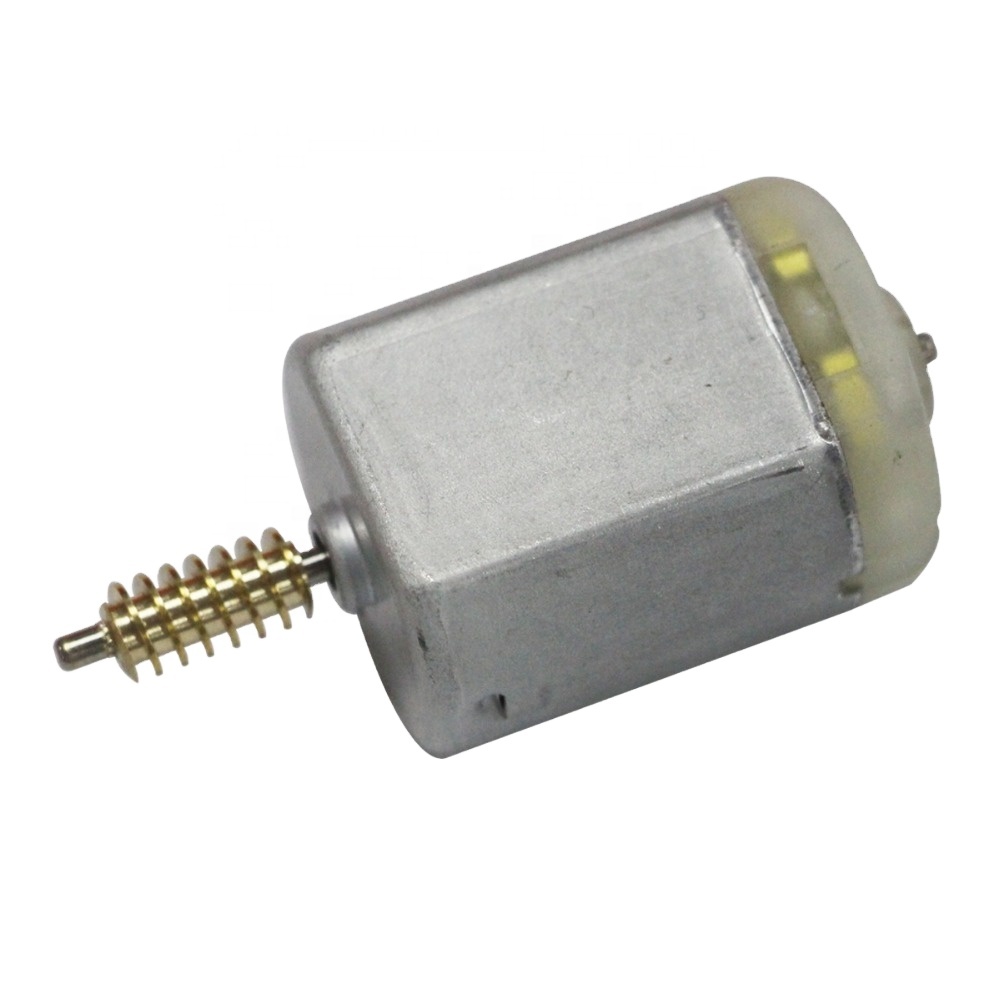

FC-280SC Motor View 1
FC-280SC Motor View 2
FC-280SC Motor View 3
FC-280SC Motor View 4
FC-280SC Motor View 5
FC-280SC Motor View 6
FC-280SC Motor View 7
FC-280SC Motor View 8
FC-280SC Motor View 9

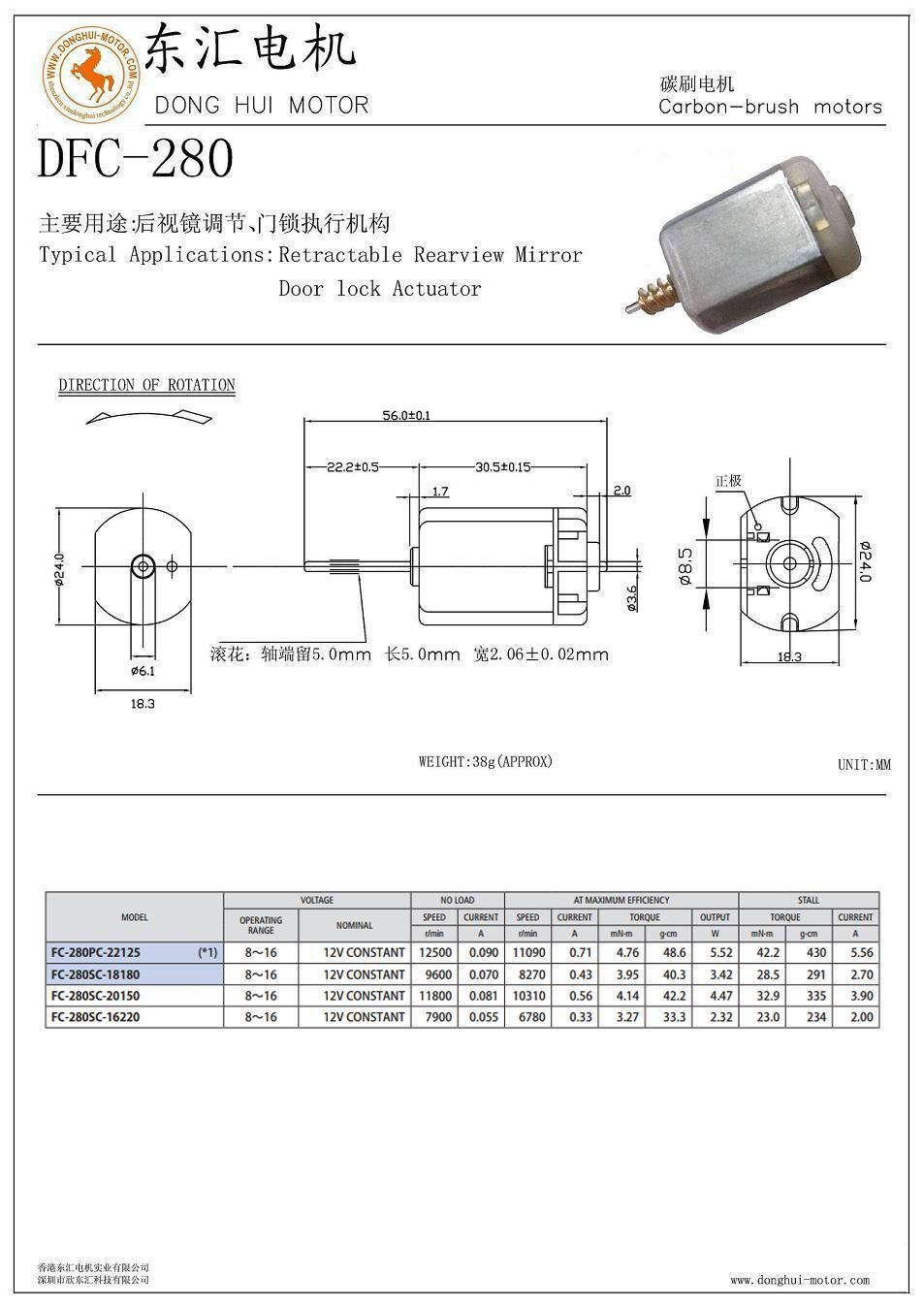

Outline Drawing & Parameters
Technical Drawing
Packaging & Shipping
Packaging Details 500PCS/CTN, CARTON DIMENSION: 39X29X46 CM
Delivery Detail Within 30 days
Industry Expertise
Factory Overview
Production Line

Since 2003, there has been a commitment to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. These are widely used in consumer electronics, electric toys, household appliances, office automation, medical equipment, power tools, and automotive fields.

  • Product Range: Diameter 4mm to 100mm DC Micro Motors.
  • Voltage Range: 1.5V - 42V DC; AC rectify: 100V, 110V, 220V, 240V.
  • Speed Range: 1 RPM to 30,000 RPM.
  • Stall Torque: 1g.cm to 30kg.cm.
Frequently Asked Questions (FAQ)
1. What is the standard operating voltage for the FC-280SC-20150 motor? The motor is designed to operate at a nominal voltage of 12V DC, making it ideal for automotive applications.
2. Can the rotation direction of this micro motor be changed? Yes, the motor is reversible, allowing for both clockwise and counter-clockwise rotation depending on the polarity of the power supply.
3. What are the primary applications for this specific motor model? It is commonly used in car door lock actuators, scanners, and various other automotive and office automation equipment.
4. Is the motor compliant with environmental standards? Yes, the FC-280SC-20150 motor holds ROHS certification, ensuring it meets environmental protection requirements.
5. What is the typical no-load speed and torque of this motor? The motor features a no-load speed of approximately 11,800 RPM and a stall torque of 335 g.cm.
6. What type of brushes and bearings does the motor utilize? The motor is equipped with high-quality carbon brushes and oil-impregnated bearings for low noise and long service life.
