Product Description

📦 Product Overview

Model Number	FC-280SC-18180	Type	Micro Motor
Usage	Car, Scanner	Voltage	12V
Speed (RPM)	9600rpm (No load)	Torque	291G.CM
Construction	Permanent Magnet	Certification	ROHS
Commutation	Brush	Efficiency	IE 1
Output Power	1-6W	Continuous Current	0.1-5A
Brush Type	Carbon brushes	Rotation	Reversible

🚚 Packaging & Shipping

Packaging Details: 500PCS/CTN, CARTON DIMENSION: 39X29X46 CM

Delivery Detail: Within 30 days

⚙️ Technical Specifications

✔ 12V Car DC Motor car lock actuator motor (9600rpm)
✔ ROHS Certification compliant
✔ Permanent Magnet Construction with Plastic End Cap
✔ Low noise and long operational life
✔ Primary Application: Door lock Actuator, Automotive Products

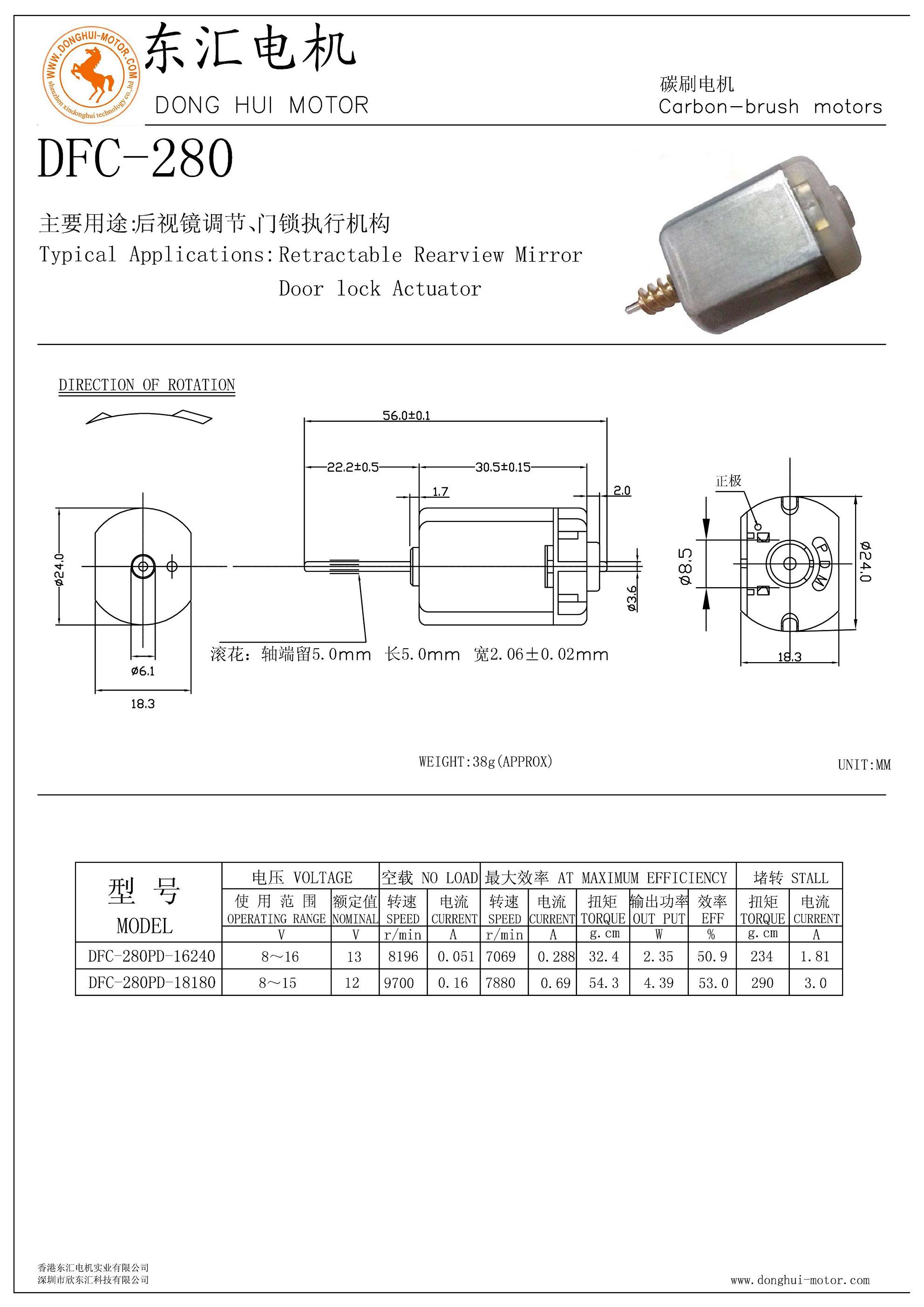

📏 Outline Drawing

🏢 Manufacturing Capability

Established in 2003, the manufacturer specializes in development and production of micro motors across four major series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. These are widely used in consumer electronics, electric toys, household appliances, office automation, medical equipment, and automotive fields.

Size Range: Diameter 4-100mm
Voltage Range: 1.5V - 42V (AC Rectify: 100V-240V)
Speed Range: 1 RPM - 30,000RPM
Stall Torque: 1g.cm - 30kg.cm

❓ Frequently Asked Questions

What is the primary application for the FC-280SC-18180 motor?

This motor is specifically designed for automotive applications, primarily used in car door lock actuators and other automotive power systems.

What are the electrical specifications for this model?

The motor operates on 12V DC, with a no-load speed of 9600rpm and a continuous current range of 0.1A to 5A.

Does this motor support reversible rotation?

Yes, the FC-280SC-18180 is a reversible motor, making it ideal for applications requiring movement in both directions, such as locking and unlocking mechanisms.

What kind of brushes are used in the motor construction?

The motor utilizes high-quality carbon brushes and features a 2-Pole stator and 3-Slot armature design for reliable performance.

What is the standard lead time and packaging?

Standard delivery is within 30 days. The motors are packaged with 500 pieces per carton, with carton dimensions of 39x29x46 cm.

Is the product compliant with international environmental standards?

Yes, the motor is ROHS certified, ensuring it meets international requirements for the restriction of hazardous substances.
