Product Description & Quick Details
Usage:
Car Door Lock Actuator
Model Number:
FC-280PD-16240
Construction:
Permanent Magnet
Speed (RPM):
8200rpm (No load)
Voltage:
13V (Compatible 12V)
⚙
Carbon Brushes
High-quality carbon brushes for reliable performance
🔇
Low Noise
Engineered for quiet operation in automotive environments
🔋
High Efficiency
Optimized 13V DC performance for power efficiency
🛡
Durability
Oil-impregnated bearing and plastic end cap for long life

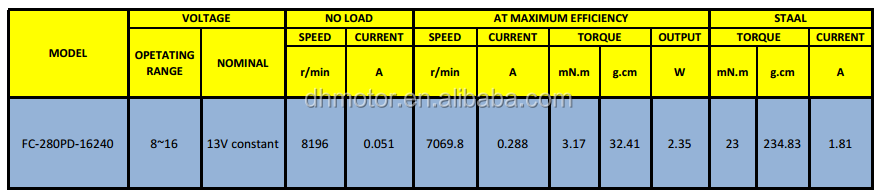

Technical Specifications
FC-280 12V/13V DC Lock Motor Features:
- ROHS Certification Compliant
- Permanent Magnet Construction
- 2-Pole stator and 3-Slot armature
- Reversible Rotation capability
- Application: Door lock Actuator, Automotive Products

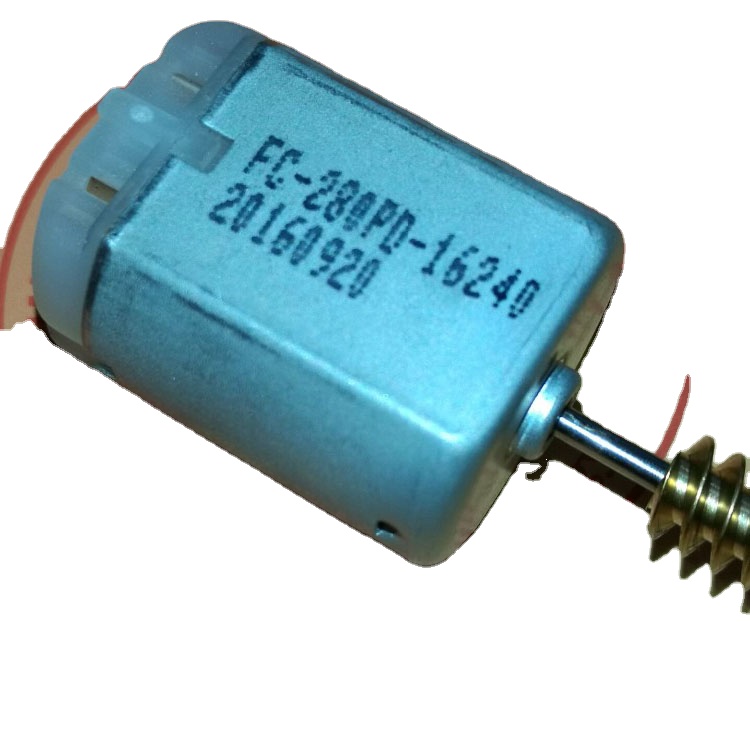

Product Display

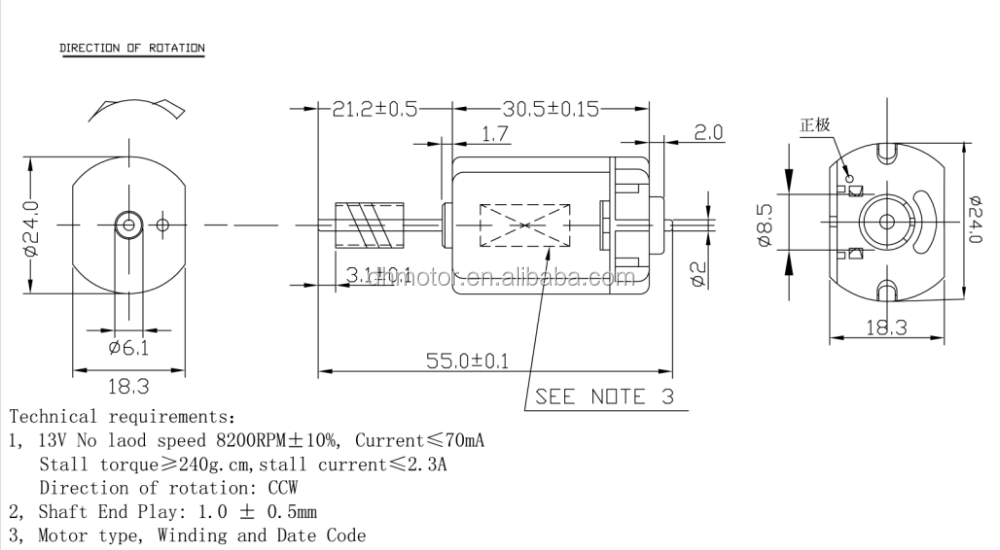

Dimensions & Technical Drawings
Packaging & Delivery
Carton Size:
39 x 29 x 46 CM
Production & Capability Range
Specializing in the development of micro motors including DC Micro motors, Gear motors, and Brushless variants since 2003.
- Voltage Range: 1.5V - 42V (AC rectify up to 240V)
- Diameter Range: 4mm - 100mm
- Speed Range: 1 RPM - 30,000 RPM
- Stall Torque: 1g.cm - 30kg.cm
Frequently Asked Questions (FAQ)
What is the primary application for the FC-280PD motor?
This micro motor is specifically designed for automotive applications, primarily used as a car door lock actuator and in various other automotive electronic products.
Can this motor operate at 12V?
Yes, while the rated voltage is 13V for specific automotive performance metrics, it is fully compatible and widely used in standard 12V DC vehicle systems.
What are the noise characteristics of this motor?
The FC-280 series is engineered for low noise and long-life operation, featuring oil-impregnated bearings and precise brush commutation to minimize acoustic interference.
Is the rotation direction reversible?
Yes, the motor is reversible. Changing the polarity of the DC input will change the direction of the rotation, which is essential for locking and unlocking functions.
Does the product meet environmental standards?
Absolutely. The motor is ROHS certified, ensuring it meets environmental safety standards by restricting the use of specific hazardous materials.
What is the standard lead time for wholesale orders?
The standard delivery detail is within 30 days, depending on order volume and specific customization requirements.
