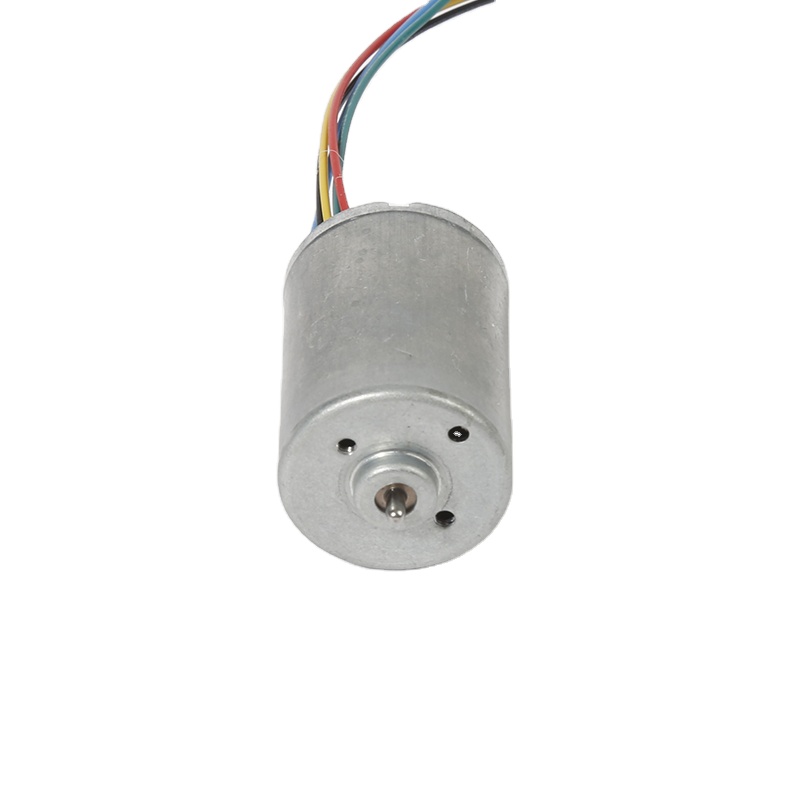

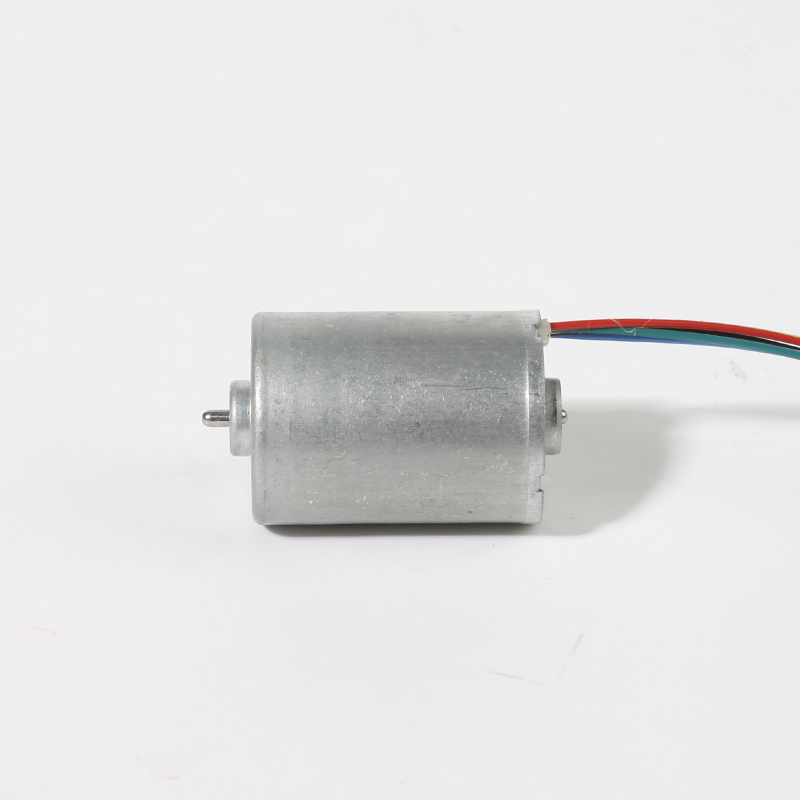

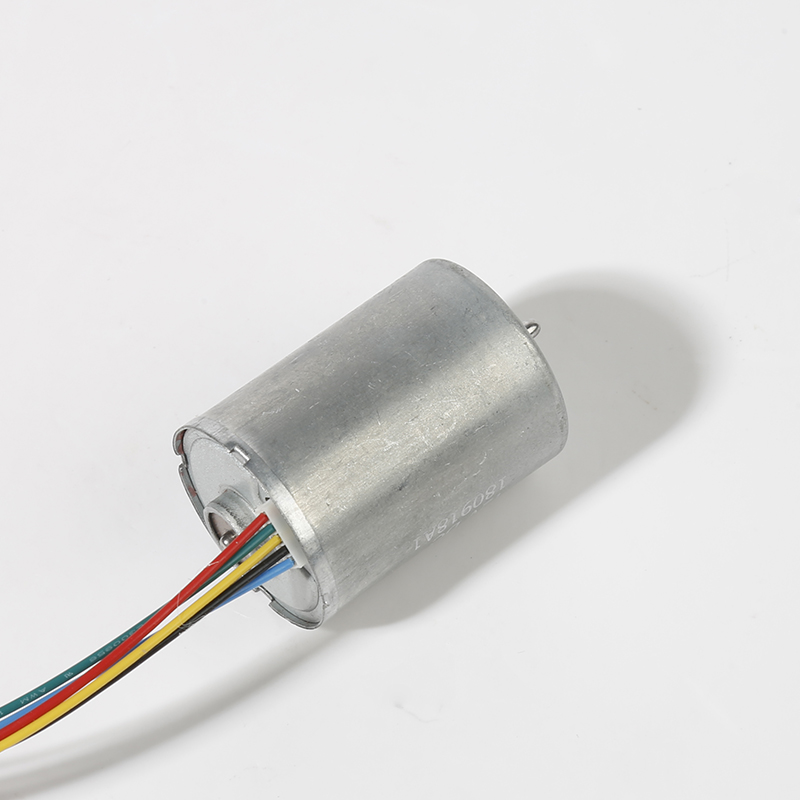

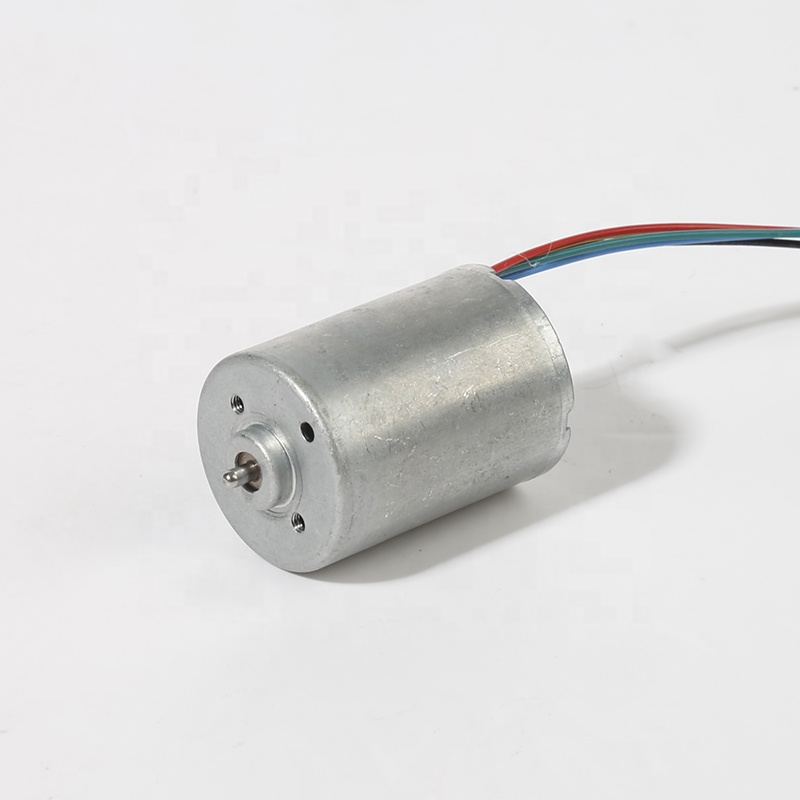

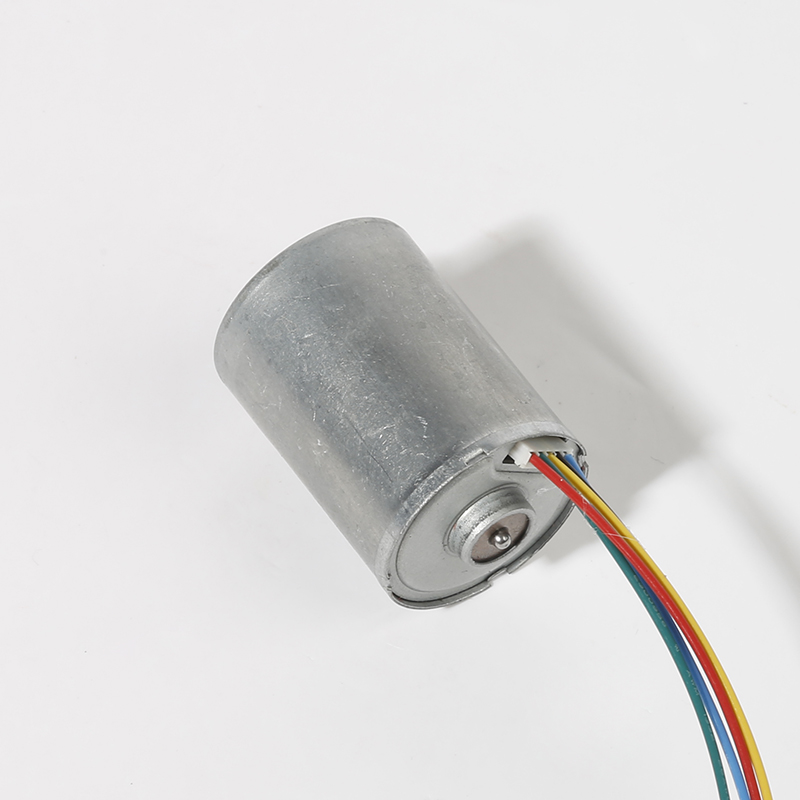

- Size: Ø36.0* 50.0mm
- Built-in driver (Hall sensor controller)
- PWM pulse wide speed range
- Clockwise/counter-clockwise rotation
- FG speed feedback signal
- Low EMC & Low noise
- Long life: 3000hrs Min.
- Over-current protection
- Over-voltage protection
- Under-voltage protection
- Customization acceptable

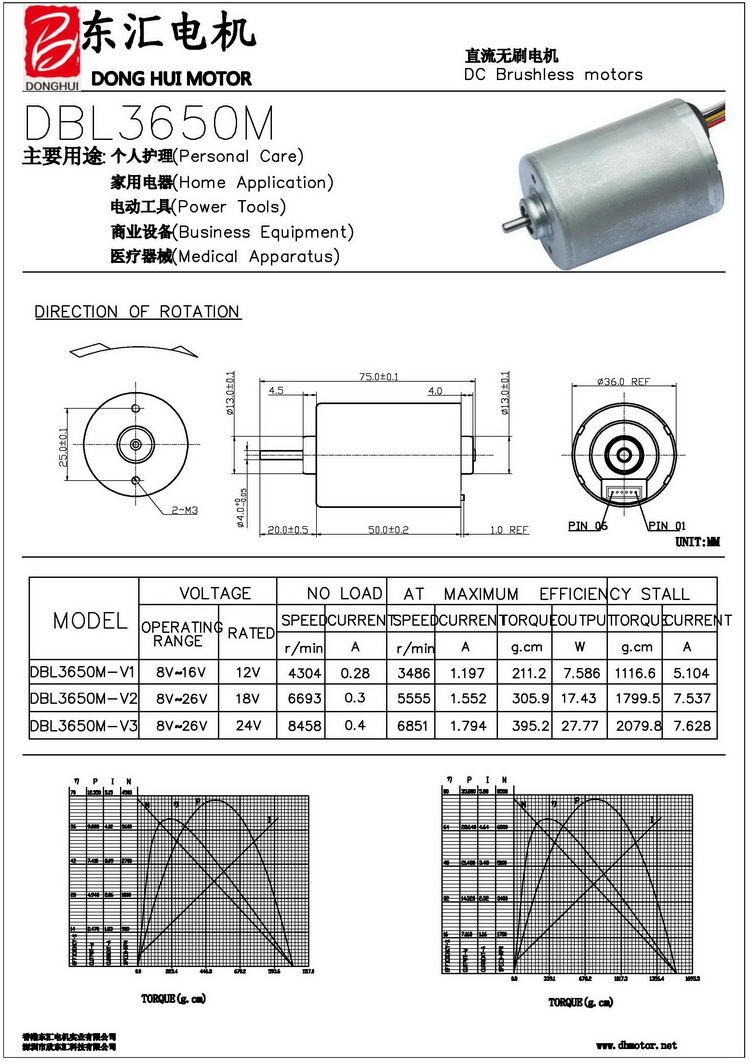

| Model |
B3650M-S01 |
B3650M-S02 |
B3650M-S03 |
| Voltage(V) |
Operating Range |
8-26 |
8-26 |
8-26 |
| Rated |
12 |
24 |
24 |
| No Load |
Speed (rpm) |
5300 |
8589 |
4327 |
| Current (A) |
0.46 |
0.25 |
0.18 |
| Rated Load |
Torque (mNm) |
23.5 |
40 |
45 |
| Speed (rpm) |
4600 |
6925 |
3714 |
| Current (A) |
1.53 |
1.524 |
1.01 |
| Output P. (W) |
11.35 |
29 |
17.49 |
| Stall |
Torque (mNm) |
77.8 |
206.5 |
316.8 |
| Current (A) |
2.5 |
6.8 |
2.5 |
Notice: Data in this typical specification sheet are for reference. Voltage, rated torque, speed, current, power and shaft extension features can be customized to meet specific requirements.
