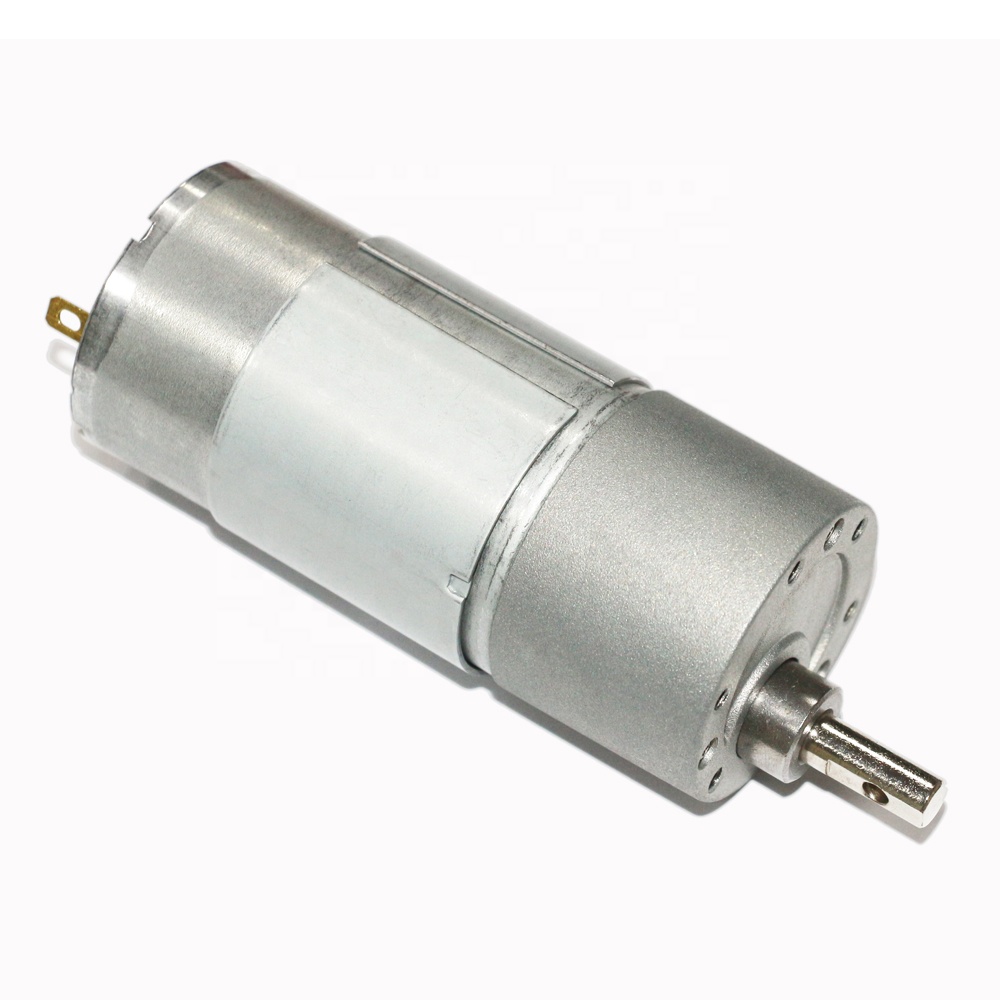

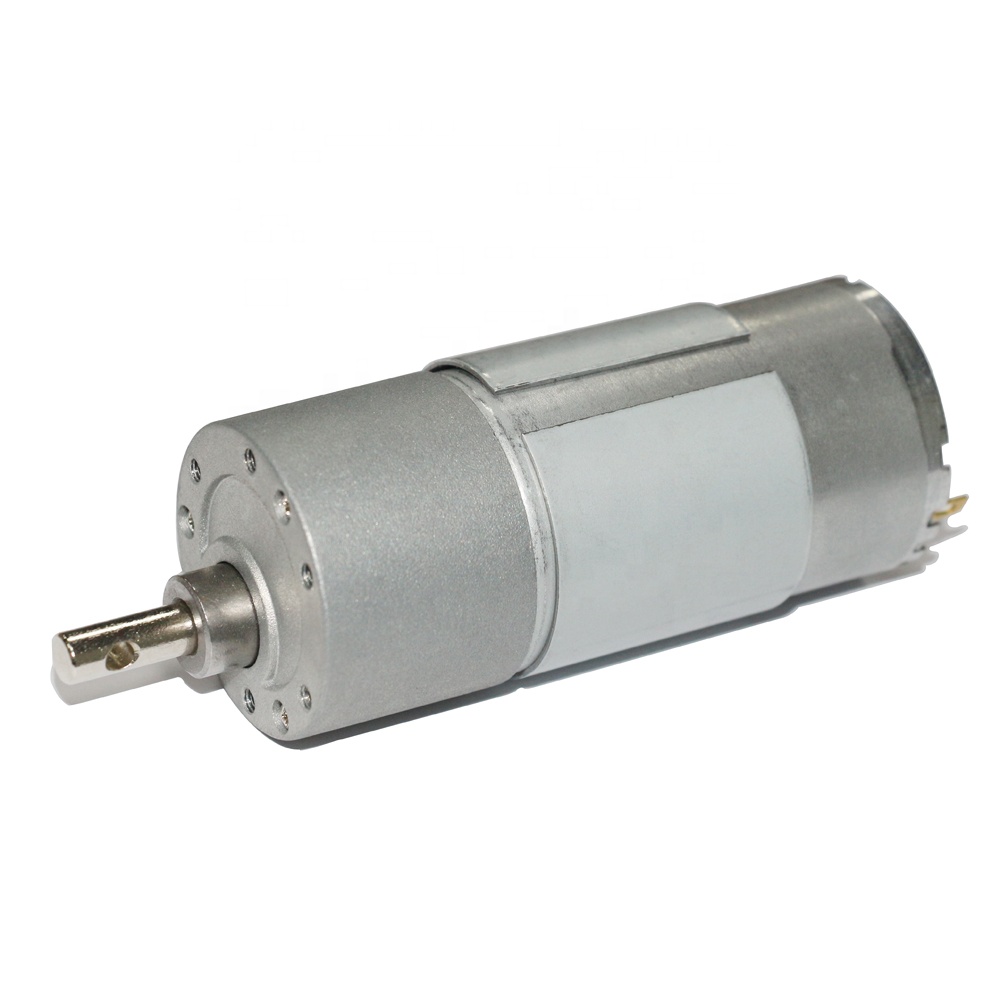

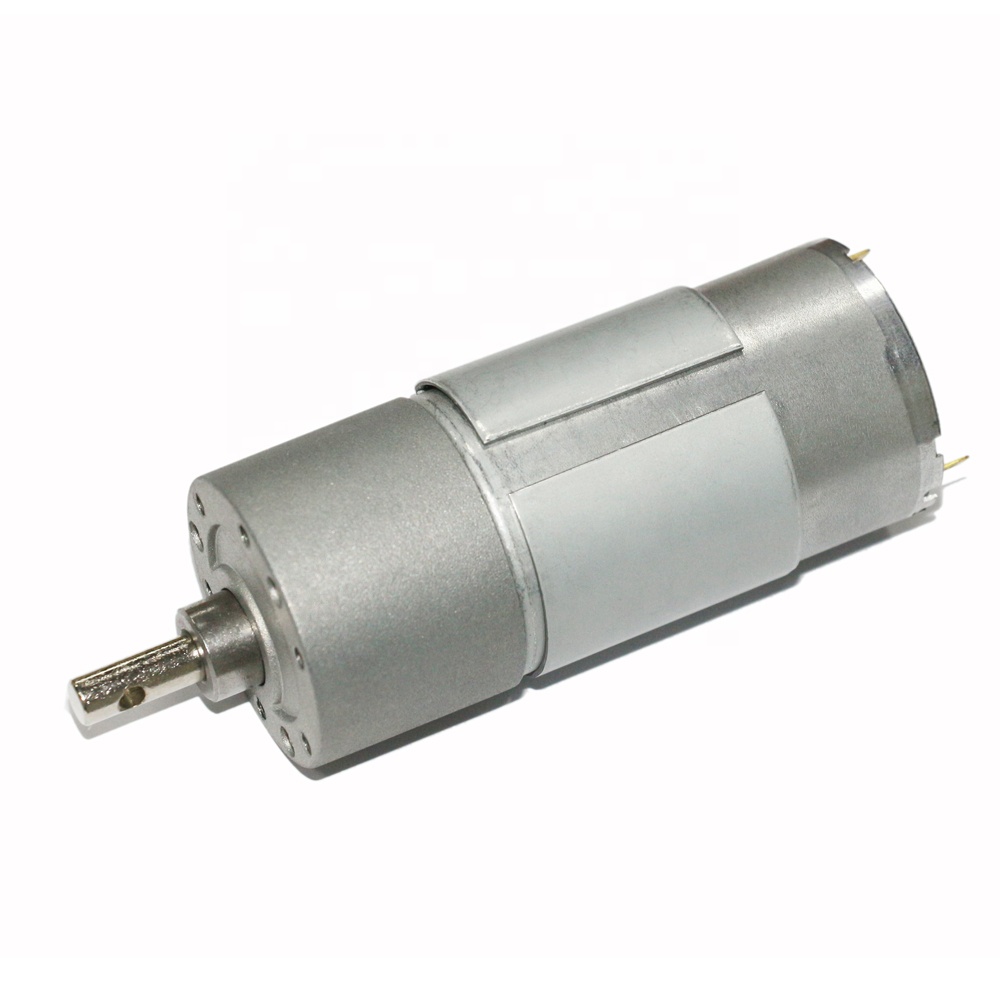

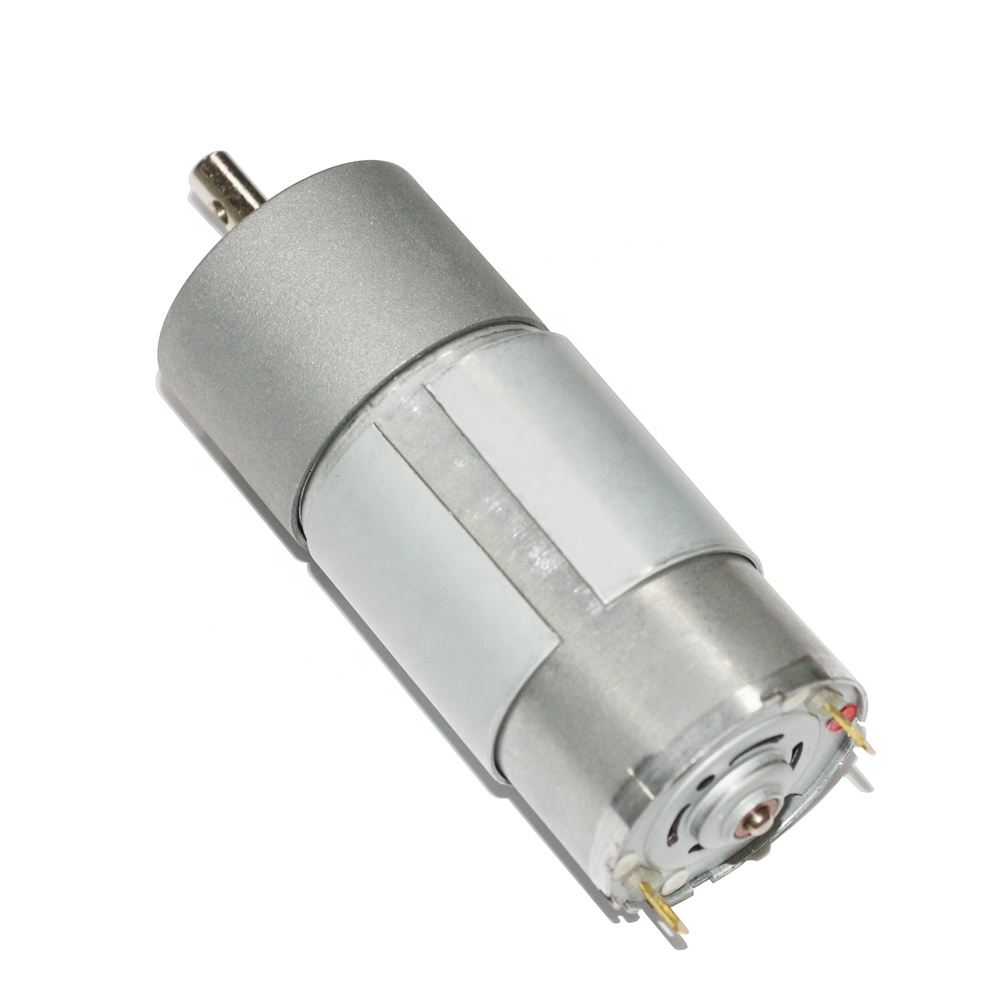

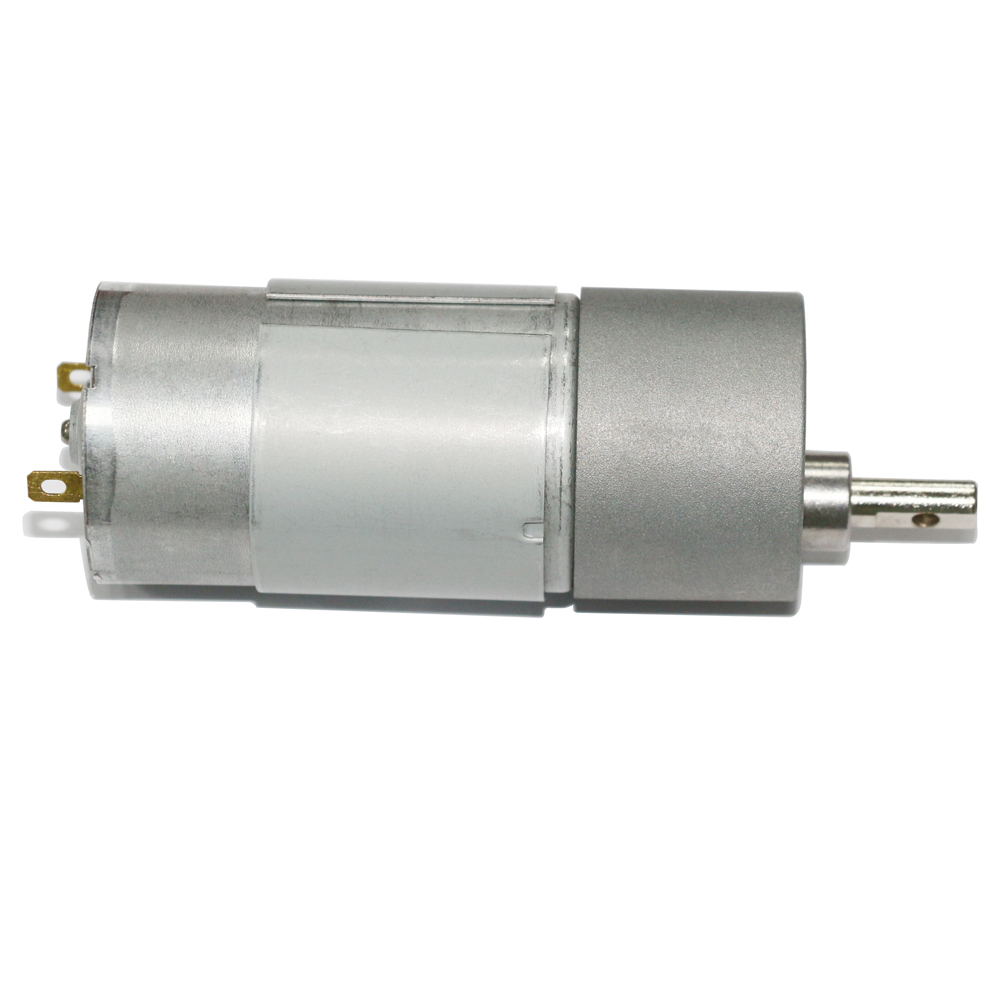

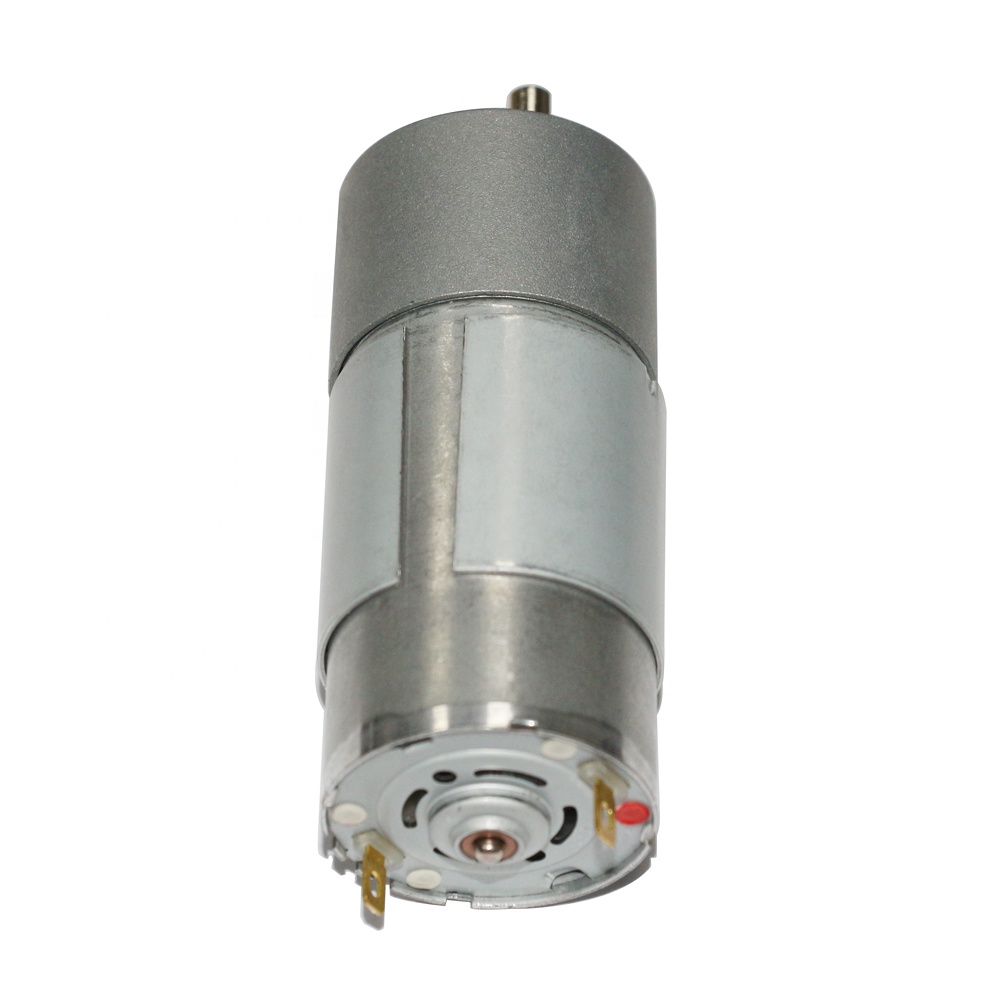

High Torque 37mm 24V DC Planetary Gear Brushed Motor Low Speed Electric Motor Compatible with 555 Motor for B2B Bulk Purchases

🟦 Product Description

Model Number	DGB37-555	Voltage(V)	24V
Certification	ROHS	Load speed	120 rpm
Type	Gear motor	Load torque	2 kg.cm
Usage	Boat, Car, Electric Bicycle	Starting current	3A
Commutation	Brush	Output Power	9.63W
Protect Feature	Drip-proof	Starting torque	6kg.cm
Construction	Permanent Magnet	No load speed	150 rpm
Shaft length	Customizable	No load current	0.10A

🟦 1.5~24V 37GB555 DC Gear Motor Features

Widely used in robots, locks, auto shutters, USB fans, slot machines, and money detectors.
Ideal for coin refund devices, currency count machines, and towel dispensers.
Suitable for automatic doors, peritoneal machines, and automatic TV racks.
Low noise, low current, and no spark operation.
Available Reduction Ratios: 1/10, 1/20, 1/30, 1/50, 1/75, 1/100, 1/150, 1:210, 1:250, 1/298, 1/340, 1/380, 1:422, 1/600, 1/1000.

Note: Typical specifications are for reference only. Motor voltage, speed, ratio, torque, and shaft can be customized (Voltage: 3-12V, Speed: 10-3000rpm, Torque: 10-1000g.cm).

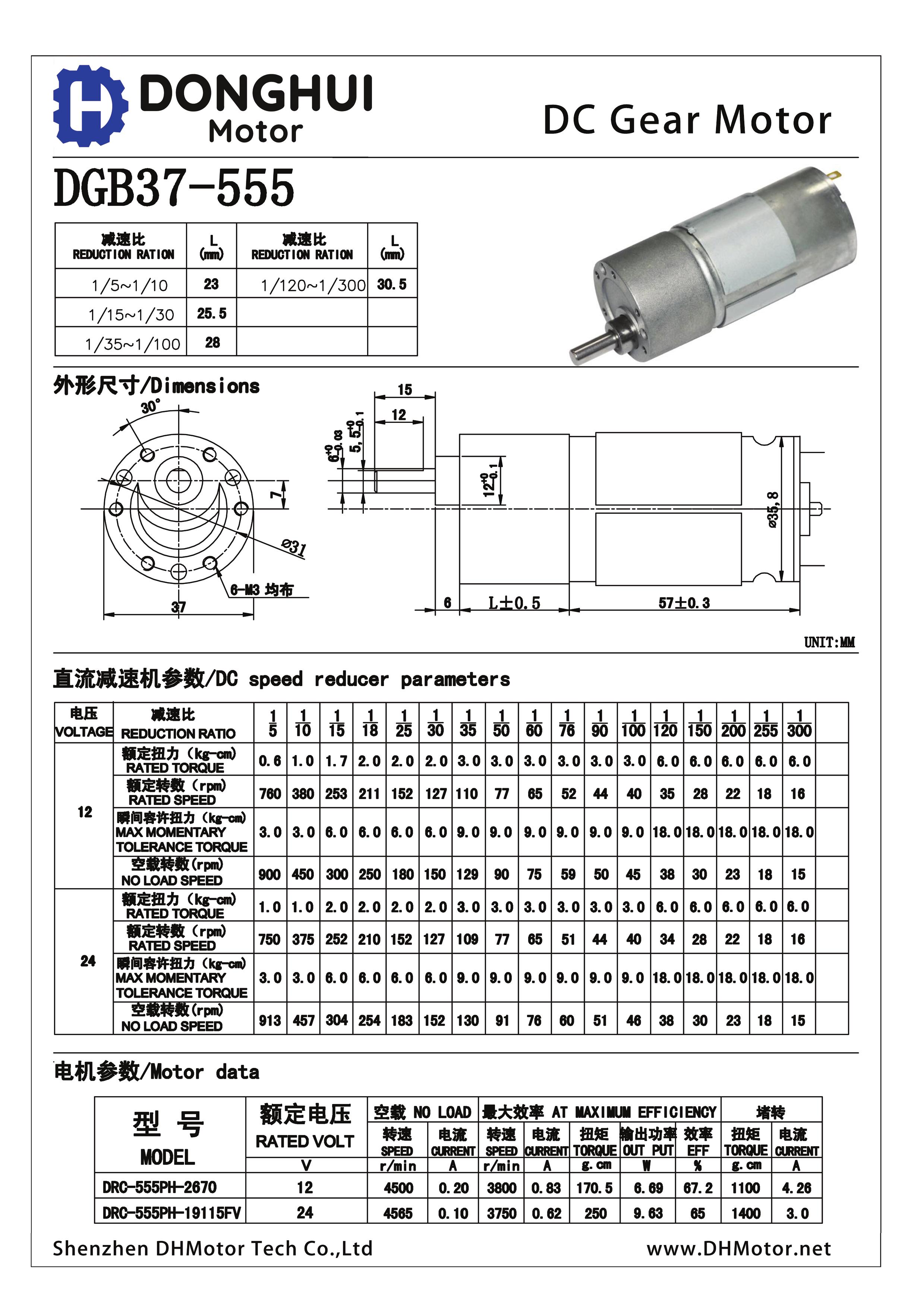

🟦 Specifications & Dimensions

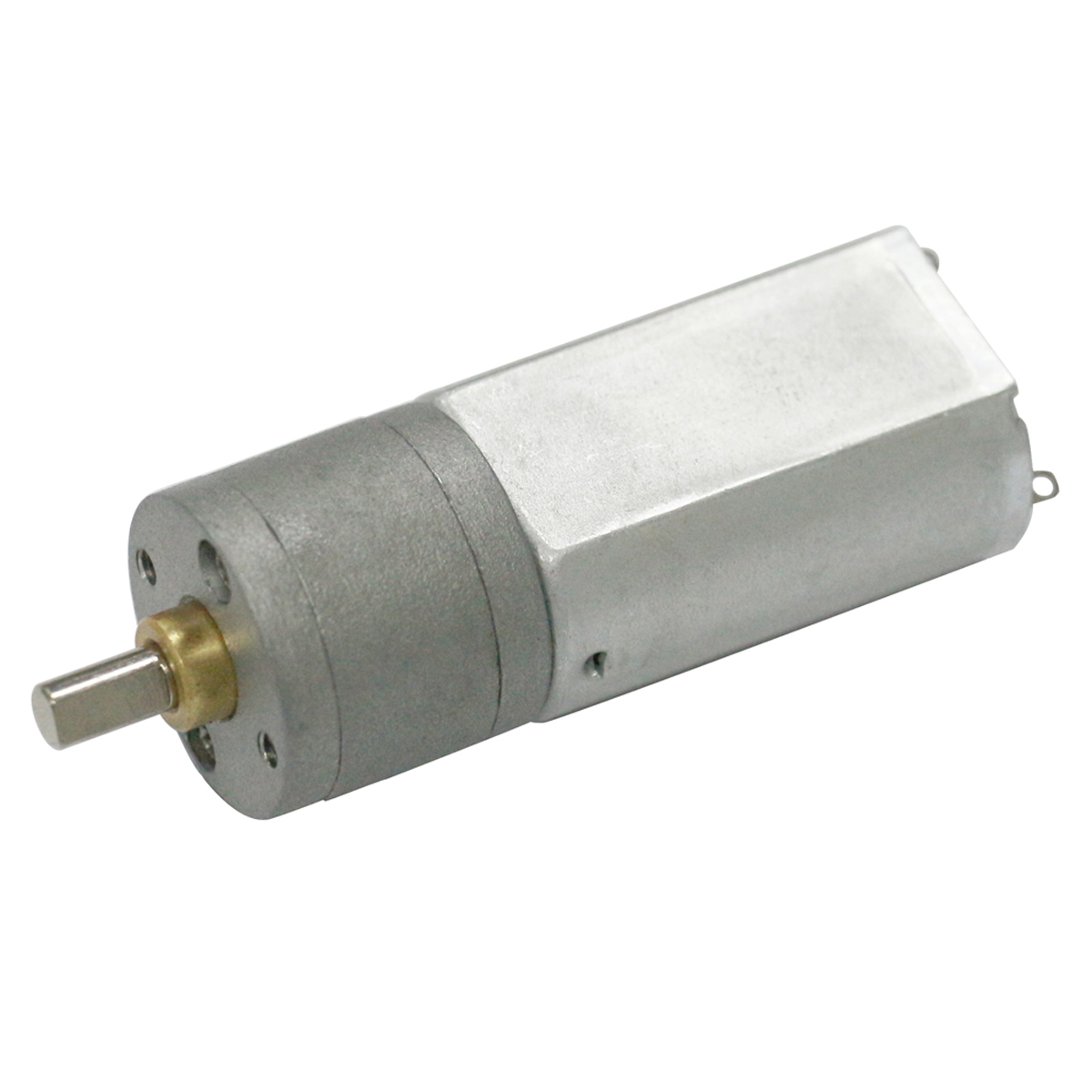

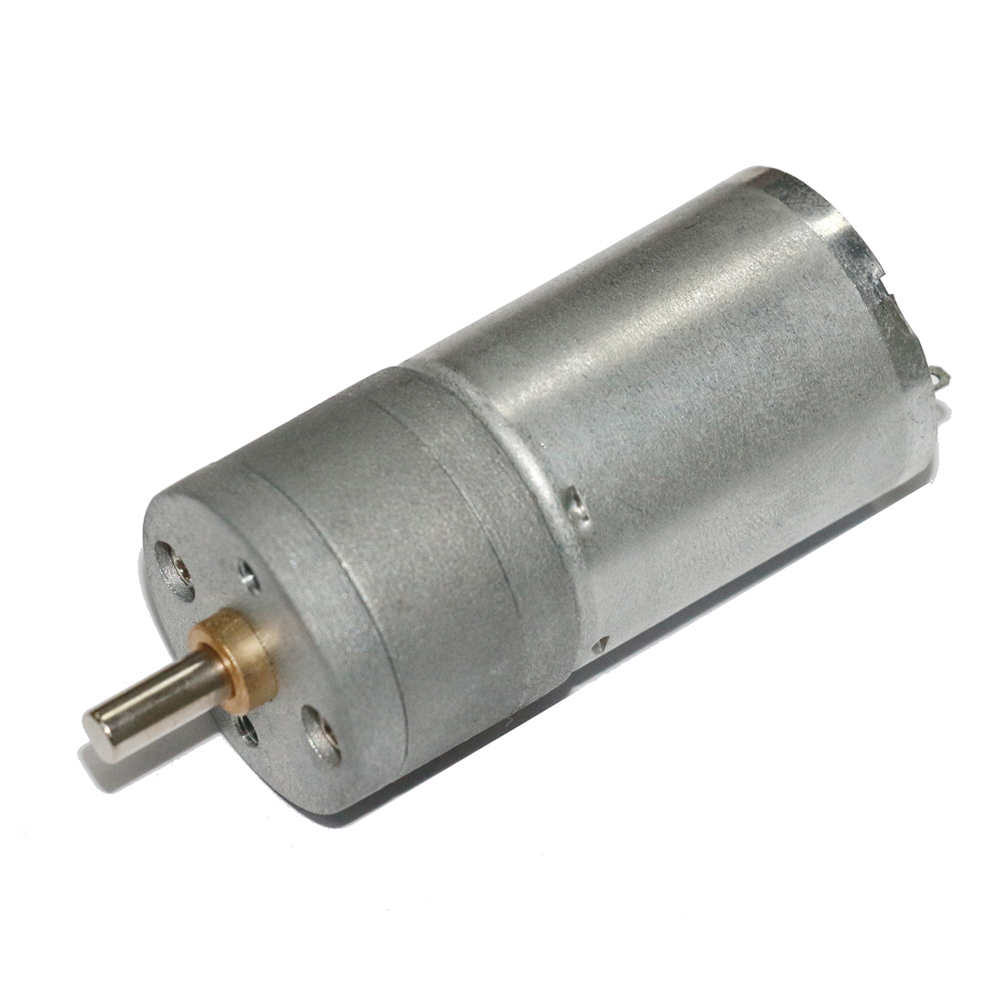

🟦 Related Products

🟦 Industrial Application

🟦 Manufacturing & Workshop

A professional high-tech enterprise engaged in the design, development, production, and sale of precision DC motors and gear motors since 2003.

🟦 Packing & Delivery

Shipping Method	Shipping Time	Advantages & Disadvantages
Express (DHL/UPS/FEDEX/TNT)	3-5 days	Fast, door to door delivery.
Air Shipping	3-5 days	Fast, airport to airport pickup required.
Sea Shipping	15-30 days	Cost-effective, port to port pickup required.

🟦 Frequently Asked Questions

1. What are your main motor products?

We specialize in Dia10~52mm DC Micro Motors and Gear Motors, including Auto DC motors, Brush/Brushless DC motors, Spur Gear motors, and Vibration motors.

2. What are the common applications for these motors?

Our motors are widely used in Home Appliances, Office Equipment, Health-care devices, Banking systems (vending/payment machines), and Automation industries.

3. Do you support custom technical requirements?

Yes, we have a strong design team to handle customization requests for voltage, speed, torque, and dimensions.

4. What information is needed to place an order?

Please provide the required voltage, speed, torque, and overall dimensions for your specific application.

5. What if I am unsure of the required motor specifications?

Please contact our sales team. We will guide you through the technical evaluation to find the most suitable motor for your needs.

6. What is the typical lead time for production?

The typical delivery time for orders is approximately 20-25 days after sample evaluation.
