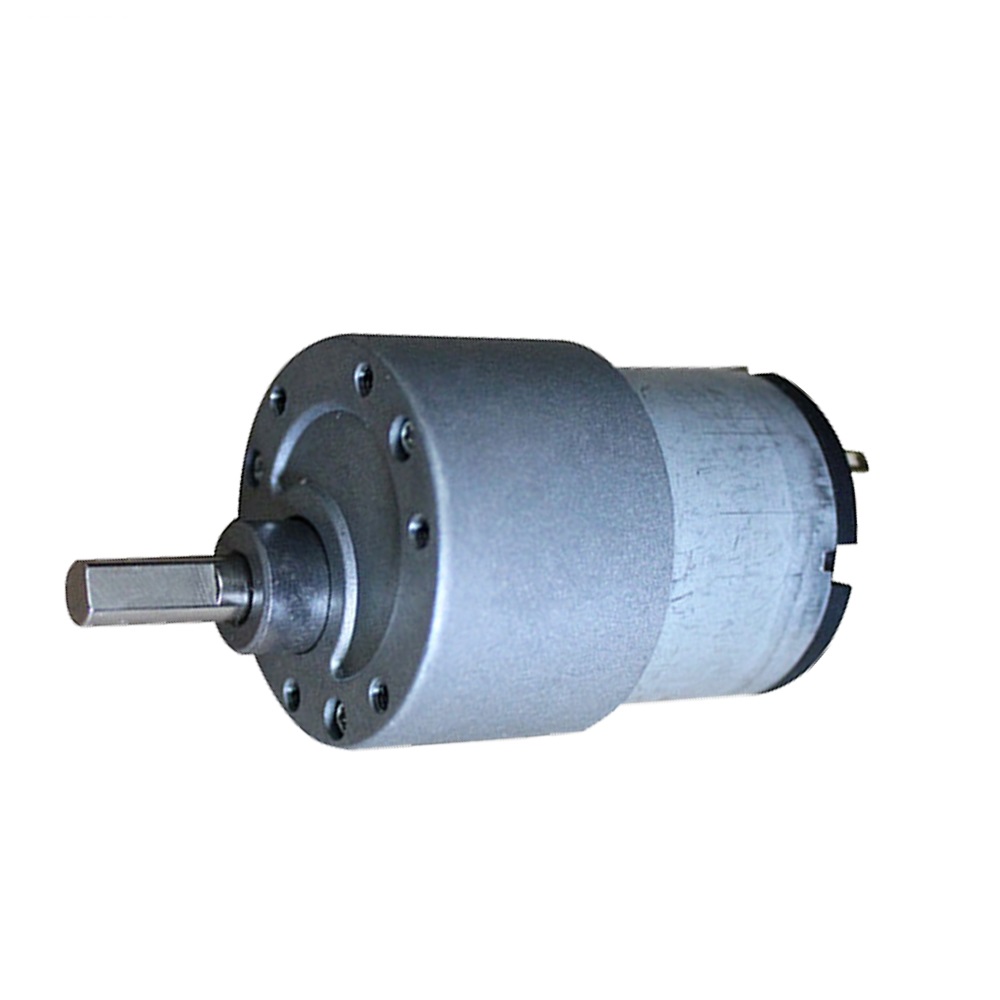

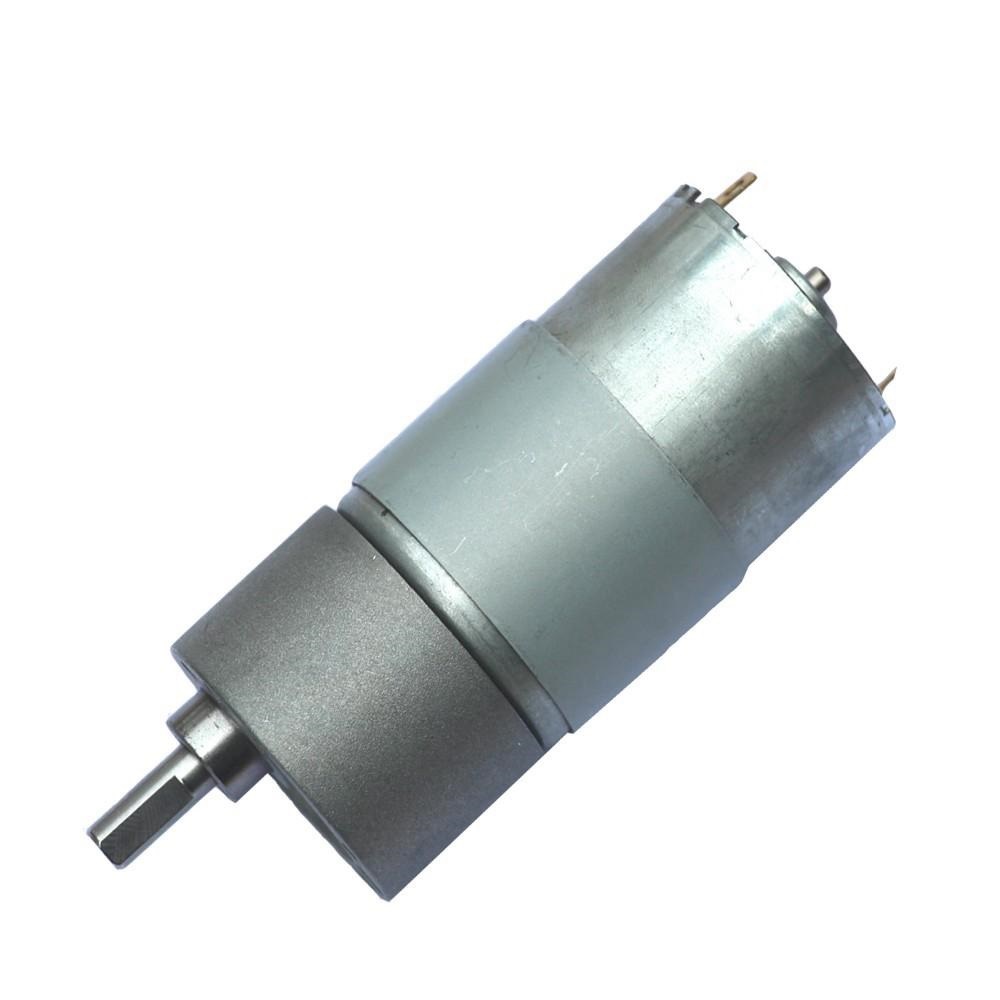

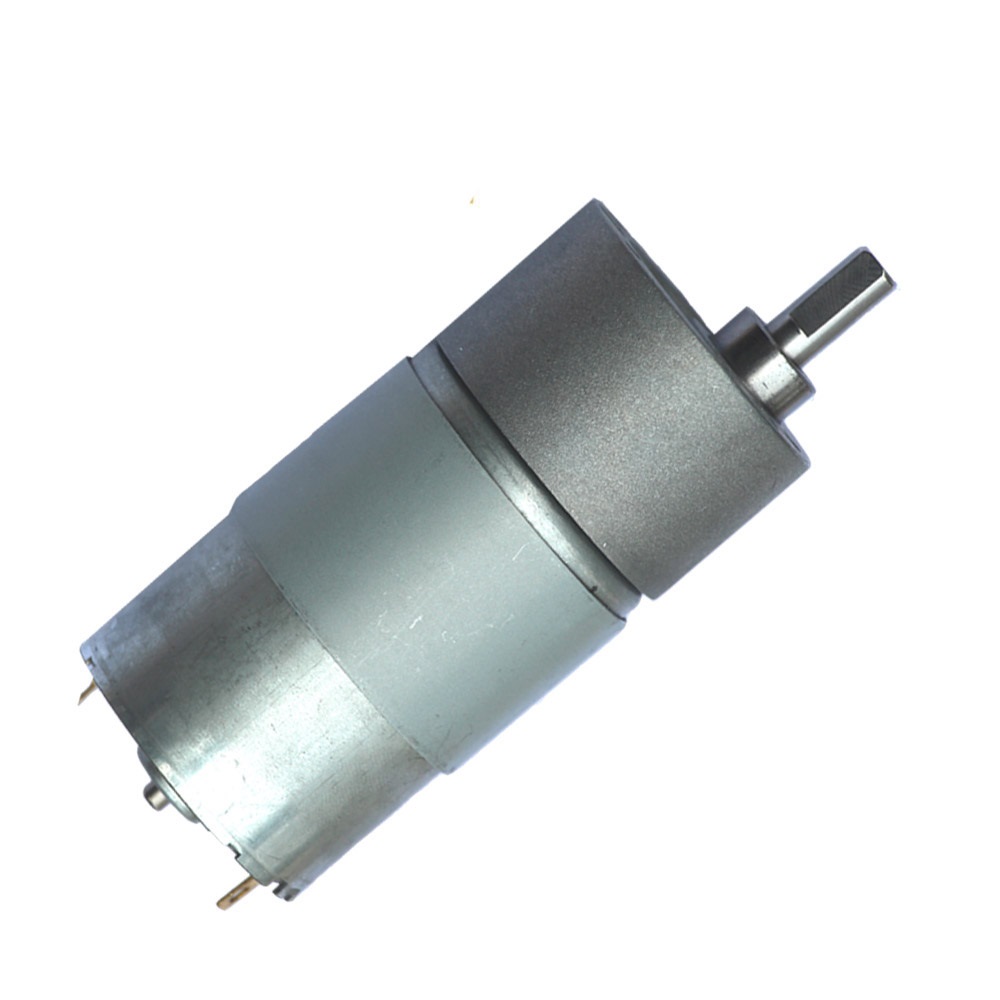

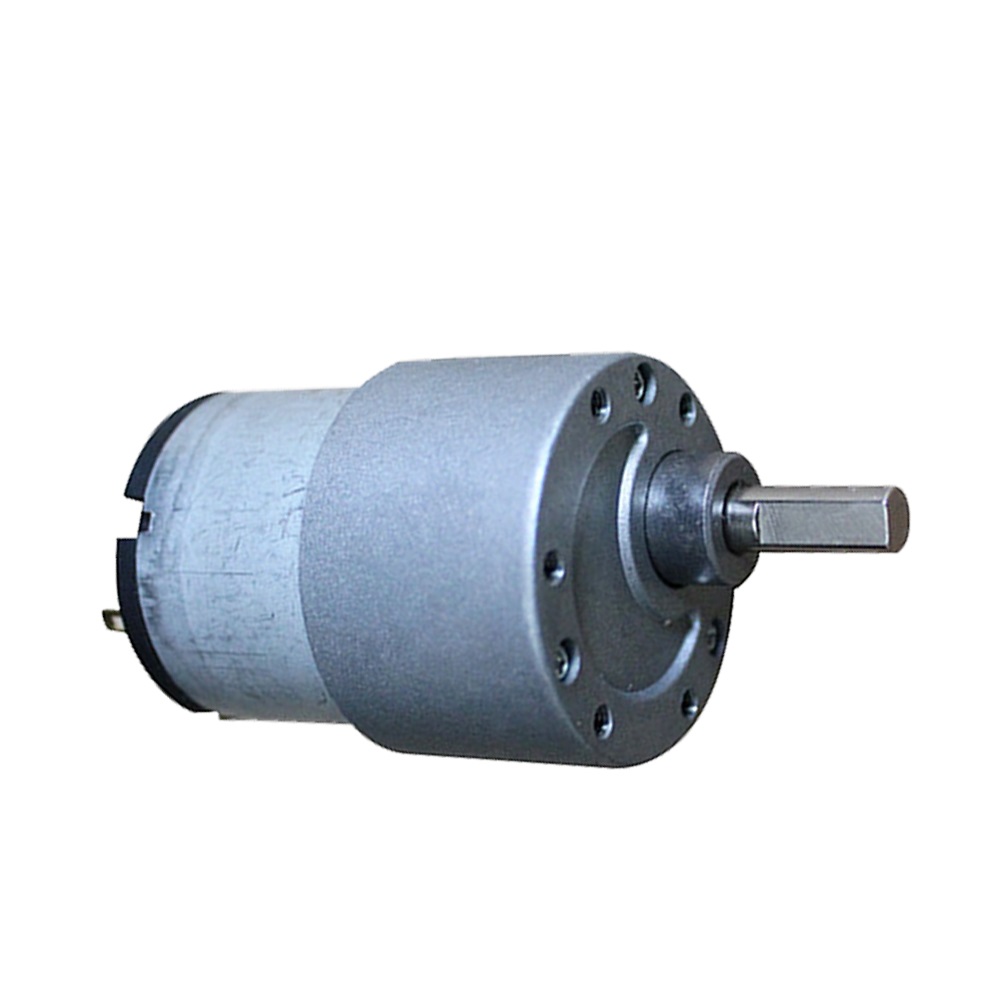

37mm 12v 18v 24v cordless drill gearbox dc motor

1 / 4

37mm 12v 18v 24v cordless drill gearbox dc motor

Send Inquiry

Product Description

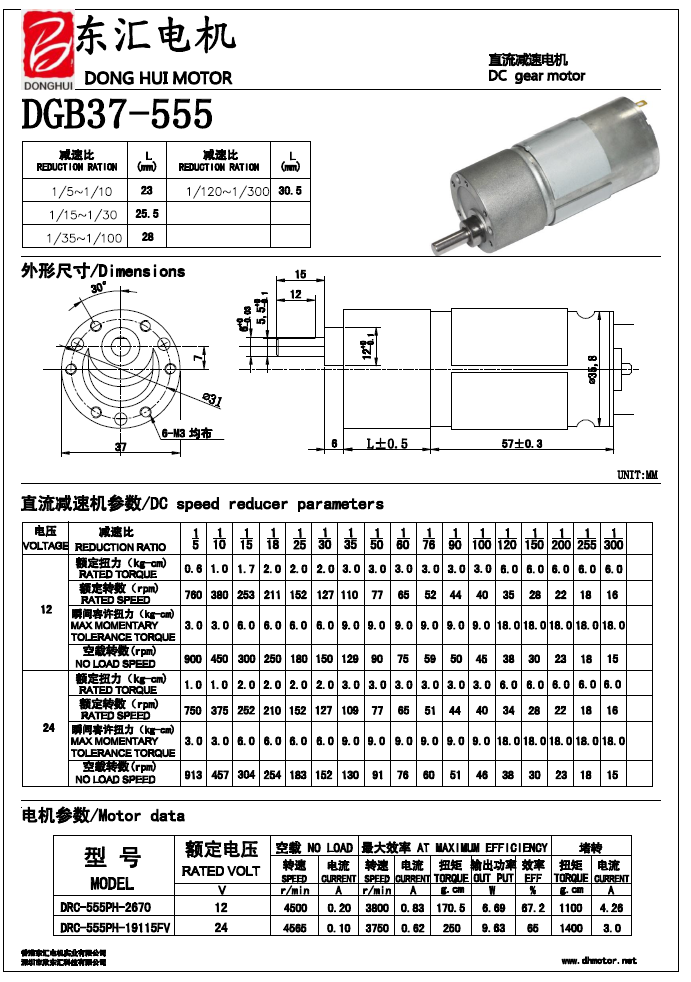

Specification

Item	37mm DC Gear Motor
Size	diameter 37mm, length Customized
Voltage	6V-24V
Unload Speed	10-1000rpm
Rated Torque	≤6kg.cm
Max Torque	≤18g.cm
Wattage	≤8watt
Application	Robot, Lock, toys, electric power tool

Product Description

Motor's voltage, speed, ratio, torque, screw length, and shaft length can be fully customized to meet your specific requirements.

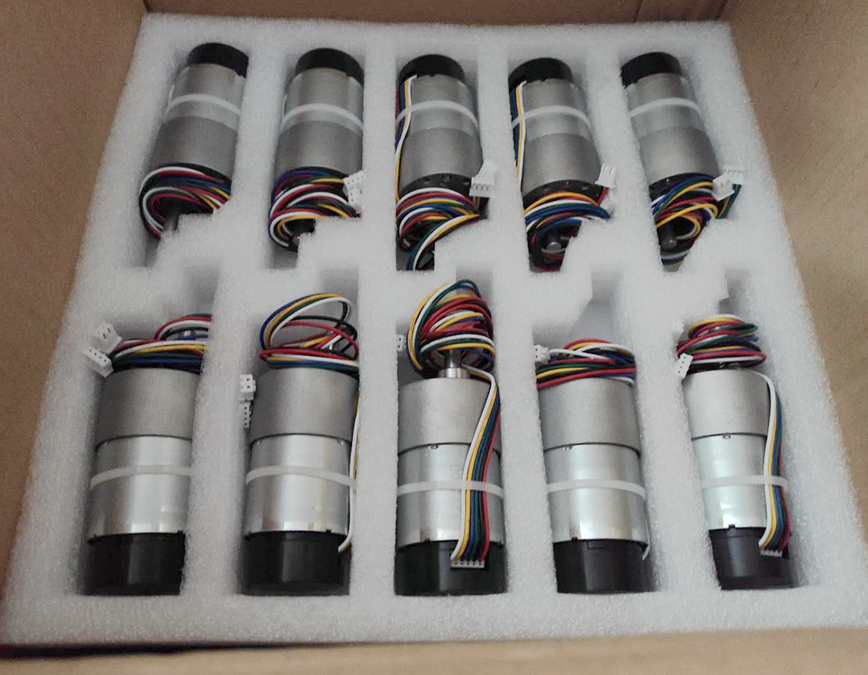

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

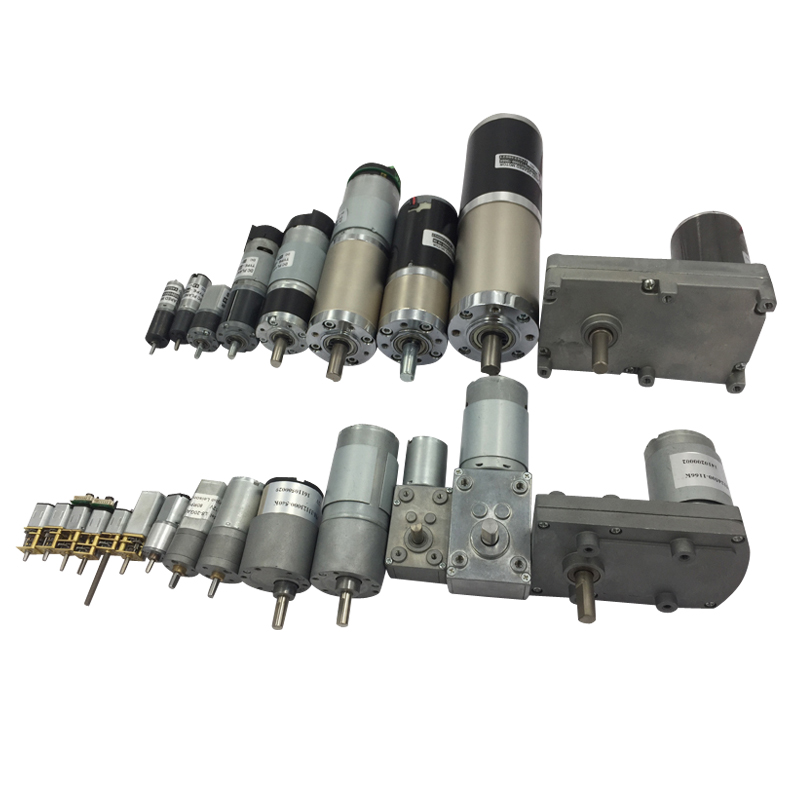

Manufacturing Capabilities

We are a professional micro motor manufacturer with 10 years of industry experience, offering a wide range of motor solutions:

Brush DC Motor: Φ6mm—Φ60mm
Brushless DC Motor: Φ12mm-Φ42mm
Coreless Brush/Brushless DC Motor: Φ4mm—Φ45mm
Gear/Planetary Gear DC Motor: Φ4mm—Φ60mm
Stepper DC Motor: Φ6mm—Φ24mm
Vibration DC Motor: Φ4mm—Φ45mm
Motor Voltage Range: DC1.5V-220V, AC 110V/220/230/240V
Speed Range: 0.1-80,000RPM
Output Torque: 0.01-500Kg.cm
Gearbox Ratio: 1:4 to 1:5000

Frequently Asked Questions

Q1: What are your main motor products?

We specialize in Diameter 4~60 mm DC Micro Motors and Gear Motors, including Auto DC motors, Brush/Brushless motors, Spur Gear motors, and Vibration motors.

Q2: What are the typical applications for these motors?

Our motors are widely used in home appliances, office equipment, healthcare devices, automation industries, banking systems (vending machines, payment equipment), and power door locks.

Q3: Do you offer customization for specific project needs?

Yes, we have a strong design team to handle customization requests for voltage, speed, torque, and dimensions.

Q4: What information is needed to place an order?

Please provide the required voltage, speed, torque, and overall dimensions for your application.

Q5: What if I don't have the exact technical specifications?

Simply contact our sales team with your general requirements, and we will recommend the best-fit model for your needs.

Q6: Are technical consultations available?

Yes, any technical problems or motor questions will receive a detailed answer from our technical engineering team.

Please feel free contact us talk any motor question!
