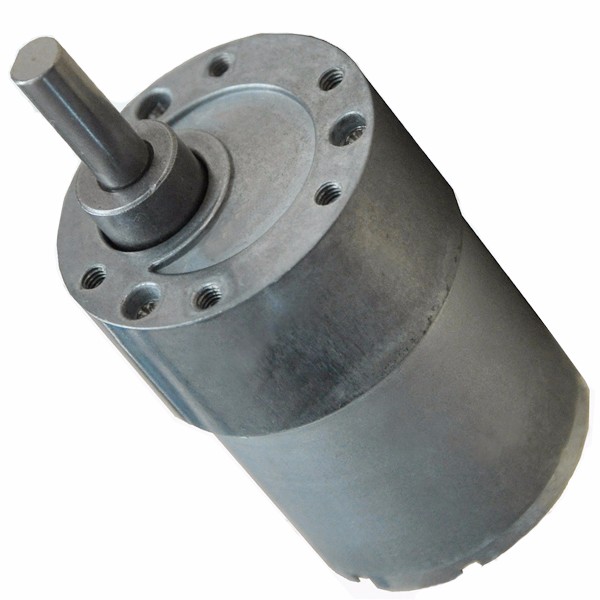

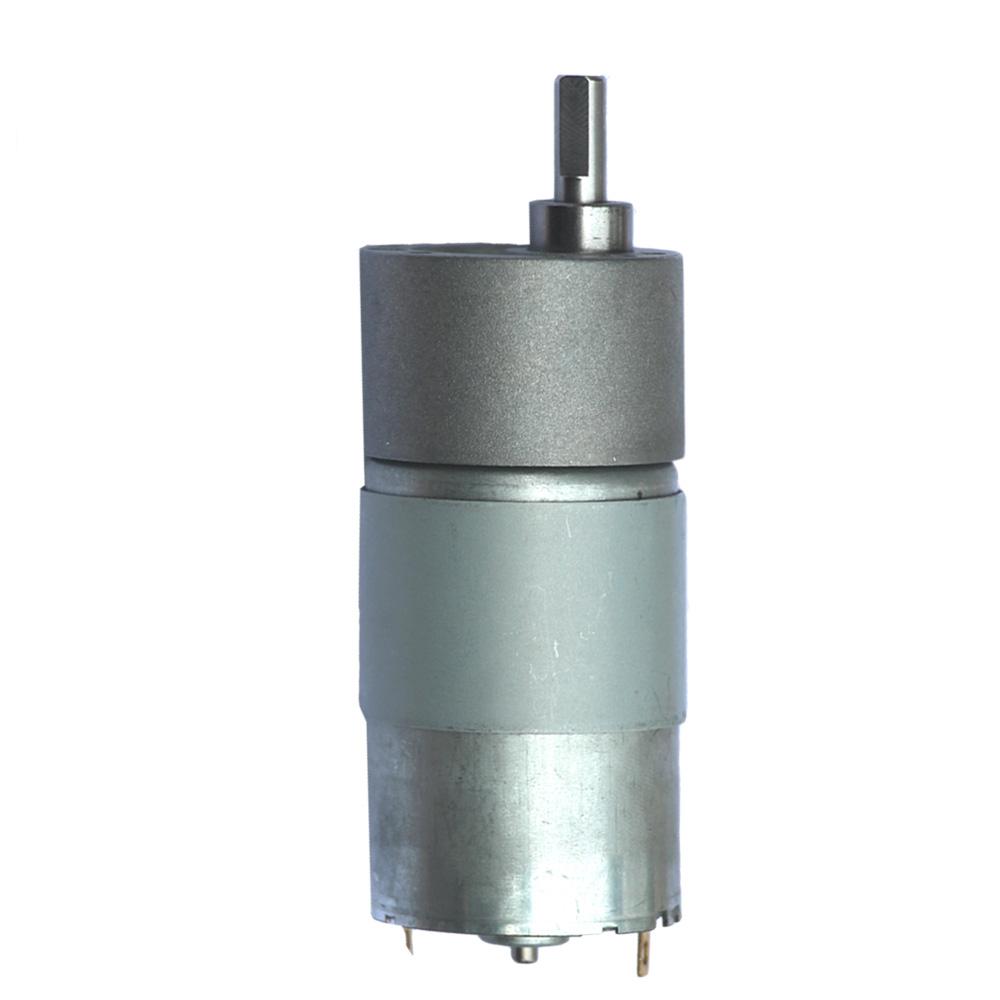

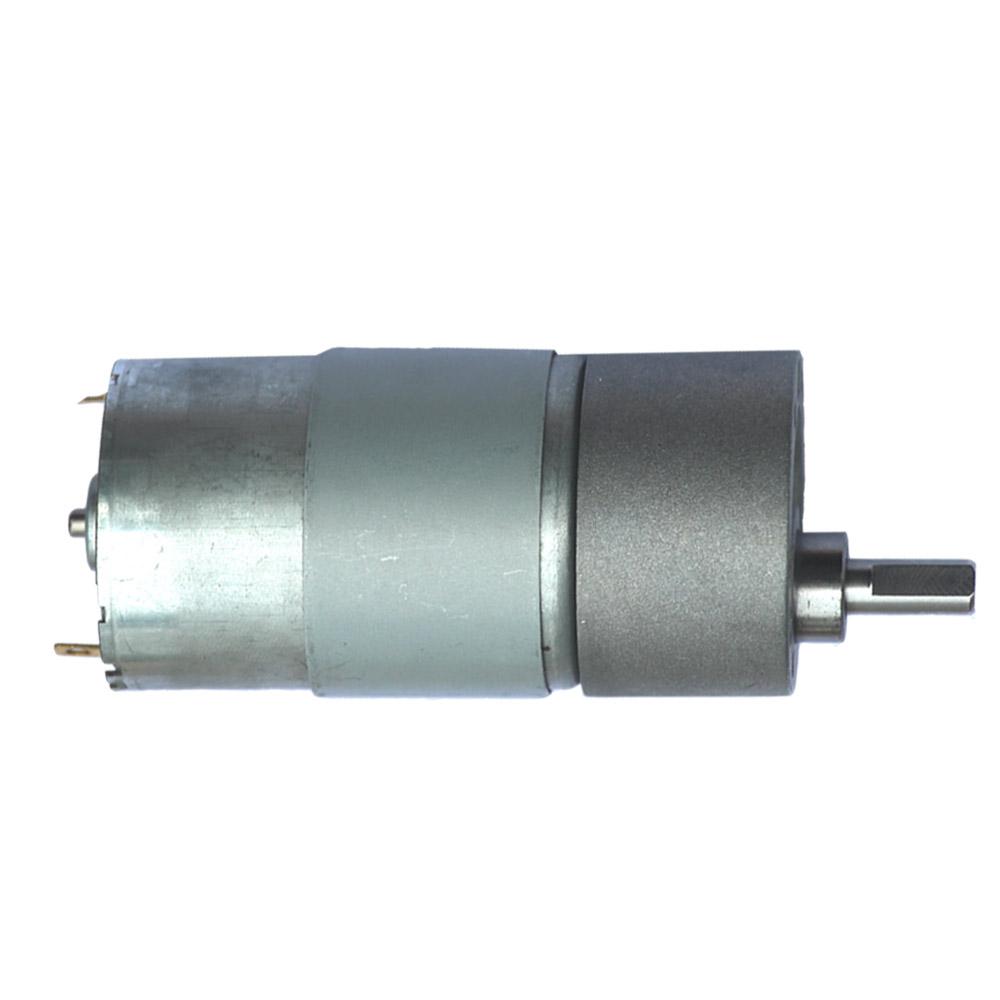

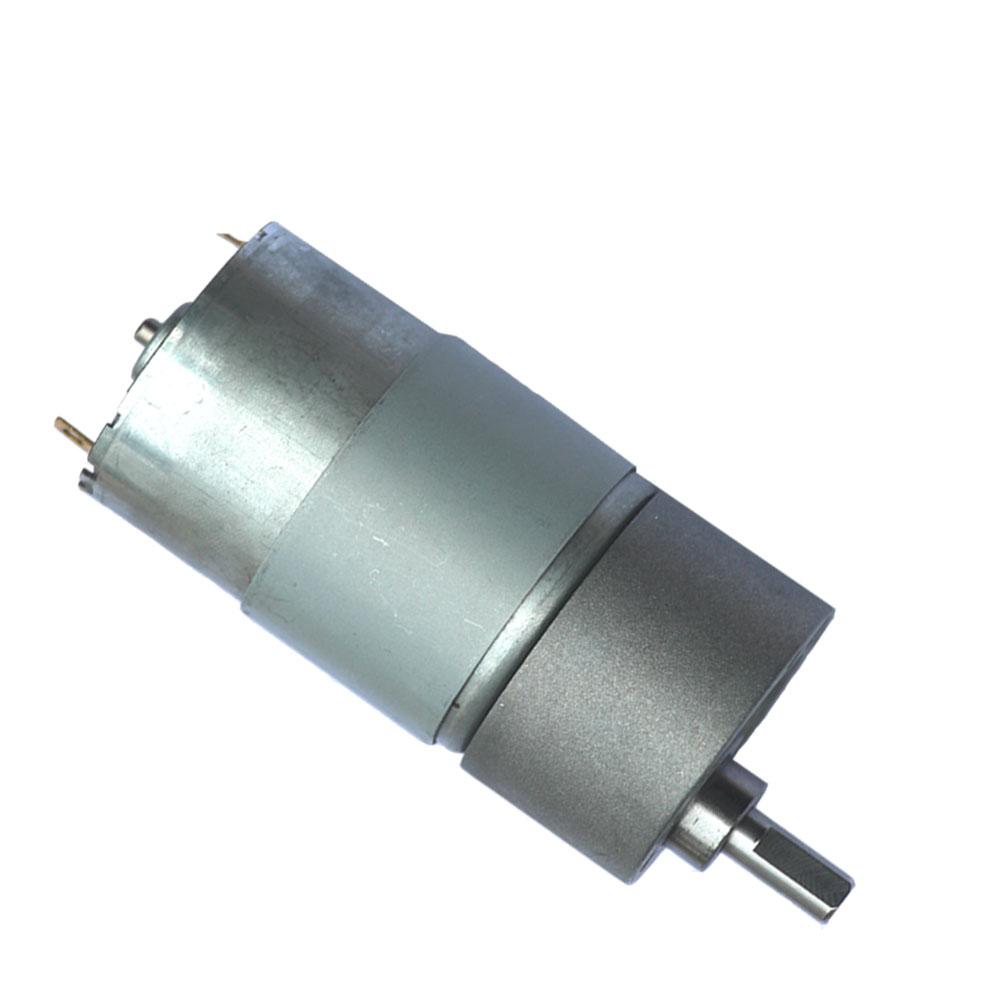

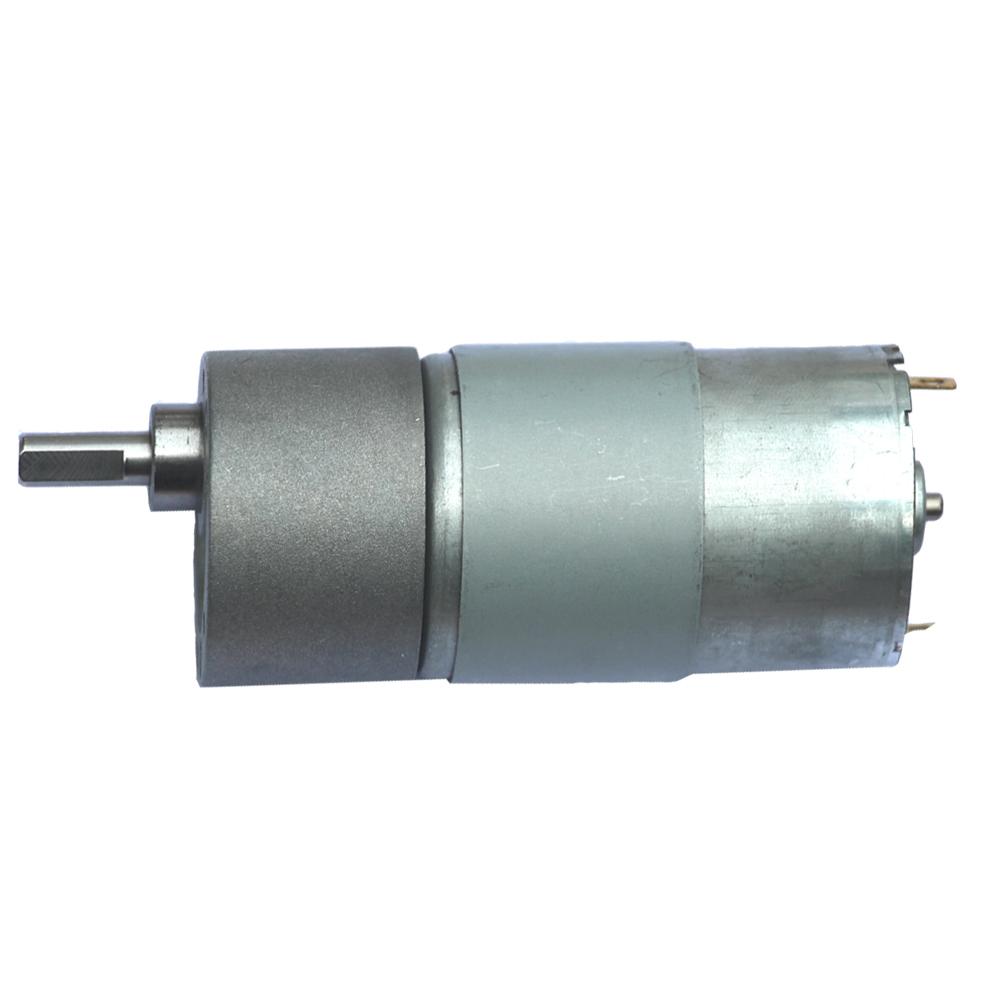

12 Volt Gear Motor for Winch, 12v Gear Motors for Winch

1 / 5

12 Volt Gear Motor for Winch, 12v Gear Motors for Winch

Send Inquiry

Product Description

Quick Details

Model Number	DGB37-528	Usage	Home Appliance
Certification	ROHS	Type	Gear Motor
Torque	6.0kg.cm	Construction	Permanent Magnet
Commutation	Brush	Protect Feature	Drip-proof
Speed(RPM)	19rpm	Current(A)	0.32A
Voltage(V)	12V	Efficiency	IE 2
No Load Current	23rpm	Output Power	2.6

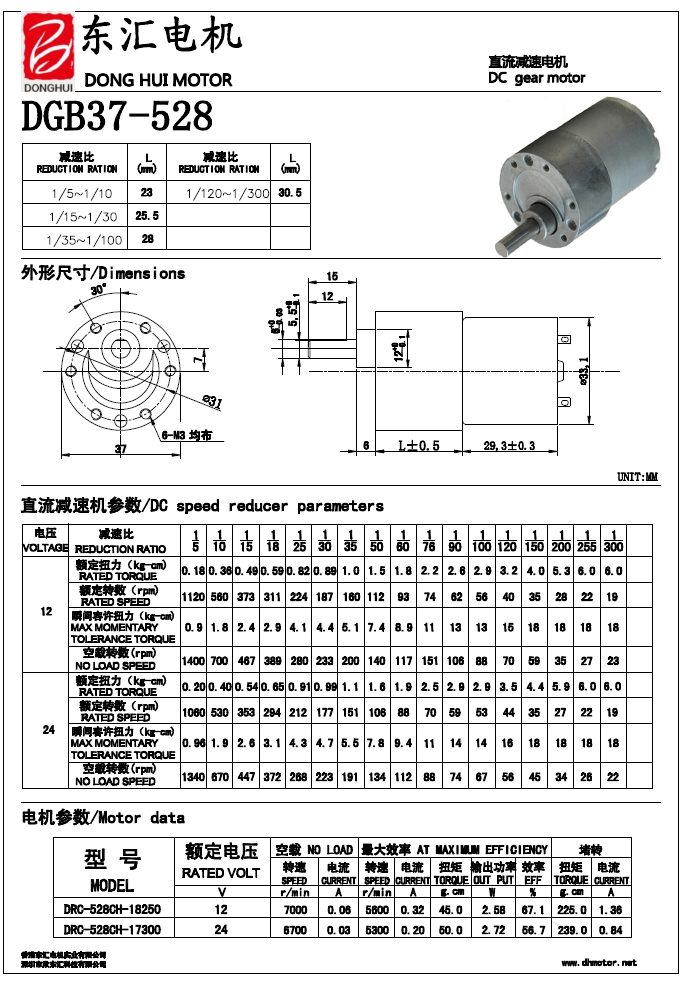

Product Specifications

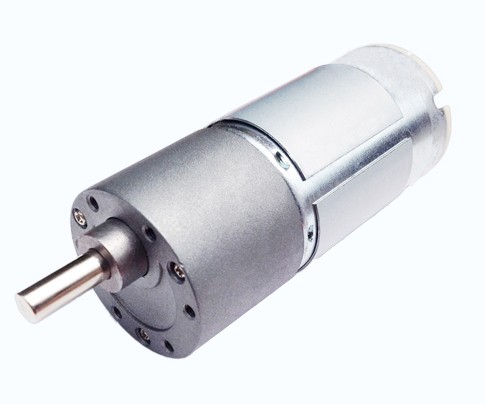

37mm 12 Volt Gear Motor for Winch

✔

Gearbox diameter: 37mm gear motor

✔

Metal / carbon brush DC motor

✔

Low noise, high quality and high torque

✔

Direction: CW & CCW (Reversible)

✔

Matching motors: RF-520, RF-528, RS-540, RS-545, RS-550, RS-555, RS-3530

✔

Customization: Specifications and shaft length tailored to requirements

Packaging & Shipping

Packaging Details: 100PCS/CTN, Net Weight: 19 KG, Gross Weight: 20.5KG

Delivery Detail: Within 25 days

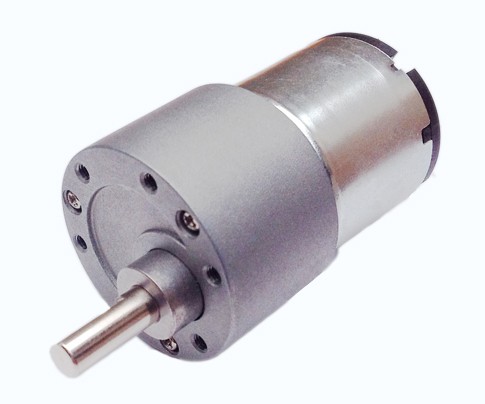

Product Gallery

Manufacturing Capabilities

Committed to the development and production of micro motors since 2003, our expertise covers four major series:

Micro DC motors (Diameter 4~100mm)
DC gear motors and spur gear motors
Coreless and brushless motors
Vibration motors

Technical Range: Voltage from 1.5V to 42V (AC rectify up to 240V), Speeds from 1 RPM to 30,000 RPM, and Stall Torque from 1g.cm to 30kg.cm.

Frequently Asked Questions

What are the primary applications for this 12V gear motor?

This motor is widely used in home appliances, winch systems, office automation, medical equipment, and automotive fields.

Does the motor support bi-directional rotation?

Yes, the motor supports both Clockwise (CW) and Counter-Clockwise (CCW) directions.

What certifications do your motors carry?

Our products are certified with CE, ROHS, and ISO standards to ensure high quality and environmental compliance.

Can I request a customized shaft length?

Yes, motor specifications and shaft lengths can be custom-tailored according to specific customer requirements.

What is the typical delivery timeframe?

Standard delivery is usually completed within 25 days after order confirmation.

What is the gear ratio and speed performance?

The model DGB37-528 provides a rated speed of 19 RPM and a no-load speed of 23 RPM at 12V.
