37mm Gear Motor 500 520 540 550 555 Gear Motor with Reduction Gearbox 37mm 12v 24v Dc Gear Motor 10rpm 30rpm

Product Description

Product Description
⚙️ Quick Details
Model Number DGB37-528 Type Gear Motor
Usage Home Appliance Certification ROHS
Torque 6.0kg.cm Construction Permanent Magnet
Commutation Brush Protect Feature Drip-proof
Speed(RPM) 19rpm Voltage(V) 12V
Continuous Current 0.32A Efficiency IE 2
Technical Specifications
📋 37mm Geared DC Motor Features
  • Gearbox diameter: 37mm
  • Metal / carbon brush DC motor options
  • Low noise, high quality, and high torque performance
  • Compatible motor models: RF-520, RF-528, RS-540, RS-545, RS-550, RS-555, RS-3530
  • Direction: CW & CCW (Clockwise and Counter-Clockwise)
  • Certifications: CE, ROHS, ISO
  • Motor specification and shaft length can be tailor-made according to requirements

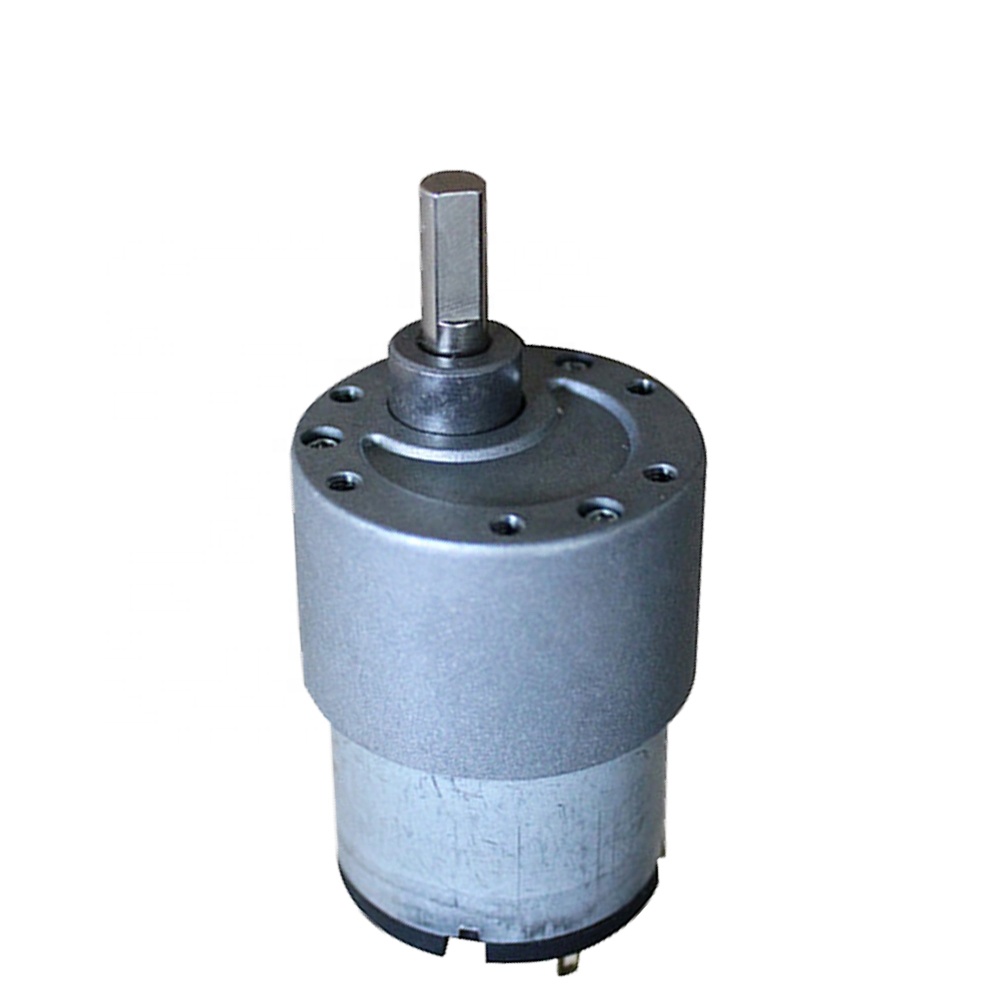

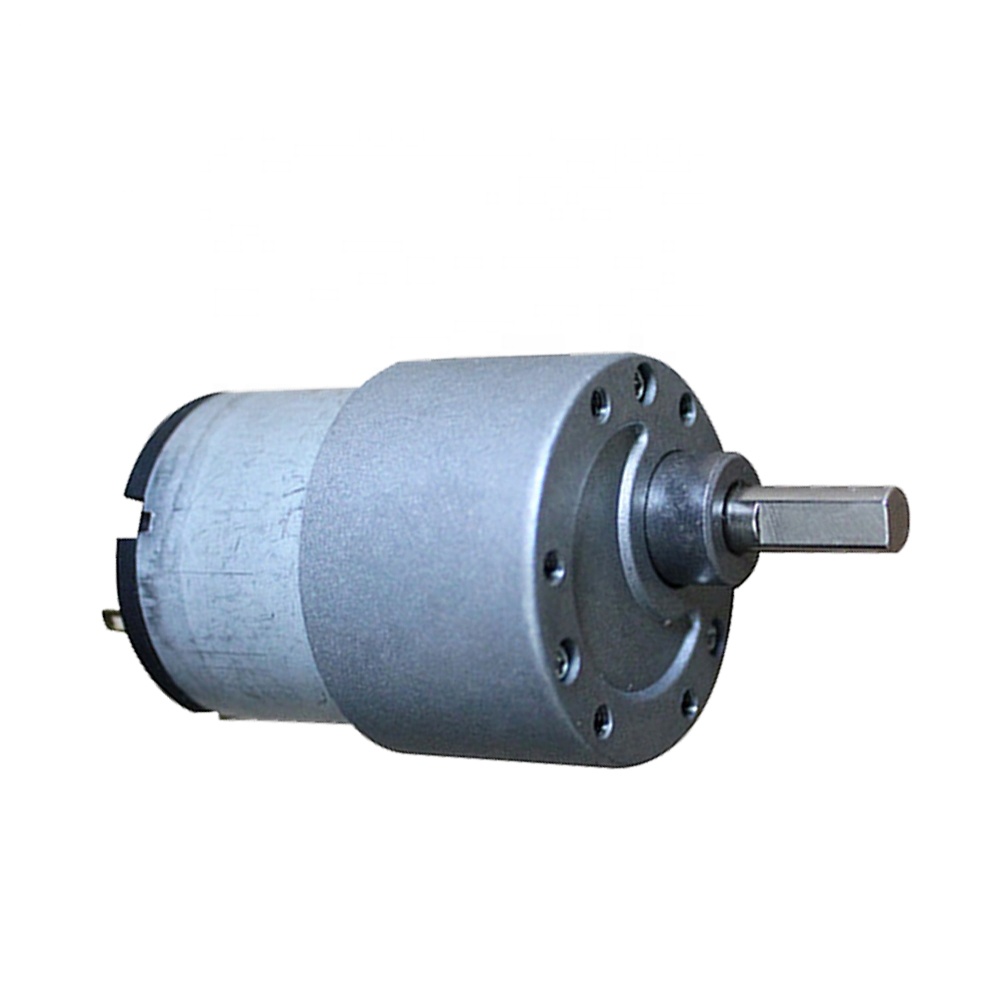

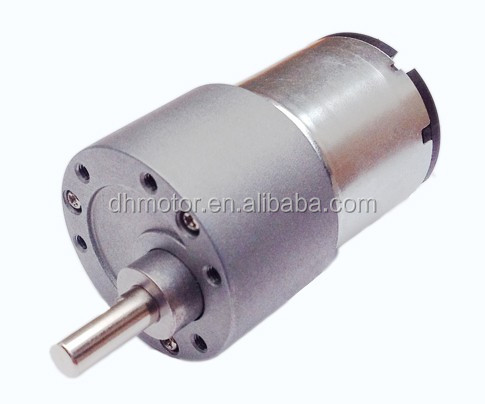

37mm Gear Motor
Product Gallery
37mm Gear Motor Detail 12V 24V DC Gear Motor
Motor Dimensions Performance Chart
Packaging & Capabilities
Packaging Details 100PCS/CTN, Net Weight: 19 KG, Gross Weight: 20.5KG
Delivery Detail Within 25 days
Manufacturing Range Production Line
🚀 Capabilities Since 2003
  • Main Products: Dia 4~100mm DC Micro Motor, Coreless Brushless Motor, Gear Motor, Vibration Motor
  • Voltage Range: 1.5V - 42V (DC); AC rectify: 100V, 110V, 220V, 230V, 240V
  • Speed Range: 1 RPM - 30,000 RPM
  • Stall Torque: 1g.cm - 30kg.cm
  • Primary Applications: Home appliances, Power Tools, Toys & Models, Precision Instruments, Office Equipment, Automotive, Audio & Visual Equipment
Frequently Asked Questions
Q: What is the gearbox diameter of this DC motor? A: This model features a standard 37mm gearbox diameter, suitable for a wide range of industrial and home applications.
Q: Can the rotation direction be adjusted? A: Yes, the motor supports both CW (Clockwise) and CCW (Counter-Clockwise) directions.
Q: What are the main certifications for this product? A: Our products are fully compliant with CE, ROHS, and ISO standards to ensure high quality and safety.
Q: Are the shaft length and specifications customizable? A: Absolutely. We can customize the motor specifications and shaft length to meet specific customer requirements.
Q: What is the typical lead time for delivery? A: Standard delivery is usually completed within 25 days depending on the order volume and customization requirements.
Q: What fields are these motors commonly used in? A: They are widely used in consumer electronics, household appliances, office automation, medical equipment, power tools, and the automotive sector.
