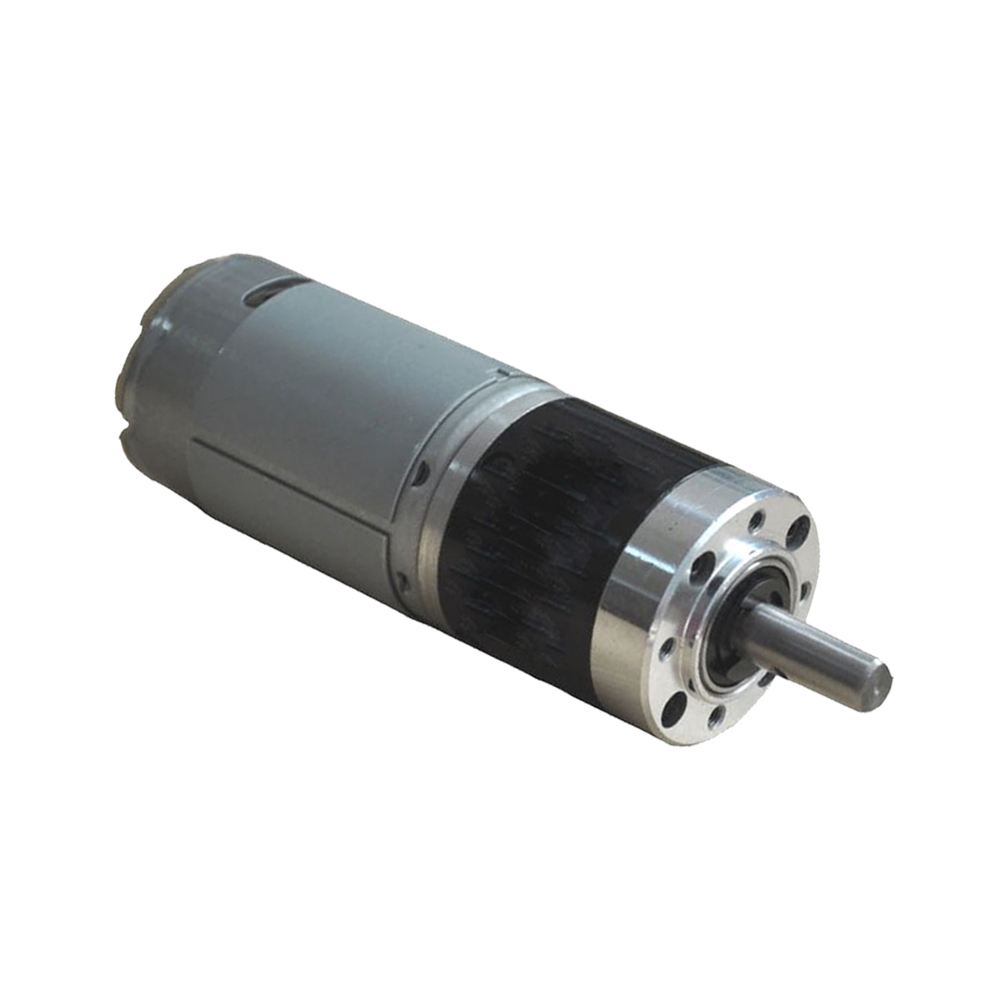

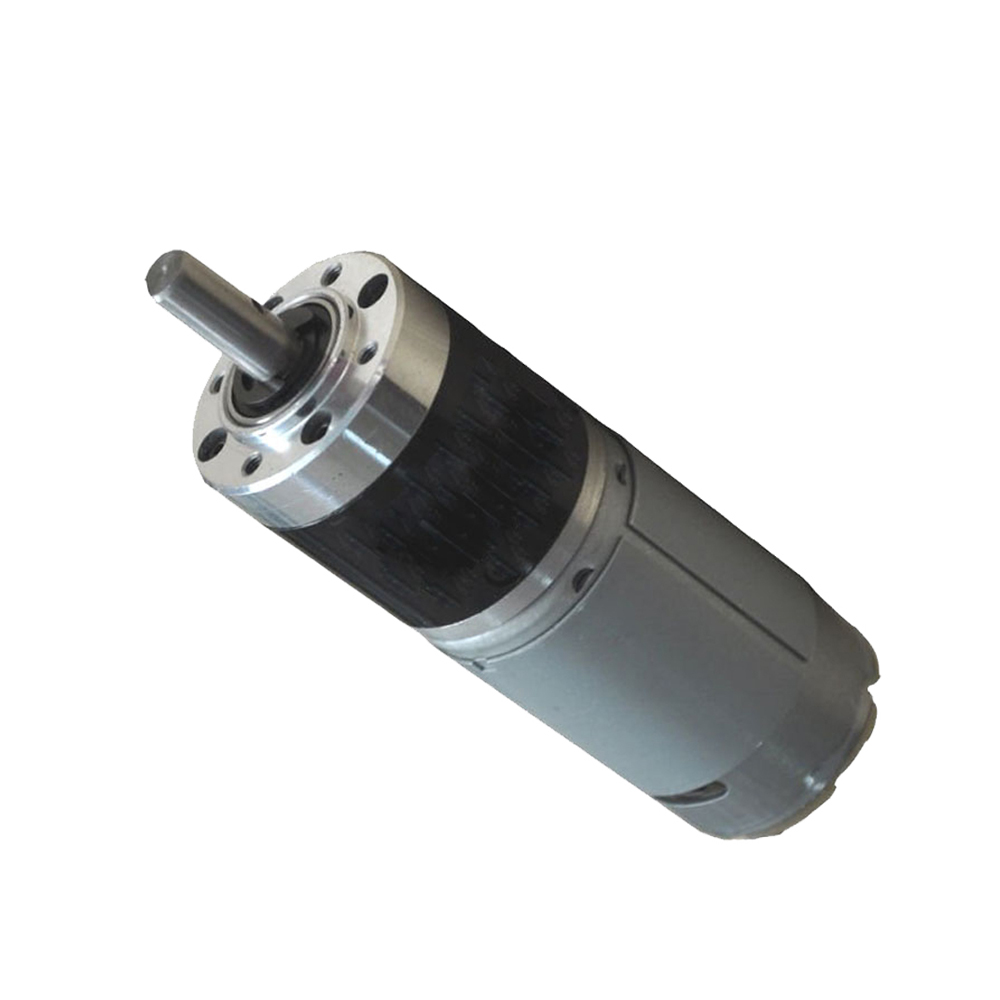

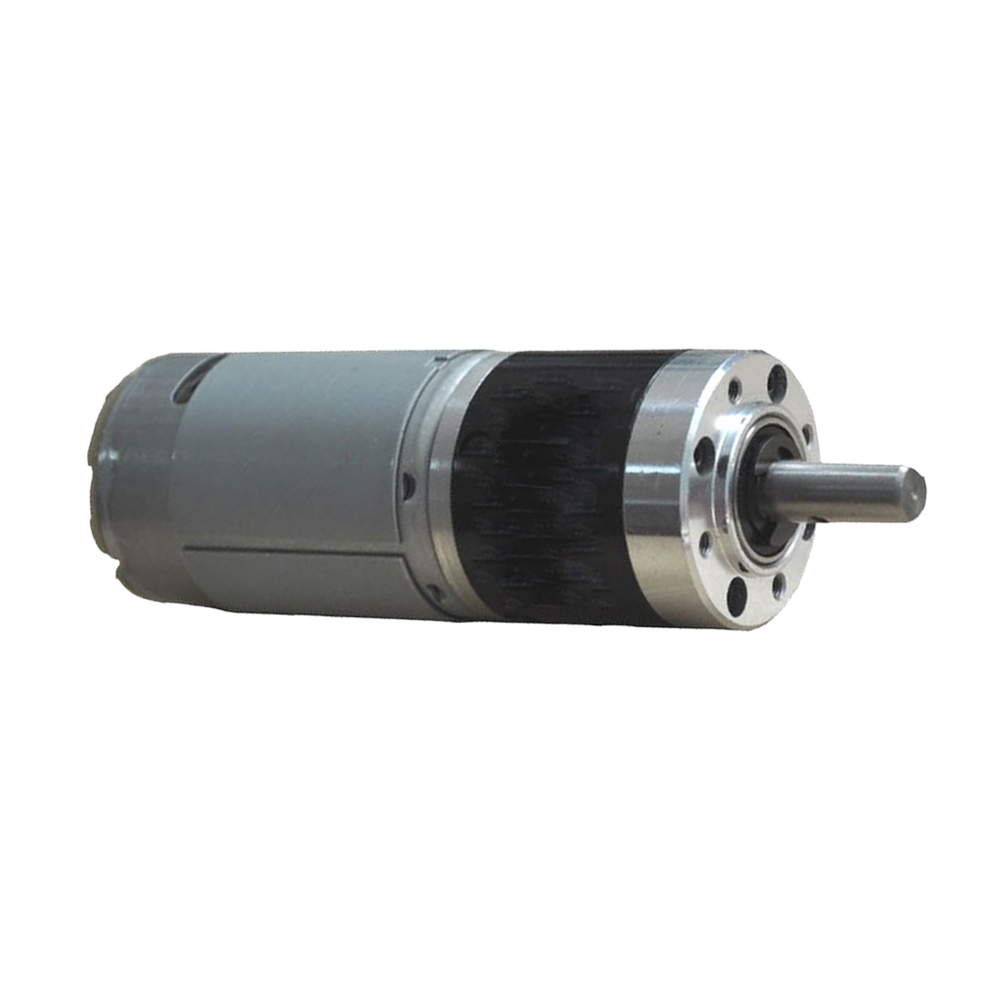

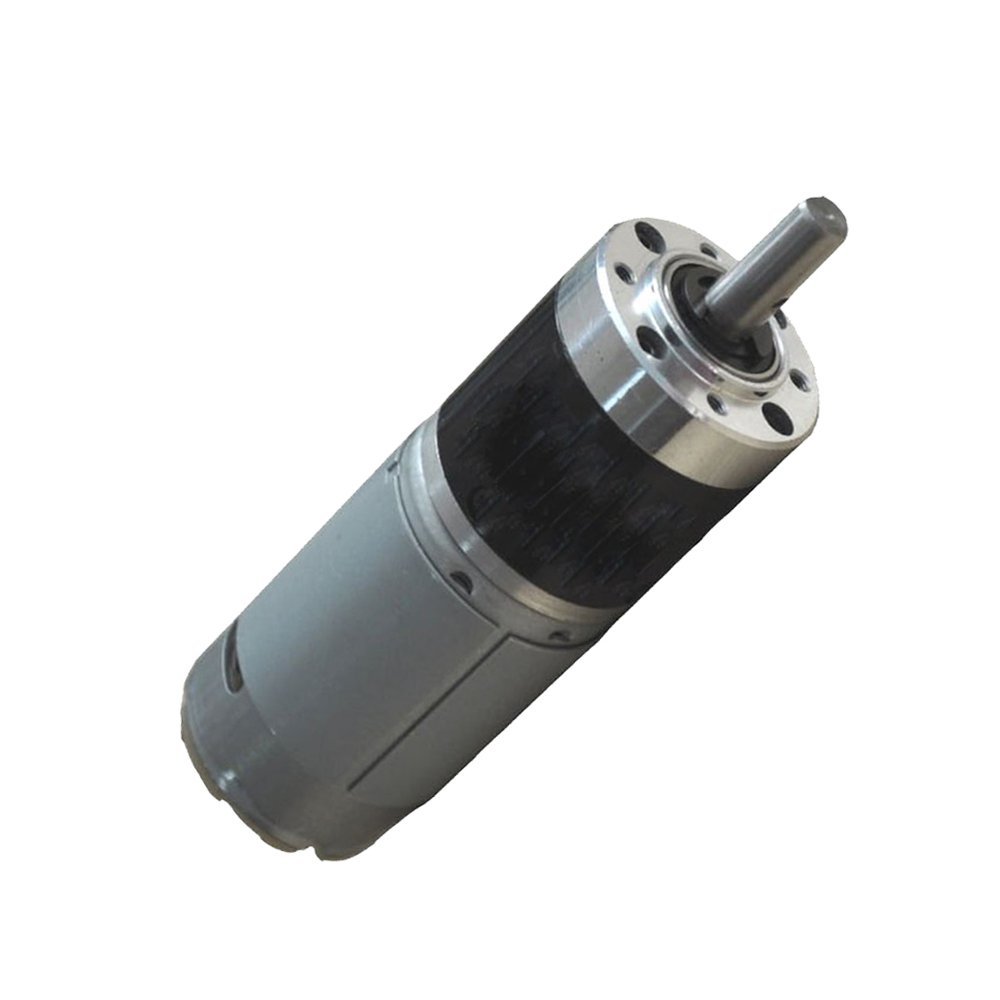

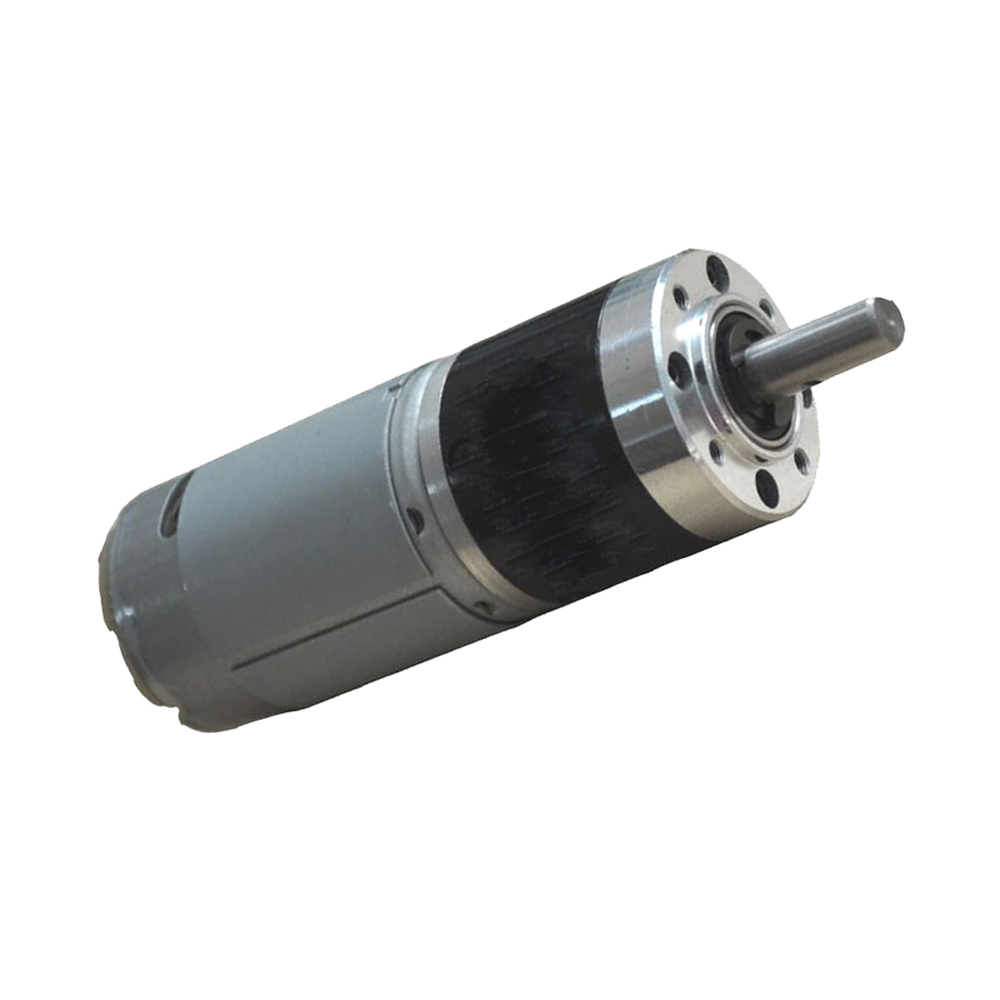

36mm High Torque 5-950rpm 12 v 24v 300w Dc Micro Planetary Gear Motor DPG36-555

Product Description

12 Volt 150W High Torque DC Gear Motor
βš™οΈTechnical Highlights
⚑
Rated Voltage: DC12V
πŸ”„
Speed No load: 30-50RPM
πŸ’ͺ
Torque: 20kg.cm At Max Efficiency
πŸ’Ž
Motor Type: Precious Metal-brush motors
πŸ“
Dimensions: Diameter 36mm, Length 87mm, Shaft 8.0mm
βš–οΈ
Weight: Approx 500g
πŸ”Œ
Output Power: 200W
πŸ€–
Applications: Robots, Home Appliances, Door Locks, etc.

βœ”οΈ Customized performance adjustment available (voltage, speed, torque, etc.)

πŸ“ŠPlanetary Gearbox Specifications
Parameter Details
Reduction Ratio 5 / 14 / 19 / 27 / 51 / 100 / 140 / 188 / 264 / 369 / 516 / 721
Gearbox Length 26.4 - 52.5mm
Rated Torque 3 - 30kg
πŸ“Technical Drawings

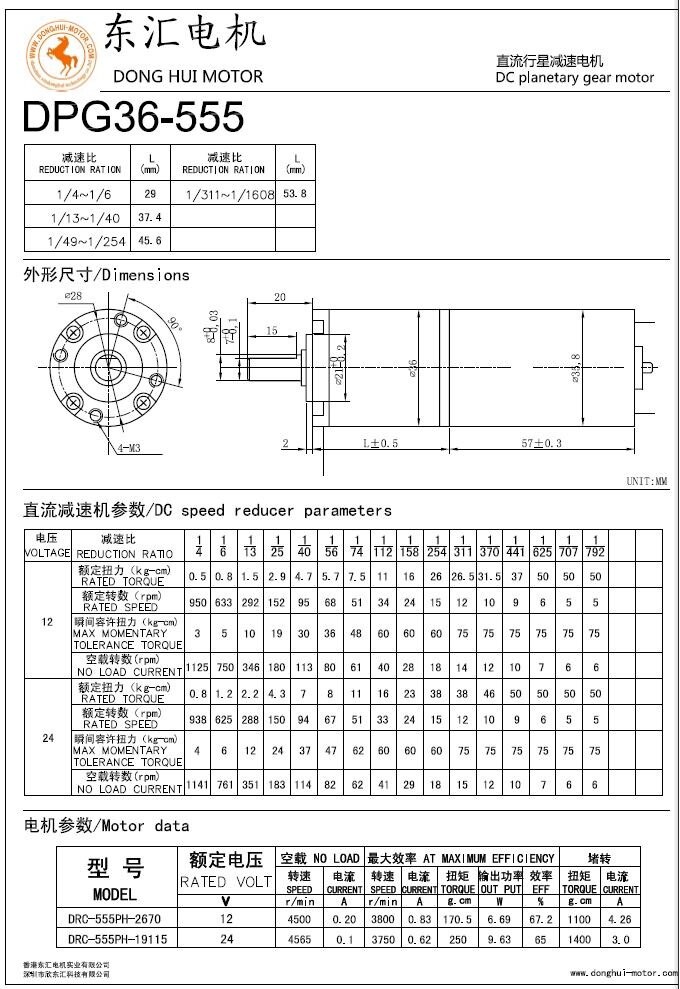

Motor Specifications
🌟Related Products
Related Product 1
Related Product 2
🏭Professional Manufacturing

Founded in 2003, we are a private high-tech enterprise mainly engaged in the design, development, production, sale, and service of precision DC motors and gear motors. Our products are widely applied to robots, intelligent door locks, medical equipment, automobile systems, communication equipment, digital cameras, and domestic appliances.

Our Advantages:
  • 13 years of experience in producing DC motors and DC gear motors.
  • Military-grade enterprise quality assurance, with gears sourced from military enterprises.
  • Strong Production and R&D capabilities.
  • 10 years of export experience to Germany, Japan, and the USA.
Factory View 1
Factory View 2
❓Frequently Asked Questions
What are your main products?
Our main range includes Dia10~52mm DC Micro Motors and Gear Motors, Auto DC motors, Electric motors, Brush DC motors, Brushless DC motors, Spur Gear motors, Vibration motors, and more.
What is the main usage of the micro DC gear motor?
Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Sanitation industry, Banking Systems, automation industry, vending machines, and electric power locks.
Do you accept customization?
Yes, we have a strong design team to provide technical solutions and customized motor performance to meet your specific requirements.
What data should I provide for an order?
Please provide the required voltage, speed, torque, and overall dimensions for your application.
What if I don't know the specific technical data?
Please contact our technical team; we will guide you through the selection process and answer your questions patiently.
Is there a guarantee on product quality?
As a high-tech enterprise with over 13 years of experience, we maintain strict quality control standards to ensure reliable performance.
