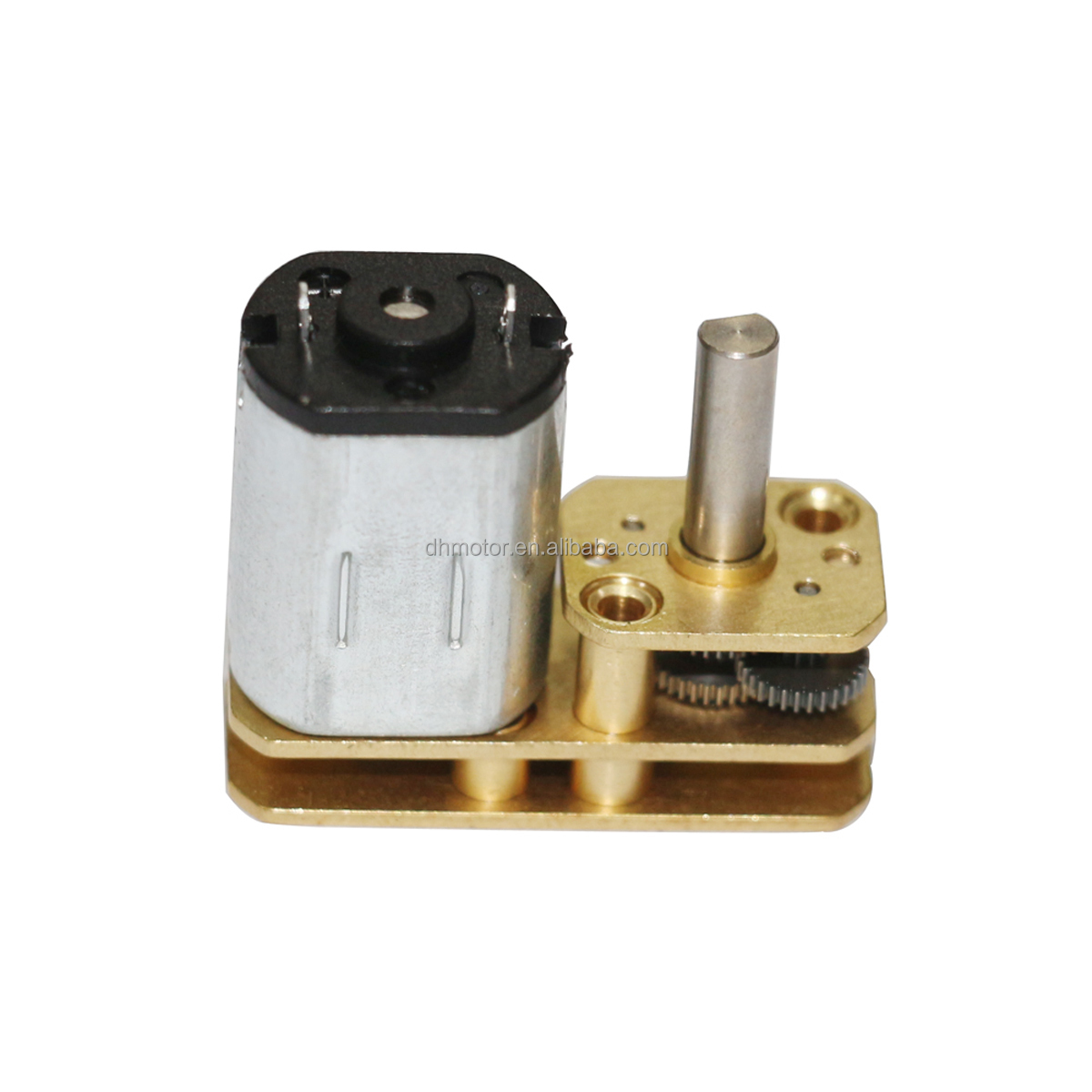

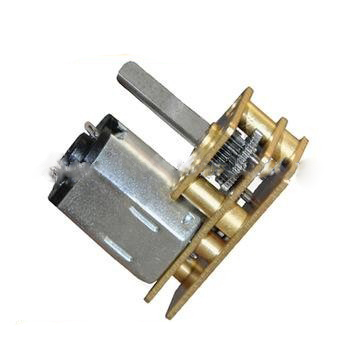

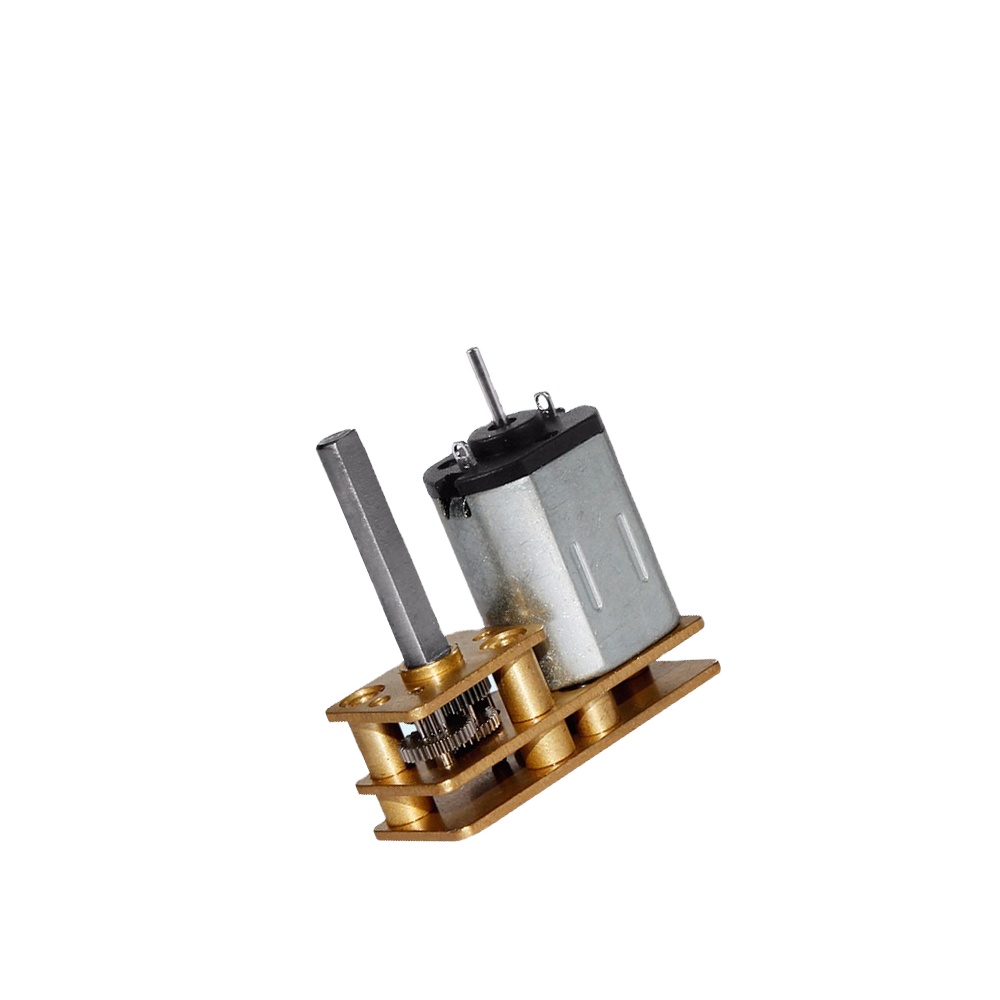

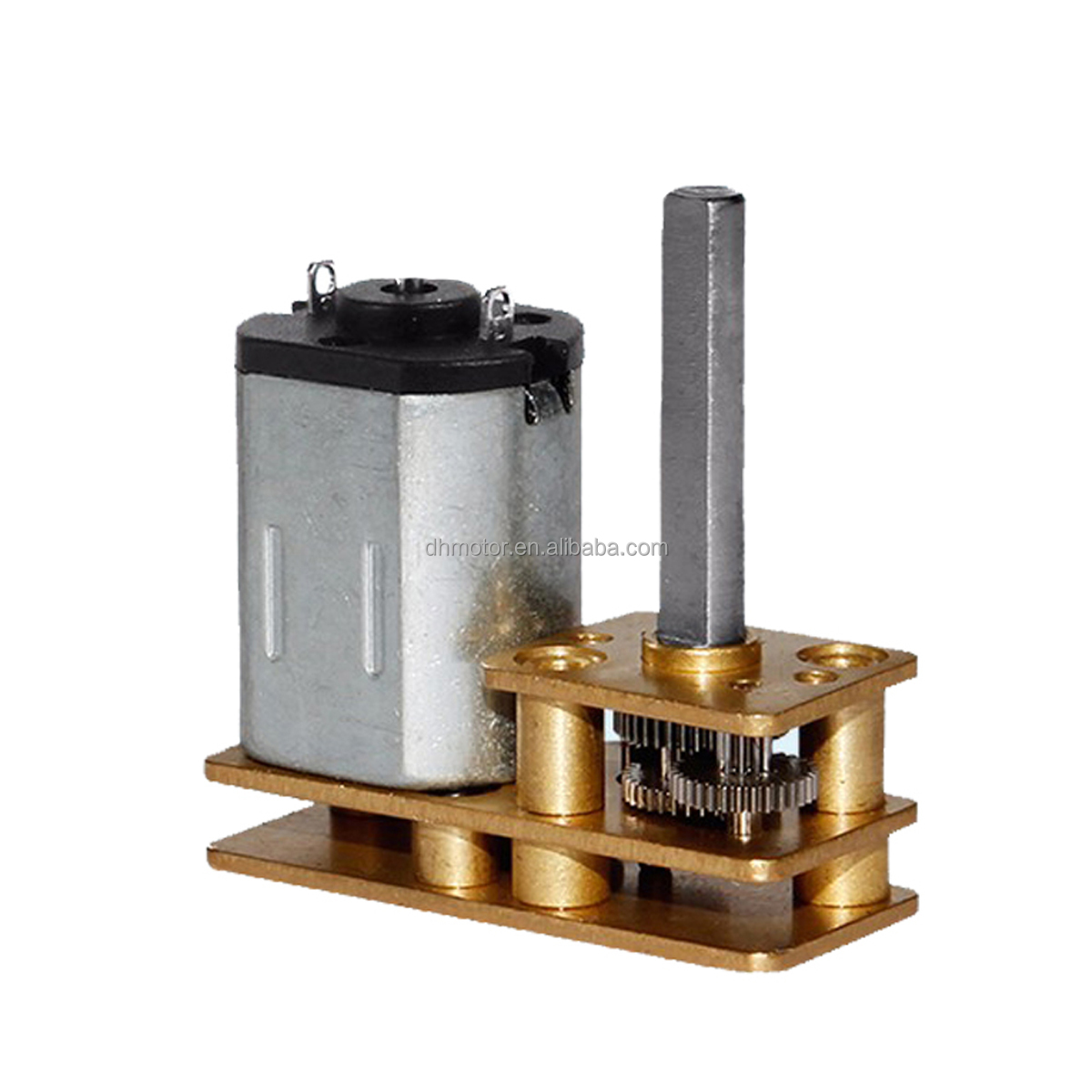

24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree
24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree
24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree
24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree
24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree
1 / 5
24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree
24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree
24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree
24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree
24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree

24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree

Send Inquiry

Product Description

Quick Details
Model Number DGA24-N20 Type Micro Motor
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance Certification ROHS, ISO
Torque 100-3500 G.cm Construction Permanent Magnet
Commutation Brush Protect Feature Drip-proof
Speed(RPM) 6-1000 RPM Voltage(V) 1.5-12 v
Output Power 1-5 W Efficiency IE 1
Shaft Dia 2.0mm Weight 10g
No Load Speed 100 rpm Application Electric lock, robot
Product Display
24mm DC Gear Motor
Right Angle Gear Motor

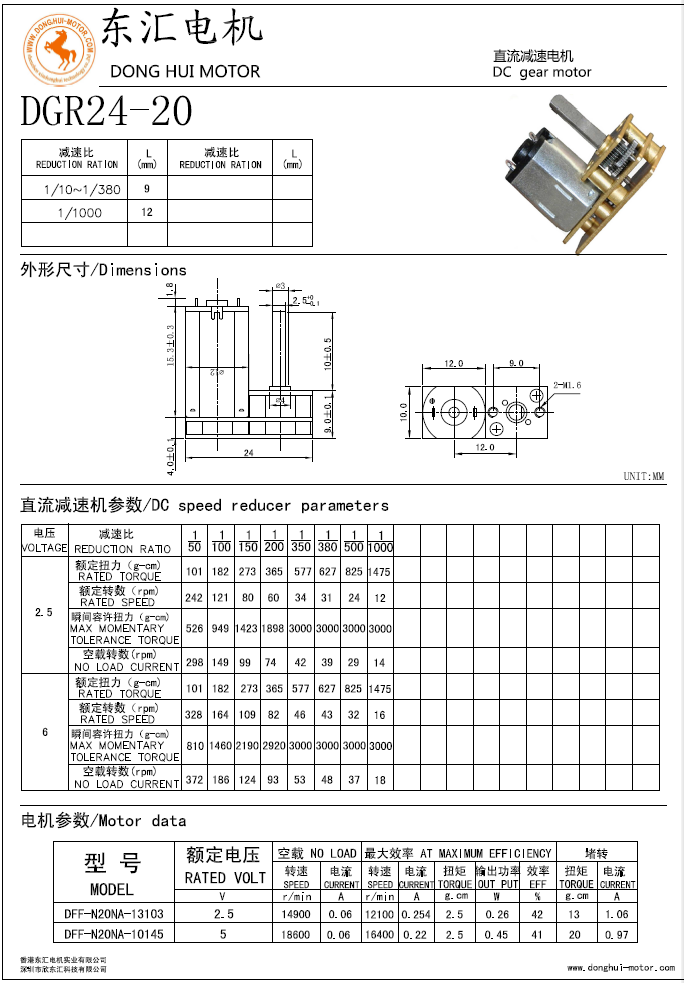

Micro DC Brush Gear Motor
Specifications & Features
⚙️
Versatile Performance
Rated Voltage: 1.5-12V, Speed: 10-2000RPM. Can be equipped with encoder for precise control.
🔇
Low Noise Operation
Electric motor designed for low noise, low current consumption, and spark-free performance.
📉
Multiple Reduction Ratios
Available ratios: 1/3, 1/50, 1/100, 1/298, 1/300, 1/1000.
📏
Compact Design
Ultra-small footprint: 12.0 * 24.0 * 10.0mm, ideal for space-constrained applications.
Wide Applications
Widely used in: Robot, Lock, Auto shutter, USB fan, Slot machine, Money detector, Coin refund devices, Currency count machine, Towel dispensers, Automatic doors, Peritoneal machine, Automatic TV rack, Office equipment, and Household appliances.
Packaging & Delivery
Packaging Details 80PCS/TRAY, 1200PCS/CTN, CARTON DIMENSION: 11*9*6.75 INCH
Delivery Detail Within 25 days
Manufacturing Excellence

Since 2003, our production facility has been committed to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, and medical equipment.

Production Line
Factory Overview

Voltage Range: 1.5V - 42V (AC rectify: 100V-240V)
Speed Range: 1 RPM - 30,000RPM
Stall Torque: 1g.cm - 30kg.cm

Frequently Asked Questions
What is the standard voltage for this gear motor?
The motor operates within a range of 1.5V to 12V DC, making it compatible with various battery and power supply configurations.
Is the speed of the motor adjustable?
Yes, we offer multiple reduction ratios ranging from 1/3 to 1/1000, allowing for output speeds between 6 and 1000 RPM.
Can this motor be used in robotics?
Absolutely. It is specifically designed for robotics, electric locks, and precision office equipment due to its compact size and reliable torque.
What is the typical lead time for an order?
Standard production and delivery are completed within 25 days. Samples can be provided upon request for testing.
Does the motor support external sensors?
Yes, the DGA24 series can be equipped with an encoder to provide feedback for speed and position control.
What is the minimum order quantity (MOQ)?
The standard MOQ for this model is 100 pieces, which allows us to maintain efficient production and competitive pricing.
