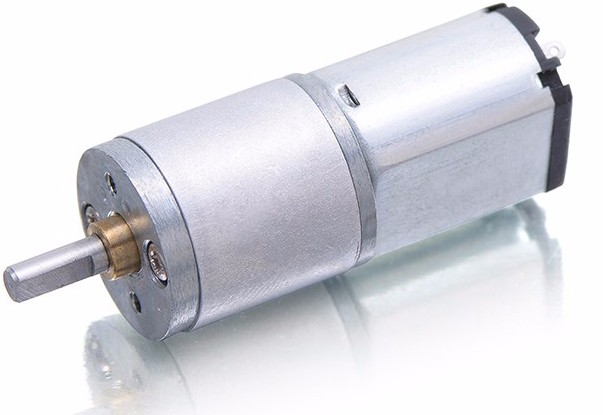

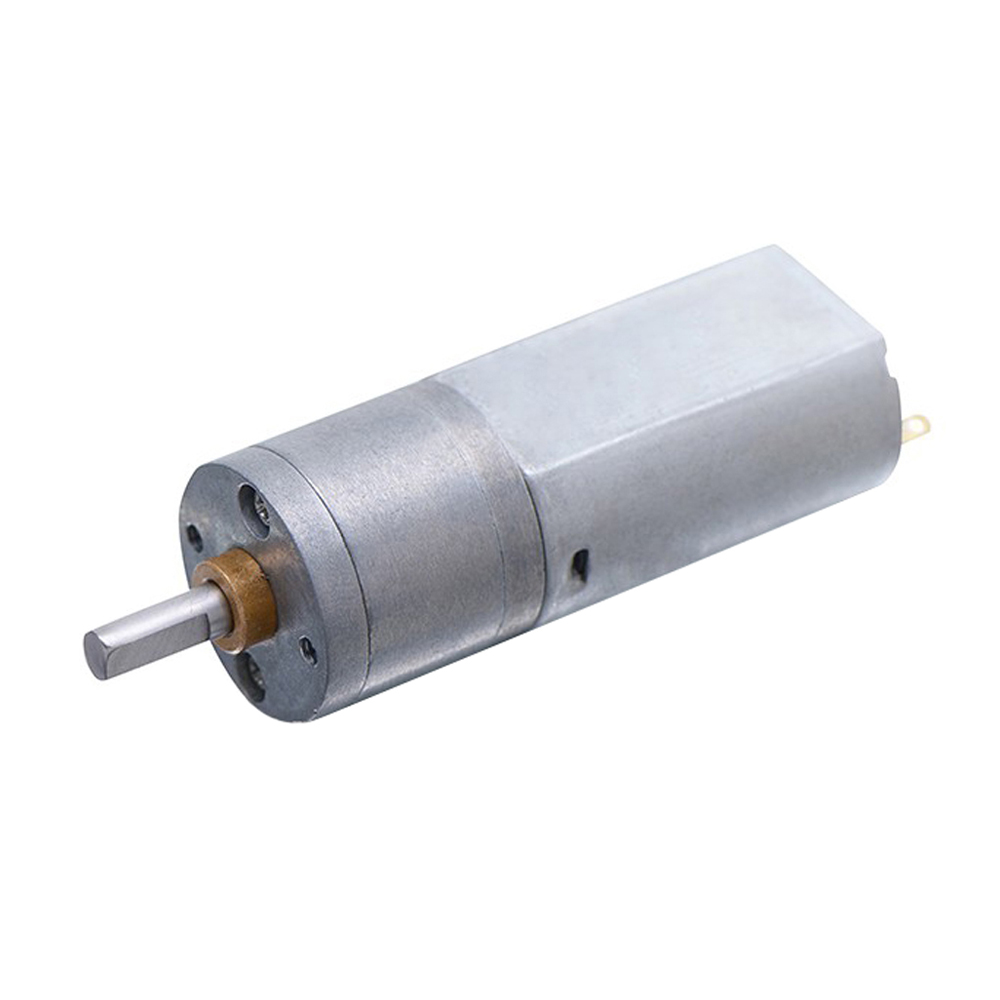

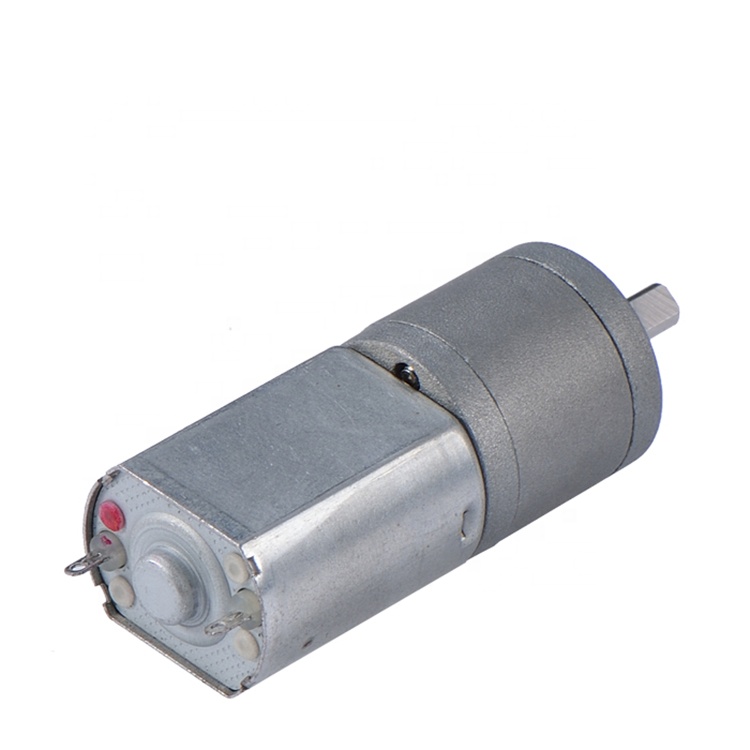

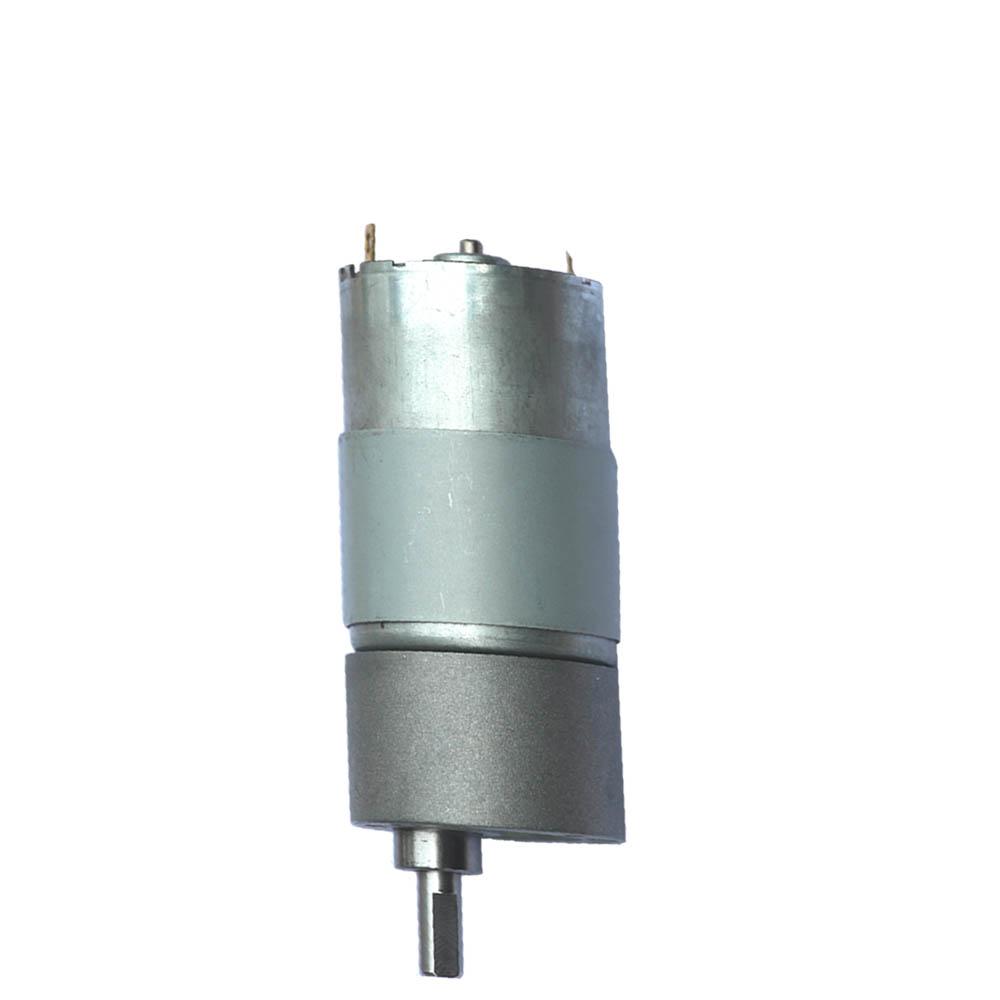

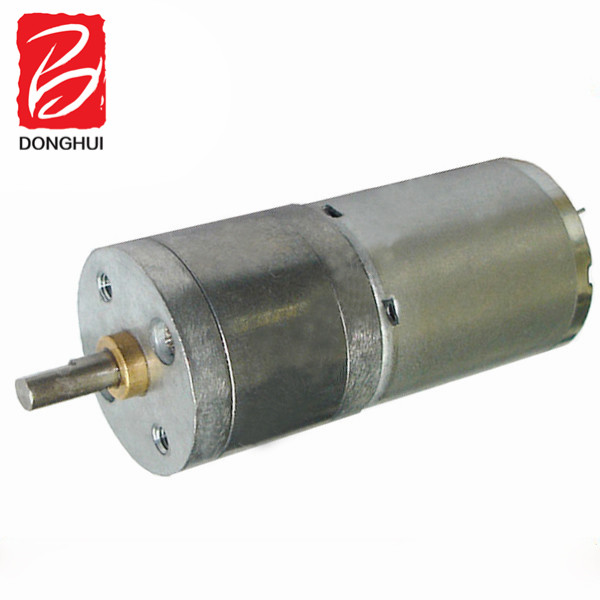

3-24v Diameter 16mm 20mm 25mm 37mm Electric Dc Micro Gearbox Motor for Cordless Screwdriver
3-24v Diameter 16mm 20mm 25mm 37mm Electric Dc Micro Gearbox Motor for Cordless Screwdriver
3-24v Diameter 16mm 20mm 25mm 37mm Electric Dc Micro Gearbox Motor for Cordless Screwdriver
3-24v Diameter 16mm 20mm 25mm 37mm Electric Dc Micro Gearbox Motor for Cordless Screwdriver
3-24v Diameter 16mm 20mm 25mm 37mm Electric Dc Micro Gearbox Motor for Cordless Screwdriver
1 / 5
3-24v Diameter 16mm 20mm 25mm 37mm Electric Dc Micro Gearbox Motor for Cordless Screwdriver
3-24v Diameter 16mm 20mm 25mm 37mm Electric Dc Micro Gearbox Motor for Cordless Screwdriver
3-24v Diameter 16mm 20mm 25mm 37mm Electric Dc Micro Gearbox Motor for Cordless Screwdriver
3-24v Diameter 16mm 20mm 25mm 37mm Electric Dc Micro Gearbox Motor for Cordless Screwdriver
3-24v Diameter 16mm 20mm 25mm 37mm Electric Dc Micro Gearbox Motor for Cordless Screwdriver

3-24v Diameter 16mm 20mm 25mm 37mm Electric Dc Micro Gearbox Motor for Cordless Screwdriver

Send Inquiry

Product Description

Product Description
Model DC Brush Motor
Diameter 16/20/25/37mm
Voltage 3-24V
Torque 0.5-5kg.cm
12v Dc Low Power Dc Gearbox Motor For Cordless Screwdriver
  • Rated Voltage: DC 12V
  • Speed No load: Customized
  • 5kg.cm Torque At Max Efficiency
  • Precious Metal-brush motors
  • Diameter 16mm, length 29.8mm, shaft 3.0mm
  • Weight: 51g Approx
  • Output power: 0.3~1.5W
  • Application: Robot, Home Appliance, Door Lock, etc.
  • Customized: Performance adjustment available (voltage, speed, torque, etc.)
Specifications & Dimensions

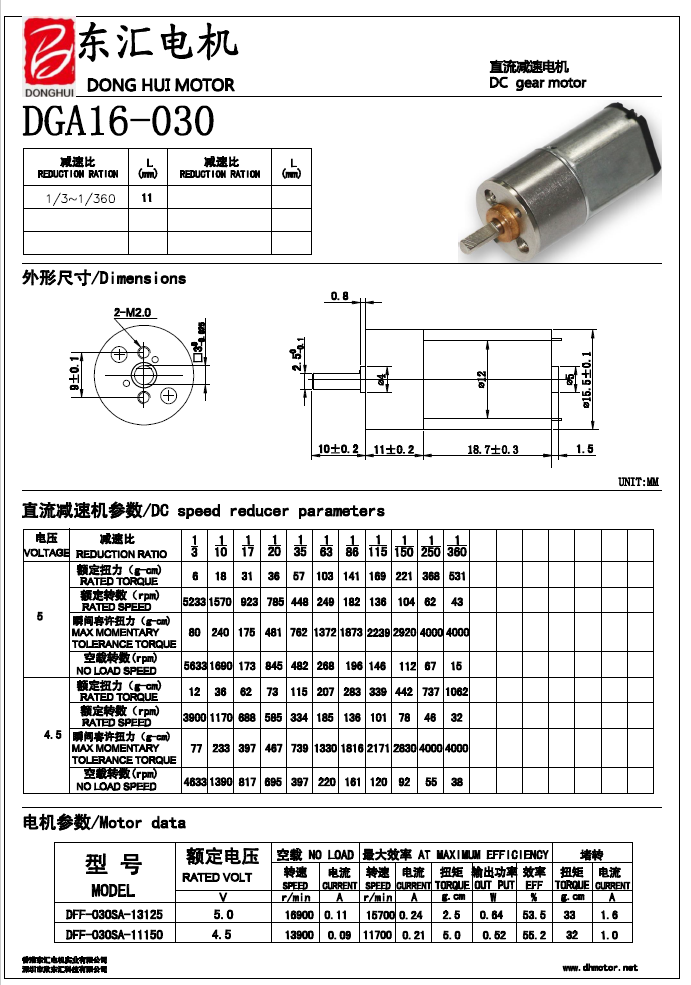

Motor Spec 1

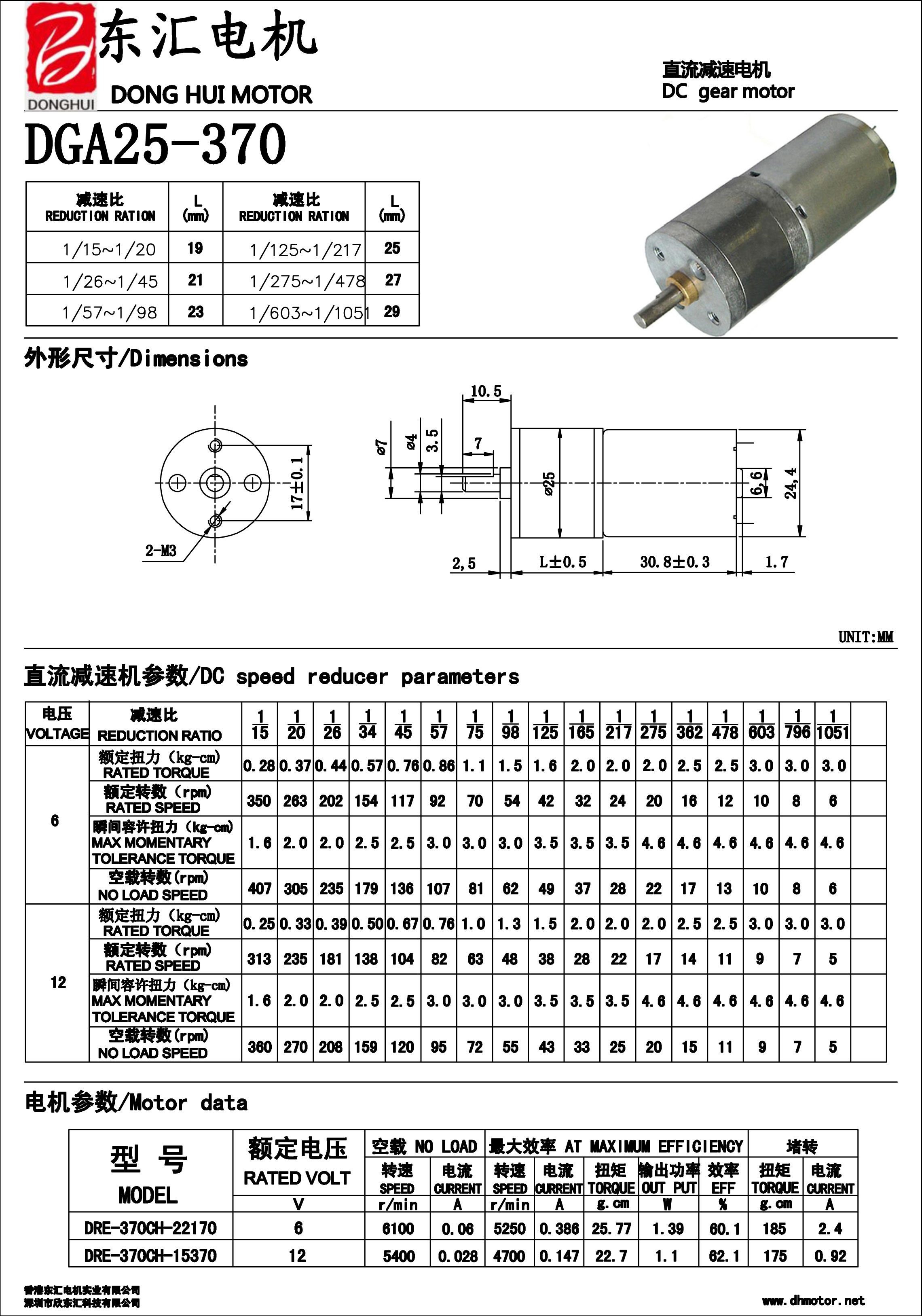

Motor Spec 2
Motor Spec 3
Motor Spec 4
Our Core Advantages

Founded in 2003, we are a private high-tech enterprise mainly engaged in the design, development, production, sale, and service of precision DC motors and gear motors.

Our products are widely applied to robots, intelligent door locks, medical equipment, automobile systems, communication equipment, digital cameras, and domestic appliances.

  • 13 years of experience in producing DC motors and DC gear motors.
  • Quality assurance with military-grade precision gears.
  • Strong Production and R&D Capability.
  • 10 years of export experience in Germany, Japan, and the USA.
Production Facility 1
Production Facility 2
Certifications
Certificates
Frequently Asked Questions
What are your main products?
Our main products include Dia10~52mm DC Micro Motors and Gear Motors, Auto DC motors, Electric motors, Brush/Brushless DC motors, Spur Gear motors, Vibration motors, and more.
What is the main usage of the micro DC gear motor?
They are widely used in Home Appliances, Office Equipment, Health-care appliances, Banking Systems (vending machines, payment equipments), and automation industries like power door locks.
Do you accept customization for the motors?
Yes. We have a strong design team to handle performance adjustments including voltage, speed, torque, and dimensions to meet your specific requirements.
What data should I provide to place an order?
Please provide the required voltage, speed, torque, and overall physical dimension constraints for your application.
What if I am unsure about the technical specifications needed?
Please contact our technical sales team. We will guide you through the selection process and help define the parameters suitable for your project.
What is the typical lead time for customized samples?
Lead times vary based on the level of customization. Generally, standard samples are processed quickly, while complex modifications are scheduled according to R&D requirements.
